Nocturn Industries Talon - Ultralight Night Vision Monocular

Name: Nocturn Industries Talon – Ultralight Night Vision Monocular
Availability: InStock

Custom Night Vision offers the Nocturn Industries Ultralight Night Vision Monocular (UNVM) Talon with the following tube options:

From the dropdown menu you can sell which tube manufacture and which actual set of tubes you would like to order. Actual specs and photos of each in stock unit are in the drop down menus (please note: color shade of blue/green is due to photo lighting, all tubes will actually be the same light blue in color).

Don’t want to pick your own tube? No worries, just select the Handpicked Option.

Handpicked Option – Select this if you want Custom Night Vision to select intensifier tubes for you instead of selecting a set from our inventory. We will contact you (typically within 24-48 hours of placing your order) with pictures and specs of tubes we select to ask for your approval. If you have preferences on certain specs (ie: SNR, EBI etc…) please include those in your order notes and we will do our best to meet your goal. After customer tube approval the night vision unit will be ready to ship within 1 to 3 business days.

We offer Six choices of Optics:

Brightpath Optics (Built to Mil Spec) – Outstanding value of high quality optics that combine ground and aviation elements; company led by Key Member of Former Qioptiq Excelitas Company. Weight: 3.8 ounces per set.
Standard Mil-Spec Optics – NVD Cage Code – High quality Mil-Spec Optics (Typically Fuji). Found on most Mil-Spec PVS-14 Units. Weight: 4.5 ounces per set.
Standard Mil-Spec Optics – Noctis (Formerly Carson) Cage Code – These are identical to our NVD Cage Code optics (Typically Fuji), but have the Cage Code of Noctis (Former Carson). Weight: 4.5 ounces per optic set.
Rochester Precision Optics (RPO) 3.0 Ultralight – These are the most popular lightweight optic option. They are >45% lighter than Standard Mil-Spec Optics. Weight: 2.4 ounces per optic set.
Photonis Defense Boomslang 50 Degree FOV – Lightweight 50 Degree optic system. Weight: 3.5 ounces per optic set
Act in Black 50-Degree FOV – 50 degree optic system offering minimal resolution loss. Weight: 4.7 ounces per optic set.

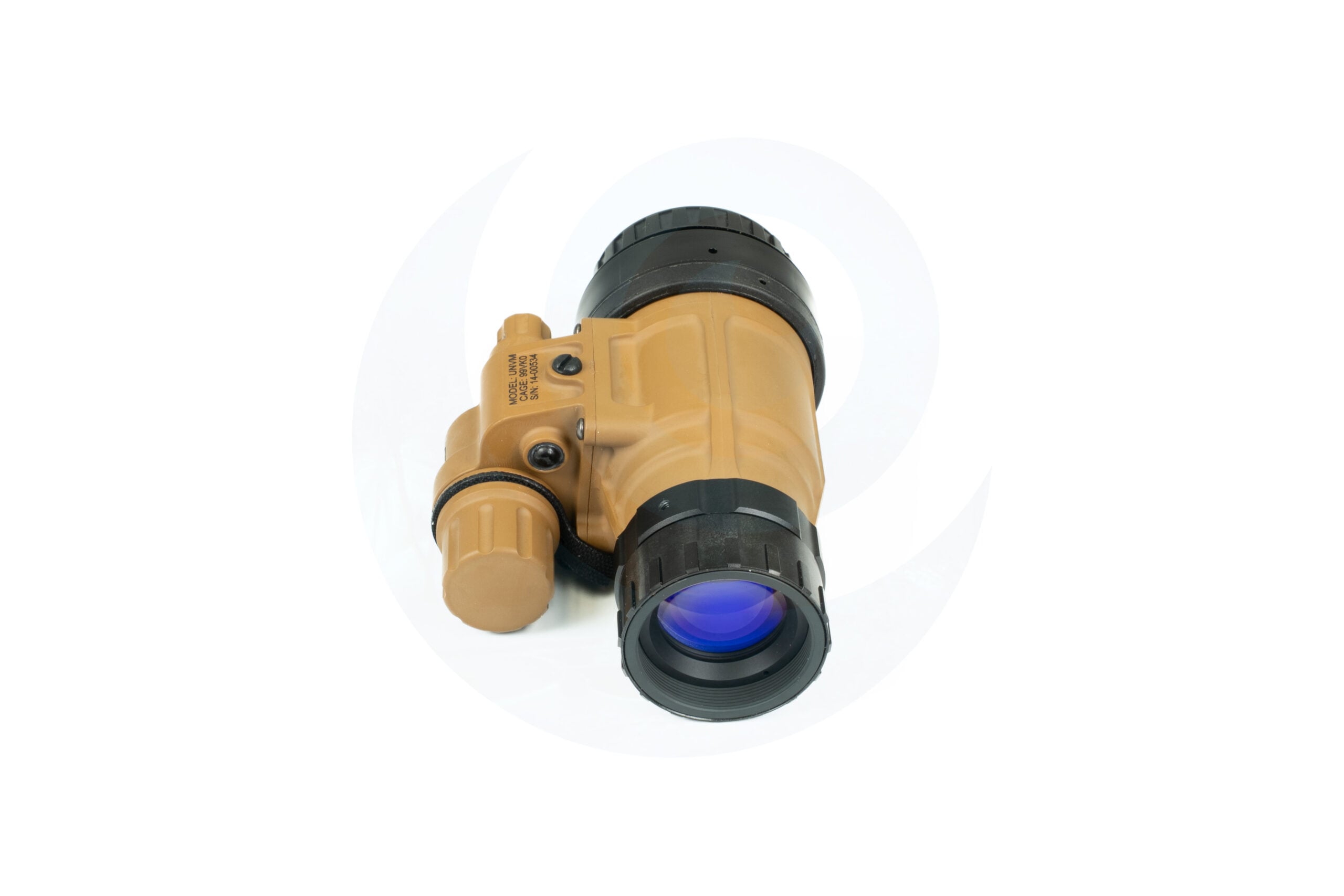

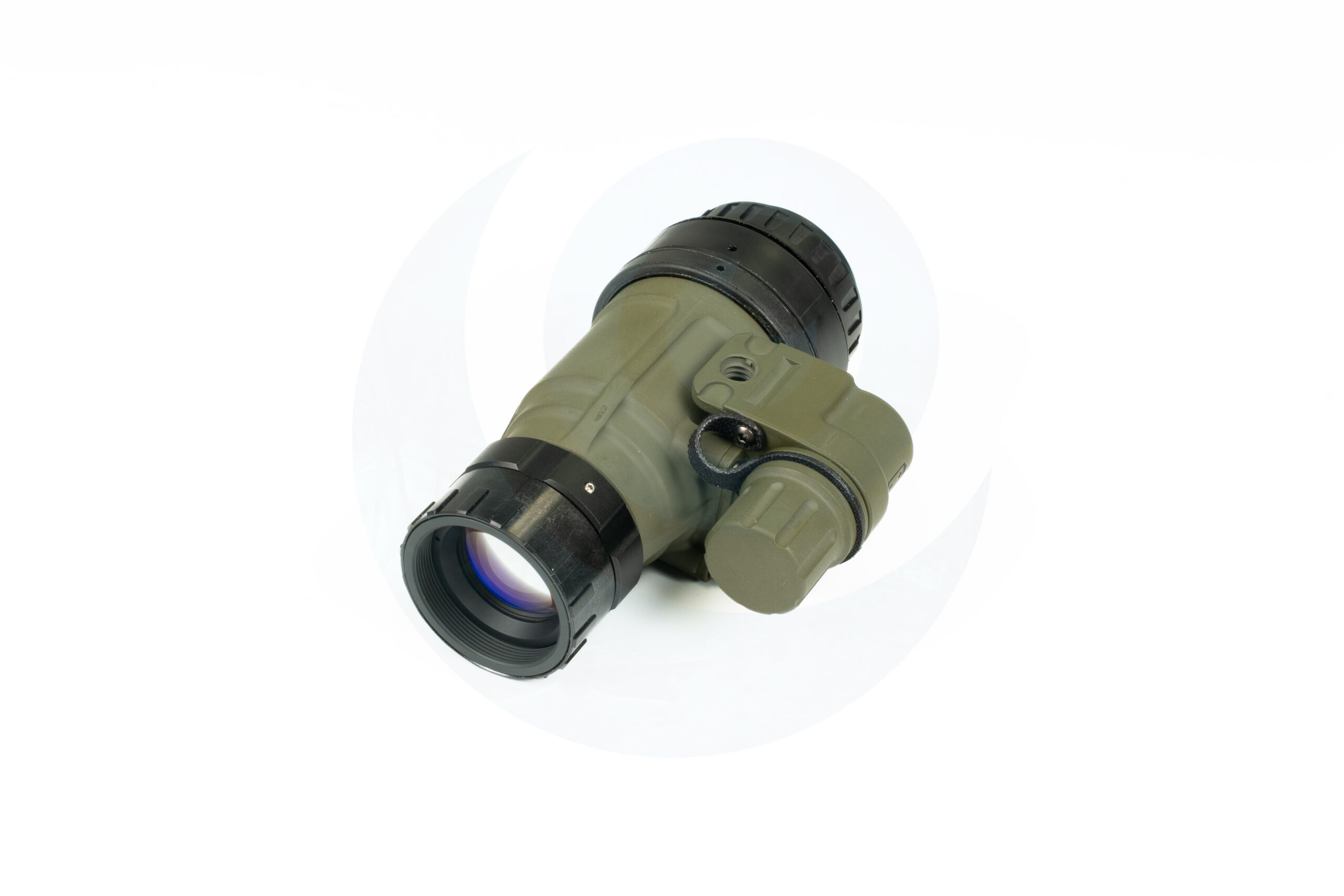

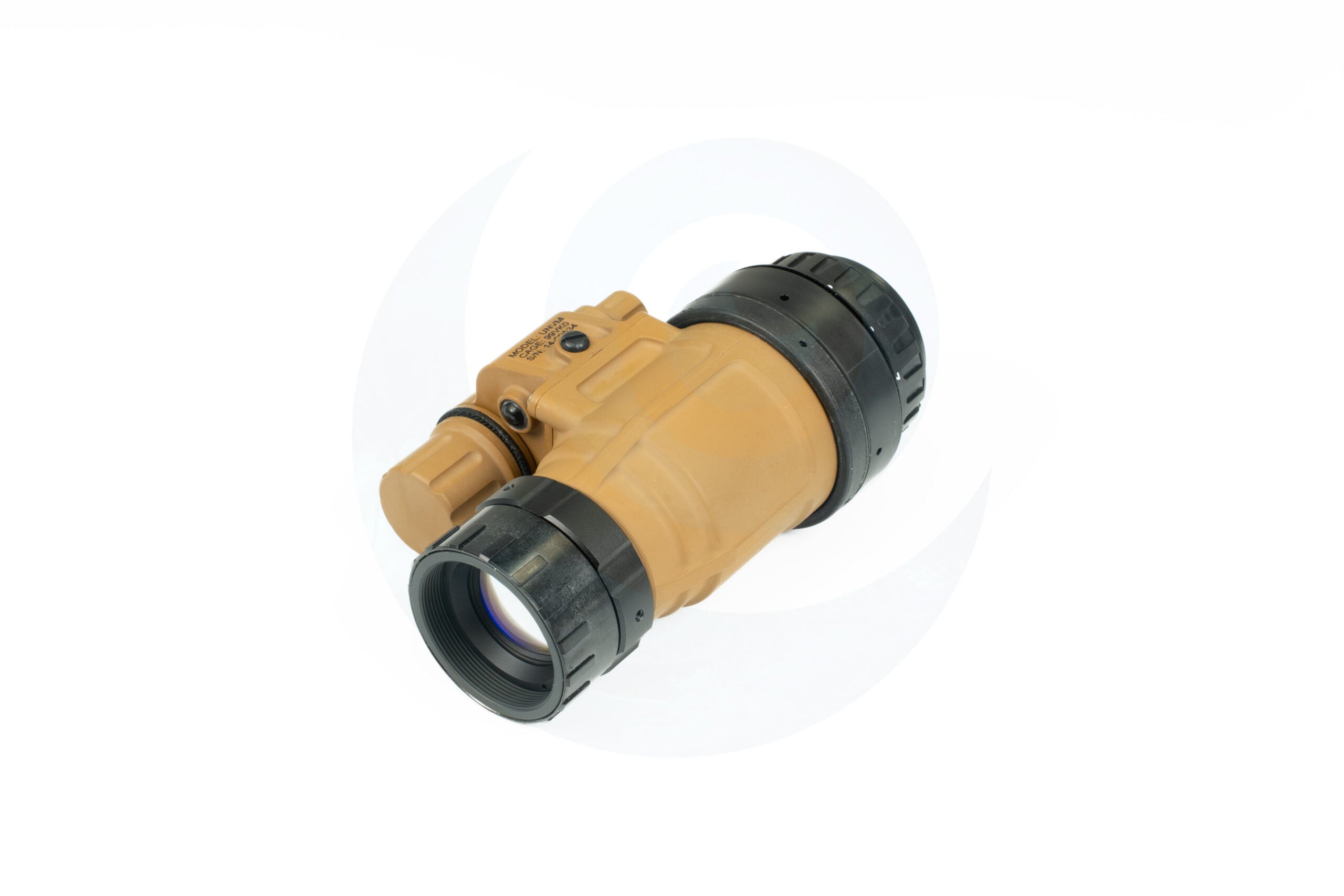

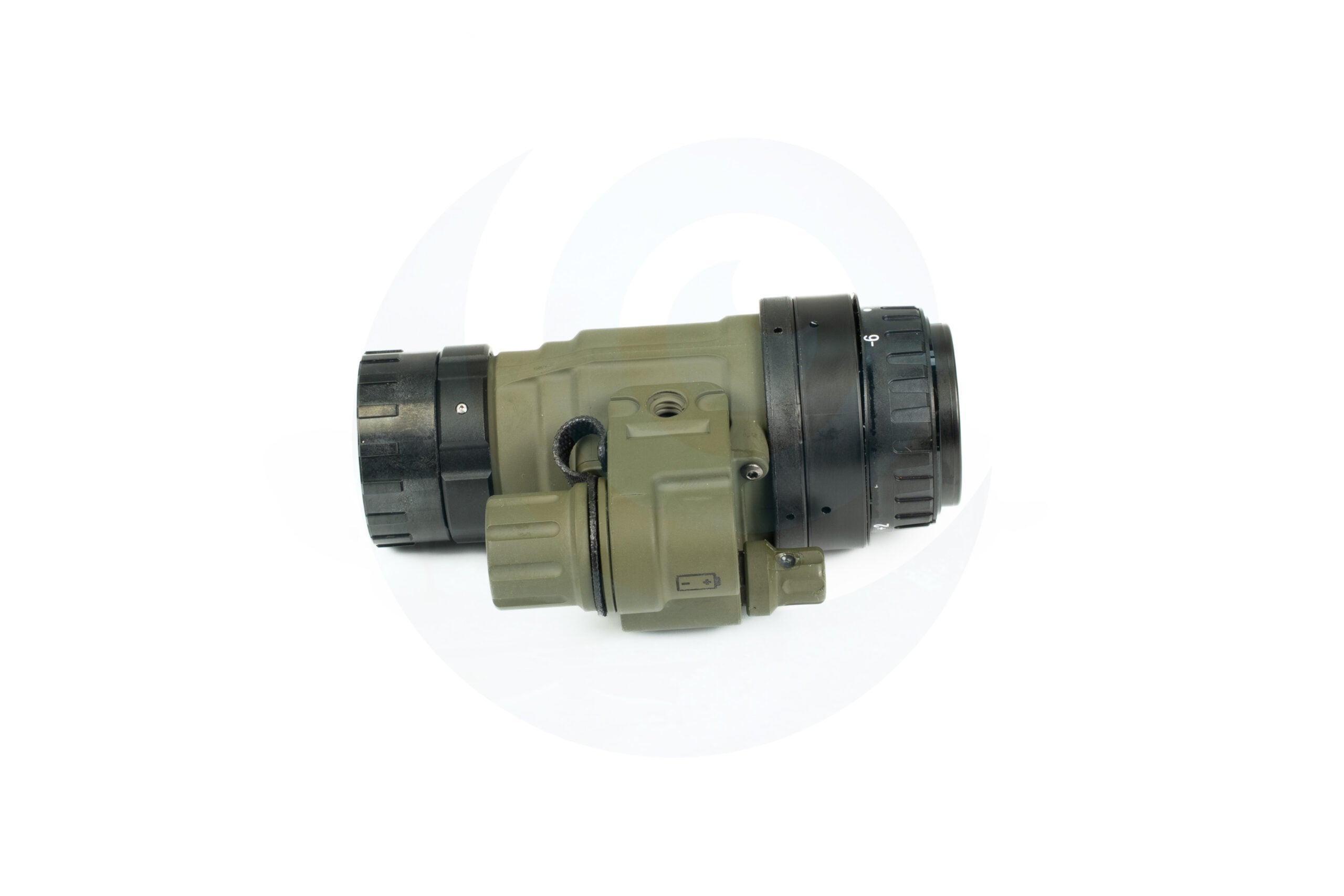

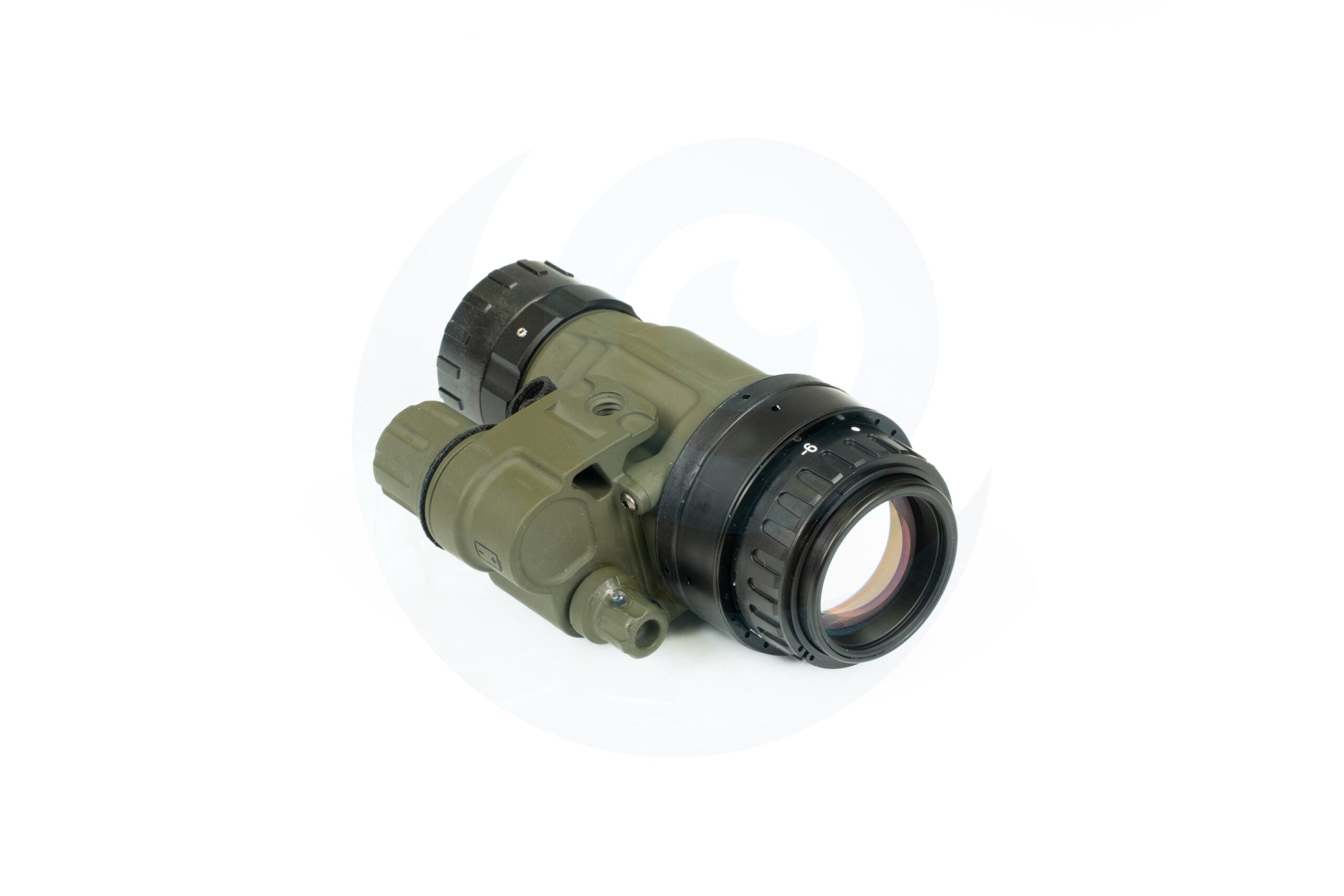

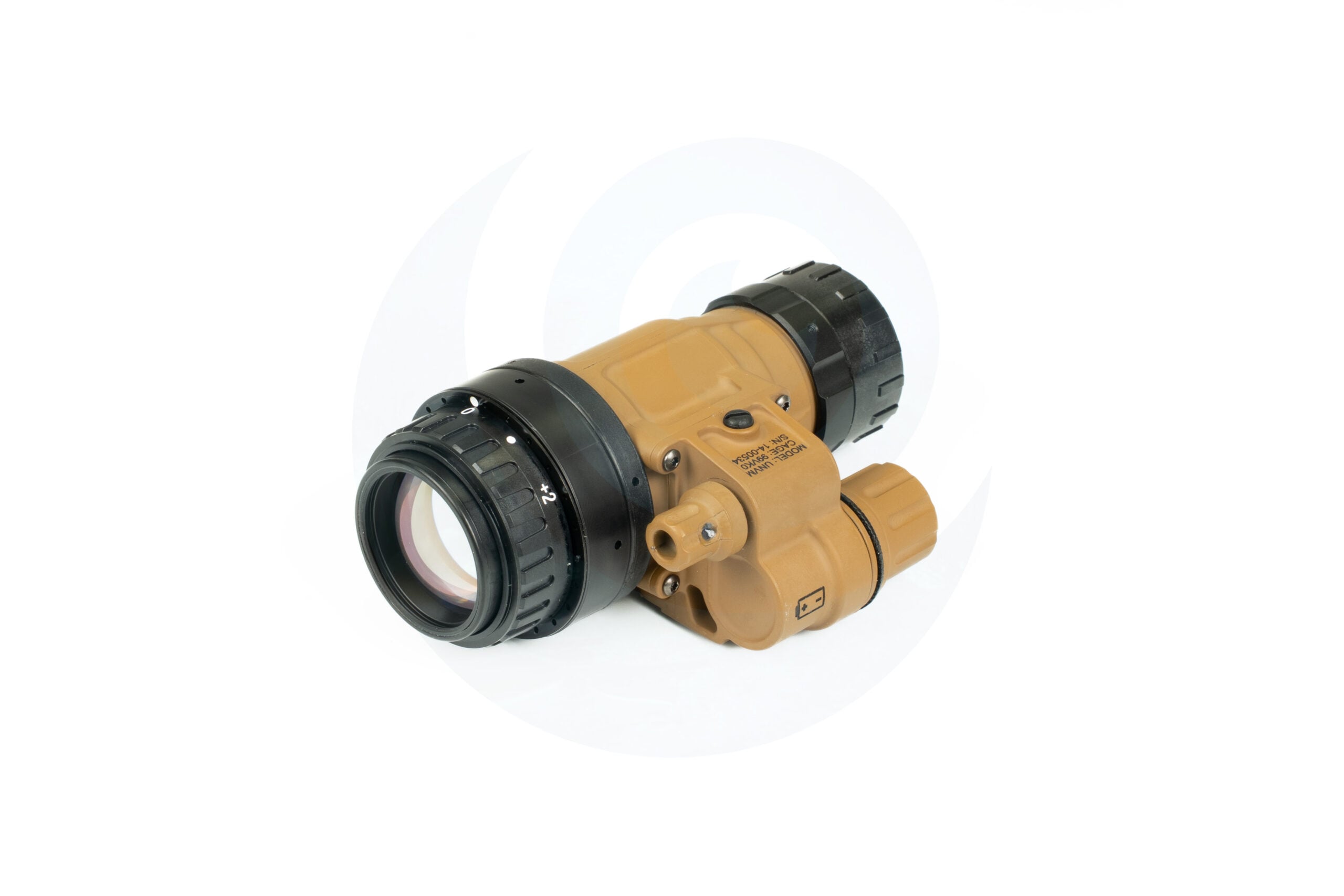

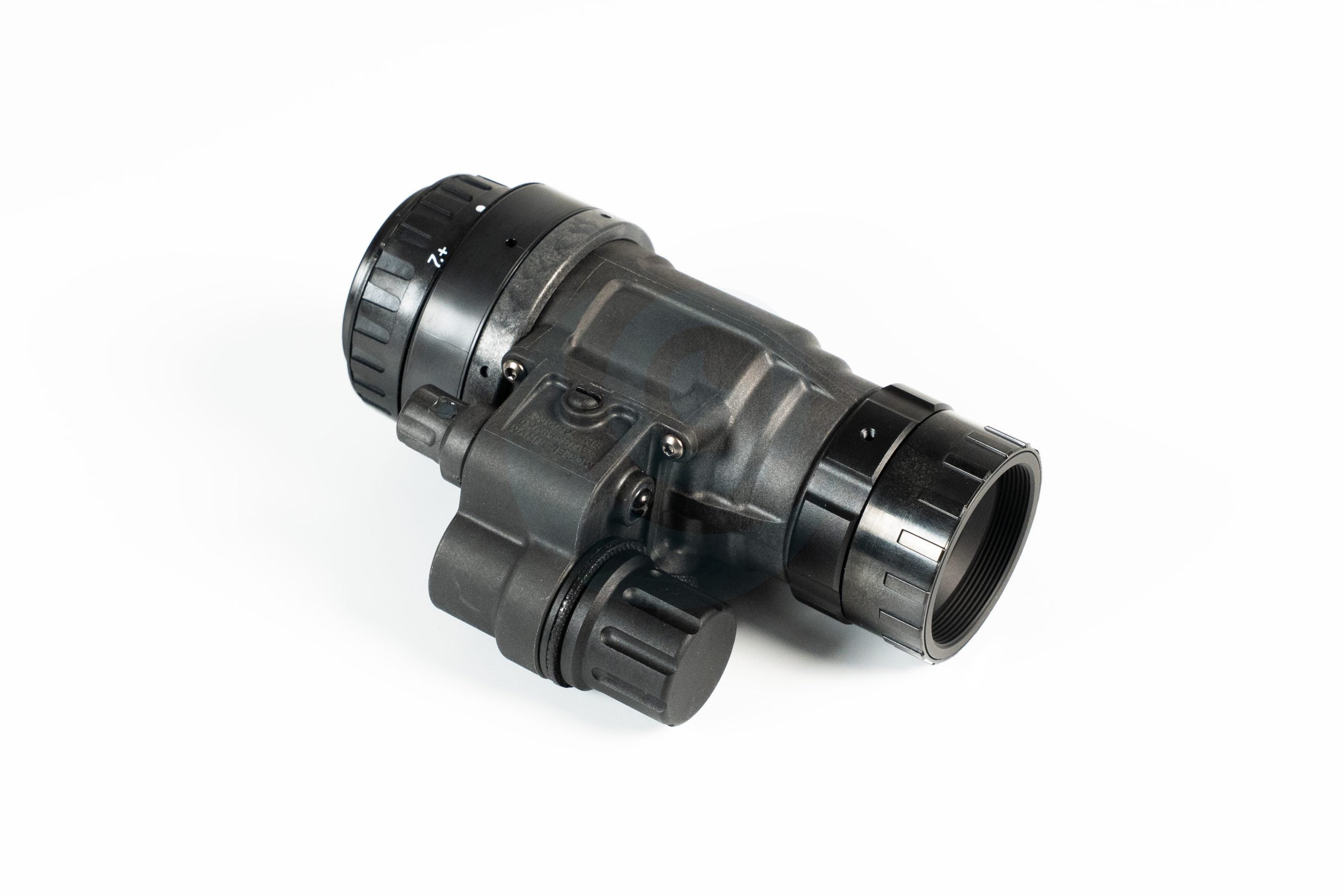

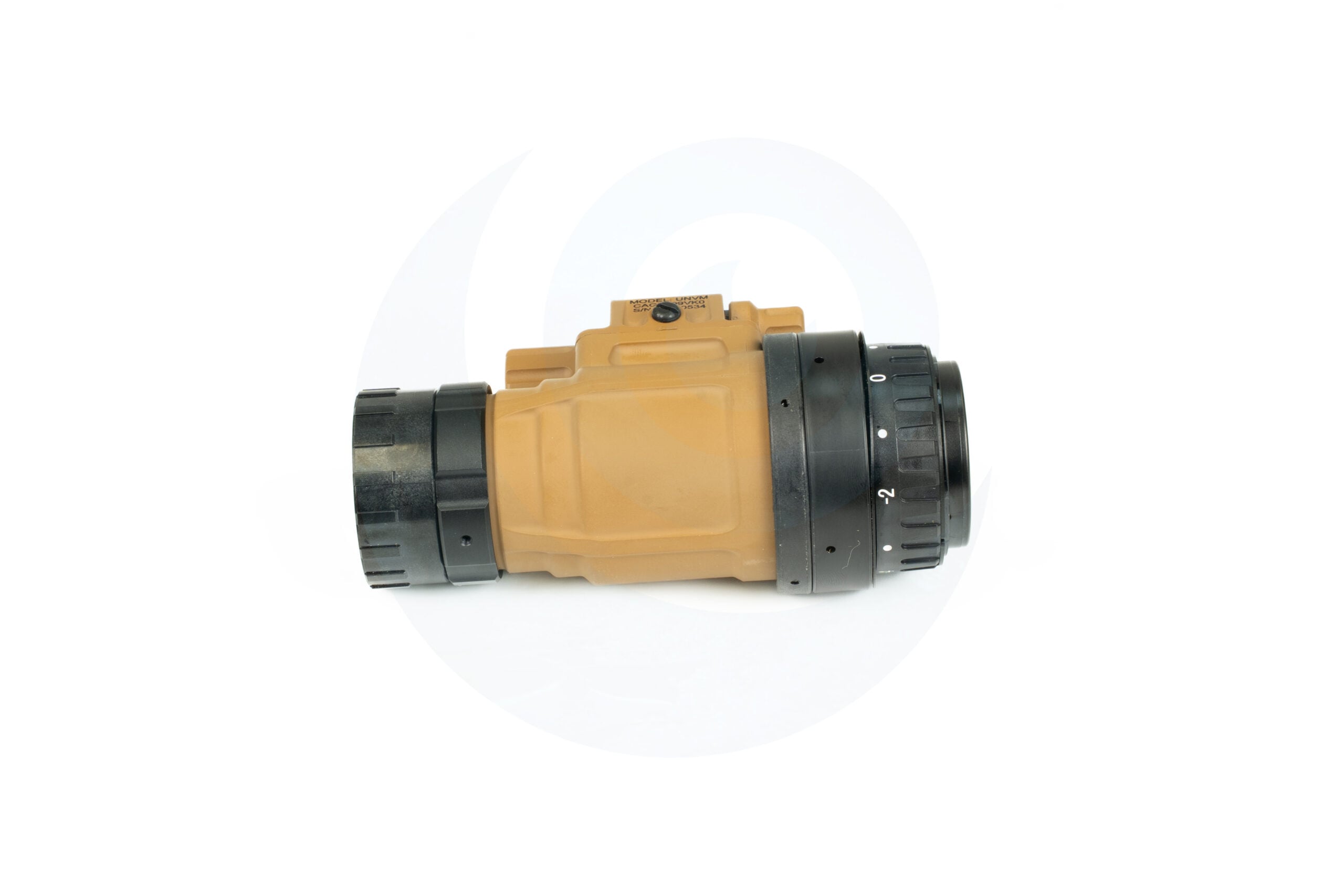

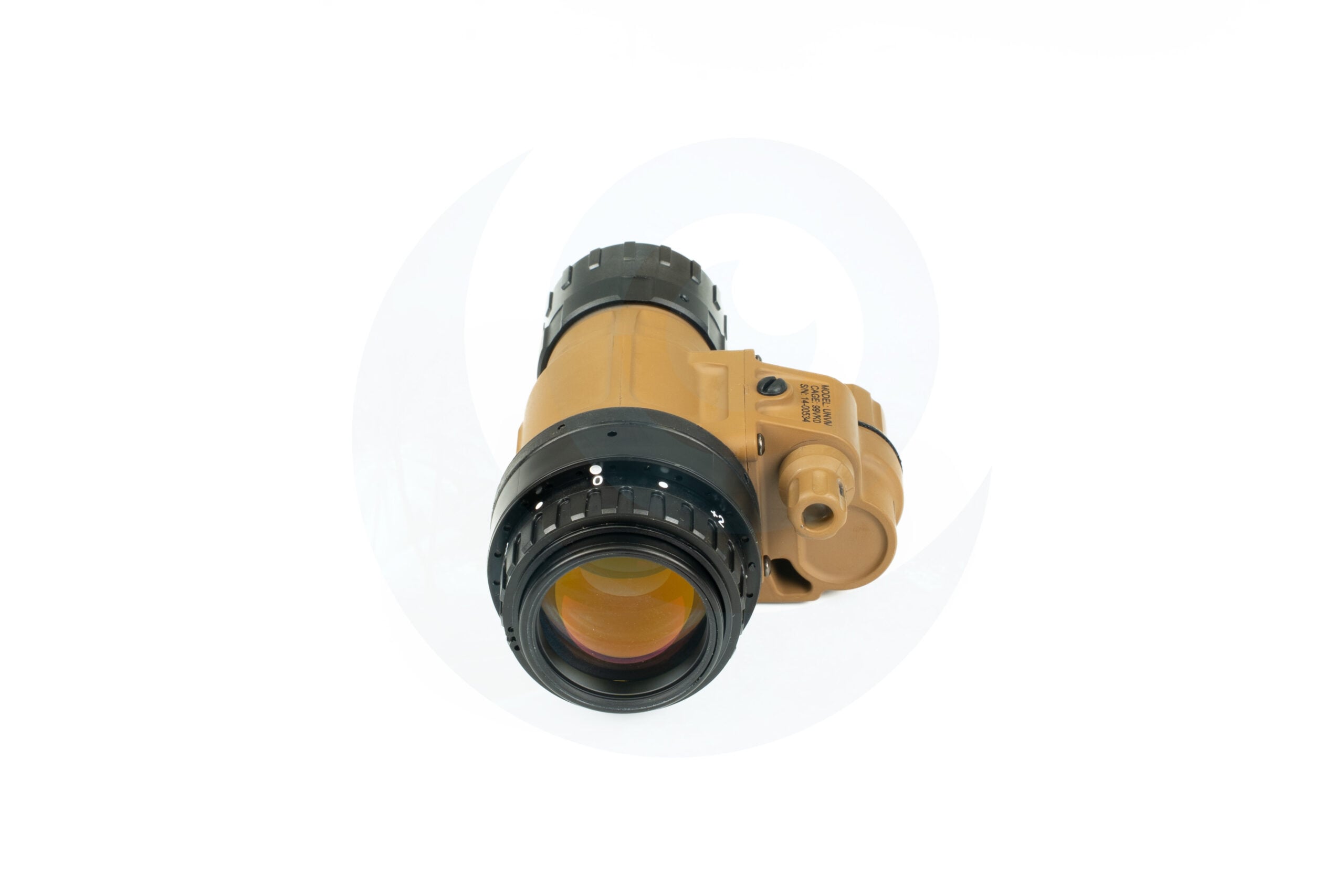

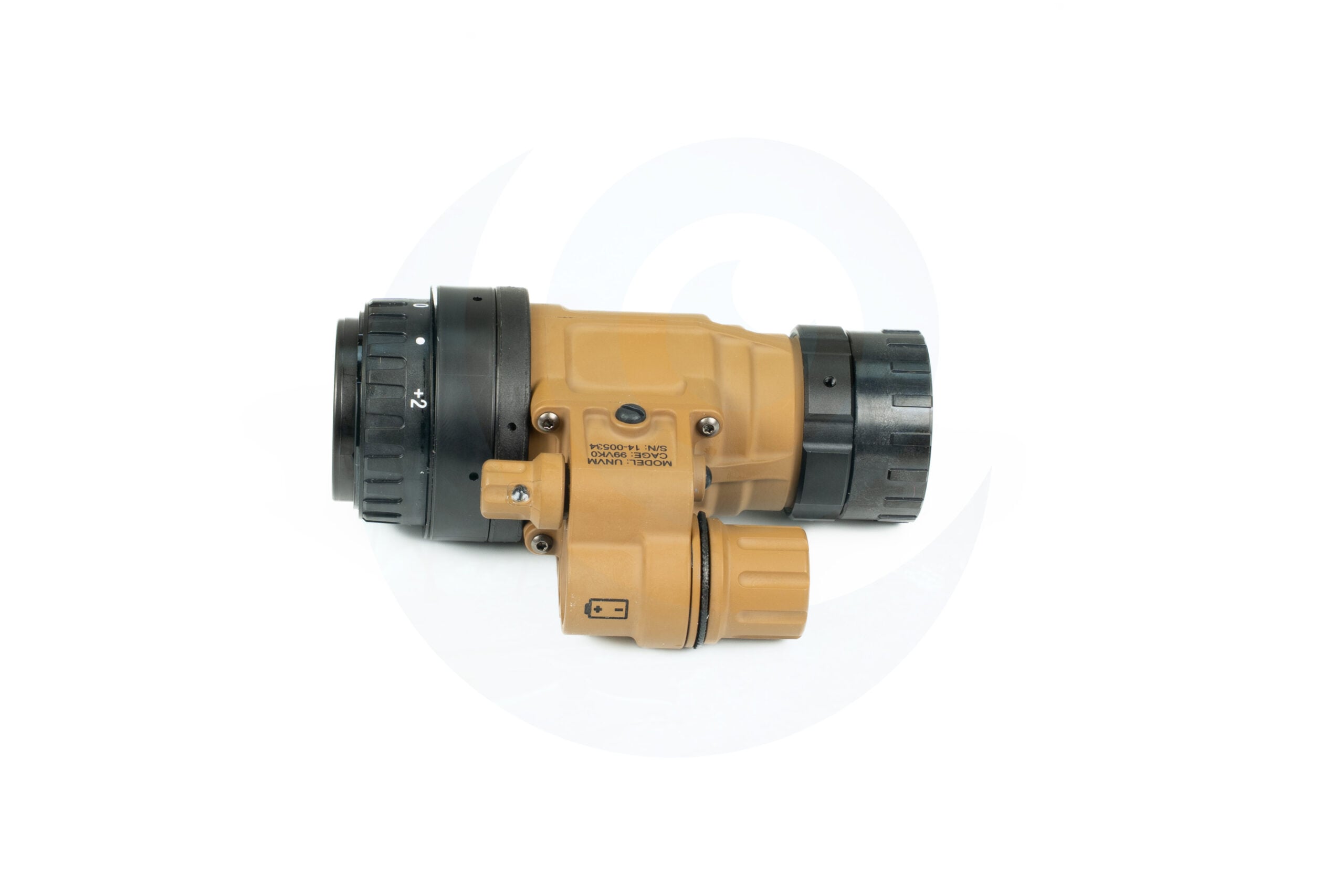

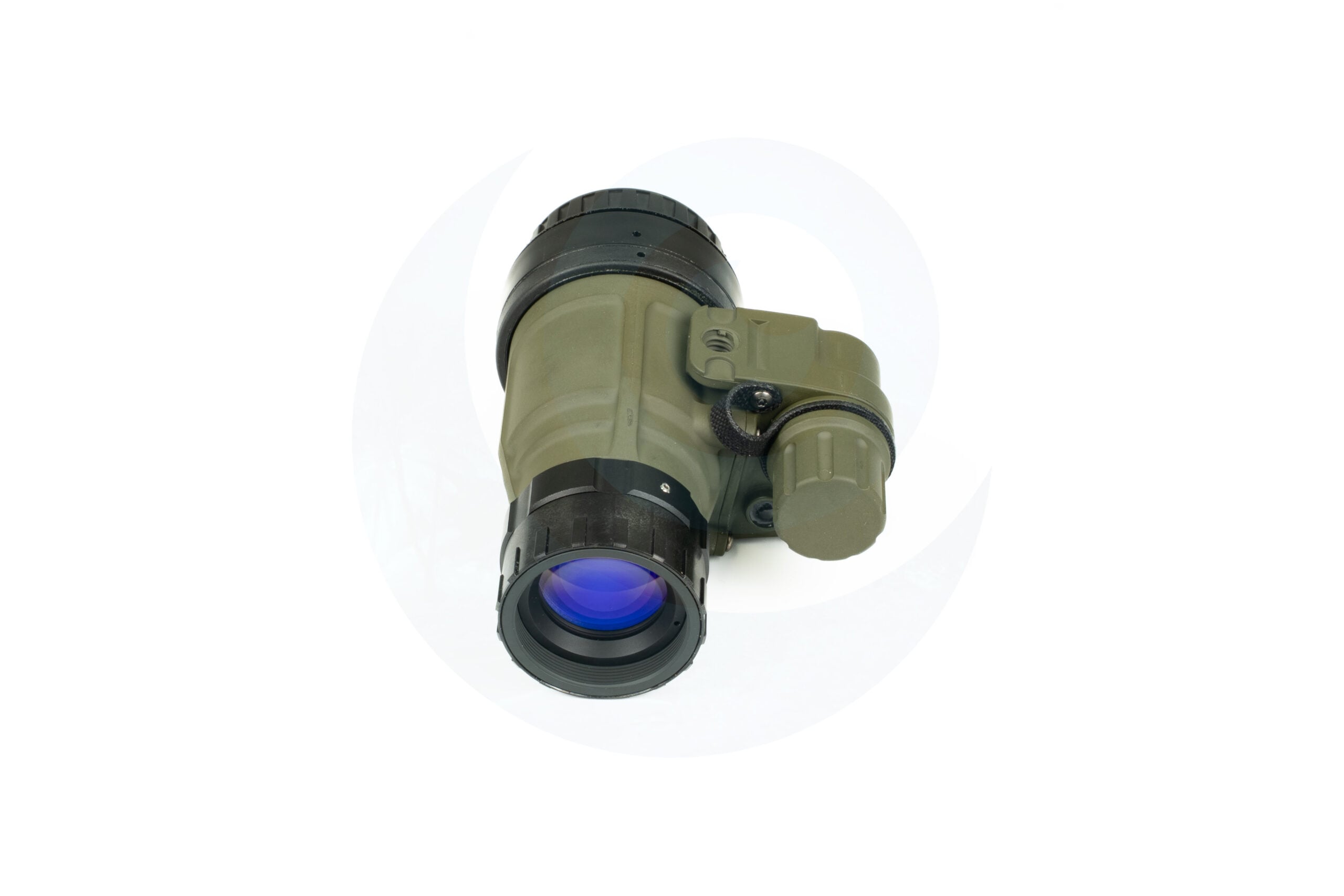

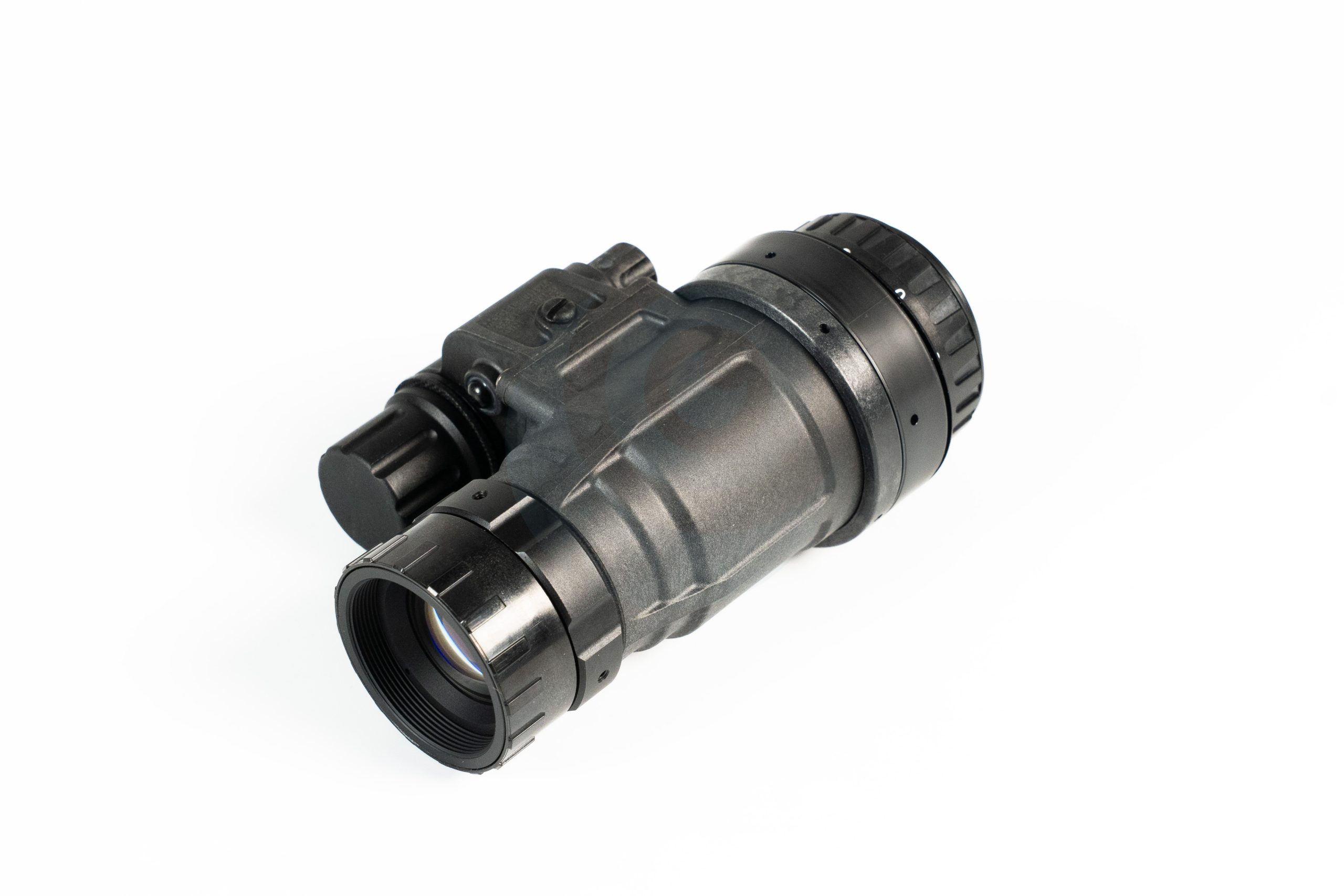

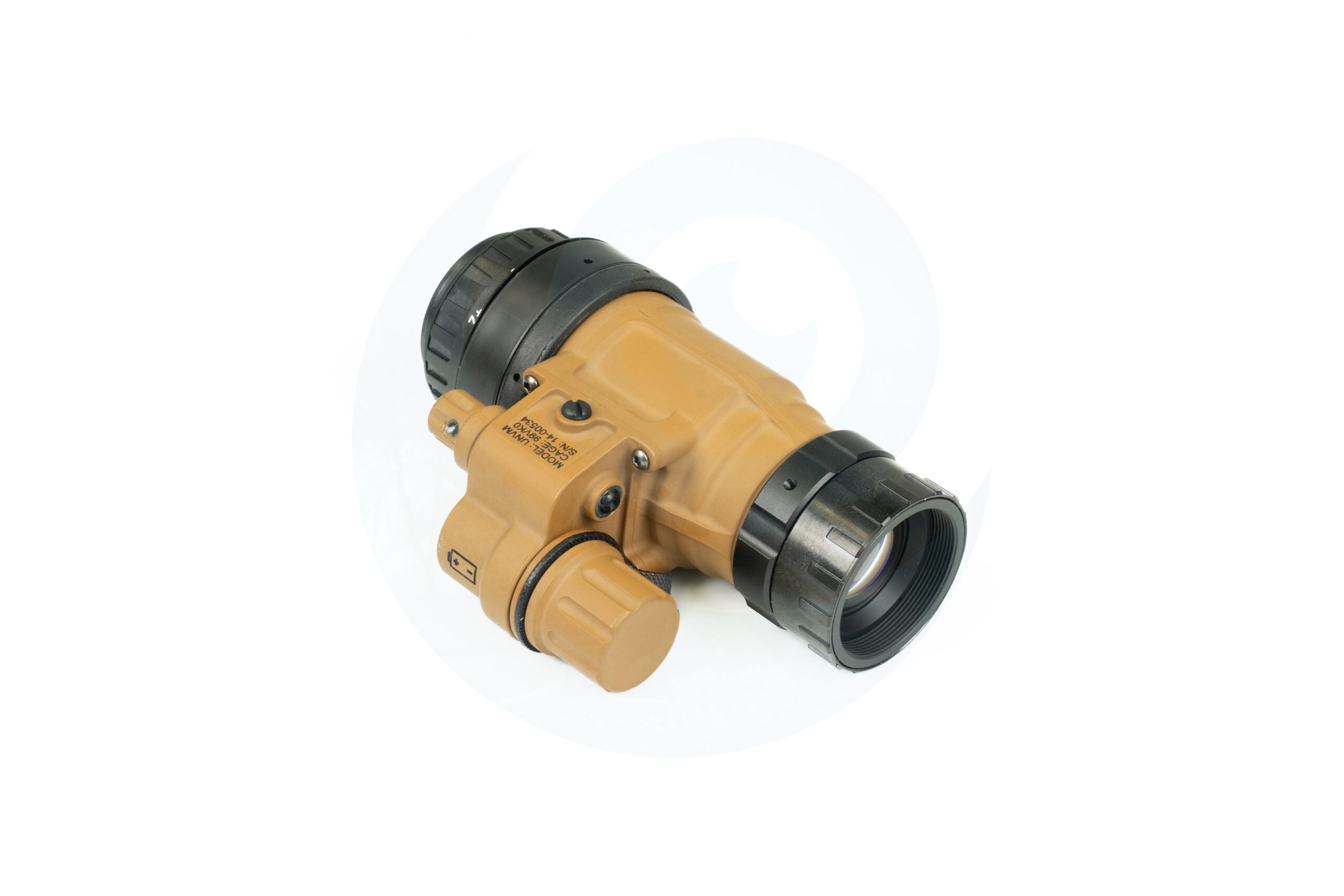

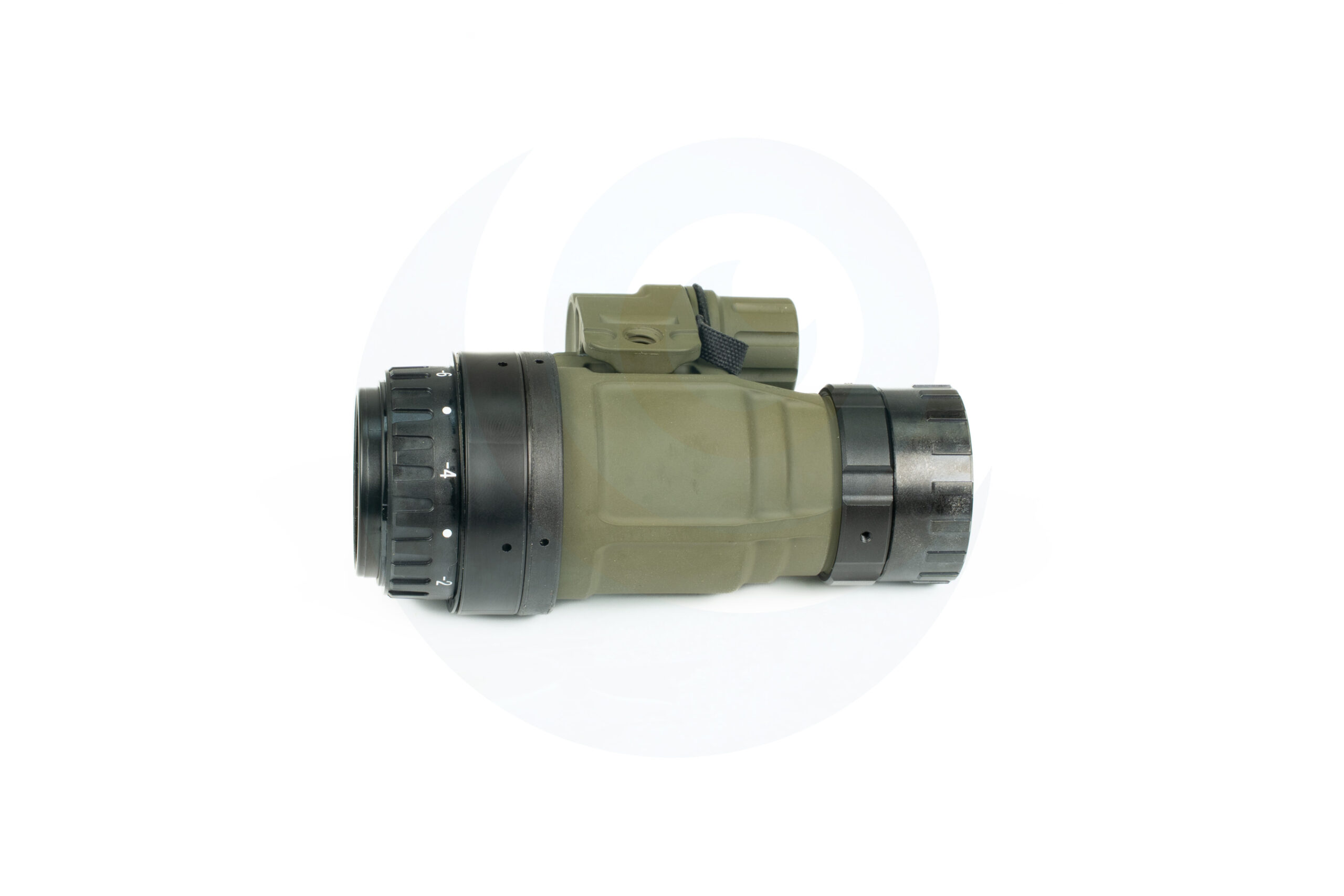

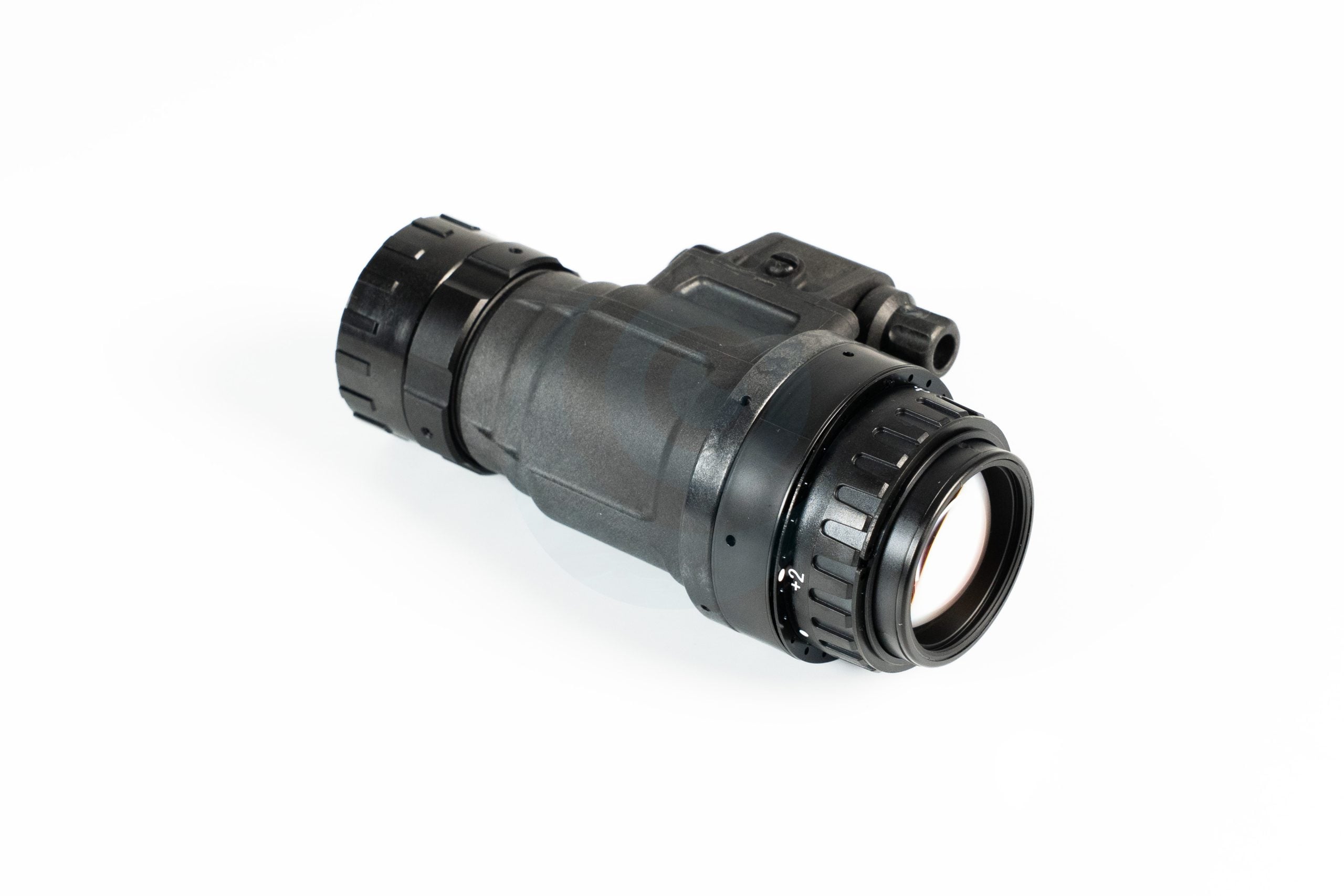

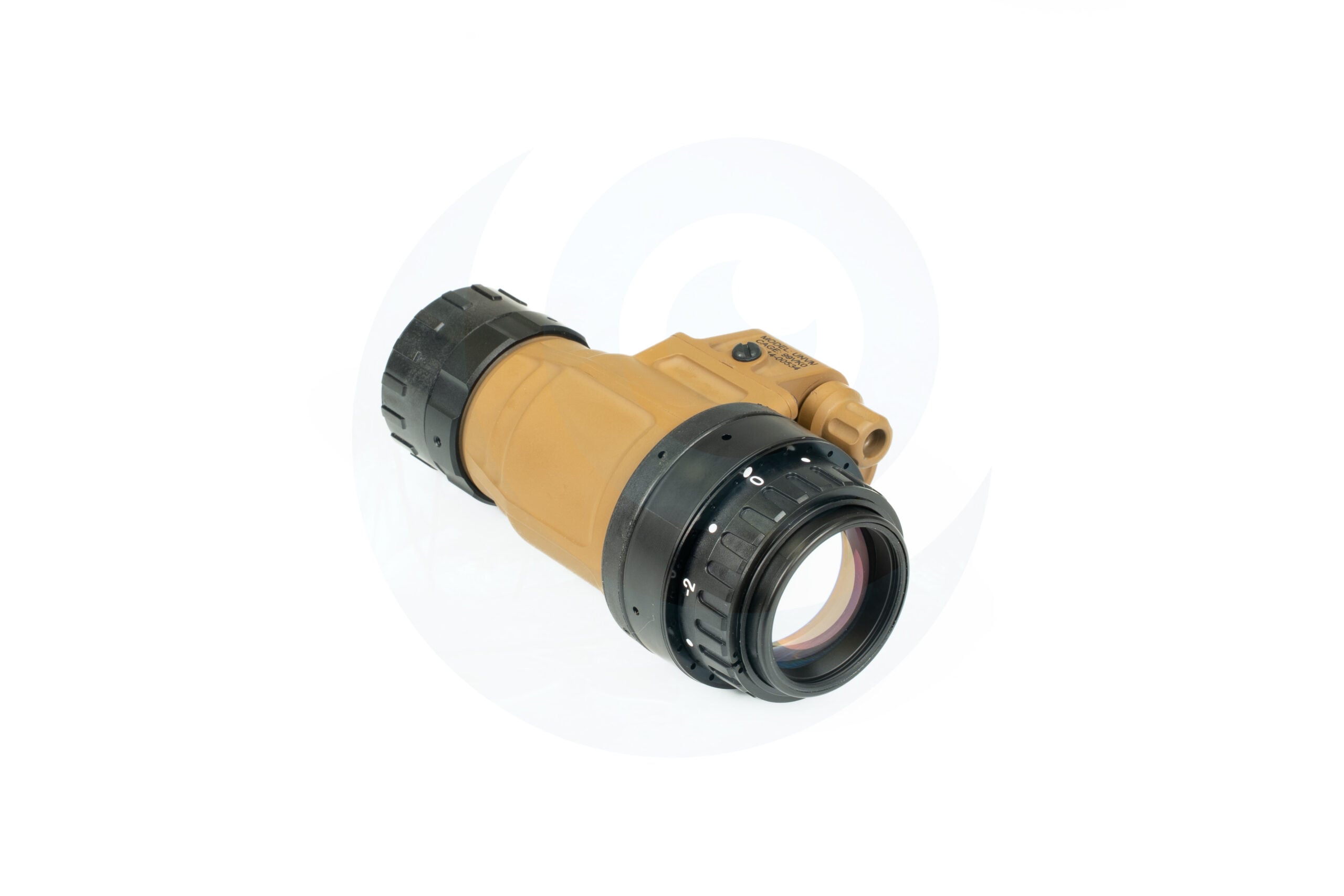

Nocturn Industries Talon

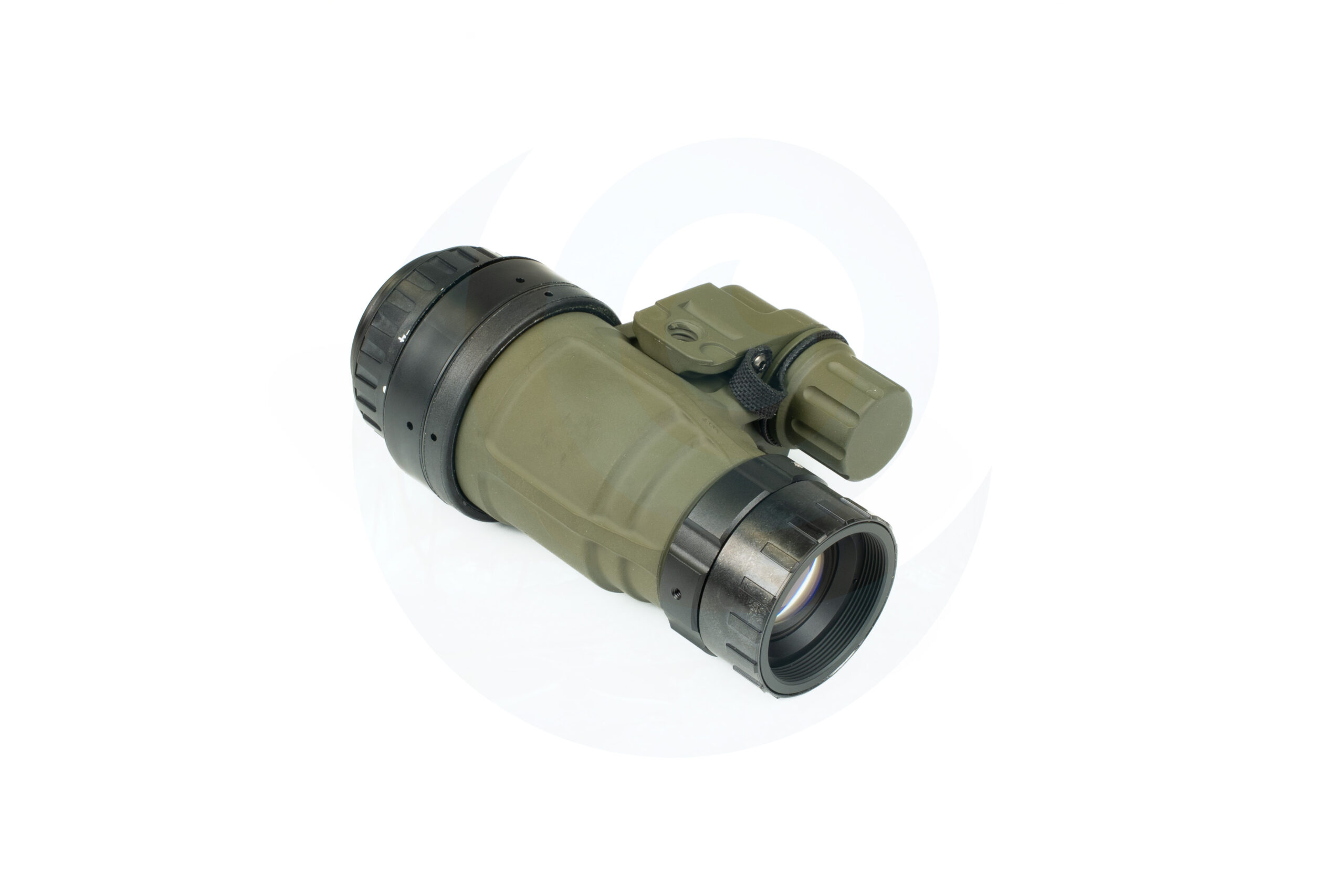

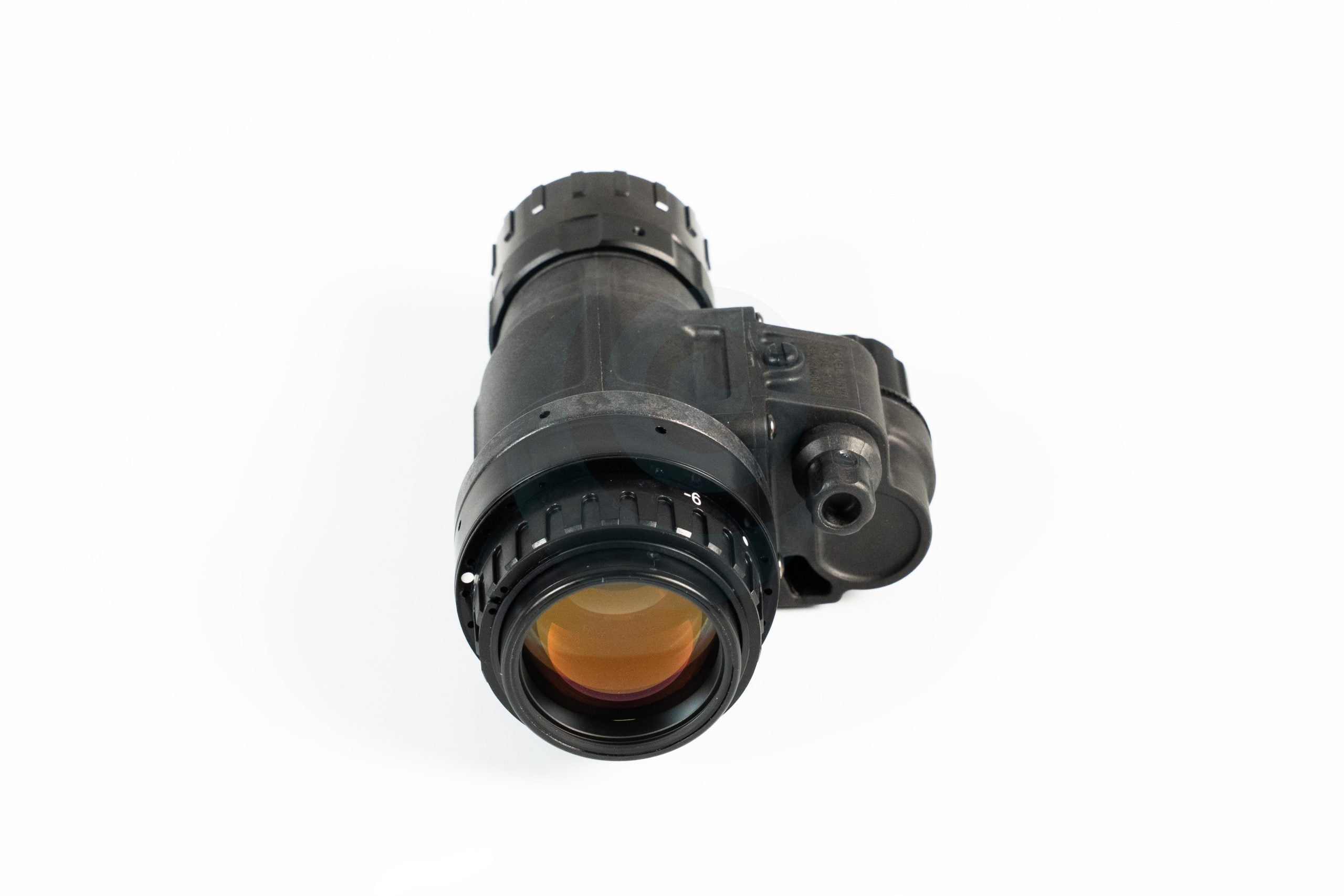

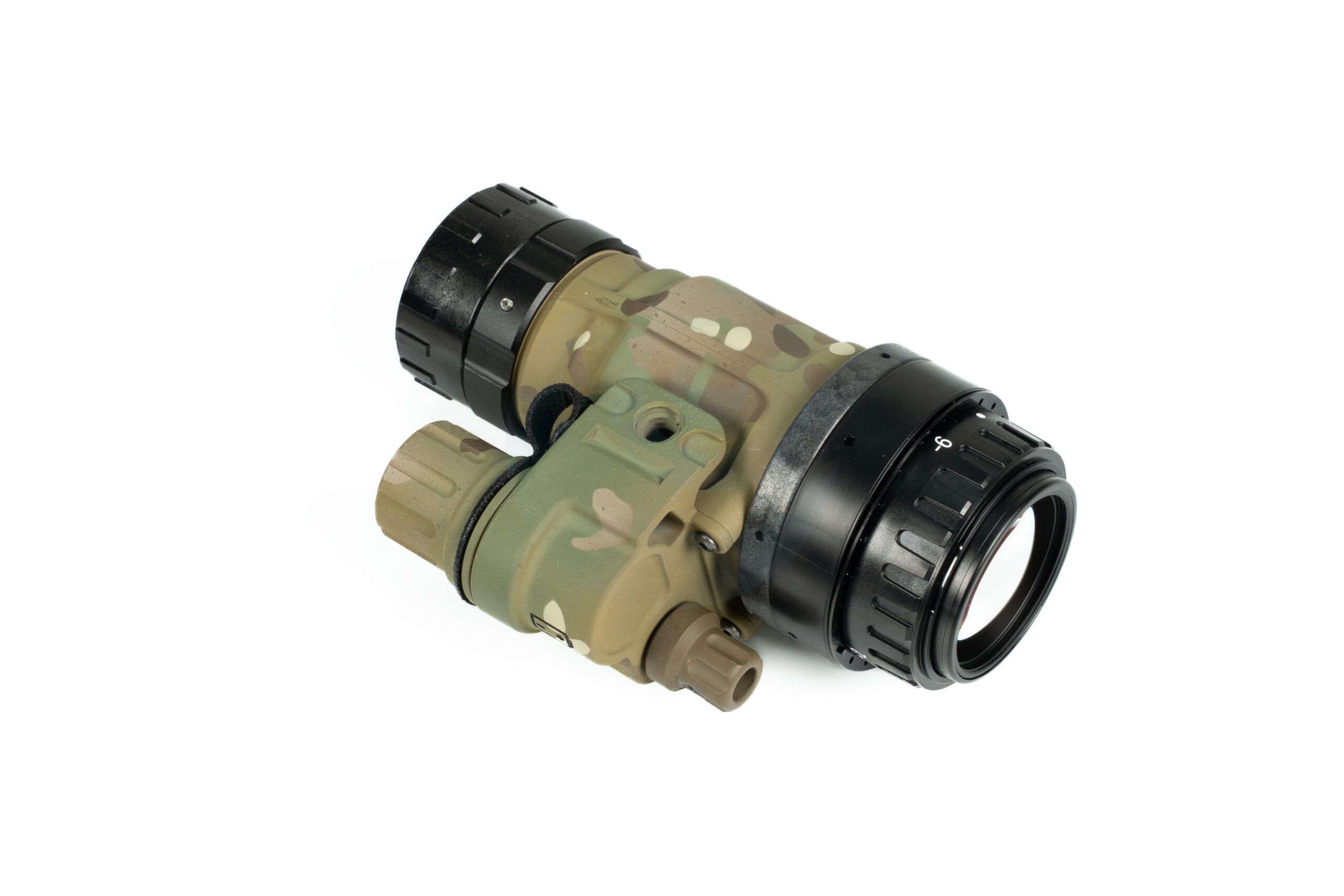

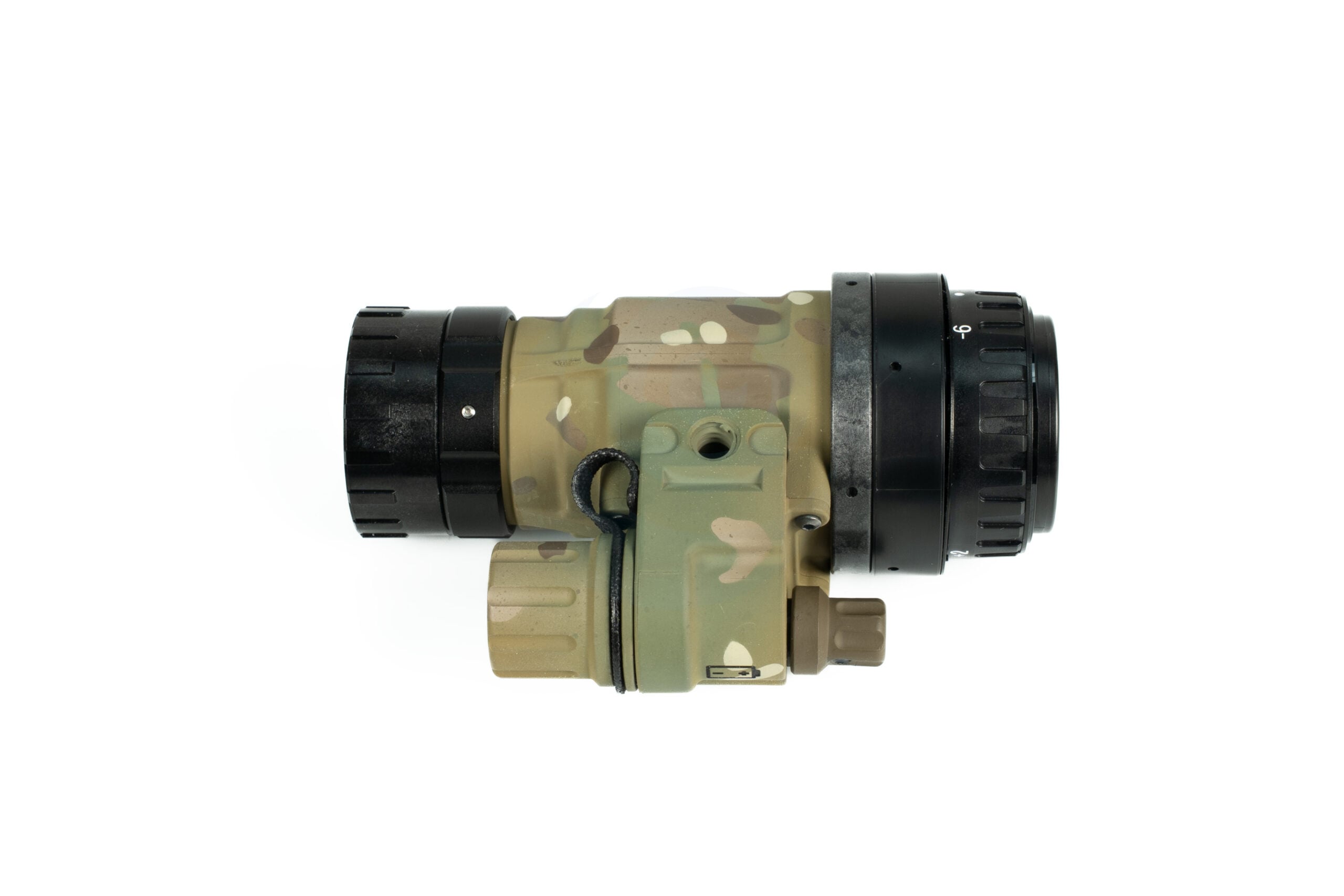

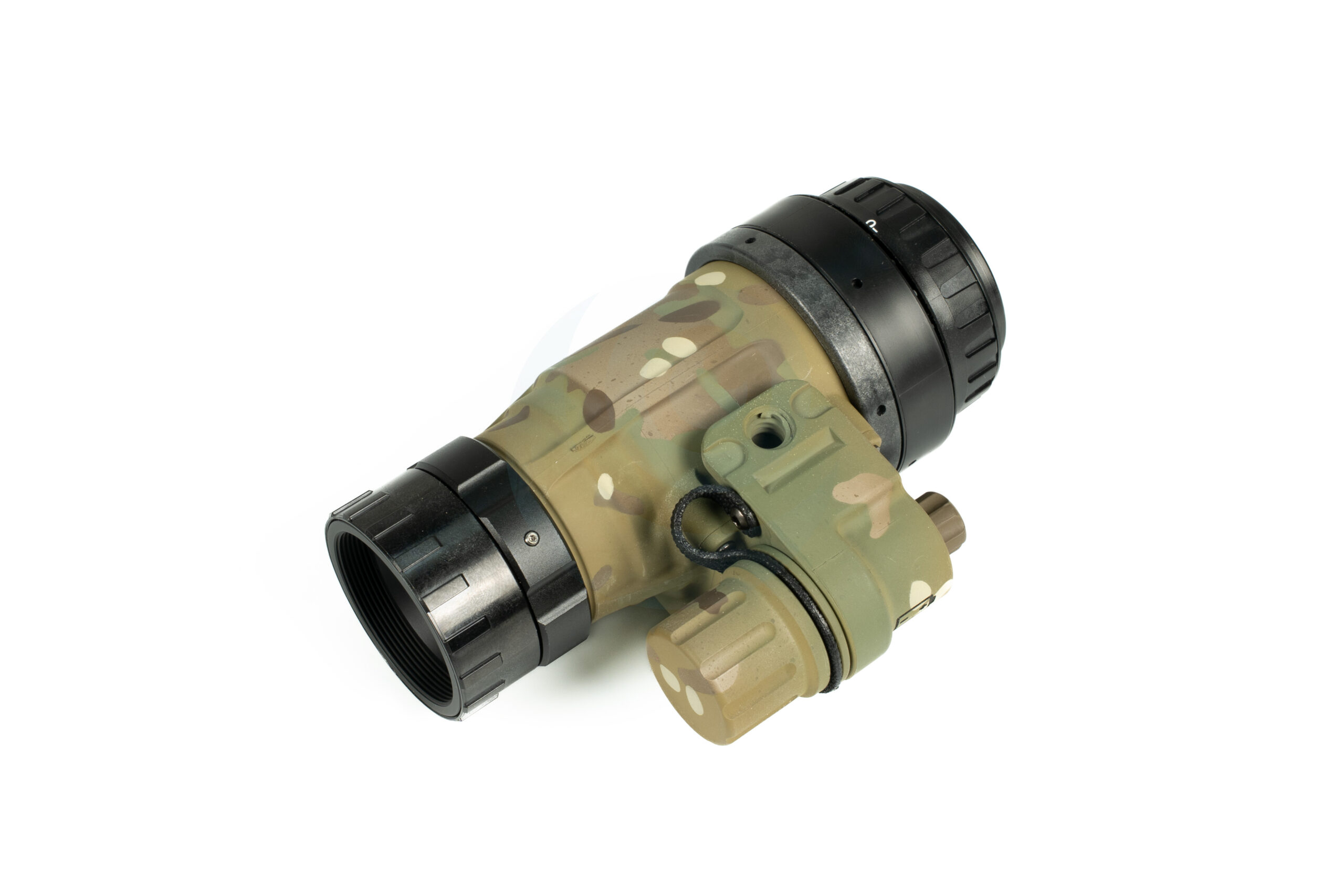

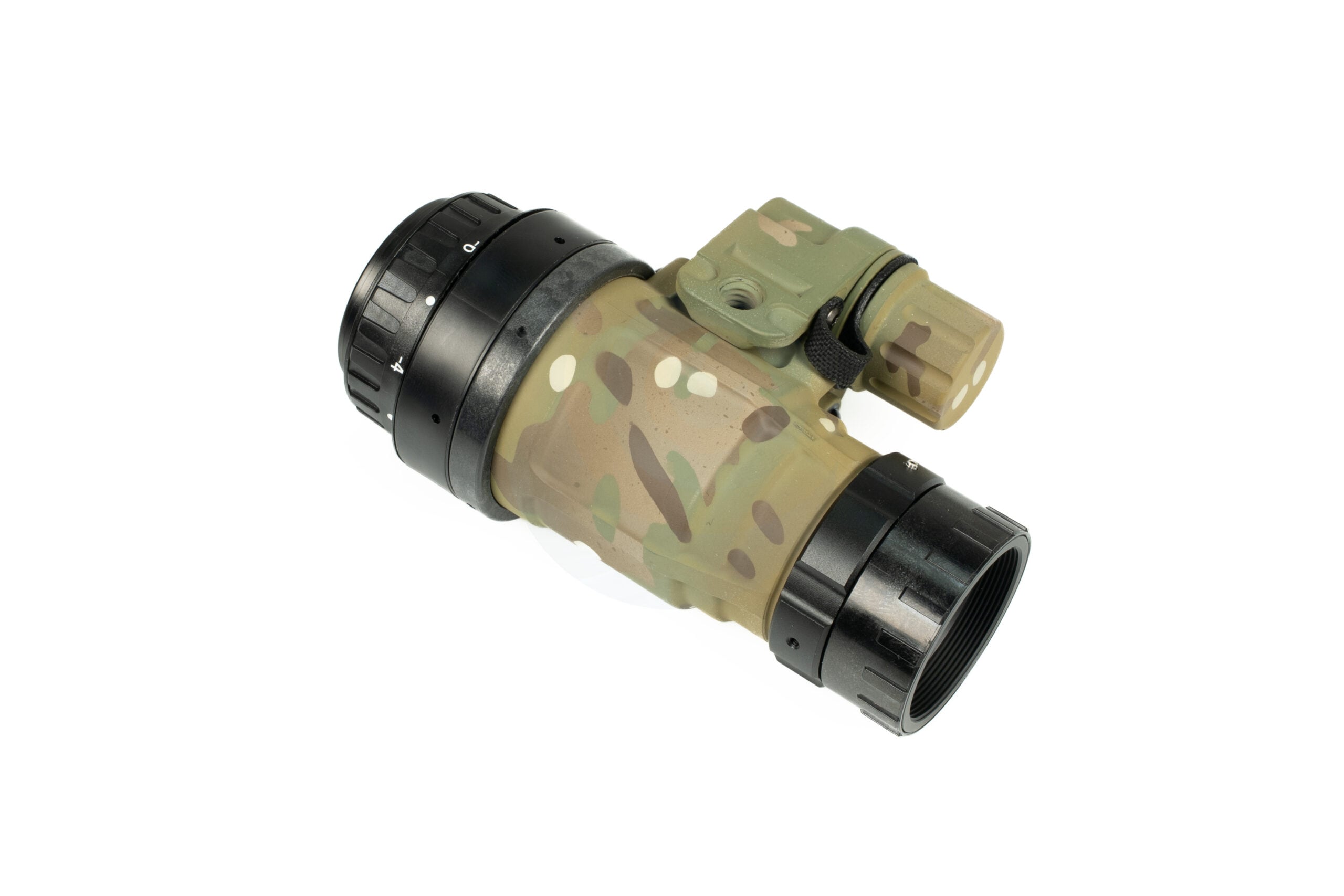

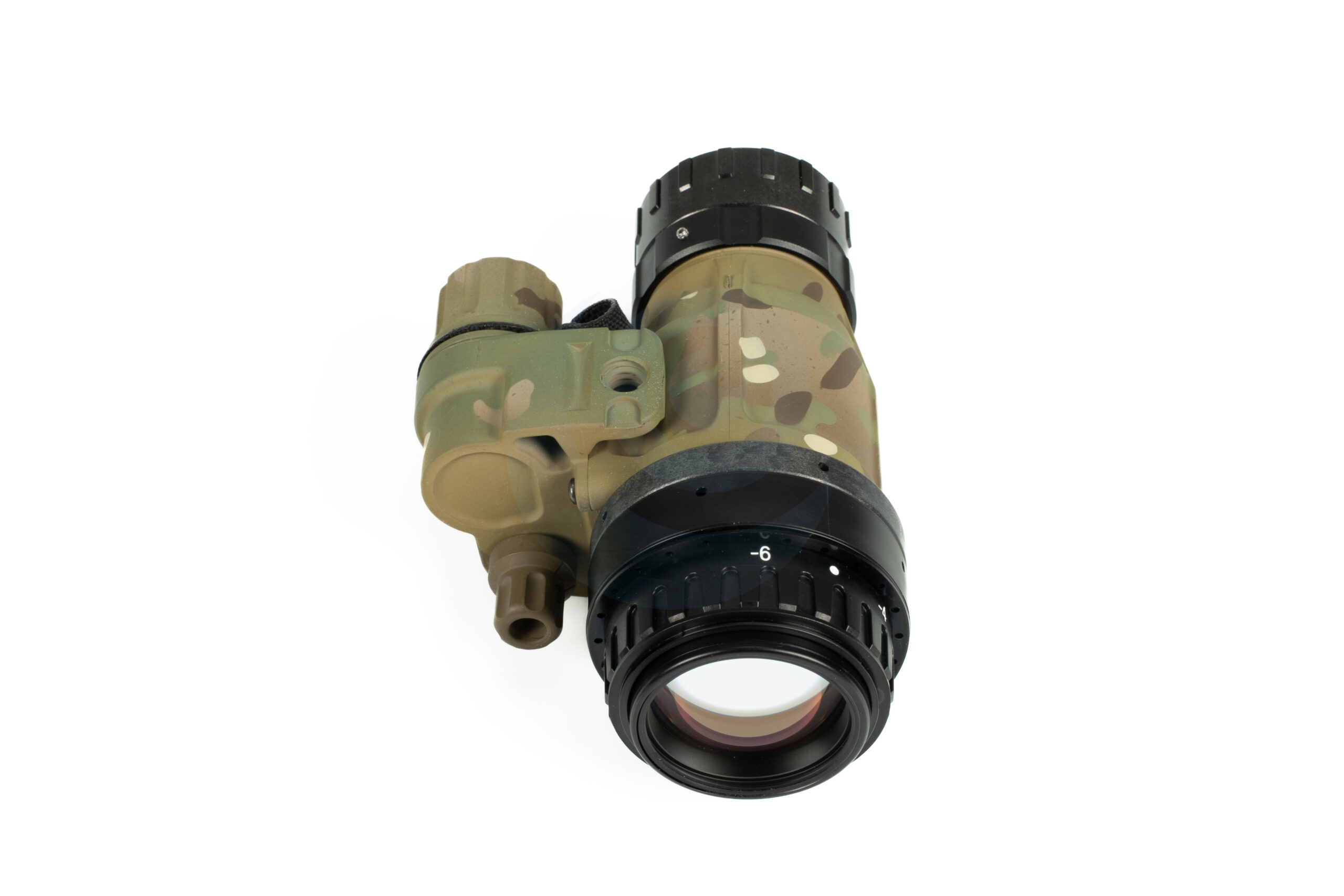

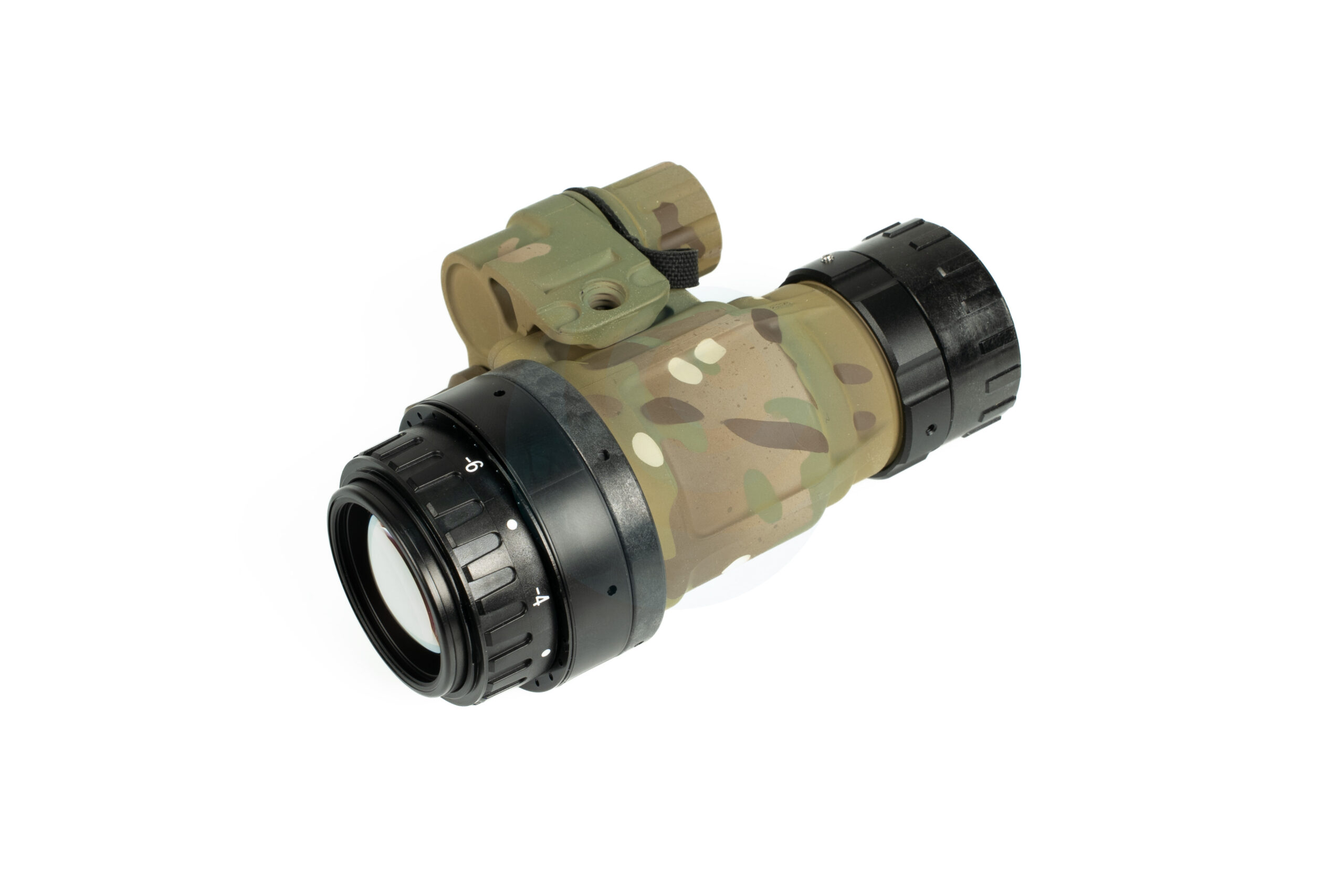

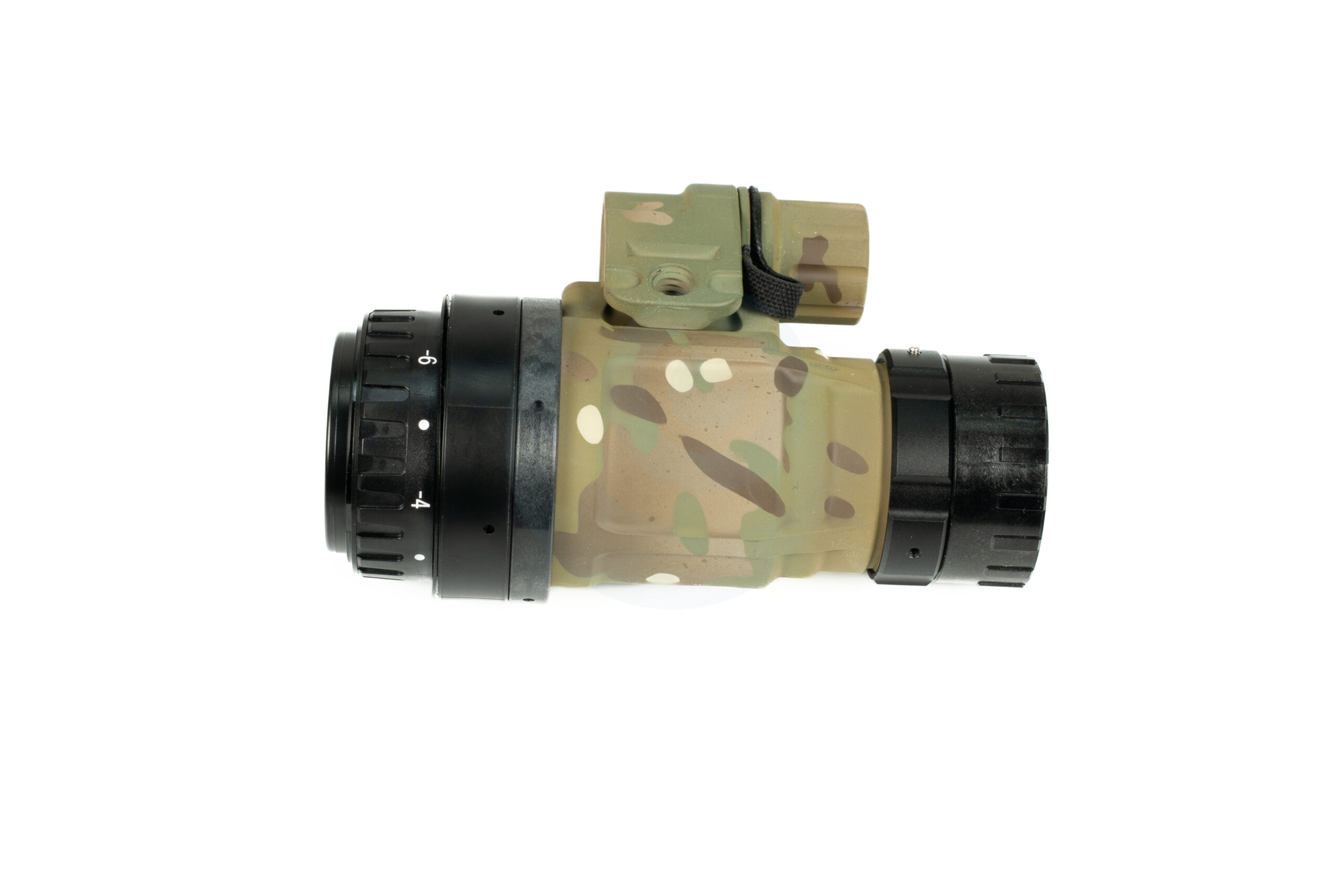

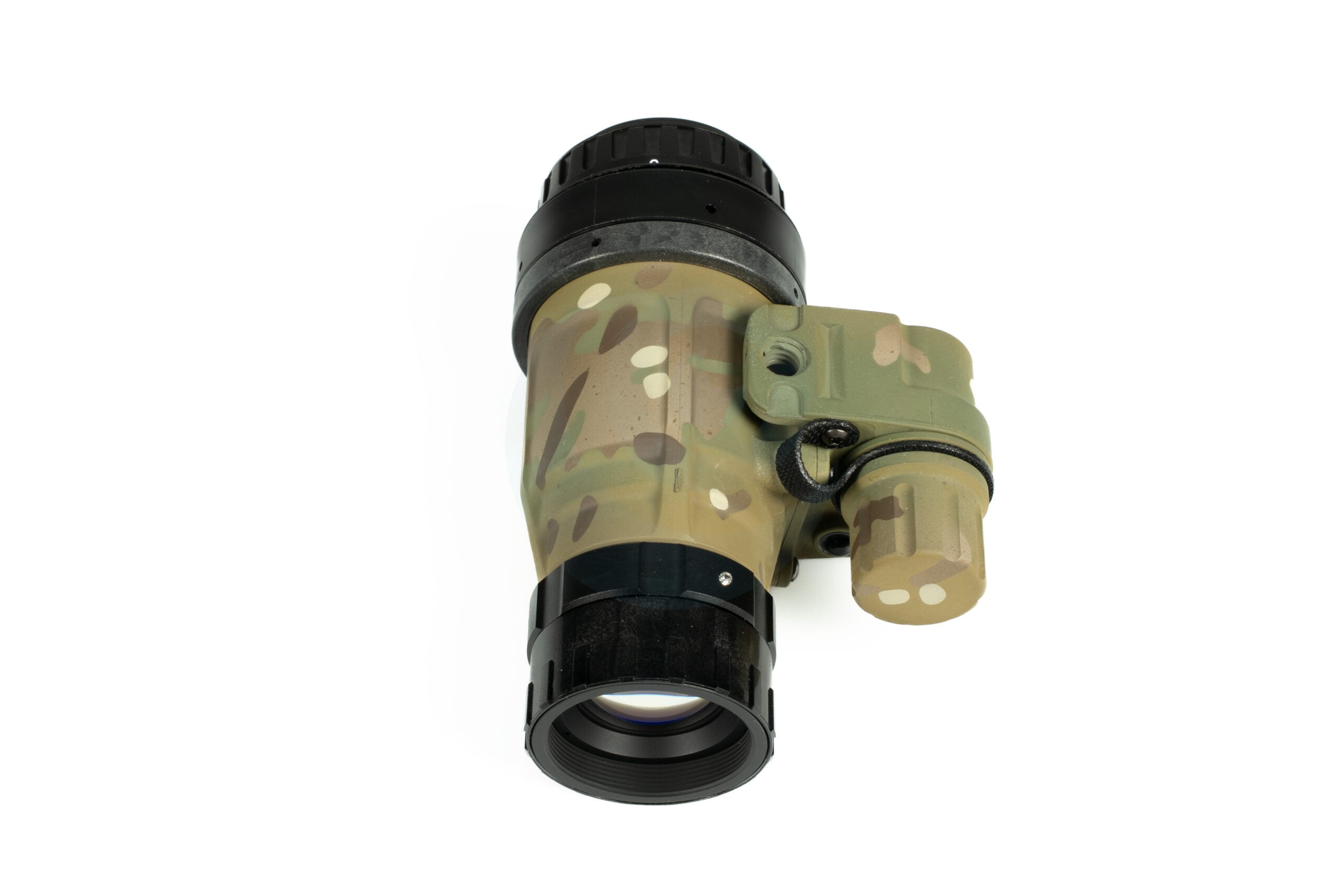

The Ultralight Night Vision Monocular (U.N.V.M.), known as the “Talon,” is an ultralight, full-featured monocular engineered with a cutting-edge carbon fiber reinforced thermoplastic composite to reduce weight and size while significantly improving durability compared to the widely fielded PVS-14, without sacrificing feature set or optics compatibility. The housing weighs only 53 grams in a CR123A configuration, approximately 50% lighter than a standard AA PVS-14 housing (115g).

The Talon is designed for ergonomic use, featuring a single tactile control knob for all device functions. Pressing and holding the knob powers the device on or off, while detented rotation allows gain adjustment. Double-tapping the knob activates the onboard IR illuminator, accompanied by an in-view indicator, which can be tapped once to deactivate. When the IR illuminator is active, rotating the knob adjusts its brightness to the user’s preference. Through the same knob users can disable or enable auto off when stowed. A low battery indicator alerts the user when battery replacement is required.

The Talon supports standard EGAC MX-11769 image intensifier tubes as well as 3-pad MX-11769 European-style tubes without modification and accepts standard PVS-14 mounting J-arms and accessories. The monocular ships with a CR123A battery cap as standard, with AA and CR2 caps available for seamless swapping using the existing battery cap lanyard. The image tube pod is fully interchangeable with the Talon and Raptor binocular product lines.

The U.N.V.M. Talon is designed, machined, molded, and assembled in the United States. For MIL/LE applications, the Talon can be configured with an onboard highlight cutoff sensor by special order.

Features

High strength hybrid fiber reinforced injection molded polymer
PVS-14 J-arm style mount compatible
Lightweight and robust design
Comes standard with CR123 cap
Optional AA and CR2 battery caps
A single knob controls power, IR and Gain
50 hours of battery life (CR123A or AA)

Specifications

Weight
- Housing Only: 1.87 oz – 0.12 lbs. – 53 g
- Housing with Standard Mil Spec Optics: 9.66 oz – 0.60 lbs. – 274 g
- Housing with RPO Lightweight Optics: 7.65 oz – 0.48 lbs. – 217 g
Tube Type:
18mm MX11769 style with EGAC pigtail or three pads, MX-10160 style with loss of gain control
Battery: CR123A or AA on board with a runtime of 50 hours
Finish: Black or H-series Cerakote for Coyote Brown and OD Green

Additional information

Color	Black, FDE, ODG

Nocturn Industries Talon - Ultralight Night Vision Monocular - Housing Only

Color	Black, FDE, OD Green, Multicam

Optics Selection - Monocular

Optic Selection	BrightPath Optics (Built to Mil-Spec), Standard Mil-Spec Optics – NVD Cage Code, Standard Mil-Spec Optics – Noctis (formerly Carson) Cage Code, RPO Ultralight NVD-Next 4.0, Photonis Defense Boomslang 50-Degree FOV, Act in Black 50-Degree FOV

NNVT White

FOM Level	1400-1600, 1600+
Tube Type	10160 / 3Pad, 11769 Manual Gain

Elbit White

FOM Level	Under 2000, 2000-2300 FOM, 2300+ FOM
Selection Process	Handpicked Tube – CNV Select Tube and to Send Customer for Approval, Customer Select Tube – No Spots on Data Sheet, Customer Select Tube – Spots on Data Sheet
Tubes	Handpicked 1700-2000 FOM, Handpicked 2000-2300 FOM, Handpicked 2300+ FOM, Tube: 5983396 – 81 Resolution, 35.9 SNR, 2907 FOM, 0.96 EBI, 0.81 Halo, 68223 gain. 1 spot zone 3., Tube: 5986149 – 76 Resolution, 33.7 SNR, 2561 FOM, 1.51 EBI, 0.78 Halo, 68443 gain. No spots on data sheet., Tube: 5987142 – 64 Resolution, 26.5 SNR, 1696 FOM, 2.21 EBI, 0.96 Halo, 67995 gain. 1 spot zone 2., Tube: 5969706 – 64 Resolution, 26.8 SNR, 1715 FOM, 1.19 EBI, 0.98 Halo, 56015 gain. 1 spot zone 2., Tube: 5919566 – 64 Resolution, 31.6 SNR, 2022 FOM, 1.29 EBI, 0.92 Halo, 68252 gain. No spots on data sheet., Tube: 5919442 – 64 Resolution, 31.5 SNR, 2016 FOM, 1.09 EBI, 0.93 Halo, 67921 gain. No spots on data sheet., Tube: 5979455 – 76 Resolution, 26.6 SNR, 2021 FOM, 0.1 EBI, 0.97 Halo, 56177 gain. No spots on data sheet., Tube: 5912257 – 72 Resolution, 28.2 SNR, 2030 FOM, 0.25 EBI, 0.98 Halo, 56157 gain. 1 spot zone 1., Tube: 5999603 – 64 Resolution, 32.4 SNR, 2073 FOM, 0.76 EBI, 0.76 Halo, 55988 gain. 1 spot zone 1 and 2 spots zone 2., Tube: 5981054 – 76 Resolution, 28.6 SNR, 2173 FOM, 1 EBI, 0.96 Halo, 56031 gain. 2 spots zone 2., Tube: 5999242 – 76 Resolution, 27.9 SNR, 2120 FOM, 1.04 EBI, 0.86 Halo, 56110 gain. 1 spot zone 1 and 4 spots zone 2., Tube: 5991801 – 76 Resolution, 24.2 SNR, 1839 FOM, 0.1 EBI, 0.78 Halo, 67198 gain. No spots on data sheet., Tube: 5985877 – 72 Resolution, 26 SNR, 1872 FOM, 1.05 EBI, 0.89 Halo, 68760 gain. No spots on data sheet., Tube: 5972422 – 72 Resolution, 25 SNR, 1800 FOM, 1.16 EBI, 0.87 Halo, 68248 gain. No spots on data sheet., Tube: 5975783 – 68 Resolution, 28.1 SNR, 1910 FOM, 0.69 EBI, 0.94 Halo, 68071 gain. No spots on data sheet., Tube: 5979485 – 72 Resolution, 22.9 SNR, 1648 FOM, 0.1 EBI, 0.98 Halo, 67555 gain. No spots on data sheet., Tube: 5970933 – 76 Resolution, 27.6 SNR, 2097 FOM, 2 EBI, 0.93 Halo, 56219 gain. 1 spot zone 3., Tube: 5951275 – 72 Resolution, 29.7 SNR, 2138 FOM, 1.06 EBI, 0.97 Halo, 68431 gain. 1 spot zone 1 and 1 spot zone 2., Tube: 5907532 – 64 Resolution, 25.2 SNR, 1612 FOM, 2.47 EBI, 0.88 Halo, 55605 gain. No spots on data sheet., Tube: 5972130 – 81 Resolution, 29.2 SNR, 2365 FOM, 1.31 EBI, 0.64 Halo, 57154 gain. No spots on data sheet., Tube: 5981933 – 76 Resolution, 31.7 SNR, 2409 FOM, 1.17 EBI, 0.80 Halo, 56264 gain. No spots on data sheet., Tube: 6097140 – 81 Resolution, 35.6 SNR, 2883 FOM, 1.88 EBI, 0.83 Halo, 67740 gain. 1 spot zone 3., Tube: 6061572 – 64 Resolution, 29.9 SNR, 1913 FOM, 0.34 EBI, 0.78 Halo, 55577 gain. 1 spot zone 1., Tube: 6031525 – 64 Resolution, 25.2 SNR, 1612 FOM, 0.37 EBI, 0.90 Halo, 55852 gain. 2 spots zone 2., Tube: 6053115 – 76 Resolution, 33.4 SNR, 2538 FOM, 0.69 EBI, 0.94 Halo, 56316 gain. 1 spot zone 2., Tube: 6060738 – 72 Resolution, 33.9 SNR, 2440 FOM, 2.15 EBI, 1.00 Halo, 55874 gain. 1 spot zone 3., Tube: 6004405 – 72 Resolution, 24.1 SNR, 1735 FOM, 0.1 EBI, 0.93 Halo, 55342 gain. No spots on data sheet., Tube: 6088544 – 76 Resolution, 22.8 SNR, 1732 FOM, 0.65 EBI, 0.90 Halo, 56023 gain. No spots on data sheet., Tube: 6025372 – 72 Resolution, 25.7 SNR, 1850 FOM, 0.1 EBI, 0.97 Halo, 55809 gain. No spots on data sheet., Tube: 6056809 – 68 Resolution, 27.8 SNR, 1890 FOM, 0.85 EBI, 0.90 Halo, 55128 gain. No spots on data sheet., Tube: 6019856 – 68 Resolution, 25.4 SNR, 1727 FOM, 0.49 EBI, 0.91 Halo, 55691 gain. No spots on data sheet., Tube: 6041754 – 72 Resolution, 33.1 SNR, 2383 FOM, 1.9 EBI, 0.76 Halo, 56309 gain. No spots on data sheet., Tube: 6005841 – 72 Resolution, 27.9 SNR, 2008 FOM, 1.52 EBI, 0.95 Halo, 67814 gain. 1 spot zone 2., Tube: 6011778 – 72 Resolution, 25.3 SNR, 1821 FOM, 1.56 EBI, 0.95 Halo, 68310 gain. No spots on data sheet., Tube: 6021337 – 76 Resolution, 32.5 SNR, 2470 FOM, 1.19 EBI, 0.98 Halo, 55594 gain. 1 spot zone 2., Tube: 6027197 – 72 Resolution, 24.99 SNR, 1792 FOM, 0.1 EBI, 0.97 Halo, 56283 gain. No spots on data sheet., Tube: 6014660 – 72 Resolution, 24.1 SNR, 1735 FOM, 0.1 EBI, 0.84 Halo, 55713 gain. No spots on data sheet., Tube: 6034080 – 64 Resolution, 29.5 SNR, 1888 FOM, 1.6 EBI, 0.99 Halo 67952 gain. No spots on data sheet., Tube: 6023881 – 72 Resolution, 25.3 SNR, 1821 FOM, 0.1 EBI, 0.99 Halo, 67980 gain. No spots on data sheet., Tube: 6029888 – 72 Resolution, 30.4 SNR, 2188 FOM, 2.25 EBI, 0.96 Halo, 55946 gain. 1 spot zone 2., Tube: 6061653 – 64 Resolution, 31.5 SNR, 2016 FOM, 1.28 EBI, 0.80 Halo, 55987 gain. 1 spot zone 1., Tube: 6072630 – 64 Resolution, 32.6 SNR, 2086 FOM, 0.22 EBI, 0.96 Halo, 55748 gain. 1 spot zone 1., Tube: 6023152 – 64 Resolution, 32.6 SNR, 2086 FOM, 1.56 EBI, 0.71 Halo, 56423 gain. 1 spot zone 1., Tube: 6074644 – 64 Resolution, 32.2 SNR, 2060 FOM, 1.24 EBI, 0.80 Halo, 56410 gain. 1 spot zone 1., Tube: 6027854 – 64 Resolution, 25.5 SNR, 1632 FOM, 1.41 EBI, 0.95 Halo, 55861 gain. No spots on data sheet., Tube: 6022688 – 72 Resolution, 26.2 SNR, 1886 FOM, 0.41 EBI, 0.94 Halo, 56284 gain. No spots on data sheet., Tube: 6046557 – 68 Resolution, 31.5 SNR, 2142 FOM, 1.85 EBI, 0.74 Halo, 55505 gain. 1 spot zone 1., Tube: 6084845 – 72 Resolution, 35.4 SNR, 2548 FOM, 2.07 EBI, 0.74 Halo, 68704 gain. No spots on data sheets., Tube: 6055075 – 64 Resolution, 35.8 SNR, 2291 FOM, 1.71 EBI, 0.74 Halo, 56723 gain. No spots on data sheet., Tube: 6046789 – 76 Resolution, 33.9 SNR, 2576 FOM, 1.32 EBI, 0.77 Halo, 56775 gain. No spots on data sheet., Tube: 6178009 – 81 Resolution, 34.7 SNR, 2810 FOM, 1.17 EBI, 0.79 Halo, 56177 gain. No spots on data sheet., Tube: 6190204 – 81 Resolution, 34.5 SNR, 2794 FOM, 1.45 EBI, 0.82 Halo, 56109 gain. No spots on data sheet., Tube: 6198896 – 64 Resolution, 32.6 SNR, 2086 FOM, 0.12 EBI, 0.90 Halo, 56132 gain. No spots on data sheet., Tube: 6139165 – 64 Resolution, 33.6 SNR, 2150 FOM, 1.35 EBI, 0.91 Halo, 67257 gain. No spots on data sheet., Tube: 6190435 – 64 Resolution, 34.2 SNR, 2188 FOM, 1.58 EBI, 0.77 Halo, 56558 gain. No spots on data sheet., Tube: 6178567 – 64 Resolution, 34.3 SNR, 2195 FOM, 1.19 EBI, 0.97 Halo, 55927 gain. No spots on data sheet., Tube: 6172061 – 64 Resolution, 35.4 SNR, 2265 FOM, 1.4 EBI, 0.98 Halo, 56535 gain. No spots on data sheet., Tube: 6173791 – 68 Resolution, 33.2 SNR, 2257 FOM, 1.39 EBI, 0.90 Halo, 56133 gain. No spots on data sheet., Tube: 6193296 – 64 Resolution, 30.6 SNR, 1958 FOM, 2.05 EBI, 0.89 Halo, 56696 gain. 1 spot zone 2 and 1 spot zone 3., Tube: 6130169 – 72 Resolution, 30 SNR, 2160 FOM, 1.36 EBI, 0.93 Halo, 67307 gain. 1 spot zone 3., Tube: 6179187 – 64 Resolution, 31.1 SNR, 1990 FOM, 1.83 EBI, 0.96 Halo, 61193 gain. 1 spot zone 1., Tube: 6191475 – 64 Resolution, 25.6 SNR, 1638 FOM, 2.33 EBI, 1.21 Halo, 56668 gain. 1 spot zone 2., Tube: 6165404 – 64 Resolution, 29.3 SNR, 1875 FOM, 0.81 EBI, 0.98 Halo, 56436 gain. 1 spot zone 1 and 1 spot zone 3., Tube: 6165045 – 64 Resolution, 27.7 SNR, 1772 FOM, 0.6 EBI, 1.22 Halo, 55322 gain. 1 spot zone 1., Tube: 6178370 – 64 Resolution, 27.1 SNR, 1734 FOM, 0.52 EBI, 1.15 Halo, 55572 gain. 1 spot zone 2., Tube: 6180251 – 64 Resolution, 26.9 SNR, 1721 FOM, 0.18 EBI, 0.97 Halo, 56170 gain. 1 spot zone 2., Tube: 6213930 – 64 Resolution, 30.8 SNR, 1971 FOM, 0.67 EBI, 0.79 Halo, 57335 gain. 1 spot zone 2., Tube: 6199123 – 64 Resolution, 27.2 SNR, 1740 FOM, 0.1 EBI, 0.96 Halo, 55836 gain. 1 spot zone 2., Tube: 6170062 – 64 Resolution, 27.9 SNR, 1785 FOM, 1.41 EBI, 0.94 Halo, 56307 gain. 1 spot zone 1., Tube: 6178581 – 64 Resolution, 28.9 SNR, 1849 FOM, 0.42 EBI, 0.75 Halo, 66604 gain. 1 spot zone 2., Tube: 6169763 – 64 Resolution, 29.6 SNR, 1894 FOM, 0.56 EBI, 0.96 Halo, 56289 gain. 1 spot zone 2., Tube: 6135565 – 81 Resolution, 34.8 SNR, 2818 FOM, 2 EBI, 0.75 Halo, 57064 gain. 1 spot zone 3., Tube: 6111940 – 64 Resolution, 34.9 SNR, 2233 FOM, 1.61 EBI, 0.79 Halo, 55332 gain. No spots on data sheet., Tube: 6194232 – 64 Resolution, 31.7 SNR, 2028 FOM 1.43 EBI, 0.95 Halo, 56537 gain. 1 spot zone 1 and 1 spot zone 2., Tube: 6164673 – 72 Resolution, 29.8 SNR, 2145 FOM, 0.64 EBI, 0.99 Halo, 55907 gain. 1 spot zone 2., Tube: 6197208 – 72 Resolution, 28.6 SNR, 2059 FOM, 0.75 EBI, 0.96 Halo, 55738 gain. 1 spot zone 2., Tube: 6165224 – 68 Resolution, 30.6 SNR, 2080 FOM, 1.33 EBI, 0.97 Halo, 55136 gain. No spots on data sheet., Tube: 6192684 – 72 Resolution, 29.1 SNR, 2095 FOM, 0.42 EBI, 0.95 Halo, 56105 gain. 1 spot zone 2., Tube: 6165521 – 72 Resolution, 30.6 SNR, 2203 FOM, 0.2 EBI, 0.98 Halo, 57192 gain. 1 spot zone 2., Tube: 6165456 – 64 Resolution, 31.7 SNR, 2028 FOM, 1.49 EBI, 0.93 Halo, 56238 gain. 1 spot zone 2., Tube: 6176200 – 64 Resolution, 32.7 SNR, 2092 FOM, 2.22 EBI, 0.85 Halo, 56417 gain. 1 spot zone 1, Tube: 6104021 – 64 Resolution, 31.4 SNR, 2009 FOM, 1.52 EBI, 0.94 Halo, 55609 gain. 1 spot zone 1., Tube: 6106750 – 68 Resolution, 31.8 SNR, 2162 FOM, 0.31 EBI, 0.95 Halo, 55721 gain. 1 spot zone 1 and 1 spot zone 3., Tube: 6163357 – 76 Resolution, 30.1 SNR, 2287 FOM, 0.61 EBI, 0.98 Halo, 55875 gain. 1 spot zone 2., Tube: 6123968 – 64 Resolution, 31.2 SNR, 1996 FOM, 1.44 EBI, 0.96 Halo, 65876 gain. 3 spots zone 2., Tube: 6193930 – 64 Resolution, 30.7 SNR, 1964 FOM, 0.58 EBI, 0.96 Halo, 56888 gain. 1 spot zone 1., Tube: 6165586 – 68 Resolution, 31.2 SNR, 2121 FOM, 0.79 EBI, 1.00 Halo, 56567 gain. 1 spot zone 1., Tube: 6138113 – 64 Resolution, 28.1 SNR, 1798 FOM, 0.6 EBI, 0.96 Halo, 67847 gain. 1 spot zone 2., Tube: 6157290 – 64 Resolution, 31.7 SNR, 2028 FOM, 1.14 EBI, 0.92 Halo, 55206 gain. No spots on data sheet., Tube: 6174538 – 64 Resolution, 28.8 SNR, 1843 FOM, 2.17 EBI, 0.97 Halo, 56308 gain. No spots on data sheet., Tube: 6190600 – 64 Resolution, 25.7 SNR, 1644 FOM, 0.59 EBI, 0.94 Halo, 57547 gain. No spots on data sheet., Tube: 6144272 – 76 Resolution, 28.8 SNR, 2188 FOM, 0.48 EBI, 0.97 Halo, 55880 gain. No spots on data sheet., Tube: 6178713 – 81 Resolution, 32.2 SNR, 2608 FOM, 1.89 EBI, 0.81 Halo, 56137 gain. 1 spot zone 3., Tube: 6185261 – 64 Resolution, 32 SNR, 2048 FOM, 2.24 EBI, 0.80 Halo, 55833 gain. 1 spot zone 3., Tube: 6161896 – 72 Resolution, 34.5 SNR, 2484 FOM, 2.08 EBI, 0.95 Halo, 56780 gain. No spots on data sheet., Tube: 6188770 – 72 Resolution, 32.9 SNR, 2368 FOM, 1.02 EBI, 0.79 Halo, 56029 gain. 1 spot zone 2., Tube: 6194225 – 76 Resolution, 33.1 SNR, 2515 FOM, 0.98 EBI, 0.78 Halo, 56593 gain. 1 spot zone 2., Tube: 6173125 – 76 Resolution, 32.7 SNR, 2485 FOM, 0.77 EBI, 0.90 Halo, 56220 gain. 1 spot zone 1., Tube: 6132747 – 72 Resolution, 29.7 SNR, 2138 FOM, 0.11 EBI, 0.97 Halo, 68223 gain. 2 spots zone 3., Tube: 6131218 – 72 Resolution, 30.4 SNR, 2188 FOM, 0.92 EBI, 0.84 Halo, 67043 gain. 2 spots on data sheet., Tube: 6198530 – 72 Resolution, 31.6 SNR, 2275 FOM, 0.75 EBI, 0.94 Halo, 56028 gain. No spots on data sheet., Tube: 6168596 – 76 Resolution, 30.1 SNR, 2287 FOM, 0.2 EBI, 0.95 Halo, 55608 gain. No spots on data sheet., Tube: 6167759 – 76 Resolution, 29.5 SNR, 2242 FOM, 1.49 EBI, 0.87 Halo, 55535 gain. No spots on data sheet., Tube: 6170391 – 76 Resolution, 34.3 SNR, 2606 FOM, 0.34 EBI, 0.85 Halo, 55817 gain. No spots on data sheet., Tube: 6167474 – 76 Resolution, 33.5 SNR, 2546 FOM, 1.51 EBI, 0.76 Halo, 56124 gain. No spots on data sheet., Tube: 6103918 – 76 Resolution, 30.4 SNR, 2310 FOM, 0.15 EBI, 0.96 Halo, 69206 gain. No spots on data sheet., Tube: 6162714 – 76 Resolution, 33.8 SNR, 2568 FOM, 1.5 EBI, 0.72 Halo, 55853 gain. No spots on data sheet., Tube: 6196912 – 72 Resolution, 34.4 SNR, 2476 FOM, 1.82 EBI, 0.91 Halo, 56992 gain. 1 spot zone 3., Tube: 6263444 – 64 Resolution, 31.7 SNR, 2028 FOM, 0.76 EBI, 0.77 Halo, 56705 gain. 1 spot zone 2., Tube: 6220736 – 81 Resolution, 32.4 SNR, 2624 FOM, 0.1 EBI, 0.98 Halo, 55996 gain. No spots on data sheet., Tube: 6215373 – 81 Resolution, 31.7 SNR, 2567 FOM, 0.71 EBI, 0.76 Halo, 56013 gain. No spots on data sheet., Tube: 6200190 – 76 Resolution, 30.3 SNR, 2302 FOM, 0.2 EBI, 0.60 Halo, 56603 gain. No spots on data sheet., Tube: 6236962 – 76 Resolution, 33.7 SNR, 2561 FOM, 0.9 EBI, 0.83 Halo, 55845 gain. No spots on data sheet., Tube: 6208404 – 76 Resolution, 33.1 SNR, 2515 FOM, 0.13 EBI, 0.94 Halo, 56548 gain. No spots on data sheet., Tube: 6216899 – 76 Resolution, 32.4 SNR, 2462 FOM, 2.31 EBI, 0.73 Halo, 56770 gain. No spots on data sheet., Tube: 6211985 – 64 Resolution, 33.4 SNR, 2137 FOM, 0.79 EBI, 0.80 Halo, 55426 gain. No spots on data sheet., Tube: 6212192 – 64 Resolution, 33.1 SNR, 2118 FOM, 0.8 EBI, 0.97 Halo, 56328 gain. No spots on data sheet., Tube: 6237780 – 64 Resolution, 33.8 SNR, 2163 FOM, 1.59 EBI, 0.80 Halo, 55859 gain. No spots on data sheet., Tube: 6209374 – 64 Resolution, 33.6 SNR, 2150 FOM, 1.92 EBI, 0.77 Halo, 56611 gain. No spots on data sheet., Tube: 6233235 – 64 Resolution, 34.5 SNR, 2208 FOM, 1.73 EBI, 0.73 Halo, 55579 gain. No spots on data sheet., Tube: 6239895 – 64 Resolution, 34.4 SNR, 2201 FOM, 2.11 EBI, 0.81 Halo, 56762 gain. No spots on data sheet., Tube: 6230306 – 64 Resolution, 35.6 SNR, 2278 FOM, 1.95 EBI, 0.75 Halo, 56584 gain. No spots on data sheet., Tube: 6212130 – 72 Resolution, 34.9 SNR, 2512 FOM, 2.07 EBI, 0.79 Halo, 56359 gain. 1 spot zone 1., Tube: 6201800 – 76 Resolution, 33.9 SNR, 2576 FOM, 1.55 EBI, 0.78 Halo, 56019 gain. 2 spots zone 2 and 1 spot zone 3., Tube: 6205274 – 72 Resolution, 32.1 SNR, 2311 FOM, 1.6 EBI, 0.97 Halo, 56801 gain. 1 spot zone 2., Tube: 6201089 – 72 Resolution, 32.4 SNR, 2332 FOM, 0.81 EBI, 0.73 Halo, 56605 gain. 1 spot zone 2., Tube: 6210488 – 72 Resolution, 33 SNR, 2376 FOM, 1.41 EBI, 0.80 Halo, 56348 gain. 1 spot zone 2., Tube: 6209999 – 76 Resolution, 33.1 SNR, 2515 FOM, 2.01 EBI, 0.79 Halo, 56443 gain. 1 spot zone 2., Tube: 6211734 – 81 Resolution, 33 SNR, 2673 FOM, 1.69 EBI, 0.82 Halo, 55903 gain. 1 spot zone 2., Tube: 6207505 – 72 Resolution, 33 SNR, 2376 FOM, 1.03 EBI, 0.77 Halo, 55918 gain. 1 spot zone 2., Tube: 6202177 – 72 Resolution, 29 SNR, 2088 FOM, 0.1 EBI, 0.95 Halo, 56687 gain. 1 spot zone 2., Tube: 6217857 – 64 Resolution, 34.2 SNR, 2188 FOM, 1.3 EBI, 0.78 Halo, 56378 gain. No spots on data sheet., Tube: 6213777 – 72 Resolution, 35.7 SNR, 2570 FOM, 1.74 EBI, 0.91 Halo, 56169 gain. No spots on data sheet., Tube: 6203189 – 76 Resolution, 30.3 SNR, 2302 FOM, 0.11 EBI, 0.85 Halo, 56164 gain. No spots on data sheet., Tube: 6208111 – 81 Resolution, 30.7 SNR, 2486 FOM, 0.58 EBI, 0.82 Halo, 56190 gain. No spots on data sheet., Tube: 6247164 – 64 Resolution, 36.1 SNR, 2310 FOM, 1.57 EBI, 0.79 Halo, 56787 gain. No spots on data sheet., Tube: 6200057 – 72 Resolution, 27.1 SNR, 1951 FOM, 0.18 EBI, 0.97 Halo, 56673 gain. 1 spot zone 3.

L3 White Standard / Supergain and Green

Type of Tube	L3 White Unfilmed – Standard Gain, L3 White Unfilmed – Supergain, L3 Green
Tube Grade / FOM	Mil Spec Under 2200 FOM, Mil Spec 2200+ FOM, Comm Spec Under 2200 FOM, Comm Spec 2200+ FOM
Selection Process	Handpicked Tube – CNV Select Tube and to Send Customer for Approval, Customer Select Tube – No Spots on Data Sheet, Customer Select Tube – Spots on Data Sheet
Tubes	Handpicked 1800-2000 FOM, Handpicked 2000-2200 FOM, Handpicked 2200 FOM+, Tube: 110021602 – 72 Resolution, 31.6 SNR, 2275 FOM, 0.2 EBI, 0.9 Halo, 106919 gain. No spots on data sheets., Tube: 110023855 – 72 Resolution, 32.1 SNR, 2311 FOM, 0.3 EBI, 0.7 Halo, 101344 gain. No spots on data sheet., Tube: 110022631 – 72 Resolution, 32.3 SNR, 2326 FOM, 1.5 EBI, 0.7 Halo, 107914 gain. No spots on data sheet., Tube: 110028749 – 72 Resolution, 30.6 SNR, 2203 FOM, 0.2 EBI, 0.8 Halo, 62054 gain. No spots on data sheet., Tube: 110022001 – 57 Resolution, 33.8 SNR, 1926 FOM, 0.4 EBI, 0.8 Halo, 61138 gain. No spots on data sheet., Tube: 110028290 – 72 Resolution, 30.7 SNR, 2210 FOM, 0.5 EBI, 0.7 Halo, 61235 gain. No spots on data sheet., Tube: 110035569 – 72 Resolution, 33.2 SNR, 2390 FOM, 0.4 EBI, 0.7 Halo, 65314 gain. No spots on data sheet., Tube: 110034685 – 72 Resolution, 34.9 SNR, 2512 FOM, 0.2 EBI, 0.7 Halo, 62358 gain. 2 spots zone 3., Tube: 110032675 – 72 Resolution, 28.5 SNR, 2052 FOM, 0.1 EBI, 0.7 Halo, 63426 gain. 1 spot zone 3., Tube: 110003967 – 64 Resolution, 36.2 SNR, 2317 FOM, 0.9 EBI, 0.7 Halo, 64981 gain. No spots on data sheets., Tube: 110002418 – 64 Resolution, 37.5 SNR, 2400 FOM, 3.5 EBI, 0.7 Halo, 60355 gain. No spots on data sheet., Tube: 110003835 – 57 Resolution, 36.9 SNR, 2103 FOM, 0.9 EBI, 0.7 Halo, 63752 gain. 1 spot zone 3., Tube: 110021948 – 72 Resolution, 29.2 SNR, 2102 FOM, 0.1 EBI, 0.8 Halo, 62926 gain. No spots on data sheet., Tube: 110000828 – 64 Resolution, 36.2 SNR, 2317 FOM, 2.1 EBI, 0.6 Halo, 65985 gain. 1 spot zone 3., Tube: 110005340 – 64 Resolution, 31.1 SNR, 1990 FOM, 1.0 EBI, 0.7 Halo, 62764 gain. No spots on data sheet., Tube: 110002030 – 64 Resolution, 37.2 SNR, 2381 FOM, 1.2 EBI, 0.6 Halo, 63655 gain. 1 spot zone 3., Tube: 110002418 – 64 Resolution, 37.5 SNR, 2400 FOM, 3.5 EBI, 0.7 Halo, 60355 gain. No spots on data sheet., Tube: 110007988 – 64 Resolution, 37.8 SNR, 2419 FOM, 1.3 EBI, 0.6 Halo, 65032 gain. 1 spot zone 2 and 1 spot zone 3., Tube: 110001645 – 72 Resolution, 31.8 SNR, 2290 FOM, 1.4 EBI, 0.7 Halo, 64384 gain. No spots on data sheet., Tube: 110009719 – 72 Resolution, 30.6 SNR, 2203 FOM, 0.1 EBI, 0.7 Halo, 62142 gain. No spots on data sheet., Tube: 110004040 – 64 Resolution, 39.3 SNR, 2515 FOM, 2.9 EBI, 0.6 Halo, 62990 gain. 1 spot zone 3., Tube: 120050080 – 64 Resolution, 27.4 SNR, 1754 FOM, 2.4 EBI, 1.0 Halo, 67442 gain. No spots on data sheet., Tube: 120048085 – 72 Resolution, 27.7 SNR, 1706 FOM, 0.8 EBI, 0.9 Halo, 67509 gain. No spots on data sheet., Tube: 120048234 – 64 Resolution, 28.4 SNR, 1818 FOM, 2.2 EBI, 0.9 Halo, 67826 gain. No spots on data sheet., Tube: 120049089 – 64 Resolution, 27.6 SNR, 1766 FOM, 2.1 EBI, 0.9 Halo, 60005 gain. No spots on data sheet., Tube: 120049581 – 64 Resolution, 26.8 SNR, 1715 FOM, 1.0 EBI, 0.9 Halo, 68497 gain. No spots on data sheet., Tube: 120048077 – 72 Resolution, 23.0 SNR, 1656 FOM, 0.8 EBI, 0.9 Halo, 65073 gain. No spots on data sheet., Tube: 120049266 – 64 Resolution, 25.7 SNR, 1645 FOM, 0.6 EBI, 0.9 Halo, 66275 gain. No spots on data sheet., Tube: 120048081 – 72 Resolution, 23.9 SNR, 1721 FOM, 0.7 EBI, 1.0 Halo, 62288 gain. No spots on data sheet., Tube: 120050170 – 72 Resolution, 22.2 SNR, 1598 FOM, 0.7 EBI, 0.90 Halo, 64420 gain. No spots on data sheet., Tube: 120048071 – 72 Resolution, 23.0 SNR, 1656 FOM, 0.7 EBI, 0.9 Halo, 65609 gain. No spots on data sheet., Tube: 120050279 – 64 Resolution, 22.8 SNR, 1459 FOM, 1.2 EBI, 0.95 Halo, 61075 gain. No spots on data sheet., Tube:120049106 – 64 Resolution, 25.9 SNR, 1658 FOM, 0.2 EBI, 0.9 Halo, 66926 gain. No spots on data sheet., Tube: 120048092 – 72 Resolution, 23.3 SNR, 1678 FOM, 0.9 EBI, 0.9 Halo, 62000 gain. No spots on data sheet., Tube: 120048211 – 64 Resolution, 25.7 SNR, 1760 FOM, 1.3 EBI, 0.9 Halo, 62320 gain. No spots on data sheet., Tube: 120050333 – 64 Resolution, 22.7 SNR, 1453 FOM, 0.7 EBI, 0.99 Halo, 66720 gain. No spots on data sheet., Tube: 120049891 – 64 Resolution, 30.6 SNR, 1958 FOM, 2.4 EBI, 0.8 Halo, 62280 gain. No spots on data sheet., Tube: 155026847 – 57 Resolution, 29.7 SNR, 1692 FOM, 0.2 EBI, 0.9 Halo, 64000 gain. 1 spot zone 3., Tube: 155023764 – 57 Resolution, 31.5 SNR, 1795 FOM, 0.3 EBI, 0.9 Halo, 66024 gain. 1 spot zone 3., Tube: 165038253 – 64 Resolution, 35.5 SNR, 2272 FOM, 0.9 EBI, 0.7 Halo, 64724 gain. 1 spot zone 2., Tube: 165038231 – 64 Resolution, 34.0 SNR, 2176 FOM, 0.5 EBI, 0.7 Halo, 60168 gain. 1 spot zone 2., Tube: 165036840 – 57 Resolution, 33.5 SNR, 1909 FOM, 0.7 EBI, 0.7 Halo, 63392 gain. No spots on data sheet., Tube: 165031470 – 72 Resolution, 28.7 SNR, 2066 FOM, 0.5 EBI, 0.8 Halo, 61441 gain. No spots on data sheet., Tube: 165090734 – 72 Resolution, 34.5 SNR, 2484 FOM, 0.5 EBI, 0.8 Halo, 64968 gain. 1 spot zone 3., Tube: 165092500 – 72 Resolution, 29.1 SNR, 2095 FOM, 0.2 EBI, 0.7 Halo, 63946 gain. 1 spot zone 2 and 2 spots zone 3., Tube: 165030208 – 72 Resolution, 33.2 SNR, 2390 FOM, 0.3 EBI, 0.7 Halo, 66562 gain. No spots on data sheet., Tube: 165036406 – 72 Resolution, 33.4 SNR, 2404 FOM, 0.2 EBI, 0.7 Halo, 62142 gain. No spots on data sheet., Tube: 165092758 – 57 Resolution, 31.5 SNR, 1795 FOM, 0.4 EBI, 0.7 Halo, 63987 gain. 1 spot zone 3., Tube: 165033561 – 64 Resolution, 33.5 SNR, 2144 FOM, 1.1 EBI, 0.7 Halo, 61762 gain. No spots on data sheet., Tube: 165097101 – 72 Resolution, 32.9 SNR, 2368 FOM, 0.6 EBI, 0.7 Halo, 61060 gain. 1 spot zone 3., Tube: 165100803 – 72 Resolution, 31.3 SNR, 2253 FOM, 0.5 EBI, 0.7 Halo, 64861 gain. 2 spots zone 3., Tube: 165078799 – 72 Resolution, 32.2 SNR, 2318 FOM, 0.9 EBI, 0.7 Halo, 62007 gain. No spots on data sheet., Tube:165078098 – 72 Resolution, 32.8 SNR, 2362 FOM, 0.4 EBI, 0.7 Halo, 60523 gain. No spots on data sheet., Tube: 165033933 – 72 Resolution, 34.1 SNR, 2455 FOM, 0.4 EBI, 0.7 Halo, 63053 gain. No spots on data sheet., Tube: 165068391 – 72 Resolution, 32.2 SNR, 2318 FOM, 0.4 EBI, 0.7 Halo, 62468 gain. No spots on data sheet., Tube: 165069321 – 72 Resolution, 32.9 SNR, 2369 FOM, 0.4 EBI, 0.8 Halo, 61092 gain. No spots on data sheet., Tube: 165041916 – 72 Resolution, 34.0 SNR, 2448 FOM, 0.4 EBI, 0.7 Halo, 64539 gain. No spots on data sheet., Tube: 165044327 – 72 Resolution, 33.2 SNR, 2390 FOM, 0.3 EBI, 0.7 Halo, 62306 gain. No spots on data sheet., Tube: 165044321 -72 Resolution, 33.0 SNR, 2376 FOM, 0.4 EBI, 0.7 Halo, 65552 gain. No spots on data sheet., Tube: 165044500 – 72 Resolution, 33.9 SNR, 2441 FOM, 0.3 EBI, 0.8 Halo, 63180 gain. No spots on data sheet., Tube: 165043976 – 72 Resolution, 32.3 SNR, 2326 FOM, 0.3 EBI, 0.7 Halo, 62678 gain. No spots on data sheet., Tube: 165041653 – 72 Resolution, 33.8 SNR, 2434 FOM, 0.3 EBI, 0.8 Halo, 62408 gain. No spots on data sheet., Tube: 165041003 – 72 Resolution, 32.5 SNR, 2340 FOM, 0.3 EBI, 0.7 Halo, 64414 gain. No spots on data sheet., Tube: 165042873 – 72 Resolution, 30.0 SNR, 2160 FOM, 2.1 EBI, 0.7 Halo, 63445 gain. No spots on data sheets., Tube: 165043329 – 72 Resolution, 31.5 SNR, 2268 FOM, 0.6 EBI, 0.7 Halo, 62551 gain. No spots on data sheet., Tube: 165042294 – 72 Resolution, 31.5 SNR, 2268 FOM, 0.3 EBI, 0.7 Halo, 67422 gain. No spots on data sheet., Tube: 165041418 – 72 Resolution, 33.0 SNR, 2376 FOM, 0.2 EBI, 0.7 Halo, 64386 gain. 1 spot zone 3., Tube: 165044335 – 72 Resolution, 33.5 SNR, 2412 FOM, 0.3 EBI, 0.8 Halo, 66071 gain. No spots on data sheet., Tube: 165043419 – 72 Resolution, 33.5 SNR, 2412 FOM, 0.5 EBI, 0.7 Halo, 64928 gain. No spots on data sheet., Tube: 165042267 – 72 Resolution, 33.5 SNR, 2412 FOM, 0.5 EBI, 0.7 Halo, 623568 gain. No spots on data sheet., Tube: 165042141 – 72 Resolution, 34.5 SNR, 2484 FOM, 0.4 EBI, 0.7 Halo, 64043 gain. 1 spot zone 3., Tube: 165077770 – 72 Resolution, 33.7 SNR, 2426 FOM, 0.5 EBI, 0.7 Halo, 114234 gain. No spots on data sheet., Tube: 165028929 – 72 Resolution, 31.7 SNR, 2282 FOM, 0.4 EBI, 0.8 Halo, 64199 gain. 1 spot zone 3., Tube: 165087636 – 64 Resolution, 34.1 SNR, 2182 FOM, 0.4 EBI, 0.8 Halo, 64550 gain. No spots on data sheet., Tube: 165082820 – 72 Resolution, 33.7 SNR, 2426 FOM, 1.7 EBI, 0.7 Halo, 62362 gain. No spots on data sheet., Tube: 165041529 – 72 Resolution, 33.2 SNR, 2390 FOM, 0.4 EBI, 0.8 Halo, 63425 gain. 1 spot zone 3., Tube: 165041742 – 72 Resolution, 32.0 SNR, 2304 FOM, 0.3 EBI, 0.8 Halo, 63564 gain. 1 spot zone 3., Tube: 165078272 – 57 Resolution, 32.4 SNR, 1846 FOM, 0.4 EBI, 0.7 Halo, 65823 gain. 1 spot zone 3., Tube: 165018900 – 57 Resolution, 28.8 SNR, 1641 FOM, 0.3 EBI, 0.8 Halo, 64488 gain. 1 spot zone 3., Tube: 165039434 – 72 Resolution, 34.0 SNR, 2448 FOM, 0.4 EBI, 0.8 Halo, 62557 gain. 1 spot zone 3., Tube: 165037188 – 72 Resolution, 34.7 SNR, 2498 FOM, 0.9 EBI, 0.7 Halo, 66700 gain. No spots on data sheet., Tube: 165042139 – 72 Resolution, 32.9 SNR, 2369 FOM, 0.4 EBI, 0.8 Halo, 65047 gain. No spots on data sheet., Tube: 165042395 – 72 Resolution, 32.9 SNR, 2369 FOM, 0.4 EBI, 0.8 Halo, 62926 gain. No spots on data sheet., Tube: 165035407 – 64 Resolution, 31.4 SNR, 2010 FOM, 0.4 EBI, 0.9 Halo, 62084 gain. No spots on data sheet., Tube: 165015540 – 72 Resolution, 27.0 SNR, 1944 FOM, 0.6 EBI, 0.7 Halo, 64621 gain. No spots on data sheet., Tube: 165033637 – 64 Resolution, 31.7 SNR, 2029 FOM, 0.5 EBI, 0.7 Halo, 62241 gain. 1 spot zone 3., Tube: 165028929 – 72 Resolution, 31.7 SNR, 2282 FOM, 0.4 EBI, 0.8 Halo, 64199 gain. 1 spot zone 3., Tube: 165048011 – 72 Resolution, 32.3 SNR, 2326 FOM, 0.8 EBI, 0.8 Halo, 65016 gain. No spots on data sheet., Tube: 165057708 – 72 Resolution, 28.5 SNR, 2052 FOM, 0.3 EBI, 0.8 Halo, 65534 gain. 1 spot zone 3., Tube: 165058043 – 72 Resolution, 32.0 SNR, 2304 FOM, 0.3 EBI, 1.0 Halo, 67479 gain. No spots on data sheet., Tube: 165015540 – 72 Resolution, 27.0 SNR, 1944 FOM, 0.6 EBI, 0.7 Halo, 64621 gain. No spots on data sheet., Tube: 165034895 – 72 Resolution, 28.3 SNR, 2038 FOM, 1.5 EBI, 0.7 Halo, 68068 gain. No spots on data sheet., Tube: 165041929 – 72 Resolution, 32.4 SNR, 2333 FOM, 0.3 EBI, 0.8 Halo, 61884 gain. No spots on data sheet., Tube: 165041630 – 72 Resolution, 32.4 SNR, 2333 FOM, 0.3 EBI, 0.8 Halo, 61819 gain. No spots on data sheet., Tube: 165041914 – 72 Resolution, 32.5 SNR, 2340 FOM, 0.3 EBI, 0.8 Halo, 62574 gain. No spots on data sheet., Tube: 165033785 – 57 Resolution, 33.9 SNR, 1932 FOM, 1.0 EBI, 0.7 Halo, 63724 gain. No spots on data sheet., Tube: 165031182 – 72 Resolution, 33.8 SNR, 2433 FOM, 0.6 EBI, 0.7 Halo, 61270 gain. No spots on data sheet., Tube: 165031606 – 57 Resolution, 34.4 SNR, 1960 FOM, 0.6 EBI, 0.7 Halo, 64831 gain. No spots on data sheet., Tube: 165032151 – 72 Resolution, 31.4 SNR, 2260 FOM, 0.4 EBI, 0.7 Halo, 60435 gain. No spots on data sheet., Tube: 165038491 – 64 Resolution, 34.6 SNR, 2214 FOM, 0.7 EBI, 0.7 Halo, 69394 gain. No spots on data sheet., Tube: 165038284 – 64 Resolution, 34.2 SNR, 2189 FOM, 0.5 EBI, 0.8 Halo, 66327 gain. 1 spot one 3., Tube: 165038204 – 64 Resolution, 33.2 SNR, 2125 FOM, 1.2 EBI, 0.7 Halo, 62749 gain. No spots on data sheet., Tube: 165038195 – 72 Resolution, 33.5 SNR, 2412 FOM, 0.4 EBI, 0.7 Halo, 66270 gain. 1 spot zone 3., Tube: 165038275 – 72 Resolution, 33.9 SNR, 2441 FOM, 0.7 EBI, 0.7 Halo, 62830 gain. No spots on data sheet., Tube: 165052797 – 72 Resolution, 30.5 SNR, 2196 FOM, 0.8 EBI, 0.7 Halo, 64733 gain. No spots on data sheet., Tube: 165060582 – 72 Resolution, 32.2 SNR, 2318 FOM, 1.1 EBI, 0.7 Halo, 63900 gain. No spots on data sheet., Tube: 165060506 – 72 Resolution, 32.3 SNR, 2326 FOM, 0.4 EBI, 0.8 Halo, 69472 gain. No spots on data sheet., Tube: 165070849 – 72 Resolution, 32.4 SNR, 2333 FOM, 0.8 EBI, 0.7 Halo, 66882 gain. No spots on data sheet., Tube: 165060757 – 72 Resolution, 32.7 SNR, 2354 FOM, 1.2 EBI, 0.7 Halo, 62802 gain. No spots on data sheet., Tube: 165071399 – 72 Resolution, 32.7 SNR, 2354 FOM, 1.2 EBI, 0.7 Halo, 68422 gain. No spots on data sheet., Tube: 165065713 – 72 Resolution, 32.9 SNR, 2369 FOM, 1.2 EBI, 0.6 Halo, 62402 gain. No spots on data sheet., Tube: 165035198 – 72 Resolution, 33.6 SNR, 2419 FOM, 0.5 EBI, 0.7 Halo, 67430 gain. No spots on data sheet., Tube: 165032591 – 72 Resolution, 34.0 SNR, 2448 FOM, 0.5 EBI, 0.7 Halo, 66768 gain. No spots on data sheet., Tube: 165079354 – 72 Resolution, 34.1 SNR, 2455 FOM, 1.1 EBI, 0.7 Halo, 1168890 gain. No spots on data sheet., Tube: 165082854 – 72 Resolution, 33.9 SNR, 2441 FOM, 0.4 EBI, 0.7 Halo, 101398 gain. No spots on data sheet., Tube: 165063305 – 72 Resolution, 30.9 SNR, 2225 FOM, 0.4 EBI, 0.8 Halo, 104793 gain. 1 spot zone 3., Tube: 165080684 – 72 Resolution, 31.3 SNR, 2254 FOM, 0.7 EBI, 0.7 Halo, 1141445 gain. No spots on data sheet., Tube: 165083273 – 72 Resolution, 32.0 SNR, 2304 FOM, 0.4 EBI, 0.7 Halo, 116266 gain. No spots on data sheet., Tube: 165084260 – 72 Resolution, 32.3 SNR, 2326 FOM, 0.4 EBI, 0.8 Halo, 101022 gain. No spots on data sheet., Tube: 165071176 – 72 Resolution, 30.5 SNR, 2196 FOM, 0.3 EBI, 0.7 Halo, 109728 gain. No spots on data sheet., Tube: 165066615 – 72 Resolution, 30.3 SNR, 2182 FOM, 0.3 EBI, 0.8 Halo, 108349 gain. No spots on data sheet., Tube: 165069446 – 72 Resolution, 30.3 SNR, 2182 FOM, 0.5 EBI, 0.7 Halo, 112351 gain. No spots on data sheet., Tube: 165082013 – 72 Resolution, 30.0 SNR, 2160 FOM, 0.4 EBI, 0.7 Halo, 115289 gain. No spots on data sheet., Tube: 165077055 – 72 Resolution, 33.2 SNR, 2390 FOM, 0.7 EBI, 0.6 Halo, 110774 gain. 1 spot zone 3., Tube: 165081790 – 72 Resolution, 33.3 SNR, 2398 FOM, 0.5 EBI, 0.7 Halo, 103860 gain. 1 spot zone 3., Tube: 165084311 – 72 Resolution, 33.2 SNR, 2390 FOM, 0.9 EBI, 0.6 Halo, 107530 gain. 1 spot zone 3., Tube: 165076924 – 72 Resolution, 32.6 SNR, 2347 FOM, 0.3 EBI, 0.7 Halo, 101079 gain. No spots on data sheet., Tube: 165081699 – 72 Resolution, 32.3 SNR, 2326 FOM, 0.8 EBI, 0.7 Halo, 11605 gain. No spots on data sheet., Tube: 165006079 – 64 Resolution, 34.1 SNR, 2182 FOM, 0.6 EBI, 0.7 Halo, 108675 gain. No spots on data sheet., Tube: 165002441 – 64 Resolution, 34.2 SNR, 2189 FOM, 1.8 EBI, 0.7 Halo, 104877 gain. No spots on data sheet., Tube: 165051113 – 72 Resolution, 32.3 SNR, 2326 FOM, 0.7 EBI, 0.7 Halo, 103651 gain. No spots on data sheet., Tube: 165076774 – 72 Resolution, 30.8 SNR, 2218 FOM, 0.2 EBI, 0.7 Halo, 105885 gain. No spots on data sheet., Tube: 165082411 – 72 Resolution, 32.0 SNR, 2304 FOM, 0.4 EBI, 0.7 Halo, 100816 gain. no spots on data sheet., Tube: 165057285 – 72 Resolution, 32.1 SNR, 2311 FOM, 0.5 EBI, 0.7 Halo, 105266 gain. No spots on data sheet., Tube: 165076785 – 72 Resolution, 32.1 SNR, 2311 FOM, 0.3 EBI, 0.7 Halo, 103067 gain. No spots on data sheet., Tube: 165063601 – 64 Resolution, 34.6 SNR, 2214 FOM, 0.4 EBI, 0.8 Halo, 109754 gain. No spots on data sheet., Tube: 165052658 – 64 Resolution, 33.8 SNR, 2163 FOM, 1.1 EBI, 0.8 Halo, 109367 gain. No spots on data sheet., Tube: 165032486 – 64 Resolution, 29.5 SNR, 1888 FOM, 0.2 EBI, 0.9 Halo, 107502 gain. No spots on data sheet., Tube: 165048965 – 72 Resolution, 30.3 SNR, 2182 FOM, 1.1 EBI, 0.8 Halo, 109676 gain. No spots on data sheet., Tube: 165050517 – 72 Resolution, 31.3 SNR, 2254 FOM, 0.5 EBI, 0.8 Halo, 100257 gain. No spots on data sheet., Tube: 165056529 – 72 Resolution, 30.2 SNR, 2174 FOM, 0.5 EBI, 1.0 Halo, 118199 gain. No spots on data sheet., Tube: 165052582 – 72 Resolution, 30.4 SNR, 2189 FOM, 0.5 EBI, 0.6 Halo, 109854 gain. No spots on data sheet., Tube: 165053590 – 72 Resolution, 32.6 SNR, 2347 FOM, 0.7 EBI, 0.7 Halo, 114644 gain. No spots on data sheet., Tube: 165063128 – 72 Resolution, 32.2 SNR, 2318 FOM, 1.3 EBI, 0.7 Halo, 109227 gain. No spots on data sheet., Tube: 165053095 – 72 Resolution, 32.7 SNR, 2354 FOM, 1.0 EBI, 0.7 Halo, 110497 gain. 1 spot zone 3., Tube: 165076839 – 72 Resolution, 30.6 SNR, 2203 FOM, 0.3 EBI, 0.8 Halo, 109870 gain. No spots on data sheet., Tube: 165057281 – 72 Resolution, 32.8 SNR, 2362 FOM, 0.4 EBI, 0.8 Halo, 109826 gain. 1 spot zone 3., Tube: 165053299 – 72 Resolution, 32.7 SNR, 2354 FOM, 0.6 EBI, 0.8 Halo, 117221 gain. No spots on data sheet., Tube: 165053104 – 72 Resolution, 32.1 SNR, 2311 FOM, 0.6 EBI, 0.7 Halo, 113637 gain. 1 spot zone 3., Tube: 165051865 – 72 Resolution, 31.5 SNR, 2268 FOM, 0.3 EBI, 0.7 Halo, 109825 gain. No spot on data sheet., Tube: 170321912 – 64 Resolution, 28.2 SNR, 1805 FOM, 0.5 EBI, 0.8 Halo, 109689 gain. No spots on data sheet., Tube: 170329577 – 64 Resolution, 34.5 SNR, 2208 FOM, 0.8 EBI, 0.7 Halo, 111168 gain. 1 spot zone 3., Tube: 170340961 – 64 Resolution, 30.4 SNR, 1971 FOM, 0.2 EBI, 0.7 Halo, 105392 gain. No spots on data sheet., Tube: 170349920 – 64 Resolution, 34.3 SNR, 2195 FOM, 0.4 EBI, 0.7 Halo, 62790 gain. No spots on data sheet., Tube: 170352365 – 72 Resolution, 33.6 SNR, 2419 FOM, 0.6 EBI, 0.6 Halo, 64116 gain. 1 spot zone 3., Tube: 195000543 – 72 Resolution, 28.1 SNR, 2023 FOM, 0.3 EBI, 1.0 Halo, 65847 gain. 1 spot zone 3.

Photonis White

Type	White Phosphor, Echo White Phosphor – High Gain, Comm Spec Green Phosphor (Autogain Only – No Manual Gain)
Tubes	Handpicked, Handpicked 1400-1600 FOM, Handpicked 1600-1800 FOM, Handpicked 1800+ FOM, Tube: A036059 – 76 Resolution, 29.67 SNR, 2254 FOM, 10812. 1 spot zone 1 and 1 spot zone 3., Tube: A036061 – 76 Resolution, 31.94 SNR, 2427 FOM, 10842 gain. 1 spot zone 1, Tube: Z021069 – 78 Resolution, 28.28 SNR, 2205 FOM, 10888 gain. No spots on data sheet.

Team Wendy Helmets - Discounted Package Pricing

Helmet Type	Team Wendy LTP 3.0 Bump, Team Wendy Carbon 3.0 Bump, Team Wendy EPIC Ballistic, Team Wendy EXFIL 3.0 Ballistic, Team Wendy EXFIL 3.0 Ballistic SL Lightweight
Color	Coyote Brown, Black, Ranger Green, Multicam
Size	Size 1 M/L, Size 2 L/XL, Small, Medium, Large, Extra Large

Laser - Discounted Package Pricing

Laser	3EIR Sentinel IRV P Selectable Mode (3 Mode – Aluminum Housing), 3EIR DesignateIRV Selectable Mode (3 Mode Polymer Housing), 3EIR DIR-ONE V (2 Mode IR+IR Illum- Polymer Housing), 3EIR DIR One (IR Only – Polymer Housing, Wilcox CivilIan RAID XE Red Laser – 6" Wilcox Connector, Wilcox CivilIan RAID XE Red Laser – 12" Wilcox Connector, Wilcox CivilIan RAID XE Red Laser – Legacy Crane Connector, Wilcox CivilIan RAID XE Red Laser – Dual Wilcox / Surefire Connector, Steiner DBAL A3, Steiner DBAL D2, Holosun IRIS GR3, Holosun IRIS GR4, RIX RIP-3C
Color	Black, FDE, Ranger Green

Laser

3EIR Sentinel IRV P Selectable Mode (3 Mode – Aluminum Housing), 3EIR DesignateIRV Selectable Mode (3 Mode Polymer Housing), 3EIR DIR-ONE V (2 Mode IR+IR Illum- Polymer Housing), 3EIR DIR One (IR Only – Polymer Housing, Wilcox CivilIan RAID XE Red Laser – 6" Wilcox Connector, Wilcox CivilIan RAID XE Red Laser – 12" Wilcox Connector, Wilcox CivilIan RAID XE Red Laser – Legacy Crane Connector, Wilcox CivilIan RAID XE Red Laser – Dual Wilcox / Surefire Connector, Steiner DBAL A3, Steiner DBAL D2, Holosun IRIS GR3, Holosun IRIS GR4, RIX RIP-3C

Color

Black, FDE, Ranger Green
