Aeon Night Vision Binocular ANVB - Manual Gain Articulating Night Vision Complete Binocular
From: $1,200.00 Original price was: $1,200.00.$1,000.00Current price is: $1,000.00.

MEMORIAL DAY SALE: FREE BATTERY PACK ON ALL COMPLETE ANVB NIGHT VISION BUILDS (HOUSING+OPTICS+TUBES) 5/18/2026 to 5/31/2026

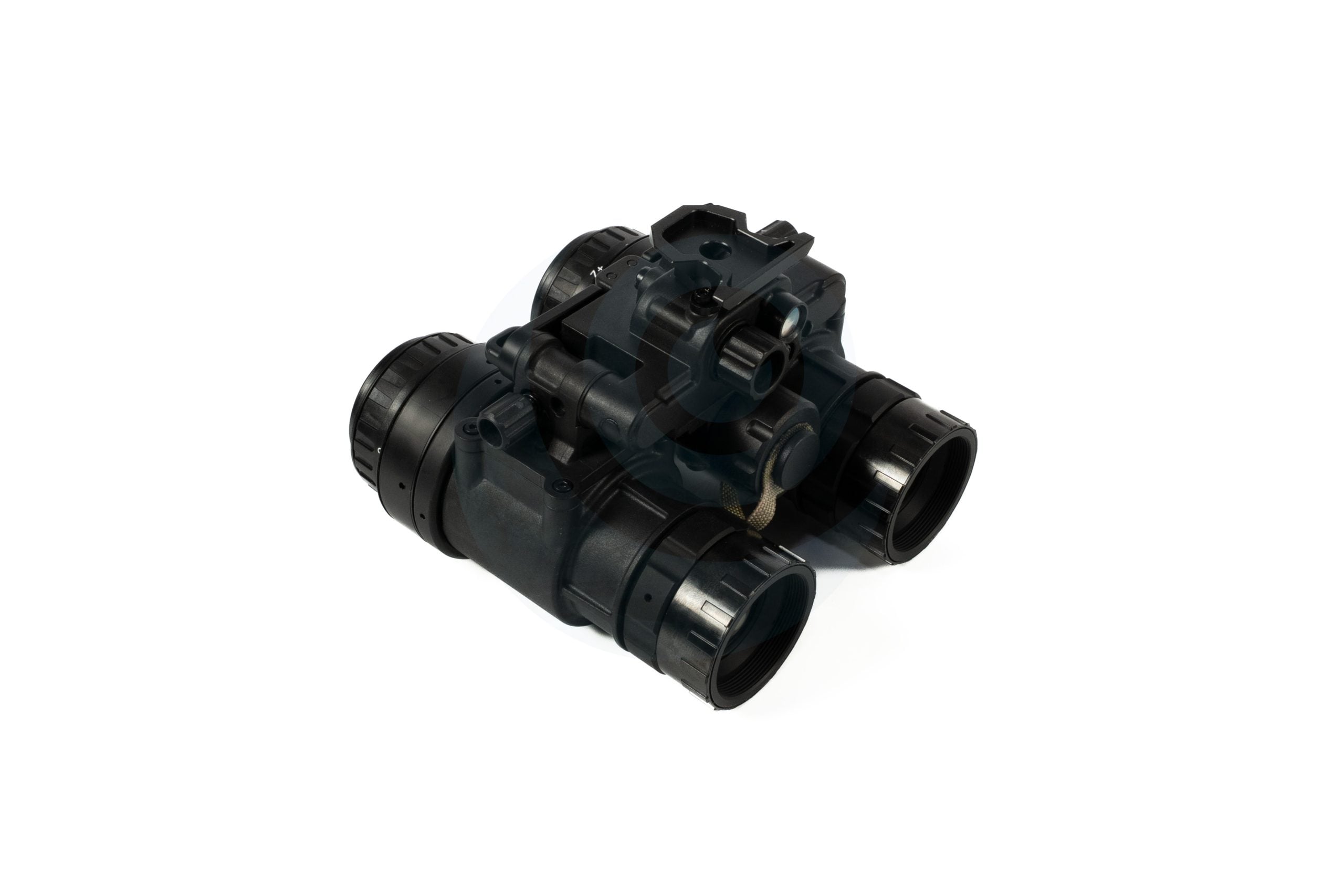

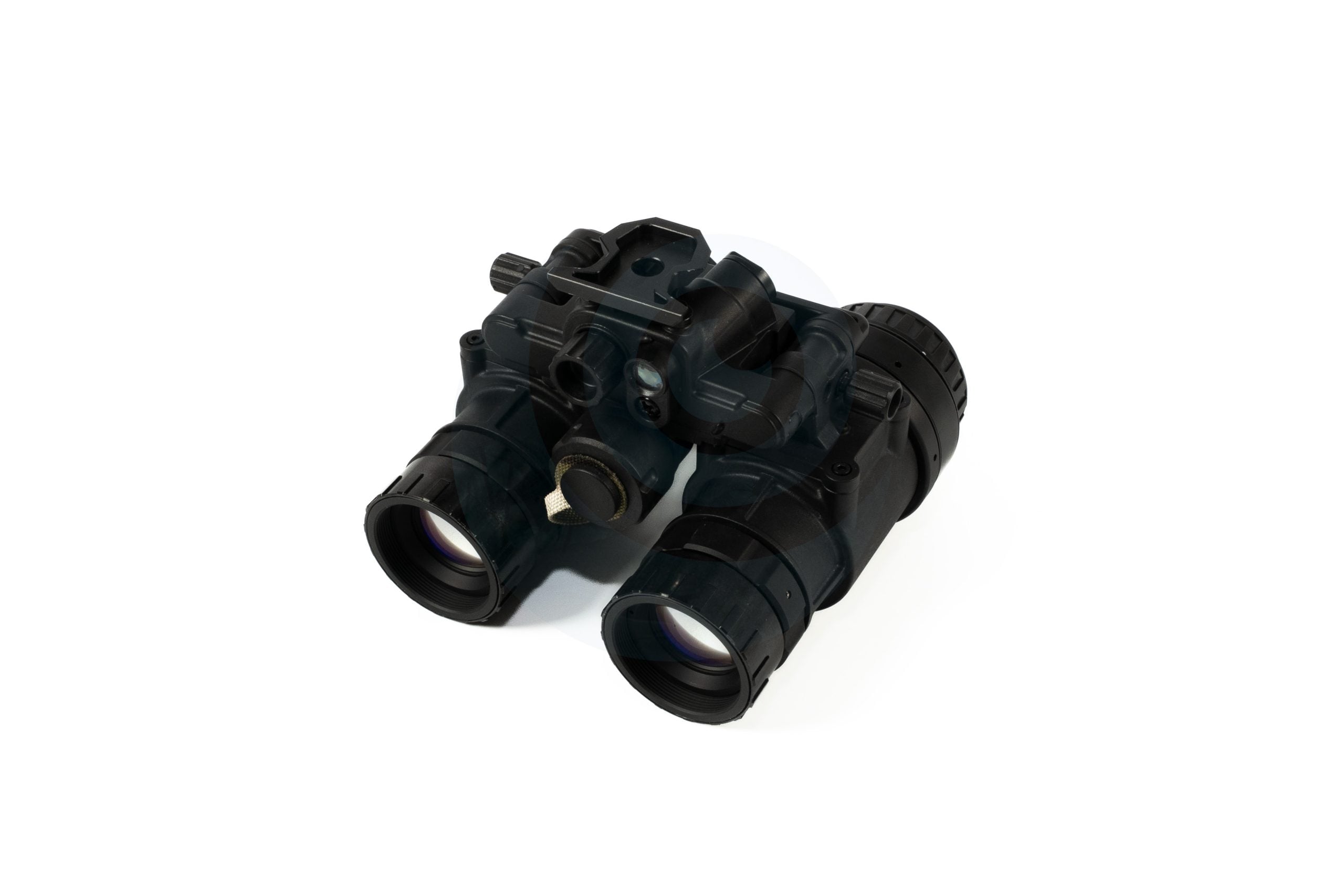

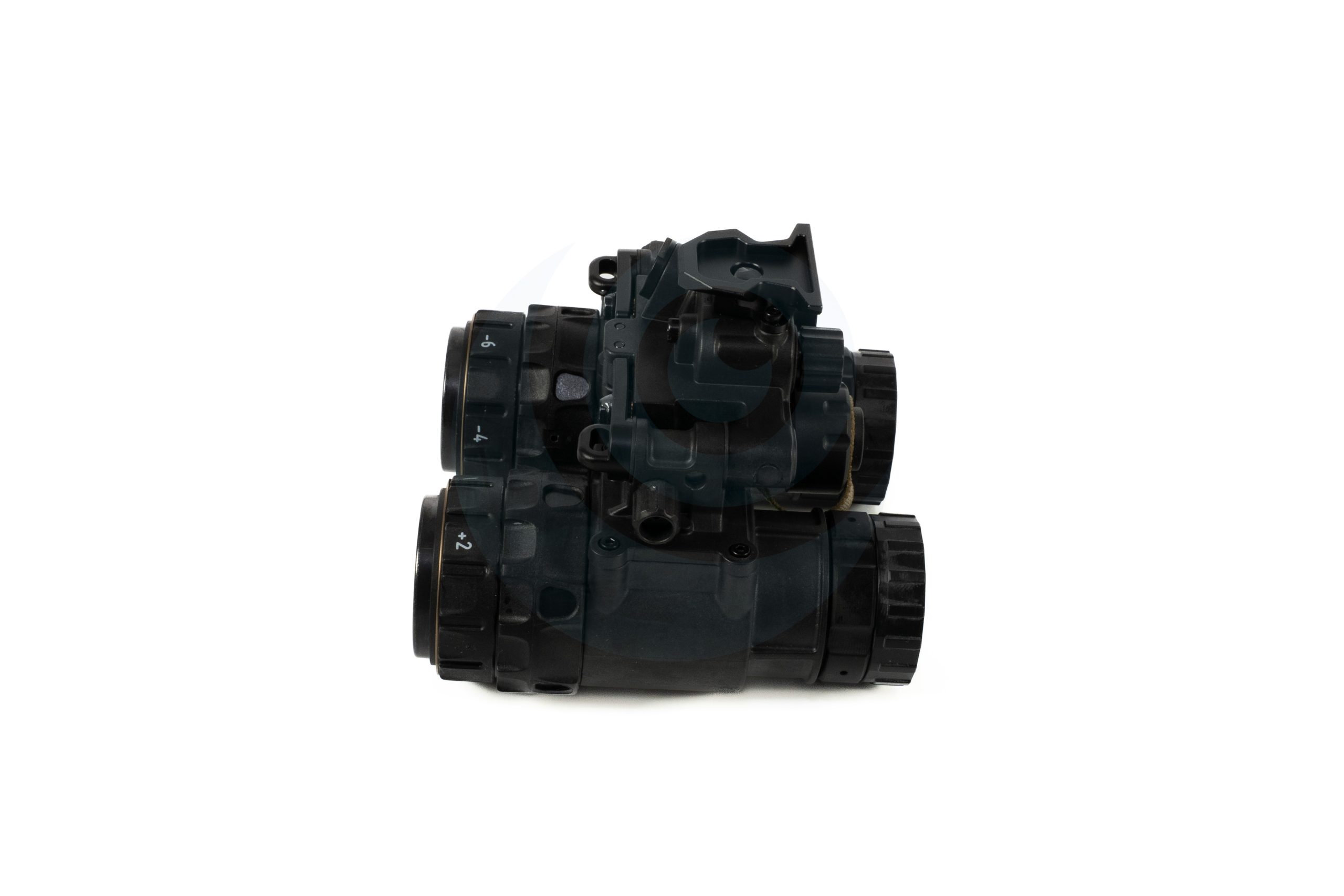

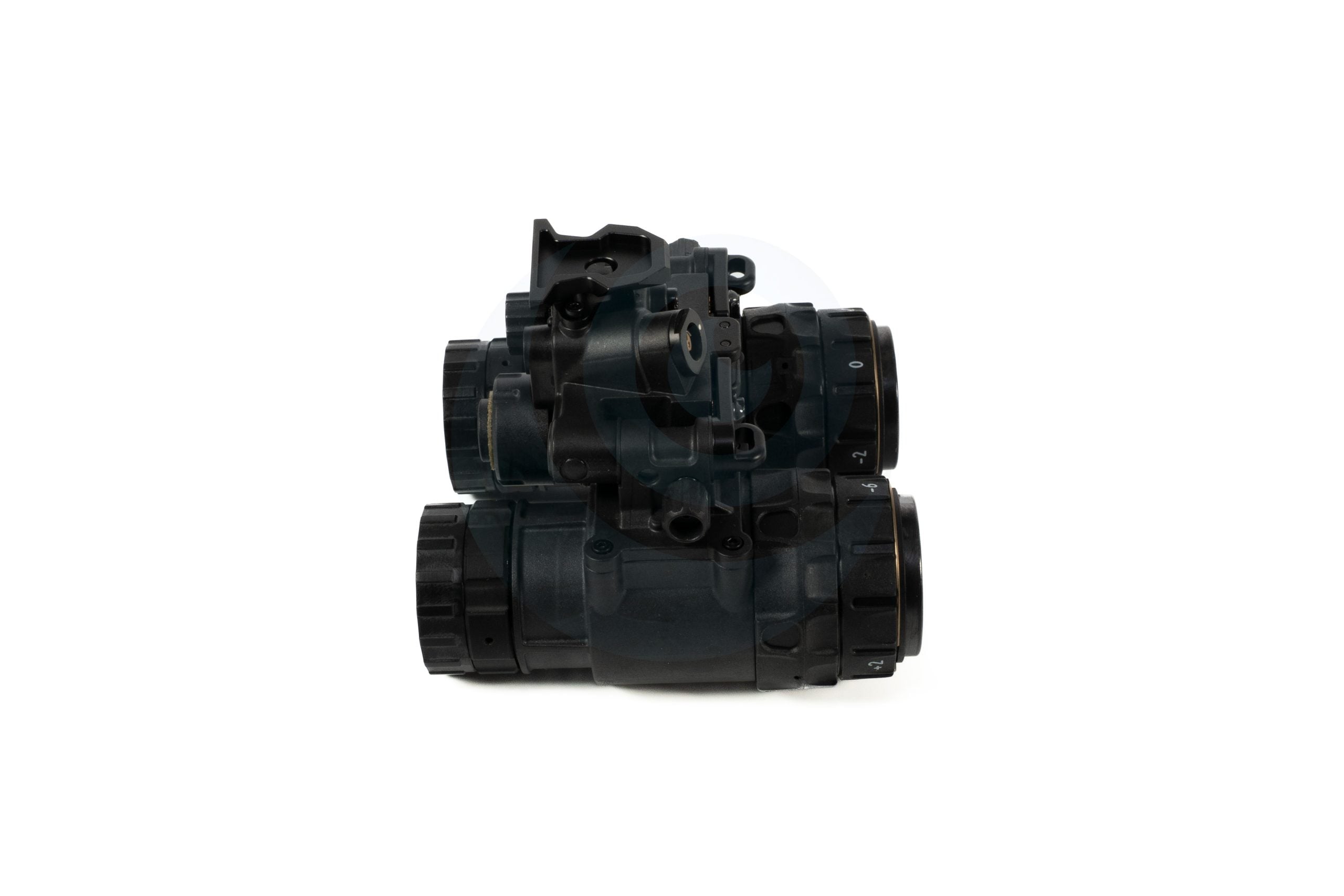

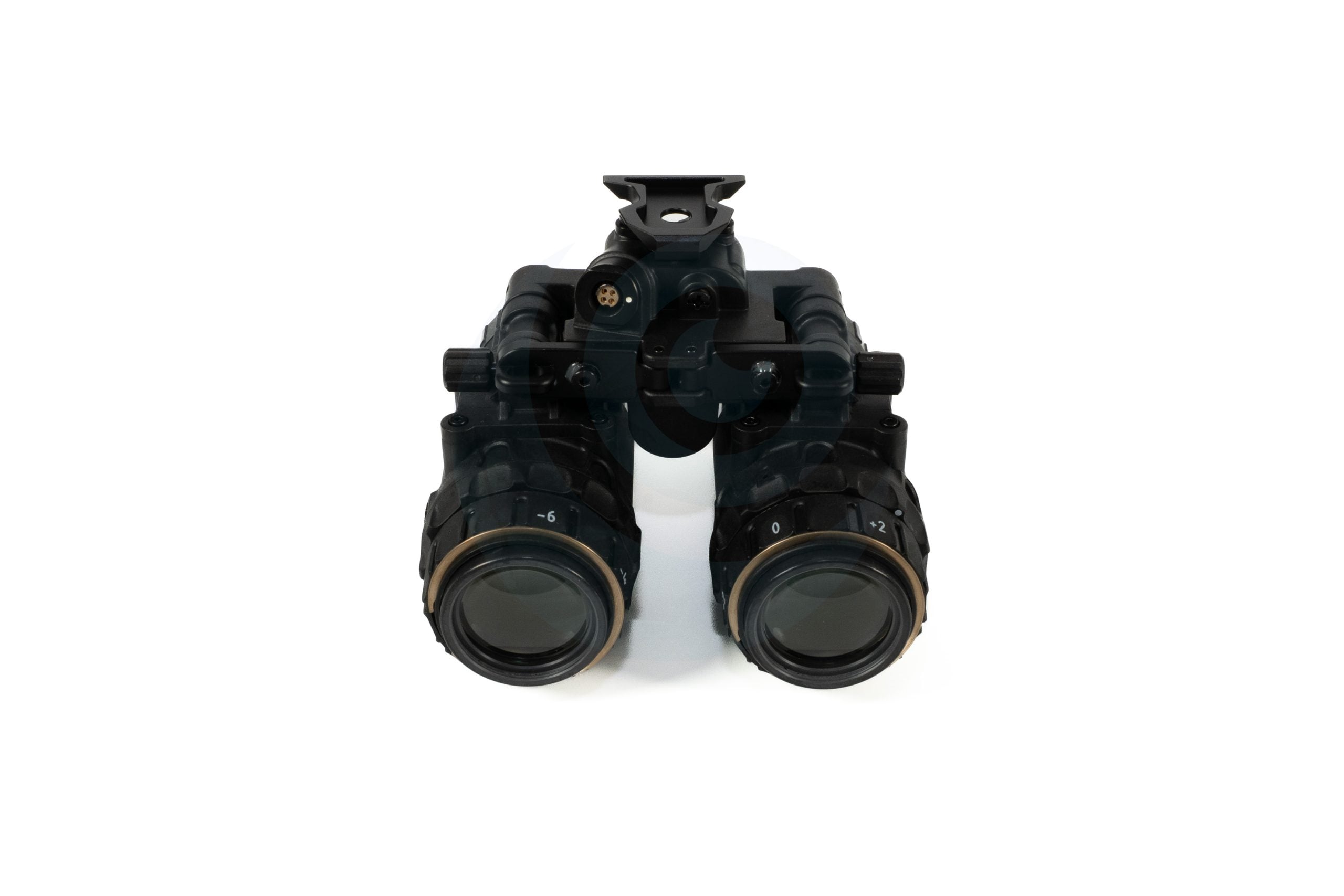

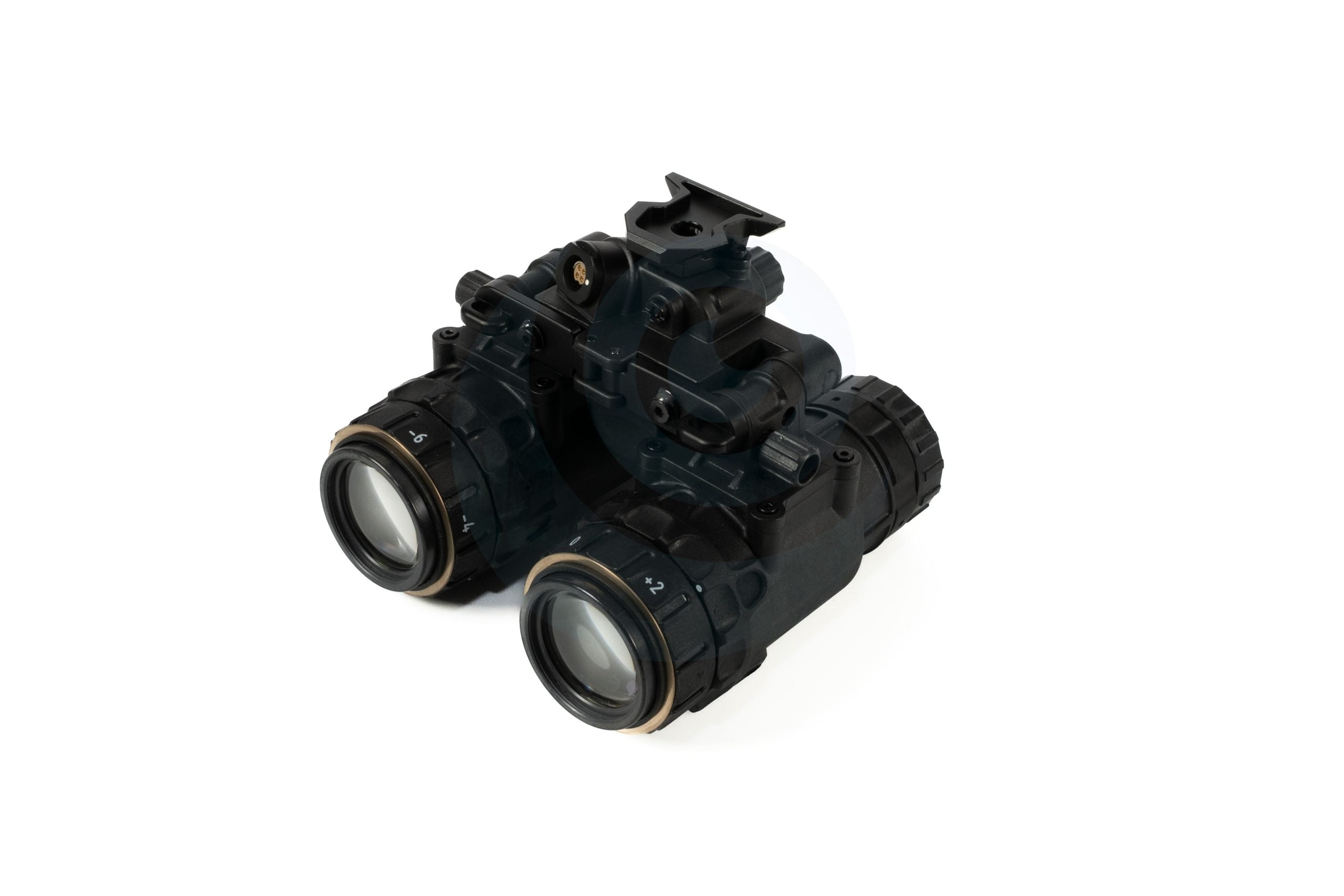

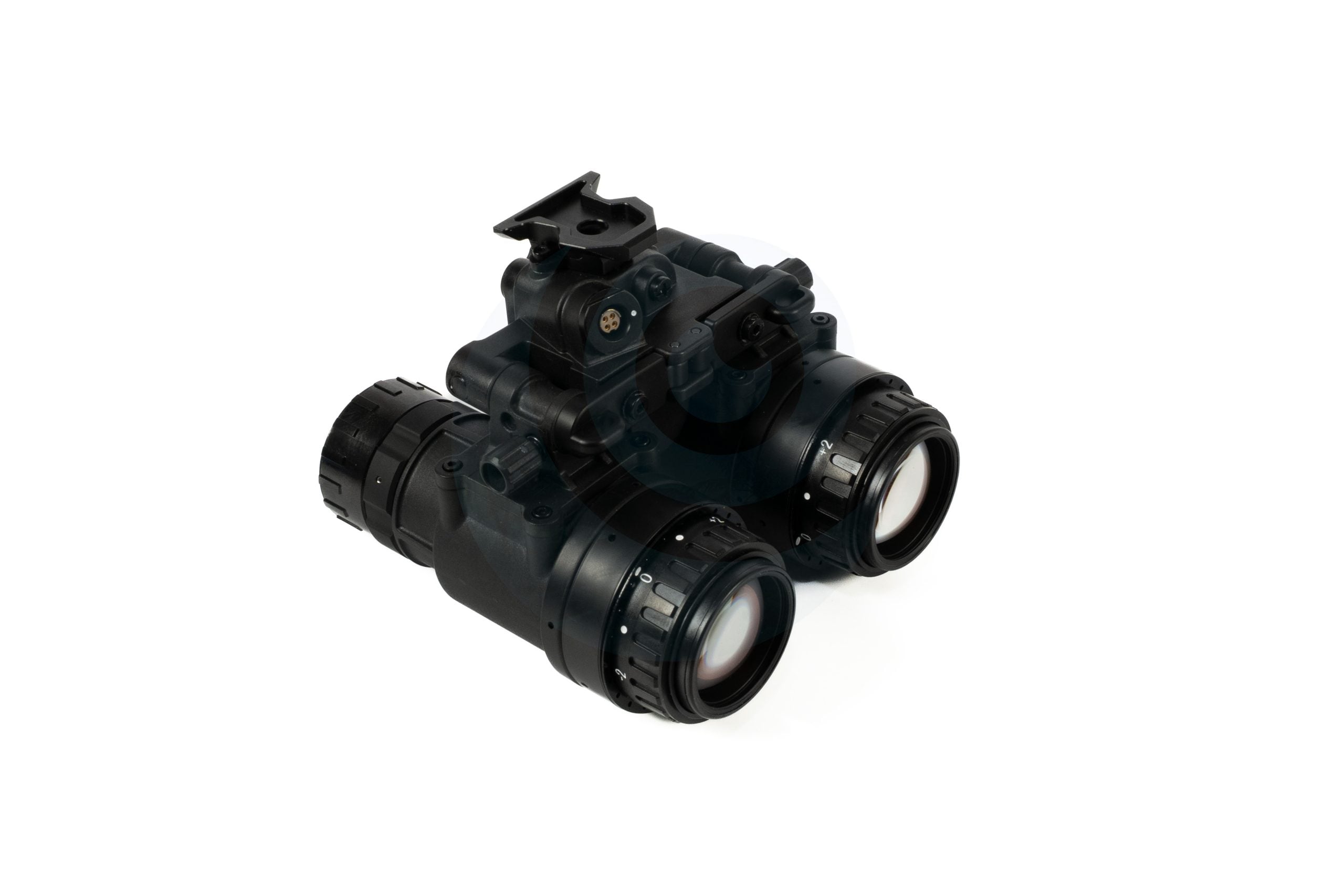

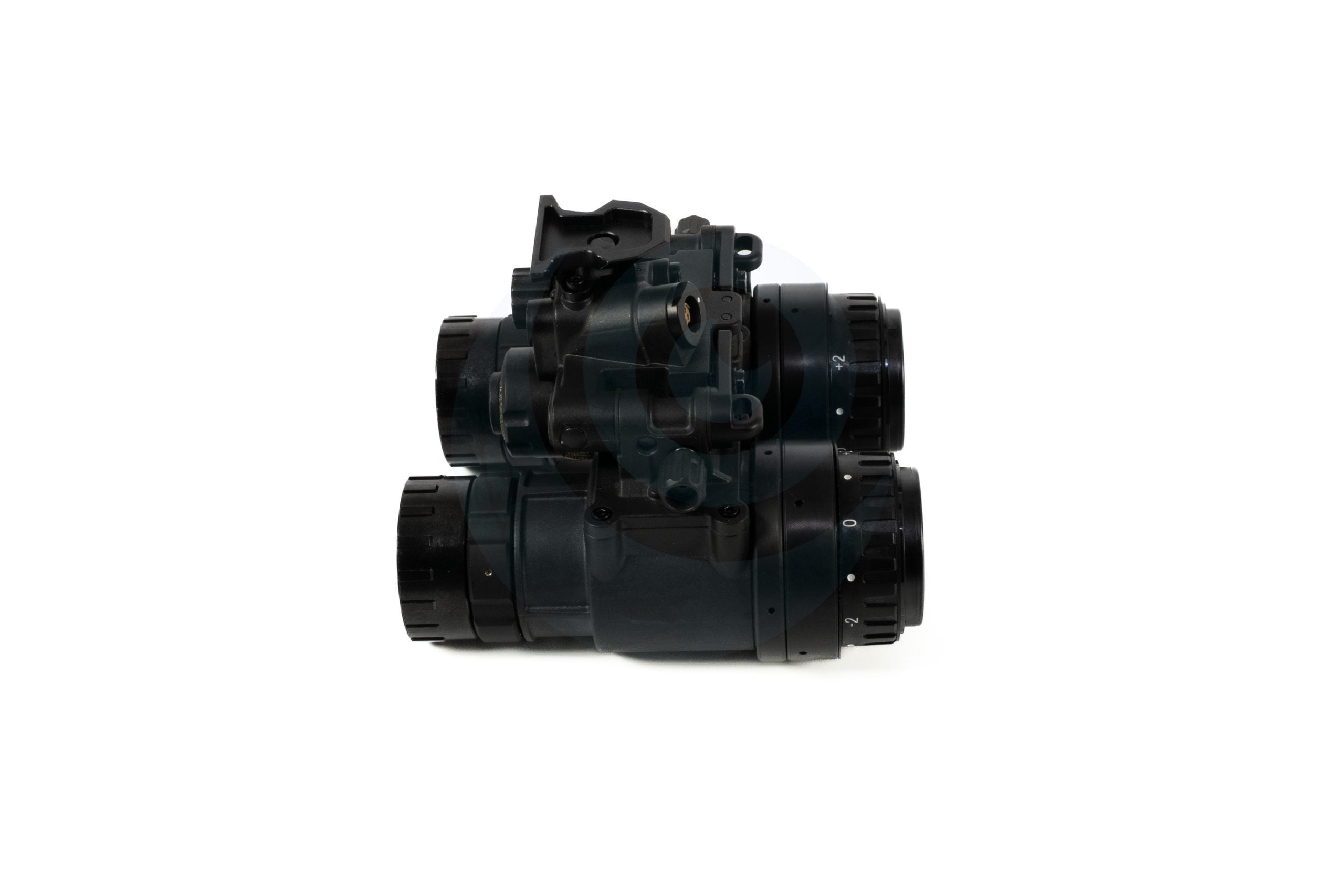

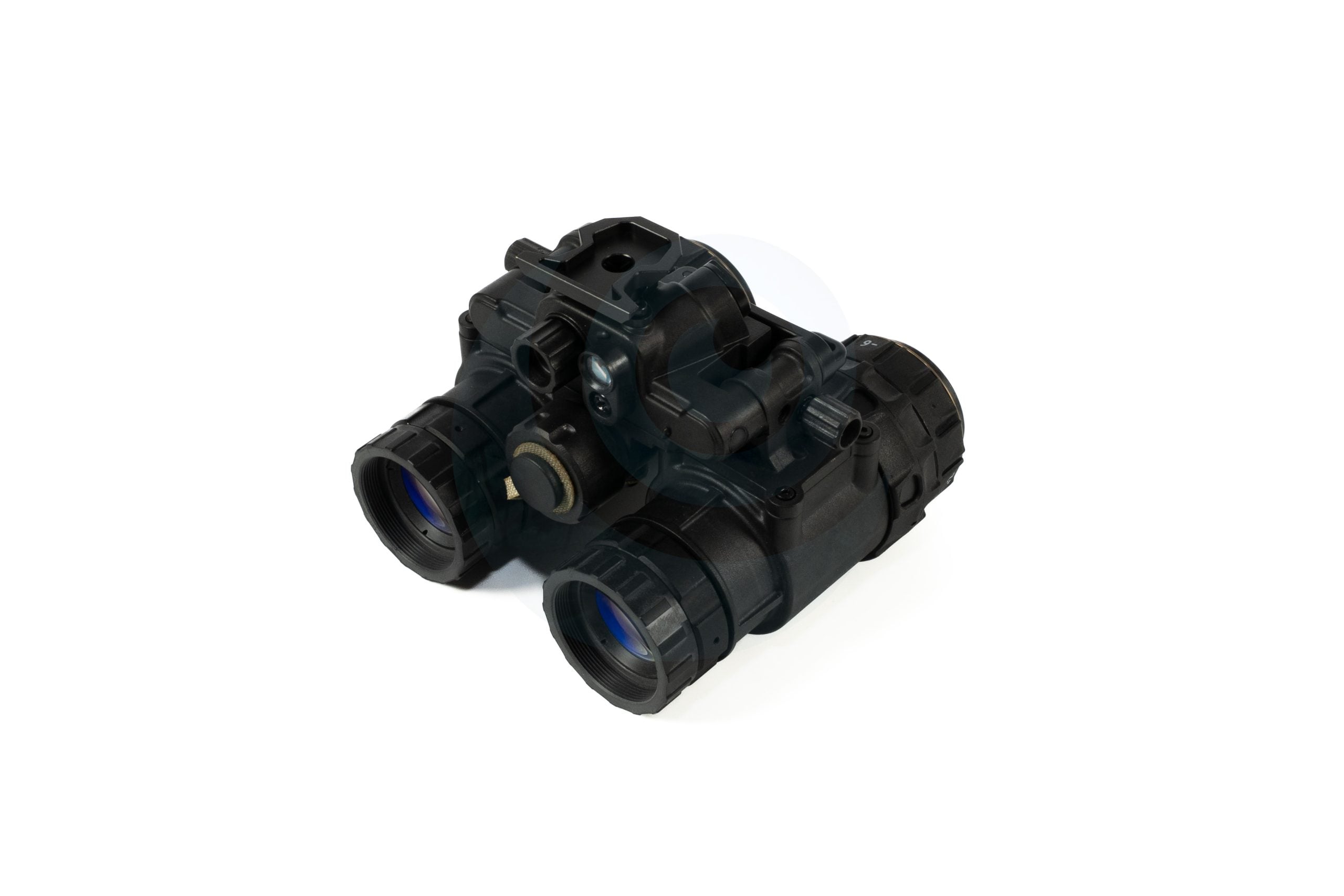

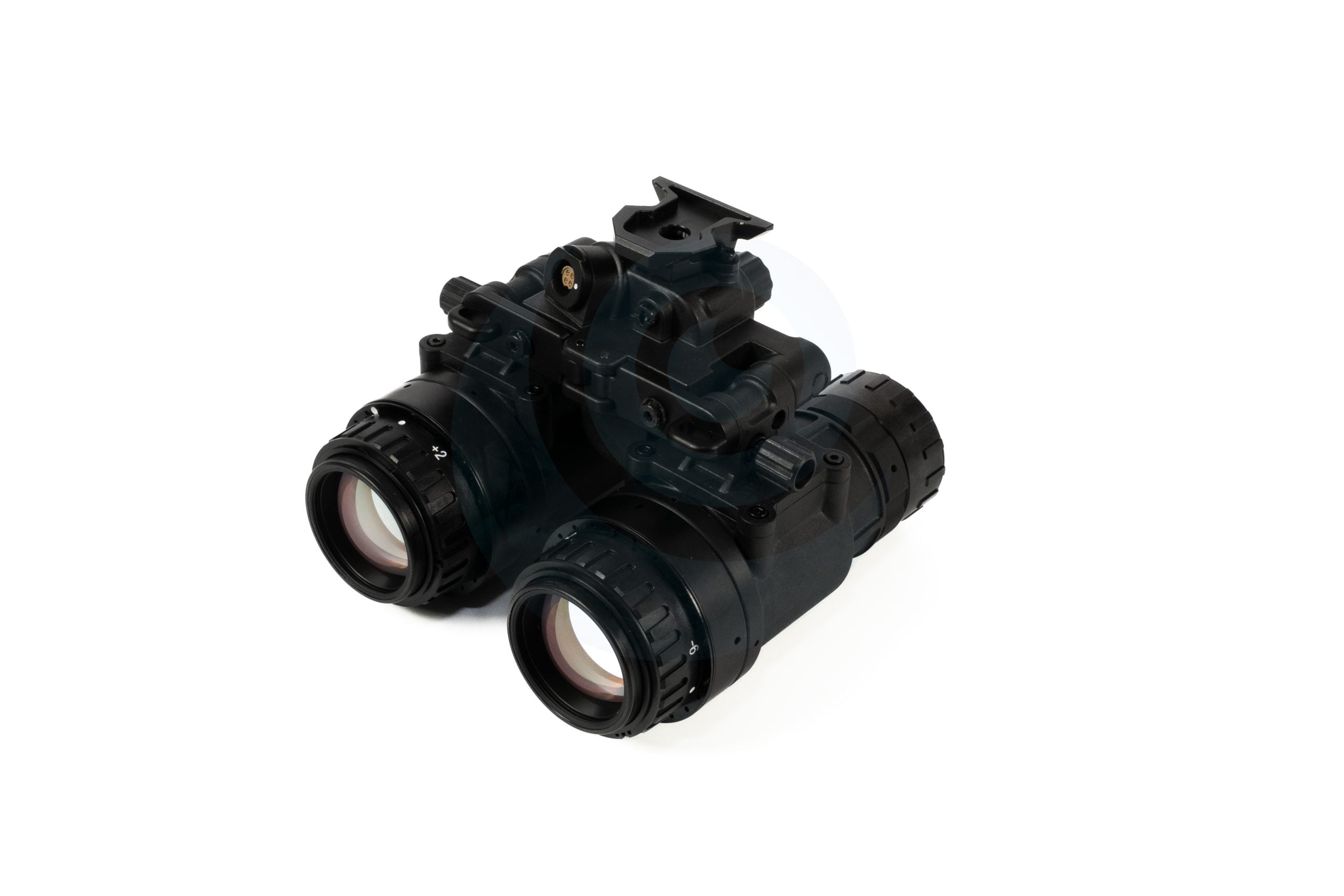

The Aeon Night Vision Binocular (ANVB) is the newest night vision binocular on the market!

The ANVB offers EVERY feature customers want – articulating manual gain with built in IR, IPD stops, independent pod on/off, external battery port and 5 year warranty including accidental damage for $999!

The skeletonized design features a single rotary switch for power that also serves as manual gain adjustment.ย  The Dual Focus IR illuminator is activated by pressing the power switch twice. ย The user can select between Flood and Spot when using the IR illuminator. ย Indicators in the viewing area alert the user if the IR illuminator is on, or if the unit senses a low battery condition.

The unit is powered by either an onboard 123 battery or auxiliary power from a battery pack using a Fischer style connector. The ANVB has an automatic system power cutoff whenever the ANVB is flipped up into the helmet mounted stow position, and then powers back on when it is flipped back down. This feature can be turned on or off depending on user preference.

Unlike the 1431 MK2, the ANVB pods turn off automatically when each is articulated up and turn back on when articulated down.ย  This feature prevents illumination on your helmet when one side is articulated up and ensures that the image intensifiers are โ€˜offโ€™ in the stowed position with the optical pods folded back against the helmet.

Custom Night Visions offers the ANVB in Black with the following tube options:

  1. L3 Harris Filmless White Supergain
  2. L3Harris Filmless White
  3. Elbit Thin Film White
  4. Photonis Green and White
  5. NNVT Whiteย

From the dropdown menu you can sell which tube manufacture and which actual set of tubes you would like to order.ย  Actual specs and photos of each in stock unit are in the drop down menus (please note: color shade of blue/green is due to photo lighting, all tubes will actually be the same light blue in color).

Don’t want to pick your own tube? No worries, just select the Handpicked Option.

Handpicked Option โ€“ Select this if you want Custom Night Vision to select intensifier tubes for you instead of selecting a set from our inventory. ย We will contact you (typically within 24-48 hours of placing your order) with pictures and specs of tubes we select to ask for your approval. If you have preferences on certain specs (ie: SNR, EBI etcโ€ฆ) please include those in your order notes and we will do our best to meet your goal. ย After customer tube approval the night vision unit will be ready to ship within 1 to 3 business days.

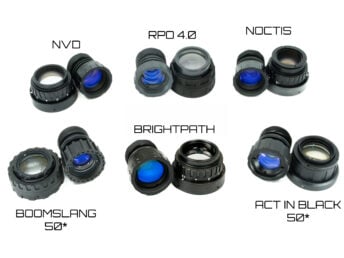

We offer Six choices of Optics:

  1. Brightpath Optics (Built to Mil Spec) – Outstanding value of high quality optics that combine ground and aviation elements; company led by Key Member of Former Qioptiq Excelitas Company. Weight: 3.8 ounces per set.
  2. Standard Mil-Spec Optics – NVD Cage Code – High quality Mil-Spec Optics (Typically Fuji). Found on most Mil-Spec PVS-14 Units. Weight: 4.5 ounces per set.
  3. Standard Mil-Spec Optics – Noctis (Formerly Carson) Cage Code – These are identical to our NVD Cage Code optics (Typically Fuji), but have the Cage Code of Noctis (Former Carson). Weight: 4.5 ounces per optic set.
  4. Rochester Precision Optics (RPO) 3.0 Ultralight – These are the most popular lightweight optic option. ย They are >45% lighter than Standard Mil-Spec Optics. Weight: 2.4 ounces per optic set.
  5. Photonis Defense Boomslang 50 Degree FOV – Lightweight 50 Degree optic system. Weight: 3.5 ounces per optic set
  6. Act in Black 50-Degree FOV – 50 degree optic system offering minimal resolution loss. Weight: 4.7 ounces per optic set.

Housing Swap Only Option โ€“ Includes prepaid label to send your existing night vision goggle, monoculars or parts to us. ย We will swap your tubes and optics to a new ANVB including collimating and purge. ย All remaining parts will be sent back to the customer.

ANVB Housing Specifications:

  • POWER SOURCE: (1) CR123 size battery
  • FOCUS RANGE: 9.8โ€ to infinity
  • OPERATION TIME:ย  Approximately 25 hours with onboard CR123
  • MAGNIFICATION: (1X) ONE POWER
  • FIELD OF VIEW: 40 Degrees with std Mil-spec optics
  • INTERPUPILLARY ADJUSTMENT: Adjustable IPD
  • DIOPTER ADJUSTMENT: -6 TO +2
  • GAIN: Manually adjustable
  • WEIGHT: 189g housing, 579g (20.4oz) with standard Mil-spec optics
  • IR ILLUMINATOR: Built in dual focus IR – flood or spot
  • WATER RESISTANCE:IPX7
  • IR LED & LOW BATTERY INDICATORS: Yes
  • INTENSIFIER TUBES: Compatible with MX-11769 (manual gain) and MX-10160 ย style (no manual gain)
  • OPTICS: Compatible with PVS-14 style eyepiece and objective
  • WARRANTY: 5 year housing warranty including accidental damage by user

Instructions / Manual

  • Hold Knob Down 3 Seconds: Power On/Off
  • 1 Tap: LED indicator testing
  • 2 Taps: IR illumination on/off
  • 3 Taps: IR Signaling Standby Mode: Left pod indicator constantly on, IR will be initiated when rotating the knob. The right pod indicator will light up when the IR is on. The gain control will be disabled during the IR Standby Mode. ย This mode allows the use of sending codes/signaling with IR.
  • 5 Taps: Turn on/off auto-stow feature that toggles power when entire goggle is flipped up or down using mount and auto-shutoff static feature that automatically turns off goggle after a long period of no movement.
  • 7 Taps: Lock the current gain as the maximum gain. ย Goggle memory will keep the new gain setting as maximum until it is reset to factory.
    10 Taps: Reset goggle to factory mode.

Additional information

Optics Selection - Binoculars

Optic Selection

BrightPath Optics (Built to Mil-Spec), Standard Mil-Spec Optics – NVD Cage Code, Standard Mil-Spec Optics – Noctis (Formerly Carson) Cage Code, RPO Ultralight NVD-Next 4.0, Photonis Defense Boomslang 50-Degree FOV, Act in Black 50-Degree FOV, Housing Swap Only – Standard Mil-Spec Optics Included (Customer Supplies Tubes), Housing Swap Only (Customer Supplies Tubes and Optics), Housing Only – No Optics Included, Housing Only – Mil Spec Optics Included

NNVT Autogated 10160/11769 White Phosphor Night Vision Intensifier Tubes - Matched Set (Autogain/3 Pad or 4 PIN EGAC Manual Gain)

FOM Level

1400-1600 FOM, 1600+ FOM
Tube Type

10160 (Autogain) / 3 Pad, 11769 Manual Gain

Photonis White and Green 10160 / 11769 Style Intensifier Tubes - Matched Set

Type

White Phosphor, Echo White Phosphor – High Gain, Echo Green Phosphor – High Gain, Comm Spec Green Phosphor
Matched Sets

Handpicked, Handpicked 1400-1600 FOM, Handpicked 1600-1800 FOM, Handpicked 1800-2000 FOM

Elbit 11769/10160 Autogated White Phosphor Intensifier Tubes - Matched Set

FOM Level

Under 2000 FOM, 2000-2300 FOM, 2300+ FOM
Selection Process

Handpicked Tubes – CNV Select Tubes and Send to Customer for Approval, Customer Select Tubes – No Spots on Data Sheet, Customer Select Tubes – Spots on Data Sheet
Matched Sets

Handpicked 1700-2000 FOM Set, Handpicked 2000-2376 FOM Set, Handpicked 2376+ FOM Set, Tubes: 5996556/5817504 – 81/81 Resolution, 33.9/34 SNR, 2745/2754 FOM, 1.5/1.37 EBI, 0.75/0.82 Halo, 68087/67549 gain. 5996556 1 spot zone 1. 5817504 2 spots zone 2 and 2 spots zone 3., Tubes: 5996556/5817504 – 81/81 Resolution, 33.9/34 SNR, 2745/2754 FOM, 1.5/1.37 EBI, 0.75/0.82 Halo, 68087/67549 gain. 5996556 1 spot zone 1. 5817504 2 spots zone 2 and 2 spots zone 3., Tubes: 5926281/6005087 – 72/72 Resolution, 23.8/24.4 SNR, 1713/1756 FOM, 0.1/0.13 EBI, 0.95/0.99 Halo, 68199/68584 gain. No spots on data sheets., Tubes: 5990486/5991203 – 64/64 Resolution, 27.4/27.4 SNR, 1753/1753 FOM, 0.92/0.54 EBI, 0.99/0.95 Halo, 68192/67387 gain. 5990486 2 spots zone 2, 5991203 1 spot zone 2 and 1 spot zone 3., Tubes: 5905477/5900760 – 64/64 Resolution, 26.8/26.8 SNR, 1715/1715 FOM, 1.02/1.47 EBI, 0.92/0.89 Halo, 68169/67221 gain. 5905477 1 spot zone 2. 5900760 1 spot zone 2 and 1 spot zone 3., Tubes: 5911945/6001701 – 72/72 Resolution, 29.2/29.3 SNR, 2102/2109 FOM, 0.67/0.66 EBI, 0.84/0.89 Halo, 67701/67595 gain. 5911945 1 spot zone 1. 6001701 2 spots zone 2., Tubes: 5972686/6028570 – 72/72 Resolution, 29.3/29.6 SNR, 2109 /2131 FOM, 0.34/0.1 EBI, 0.93/0.94 Halo, 55832/56034 gain. No spots on data sheets., Tubes: 5934098/5872499 – 72/72 Resolution, 30.2/31 SNR, 2174/2232 FOM, 1.48/0.52 EBI, 0.88/0.83 Halo, 55695/56178 gain. No spots on data sheets., Tubes: 5905238/5964103 – 64/64 Resolution, 26.6/26.8 SNR, 1702/1715 FOM, 0.12/0.11 EBI, 0.94/0.97 Halo, 67567/68431 gain. No spots on data sheets., Tubes: 5952903/5987130 – 64/64 Resolution, 25.9/26 SNR, 1657/1664 FOM, 0.52/0.1 EBI, 0.97/1.05 Halo, 68300/68219 gain. No spots on data sheets., Tubes: 5950948/5893681 – 64/64 Resolution, 25.5/25.9 SNR, 1632/1657 FOM, 0.97/1.34 EBI, 0.92/1.06 Halo, 67718/67311 gain. No spots on data sheets., Tubes: 6017711/5992166 – 64/64 Resolution, 27.6/27.7 SNR, 1766/1772 FOM, 0.31/1.13 EBI, 0.89/0.94 Halo, 56120/55316 gain. No spots on data sheets., Tubes: 6019877/6031689 – 64/64 Resolution, 27.1/27.6 SNR, 1734/1766 FOM, 0.1/1.85 EBI, 0.99/0.88 Halo, 67795/67279 gain. No spots on data sheets., Tubes: 6020728/5946310 – 64/64 Resolution. 29.9/26.7 SNR, 1721/1708 FOM, 0.11/0.54 EBI, 0.94/0.77 Halo, 55985/55856 gain. No spots on data sheets., Tubes: 6029929/5911757 – 64/64 Resolution, 26/26.4 SNR, 1664/1689 FOM, 0.1/0.1 EBI, 0.93/0.86 Halo, 68127/68376 gain. No spots on data sheets., Tubes: 6015741/5941559 – 64/64 Resolution, 25.7/25.7 SNR, 1644/1644 FOM, 0.1/0.24 EBI, 0.93/0.97 Halo, 68287/69095 gain. No spots on data sheets., Tubes: 6007862/6002043 – 64/64 Resolution, 25.5/24.7 SNR, 1632/1580 FOM, 0.1/0.11 EBI, 1.00/0.94 Halo, 55737/56502 gain. No spots on data sheets., Tubes: 6070237/5918814 – 64/64 Resolution, 24.7/25.8 SNR, 1580/1651 FOM, 0.11/0.1 EBI, 0.94/0.96 Halo, 68387/67953 gain. No spots on data sheets., Tubes: 6022326/5967594 – 64/64 Resolution, 25.1/25.1 SNR, 1606/1606 FOM, 0.25/0.16 EBI, 0.98/0.96 Halo, 68410/68382 gain. No spots on data sheets., Tubes: 6027502/5920894 – 72/72 Resolution, 24.8/24.8 SNR, 1785/1785 FOM, 0.1/1.32 EBI, 0.91/0.86 Halo, 68007/68498 gain. No spots on data sheets., Tubes: 6016963/5997822 – 72/72 Resolution, 24.7/24.2 SNR, 1778/1742 FOM, 0.95/0.1 EBI, 0.86/0.99 Halo, 67084/67494 gain. No spots on data sheets., Tubes: 6055146/5944388 – 64/64 Resolution, 33.1/32.8 SNR, 2118/2099 FOM, 0.77/0.53 EBI, 0.79/0.84 Halo, 55943/56294 gain. No spots on data sheets., Tubes: 6085002/6082821 – 72/72 Resolution, 35.7/35.8 SNR, 2570/2577 FOM, 0.19/0.91 EBI, 0.92/0.80 Halo, 67830/68825 gain. 6085002 3 spots zone 2. 6082821 1 spot zone 2., Tubes: 6062922/6085399 – 76/76 Resolution, 34.1/34.1 SNR, 2591/2591 FOM, 1.17/1.69 EBI, 0.94/0.76 Halo, 68359/67280 gain. 6062922 1 spot zone 1. 6085399 1 spot zone 3., Tubes: 6077502/5988792 – 81/81 Resolution, 34.2/34.2 SNR, 2770/2770 FOM, 1.03/0.94 EBI, 0.78/0.77 Halo, 67544/68030 gain. 6077502 1 spot zone 2. 5988792 1 spot zone 2., Tubes: 6077502/5988792 – 81/81 Resolution, 34.2/34.2 SNR, 2770/2770 FOM, 1.03/0.94 EBI, 0.78/0.77 Halo, 67544/68030 gain. 6077502 1 spot zone 2. 5988792 1 spot zone 2., Tubes: 6083843/5839513 – 72/72 Resolution, 32/32.7 SNR, 2304/2354 FOM, 0.68/0.52 EBI, 0.86/0.84 Halo, 68067/68258 gain. 6083843 1 spot zone 1. 5839513 1 spot zone 2 and 1 spot zone 3., Tubes: 6006522/6001090 – 72/72 Resolution, 28.8/29 SNR, 2073/2088 FOM, 1.07/0.39 EBI, 0.90/0.96 Halo, 67235/67600 gain. 6006522 1 spot zone 2. 6001090 2 spots zone 2, 3 spots zone 3., Tubes: 6045571/6034362 – 64/ 64 Resolution, 27/26.9 SNR, 1728/1721 FOM, 1.32/2.22 EBI, 1.18/0.93 Halo, 67519/67871 gain. 6045571 2 spots zone 3. 6034362 1 spot zone 3., Tubes: 6019202/6012818 – 68/68 Resolution,33.7/33.3 SNR, 2291/2264 FOM, 0.71/0.73 EBI, 0.80/0.80 Halo, 67885/68094 gain. 6019202 1 spot zone 2. 6012818 3 spots zone 2., Tubes: 6012682/5979541 – 76/76 Resolution, 27.4/27.5 SNR, 2082/2090 FOM, 0.41/0.38 EBI, 0.82/0.97 Halo, 67682/67771 gain. 6012682 2 spots zone 3. 5979541 1 spot zone 3., Tubes: 6028346/6020195 – 81/81 Resolution, 33.2/32.7 SNR, 2689/2648 FOM, 0.95/1.14 EBI, 0.83/0.79 Halo, 67229/67963 gain. 6028346 1 spot zone 2. 6020195 3 spots zone 2., Tubes: 6013815/5965856 – 72/72 Resolution, 34/33.2 SNR, 2448/2390 FOM, 0.89/1.21 EBI, 0.95/0.79 Halo, 67627/67702 gain. 6013815 1 spot zone 2. 5965856 1 spot zone 2., Tubes: 6044929/6098415 – 64/64 Resolution, 25.4/25.7 SNR, 1625/1644 FOM, 0.4/0.84 EBI, 1.21/1.19 Halo, 67722/67703 gain. No spots on data sheets., Tubes: 6044990/6043377 – 64/64 Resolution, 25.5/25.9 SNR, 1632/1657 FOM, 0.69/0.21 EBI, 0.78/1.18 Halo, 67256/68075 gain. No spots on data sheets., Tubes: 6019051/6176566 – 76/76 Resolution, 31.5/32.1 SNR, 2394/2439 FOM, 0.28/1.09 EBI, 0.96/0.80 Halo, 68034/55247 gain. No spots on data sheets., Tubes: 6051114/6169996 – 64/64 Resolution, 25.4/26.1 SNR, 1625/1670 FOM, 0.1/0.42 EBI, 0.87/0.98 Halo, 56575/55857 gain. 6051114 2 spots zone 2. 6169996 1 spot zone 2., Tubes: 6053595/5935747 – 64/64 Resolution, 32.4/33.3 SNR, 2073/2131 FOM, 0.43/0.98 EBI, 0.97/0.75 Halo, 55598/56774 gain. 6053595 1 spot zone 1. 5935747 1 spot zone 2., Tubes: 6046079/6097067 – 64/64 Resolution, 33.9/35.5 SNR, 2169/2272 FOM, 2.1/0.86 EBI, 0.75/0.80 Halo, 68382/55635 gain. 6046079 2 spots zone 2. 6097067 1 spot zone 1., Tubes: 6032184/5892304 – 64/64 Resolution, 30.2/30.1 SNR, 1932/1926 FOM, 1.97/1.37 EBI, 0.96/0.83 Halo, 55825/56787 gain. No spots on data sheets., Tubes: 6048077/5944440 – 64/64 Resolution, 28.6/28.2 SNR, 1830/1804 FOM, 0.34/0.75 EBI, 0.92/0.96 Halo, 57032/56198 gain. No spots on data sheets., Tubes: 6179836/6036462 – 64/64 Resolution, 29.5/29.2 SNR, 1888/1868 FOM, 0.79/0.29 EBI, 0.95/0.98 Halo, 57727/55693 gain. No spots on data sheets., Tubes: 6186248/6186716 – 64/64 Resolution, 24.4/24.7 SNR, 1561/1580 FOM, 0.21/0.45 EBI, 1.21/1.17 Halo, 55714/56151 gain. 6186248 1 spot zone 2. 6186716 1 spot zone 1., Tubes: 6168291/5952152 – 72/72 Resolution, 29.4/29.4 SNR, 2116/2116 FOM, 2.13/1.43 EBI, 0.97/0.96 Halo, 56056/56084 gain. No spots on data sheets., Tubes: 6121364/6092893 – 68/68 Resolution, 29.8/29.6 SNR, 2026/2012 FOM, 0.87/1.3 EBI, 0.95/0.94 Halo, 67456/68254 gain. 6092893 1 spot zone 3., Tubes: 6121226/6104860 – 64/64 Resolution, 31.4/31.3 SNR, 2009/2003 FOM, 0.71/0.74 EBI, 0.98/0.89 Halo, 67373/68318 gain. 6121226 1 spot zone 2. 6104860 2 spots zone 3., Tubes: 6119320/6059981 – 76/76 Resolution, 33.9/34 SNR, 2576/2584 FOM, 0.47/1.59 EBI, 0.78/0.80 Halo, 68245/67797 gain. 6119320 1 spot zone 3. 6059981 1 spot zone 2 and 1 spot zone 3., Tubes: 6110912/6119656 – 76/76 Resolution, 33.1/33 SNR, 2515/2508 FOM, 1.97/2.24 EBI, 0.81/0.80 Halo, 67478/68279 gain. 6110912 1 spot zone 1 and 3 spots zone 3. 6119656 2 spots zone 3., Tubes: 6141685/6141833 – 81/81 Resolution, 32/30.7 SNR, 2592/2486 FOM, 1.07/1.78 EBI, 0.98/0.74 Halo, 67095/56686 gain. No spots on data sheets., Tubes: 6146504/6149906 – 76/76 Resolution, 31.6/34.1 SNR, 2401/2591 FOM, 1.48/1.71 EBI, 0.85/0.79 Halo, 55985/68078 gain. No spots on data sheets., Tubes: 6159267/5972836 – 76/76 Resolution, 28.9/27.7 SNR, 2196/2105 FOM, 0.27/0.92 EBI, 0.98/0.96 Halo, 67939/55662 gain. No spots on data sheets., Tubes: 6154365/6157056 – 76/76 Resolution, 29.7/29.8 SNR, 2257/2264 FOM, 1.14/1.17 EBI, 0.97/0.97 Halo, 68181/56544 gain. No spots on data sheets., Tubes: 6152873/6150011 – 72/72 Resolution, 29.8/30 SNR, 2145/2160 FOM, 0.63/0.9 EBI, 0.85/0.98 Halo, 68514/55645 gain. No spots on data sheets., Tubes: 6159471/5955279 – 72/72 Resolution, 28.1/28.8 SNR, 2023/2073 FOM, 0.4/0.57 EBI, 0.91/1 Halo, 56248/56307 gain. No spots on data sheets., Tubes: 6153751/6159168 – 72/72 Resolution, 28.5/28.6 SNR, 2052/2059 FOM, 1.59/1.5 EBI, 1.14/0.98 Halo, 68146/55602 gain. No spots on data sheets., Tubes: 6154174/6146216 – 72/72 Resolution, 28.1/28.1 SNR, 2023/2023 FOM, 1.9/1.09 EBI, 0.91/0.88 Halo, 67388/56714 gain. No spots on data sheets., Tubes: 6134588/6147726 – 76/76 Resolution, 32.6/32.5 SNR, 2477/2470 FOM, 1.2/1.13 EBI, 0.79/0.79 Halo, 67780/55776 gain. No spots on data sheets., Tubes: 6157252/6014151 – 72/72 Resolution, 29.2/29.6 SNR, 2102/2131 FOM, 1.3/0.73 EBI, 0.95/0.98 Halo, 56411/56744 gain. 6157252 1 spot zone 1 and 1 spot zone 2. 6014151 1 spot zone 1., Tubes: 6123373/6117454 – 64/64 Resolution, 24.3/24.5 SNR, 1555/1568 FOM, 0.47/0.59 EBI, 1.19/1.17 Halo, 55345/56234 gain. 61233373 1 spot zone 2. 6117454 1 spot zone 2 and 1 spot zone 3., Tubes: 6189867/6183709 – 76/72 Resolution, 34.5/35.2 SNR, 2622/2534 FOM, 1.69/1.01 EBI, 0.80/0.98 Halo, 55731/56170 gain. 6189867 1 spot zone 2. 6183709 1 spot zone 2., Tubes: 6129968/6175201 – 64/64 Resolution, 32.1/33.1 SNR, 2054/2118 FOM, 0.72/2.06 EBI, 0.97/0.79 Halo, 56724/55973 gain. 6129968 1 spot zone 2. 6175201 1 spot zone 1., Tubes: 6191821/6192762 – 68/68 Resolution, 26.8/28.3 SNR, 1822/1924 FOM, 2.15/0.94 EBI, 0.79/0.95 Halo, 56003/56690 gain. No spots on data sheets., Tubes: 6180004/6193451 – 64/64 Resolution, 27.4/27.5 SNR, 1753/1760 FOM, 1.31/1 EBI, 0.97/0.98 Halo, 56297/56714 gain. No spots on data sheets., Tubes: 6192638/6154411 – 64/64 Resolution, 31.5/31.6 SNR, 2016/2022 FOM, 0.71/0.4 EBI, 0.94/0.95 Halo, 56485/56122 gain. No spots on data sheets., Tubes: 6161306/6177887 – 64/64 Resolution, 24.3/24.5 SNR, 1555/1568 FOM, 1.05/0.58 EBI, 1.21/1.13 Halo, 55801/55330 gain. 6161306 1 spot zone 2. 6177887 2 spots zone 3., Tubes: 6175339/6173366 – 81/81 Resolution, 32.8/32.8 SNR, 2656/2656 FOM, 1.81/1.69 EBI, 0.78/0.81 Halo, 55234/55009 gain. 6175339 1 spot zone 3., Tubes: 6160622/6060925 – 76/76 Resolution, 35.2/35.2 SNR, 2675/2675 FOM, 1.72/1.26 EBI, 0.80/0.68 Halo, 55307/56667 gain. 6160622 1 spot zone 3., Tubes: 6116570/6129623 – 76/76 Resolution, 34.4/34.6 SNR, 2614/2629 FOM, 1.94/1.77 EBI, 0.78/0.99 Halo, 68955/68868 gain. No spots on data sheets., Tubes: 6174062/6173856 – 76/76 Resolution, 32.8/32.9 SNR, 2492/2500 FOM, 2.48/2.21 EBI, 0.77/0.77 Halo, 56818/56302 gain. 6174062 1 spot zone 2 and 2 spots zone 3. 6173856 1 spot zone 3., Tubes: 6174934/5635751 – 81/81 Resolution, 31.1/31.4 SNR, 2519/2543 FOM, 1.52/1.22 EBI, 0.96/0.66 Halo, 55971/55624 gain. 5635751 1 spot zone 3., Tubes: 6181282/6115624 – 72/72 Resolution, 32.7/32.8 SNR, 2354/2361 FOM, 0.47/0.67 EBI, 0.73/0.93 Halo, 55918/67516 gain. 6181282 1 spot zone 3. 6115624 1 spot zone 3., Tubes: 6137927/6112111 – 72/72 Resolution, 32.5/32.9 SNR, 2340/2368 FOM, 1.21/1.44 EBI, 0.78/0.82 Halo, 68148/67962 gain. 6112111 2 spots zone 3., Tubes: 6104198/6132221 – 72/72 Resolution, 32.8/33 SNR, 2361/2376 FOM, 0.52/0.91 EBI, 0.78/0.76 Halo, 67578/67560 gain. 6104198 1 spot zone 3. 6132221 1 spot zone 3., Tubes: 6174592/6046902 – 76/76 Resolution, 32.5/32.6 SNR, 2470/2477 FOM, 1.83/1.53 EBI, 0.79/0.82 Halo, 55444/57798 gain. No spots on data sheets., Tubes: 6177988/6057401 – 76/76 Resolution, 32.6/32.8 SNR, 2477/2492 FOM, 0.64/0.31 EBI, 0.90/0.77 Halo, 56235/55658 gain. 6057401 1 spot zone 3., Tubes: 6179185/6140040 – 76/76 Resolution, 32.7/32.8 SNR, 2485/2492 FOM, 1.44/1.59 EBI, 0.95/0.92 Halo, 56416/67625 gain. No spots on data sheets., Tubes: 6159527/6006741 – 76/76 Resolution, 33.4/32.9 SNR, 2538/2500 FOM, 0.3/0.37 EBI, 0.97/0.98 Halo, 56748/55922 gain. No spots on data sheets., Tubes: 6132984/6020127 – 76/76 Resolution, 32.9/32.9 SNR, 2500/2500 FOM, 0.1/0.78 EBI, 0.97/0.95 Halo, 55485/55855 gain. No spots on data sheets., Tubes: 6159734/6028893 – 64/64 Resolution, 28.9/28.7 SNR, 1849/1836 FOM, 0.65/0.25 EBI, 0.93/0.96 Halo, 56315/55498 gain. No spots on data sheets., Tubes: 6197808/6168906 – 72/72 Resolution, 27.1/27.2 SNR, 1951/1958 FOM, 0.75/0.57 EBI, 0.97/0.98 Halo, 56289/56306 gain. No spots on data sheets., Tubes: 6189646/6184967 – 72/72 Resolution, 26.7/26.3 SNR, 1922/1893 FOM, 0.7/0.57 EBI, 0.96/1.05 Halo, 56842/55206 gain. No spots on data sheets., Tubes: 6156282/6014011 – 64/64 Resolution, 29.5/29.7 SNR, 1888/1900 FOM, 0.55/0.74 EBI, 0.90/0.94 Halo, 55442/55746 gain. No spots on data sheets., Tubes: 6194243/6158164 – 64/64 Resolution, 28.9/29 SNR, 1849/1856 FOM, 0.94/0.26 EBI, 0.96/0.95 Halo, 56854/56062 gain. No spots on data sheets., Tubes: 6186317/5942970 – 64/64 Resolution, 28.6/29.3 SNR, 1830/1875 FOM, 1.7/1.11 EBI, 0.98/0.86 Halo, 56920/55744 gain. No spots on data sheets.

L3 Unfilmed White Phosphor - Matched Set - 10160/11769 Style Tubes

Tube Type

Mil-Spec 1800-2200 FOM, Mil-Spec 2200+ FOM, Comm-Spec
Selection Process

Handpicked Tubes – CNV Select Tubes and Send to Customer for Approval, Customer Select Tubes – No Spots on Data Sheet, Customer Select Tubes – Spots on Data Sheet
Matched Pairs

Handpicked 1800-2000 FOM, Handpicked 2000-2200 FOM, Handpicked 2200+ FOM, Tubes: 110014283/165038242 – 72/72 Resolution, 37.2/36.9 SNR, 2678/2657 FOM, 0.7/1.4 EBI, 0.7/0.7 Halo, 66595/66094 gain. No spots on data sheets., Tubes: 110027275/110020269 – 64/64 Resolution, 35.0/35.3 SNR, 2240/2259 FOM, 0.6/0.5 EBI, 0.7/0.7 Halo, 63788/61582 gain. No spots on data sheets., Tubes: 110025926/110028143 – 64/64 Resolution, 35.7/35.9 SNR, 2285/2298 FOM, 0.7/1.0 EBI, 0.7/0.7 Halo, 64017/60718 gain. No spots on data sheets., Tubes: 110024468/110024977 – 72/72 Resolution, 31.1/31.3 SNR, 2239/2254 FOM, 0.1/0.2 EBI, 0.8/0.07 Halo, 64813/62248 gain. No spots on data sheets., Tubes: 110020266/110031092 – 72/72 Resolution, 33.5/33.6 SNR, 2412/2419 FOM, 0.6/0.5 EBI, 0.7/0.7 Halo, 64624/66980 gain. No spots on data sheets., Tubes: 110009074/110001604 – 64/64 Resolution, 35.8/36.3 SNR, 2291/2323 FOM, 0.6/0.8 EBI, 0.7/0.7 Halo, 61856/64749 gain. 110009074 1 spot zone 3., Tubes: 110001690/110001662 – 64/64 Resolution, 33.5/33.9 SNR, 2144/2170 FOM, 0.4/0.6 EBI, 0.7/0.6 Halo, 64799/65099 gain. No spots on data sheets., Tubes: 110007574/110010409 – 64/64 Resolution, 37.9/38.5 SNR, 2426/2464 FOM, 0.9/0.6 EBI, 0.7/0.7 Halo, 63707/62647 gain. 110007574 2 spots zone 3. 110010409 1 spot zone 3., Tubes: 155029761/155029775 – 57/57 Resolution, 30.0/31.2 SNR, 1710/1778 FOM, 0.8/0.3 EBI, 0.9/0.9 Halo, 63802/64885 gain. 155029761 3 spots zone 3., Tubes: 155029739/155029785 – 57/57 Resolution, 31.1/30.4 SNR, 1772/1732 FOM, 0.4/0.2 EBI, 0.9/1.0 Halo, 63874/64035 gain. 155029739 1 spot zone 3. 155029785 1 spot zone 3., Tubes: 155029763/165036922 – 57/57 Resolution, 28.0/27.3 SNR, 1596/1556 FOM, 0.3/0.5 EBI, 0.9/0.7 Halo, 63923/60219 gain. 155029763 1 spot zone 3. 165036922 1 spot zone 3., Tubes: 165035210/170349926 – 72/72 Resolution, 34.9/34.9 SNR, 2513/2513 FOM, 0.8/0.7 EBI, 0.7/0.7 Halo, 65060/63802 gain. No spots on data sheets., Tubes: 165038266/165038206 – 64/64 Resolution, 33.9/33.5 SNR, 2170/2144 FOM, 0.5/0.7 EBI, 0.8/0.7 Halo, 63209/63245 gain. No spots on data sheets., Tubes: 165035217/165037073 – 64/64 Resolution, 34.3/34.3 SNR, 2195/2195 FOM, 0.7/0.5 EBI, 0.7/0.7 Halo, 622994/61486 gain. 165037073 1 spot zone 3., Tubes: 165038495/165037079 – 64/64 Resolution, 34.2/34.3 SNR, 2189/2195 FOM, 0.5/0.5 EBI, 0.8/0.7 Halo, 65467/66801 gain. No spots on data sheets., Tubes: 165041732/165041406 – 72/72 Resolution, 34.5/34.8 SNR, 2484/2506 FOM, 0.6/0.5 EBI, 0.7/0.8 Halo, 62501/69050 gain. 165041732 1 spot zone 3., Tubes: 165030148/170352847 – 72/72 Resolution, 34.3/34.4 SNR, 2469/2476 FOM, 0.7/0.5 EBI, 0.7/0.8 Halo, 60901/63197 gain. 165030148 2 spot zone 3. 170352847 1 spot zone 2 and 1 spot zone 3., Tubes: 165071186/170353138 – 72/72 Resolution, 32.3/32.3 SNR, 2325/2325 FOM, 0.5/0.2 EBI, 0.6/0.7 Halo, 64328/64927 gain. 165071186 1 spot zone 3. 170353138 1 spot zone 3., Tubes: 165085579/165079500 – 72/72 Resolution, 35.5/35.0 SNR, 2556/2520 FOM, 0.4/1.7 EBI, 0.7/0.7 Halo, 64187/61875 gain. 165085579 2 spots zone 2 and 1 spot zone 3.165079500 1 spot zone 3., Tubes: 165085038/165075515 – 72/72 Resolution, 35.7/36.0 SNR, 2570/2592 FOM, 0.6/0.5 EBI, 0.7/0.6 Halo, 61984/69492 gain. 165085038 2 spots zone 2 and 1 spot zone 3. 165075515 1 spot zone 3., Tubes: 165037090/165085715 – 72/72 Resolution, 34.5/34.5 SNR, 2484/2484 FOM, 0.5/0.6 EBI, 0.7/0.6 Halo, 66004/63641 gain. 165037090 2 spots zone 3. 165085715 1 spot zone 3., Tubes: 165052544/165056724 – 72/64 Resolution, 26.3/29.7 SNR, 1894/1901 FOM, 0.2/0.3 EBI, 0.8/1.0 Halo, 64918/66075 gain. No spots on data sheets., Tubes: 165052774/155030564 – 64/64 Resolution, 28.3/28.5 SNR, 1811/1824 FOM, 0.1/0.3 EBI, 1811/1824 Halo, 61330/64933 gain. No spots on data sheets., Tubes: 165048588/170350168 – 64/64 Resolution, 30.3/30.3 SNR, 1939/1939 FOM, 0.2/0.2 EBI, 0.9/1.0 Halo, 63942/63933 gain. No spots on data sheets., Tubes: 165049693/165055046 – 72/72 Resolution, 27.4/27.4 SNR, 1973/1973 FOM, 0.3/0.2 EBI, 0.8/0.7 Halo, 63398/63829 gain. No spots on data sheets., Tubes: 165048604/165048908 – 64/64 Resolution, 30.8/30.8 SNR, 1971/1971 FOM, 0.3/0.3 EBI, 0.8/0.8 Halo, 63424/64907 gain. 165048908 1 spot zone 3., Tubes: 165035225/165037316 – 72/72 Resolution, 33.0/33.3 SNR, 2376/2398 FOM, 0.4/0.4 EBI, 0.7/0.8 Halo, 63853/64858 gain. 165035225 1 spot zone 2. 165037316 1 spot zone 2., Tubes: 165034797/155028289 – 64/64 Resolution, 30.1/29.9 SNR, 1926/1914 FOM, 0.6/0.8 EBI, 0.7/0.9 Halo, 62407/64499 gain. No spots on data sheets., Tubes: 165036835/165036845 – 57/57 Resolution, 34.6/35.3 SNR, 1972/2012 FOM, 0.3/0.7 EBI, 0.9/0.7 Halo, 64302/65229 gain. 165036845 1 spot zone 3., Tubes: 165038098/165038410 – 64/64 Resolution, 29.1/29.1 SNR, 1862/1862 FOM, 0.3/0.4 EBI, 0.7/0.8 Halo, 61887/61248 gain. No spots on data sheets., Tubes: 165037661/165037873 – 64/64 Resolution, 31.5/31.7 SNR, 2016/2029 FOM 0.4/0.4 EBI, 0.8/0.8 Halo, 63674/62419 gain. No spots on data sheet., Tubes: 165037281/165037402 – 64/64 Resolution, 30.7/31.0 SNR, 1965/1984 FOM, 0.4/0.3 EBI, 0.9/0.7 Halo, 61861/63659 gain. No spots on data sheets., Tubes: 165033607/165033556 – 64/64 Resolution, 30.8/30.9 SNR, 1971/1978 FOM, 2.2/0.9 EBI, 0.8/0.7 Halo, 63267/61855 gain. No spots on data sheets., Tubes: 165033564/165033554 – 64/64 Resolution, 30.9/31.9 SNR, 1978/2022 FOM, 0.4/0.7 EBI, 0.7/0.7 Halo, 65651/63308 gain. No spots on data sheets., Tubes: 165031542/165031806 – 72/72 Resolution, 34.6/34.8 SNR, 2491/2505 FOM, 0.3/0.6 EBI, 0.7/0.7 Halo, 61291/63802 gain. 165031542 1 spot zone 3. 165031806 2 spots zone 2 and 1 spot zone 3., Tubes: 165036054/165031613 – 72/72 Resolution, 33.1/33.2 SNR, 2383/2390 FOM, 0.5/0.3 EBI, 0.7/0.7 Halo, 63670/68094 gain. no spots on data sheets., Tubes: 165031797/165030806 – 57/57 Resolution, 34.4/34.1 SNR, 1960/1943 FOM, 0.6/0.6 EBI, 0.7/0.7 Halo, 68430/64837 gain. No spots on data sheets., Tubes: 165034843/165031067 – 72/72 Resolution, 34.1/34.3 SNR, 2455/2469 FOM, 0.3/0.6 EBI, 0.8/0.7 Halo, 65548/62891 gain. No spots on data sheets., Tubes: 165031785/165031617 – 72/72 Resolution, 34.5/34.5 SNR, 2484/2484 FOM, 0.4/0.5 EBI, 0.7/0.7 Halo, 64211/63316 gain. No spots on data sheets., Tubes: 165030791/165030792 – 72/72 Resolution, 34.1/34.3 SNR, 2455/2469 FOM, 0.6/1.0 EBI, 0.8/0.7 Halo, 63850/69245 gain. 165030791 1 spot zone 3., Tubes: 165087505/165072504 – 72/72 Resolution, 32.5/32.5 SNR, 2340/2340 FOM, 0.3/0.6 EBI, 0.8/0.7 Halo, 63108/62339 gain. 165072504 1 spot zone 3., Tubes: 165067966/165086665 – 72/72 Resolution, 32.4/32.4 SNR, 2333/2333 FOM, 0.3/0.4 EBI, 0.7/0.7 Halo, 64256/63893 gain. 165067966 1 spot zone 3., Tubes: 165087328/165087432 – 72/72 Resolution, 32.3/32.9 SNR, 2326/2369 FOM, 0.4/0.3 EBI, 0.8/0.7 Halo, 60673/64886 gain. 165087328 1 spot zone 3., Tubes: 165060820/165070042 – 72/72 Resolution, 32.1/32.3 SNR, 2311/2326 FOM, 0.4/0.4 EBI, 0.7/0.7 Halo 63890/62571 gain. 165070042 1 spot zone 3., Tubes: 165087084/165059948 – 72/72 Resolution, 32.1/32.1 SNR, 2311/2311 FOM, 0.3/0.3 EBI, 0.8/0.8 Halo, 65289/69826 gain. No spots on data sheets., Tubes: 165066323/165059564 – 72/72 Resolution, 32.0/32.1 SNR, 2304/2311 FOM, 0.2/0.4 EBI, 0.7/0.7 Halo, 66228/64386 gain. No spots on data sheets., Tubes: 165087329/165087437 – 72/72 Resolution, 32.1/32.0 SNR, 2311/2304 FOM, 0.4/0.3 EBI, 0.7/0.8 Halo, 60127/69110 gain. No spots on data sheets., Tubes: 165086338/165066832 – 72/72 Resolution, 32.2/32.0 SNR, 2318/2304 FOM, 0.4/0.8 EBI, 0.8/0.7 Halo, 60370/68279 gain. No spots on data sheets., Tubes: 165067959/165066325 – 72/72 Resolution, 32.0/32.0 SNR, 2304/2304 FOM, 0.3/0.4 EBI, 0.7/0.7 Halo, 62140/63106 gain. No spots on data sheets., Tubes: 165087497/170353184 – 72/72 Resolution, 32.8/32.6 SNR, 2362/2347 FOM, 0.6/0.4 EBI, 0.8/0.7 Halo, 63965/64861 gain. 170353184 1 spot zone 3., Tubes: 165074131/165086756 – 72/72 Resolution, 32.7/32.7 SNR, 2354/2354 FOM, 0.4/0.4 EBI, 0.7/0.8 Halo, 62237/62458 gain. No spots on data sheets., Tubes: 165086762/17353157 – 72/72 Resolution, 32.9/32.4 SNR, 2369/2333 FOM, 0.5/0.5 EBI, 0.7/0.7 Halo, 61418/62409 gain. No spots on data sheets., Tubes: 165087476/17352499 – 72/72 Resolution, 32.6/32.6 SNR, 2347/2347 FOM, 0.3/0.3 EBI, 0.7/0.8 Halo, 64898/66940 gain. No spots on data sheets., Tubes: 165083725/110031093 – 64/64 Resolution, 34.1/34.1 SNR, 2182/2182 FOM, 0.2/0.4 EBI, 0.7/0.7 Halo, 64479/63852 gain. No spots on data sheets., Tubes: 165080115/165079275 – 64/64 Resolution, 34.3/35.0 SNR, 2195/2240 FOM, 0.7/0.9 EBI, 0.6/0.7 Halo, 60774/64256 gain. No spots on data sheets., Tubes: 165087640/110024981 – 64/64 Resolution, 33.0/33.0 SNR, 2112/2112 FOM, 0.6/0.5 EBI, 0.7/0.7 Halo, 61134/62095 gain. No spots on data sheets., Tubes: 165081089/110019226 – 64/64 Resolution, 34.9/34.9 SNR, 2234/2234 FOM, 0.6/0.8 EBI, 0.7/0.8 Halo, 67390/64133 gain. No spots on data sheets., Tubes: 165086851/165084439 – 72/72 Resolution, 32.5/32.5 SNR, 2340/2340 FOM, 0.6/0.4 EBI, 0.7/0.7 Halo, 61537/64558 gain. No spots on data sheets., Tubes: 165016729/165089108 – 64/64 Resolution, 33.2/33.8 SNR, 2125/2163 FOM, 0.2/0.6 EBI, 0.7/0.8 Halo, 61661/64561 gain. No spots on data sheets., Tubes: 165038276/165038258 – 64/64 Resolution, 34.5/34.5 SNR, 2208/2208 FOM, 0.5/0.7 EBI, 0.7/0.7 Halo, 67075/67783 gain. No spots on data sheets., Tubes: 165042249/170349916 – 64/64 Resolution, 34.6/34.4 SNR, 2214/2202 FOM, 1.0/0.5 EBI, 0.7/0.7 Halo, 62378/65188 gain. No spots on data sheets., Tubes: 165038285/165021098 – 72/72 Resolution, 34.6/34.3 SNR, 2491/2470 FOM, 0.4/0.5 EBI, 0.7/0.7 Halo, 66903/64958 gain. No spots on data sheets., Tubes: 165035213/165018552 – 72/72 Resolution, 34.4/34.7 SNR, 2477/2498 FOM, 1.0/0.4 EBI, 0.8/0.7 Halo, 62555/63908 gain. No spots on data sheets., Tubes: 165038268/165018551 – 72/72 Resolution, 34.1/33.9 SNR, 2455/2441 FOM, 0.9/0.6 EBI, 0.7/0.7 Halo, 67868/65776 gain. No spots on data sheets., Tubes: 165040664/165037635 – 72/72 Resolution, 34.4/34.2 SNR, 2477/2462 FOM, 0.4/0.8 EBI, 0.8/0.7 Halo, 68563/67856 gain. No spots on data sheets., Tubes: 170316888/170335645 – 57/57 Resolution, 33.9/34.1 SNR, 1932/1943 FOM, 0.5/ 0.8 EBI, 0.8/0.7 Halo, 62670/69934 gain. 170316888 1 spot zone 3. 170335645 1 spot zone 3., Tubes: 170343972/165036628 – 72/72 Resolution, 33.1/33.7 SNR, 2383/2426 FOM, 3.9/0.3 EBI, 0.7/0.7 Halo, 66277/62702 gain. 165036628 1 spot zone 3., Tubes: 170349822/155029760 – 57/57 Resolution, 29.9/29.7 SNR, 1704/1692 FOM, 1.1/0.2 EBI, 0.8/0.9 Halo, 68461/66952 gain. No spots on data sheets., Tubes: 195000292/165039724 – 72/72 Resolution, 31.9/32.2 SNR, 2297/2318 FOM, 0.5/0.5 EBI, 0.8/0.7 Halo, 61432/61089 gain. No spots on data sheets.

L3 Unfilmed SUPERGAIN White Phosphor - Matched Set - 10160/11769 Style Tubes

FOM Level

Supergain 1800-2200 FOM, Supergain 2200-2400 FOM, Supergain 2400+ FOM
Selection Process

Handpicked Tubes – CNV Select Tubes and Send to Customer for Approval, Customer Select Tubes – No Spots on Data Sheet, Customer Select Tubes – Spots on Data Sheet
Matched Pairs

Handpicked, Tubes: 110014810/110015748 – 72/72 Resolution, 33.3/33.0 SNR, 2398/2376 FOM, 0.3/0.1 EBI, 0.65/0.71 Halo, 103298/107870 gain. 110014810 1 spot zone 2. 110015748 1 spot zone 3., Tubes: 165084369/165080699 – 72/72 Resolution, 33.3/33.1 SNR, 2398/2383 FOM, 0.4/0.4 EBI, 0.7/0.7 Halo, 112275/112830 gain. No spots on data sheets., Tubes: 165073808/165076925 – 72/72 Resolution, 33.2/33.3 SNR, 2390/2398 FOM, 0.6/0.4 EBI, 0.7/0.7 Halo, 119136/113639 gain. No spots on data sheets., Tubes: 165070555/165076848 – 72/72 Resolution, 33.2/33.4 SNR, 2390/2405 FOM, 1.3/0.5 EBI, 0.7/0.7 Halo, 109433/109762 gain. No spots on data sheets., Tubes: 165082614/165082539 – 72/72 Resolution, 30.8/30.8 SNR, 2218/2218 FOM, 0.3/0.4 EBI, 0.7/0.7 Halo, 106837/105818 gain. No spots on data sheets., Tubes: 165082404/165082618 – 72/72 Resolution, 31.1/31.1 SNR, 2239/2239 FOM, 0.3/0.4 EBI, 0.7/0.7 Halo, 107353/109317 gain. No spots on data sheets., Tubes: 165081704/165076921 – 72/72 Resolution, 31.3/31.3 SNR, 2254/2254 FOM, 0.3/0.4 EBI, 0.8/0.7 Halo, 106844/105477 gain. No spots on data sheets., Tubes: 165076789/165076786 – 72/72 Resolution, 31.4/31.5 SNR, 2261/2268 FOM, 0.2/0.3 EBI, 0.8/0.8 Halo, 101841/100204 gain. No spots on data sheets., Tubes: 165076852/165057049 – 72/72 Resolution, 31.9/32.0 SNR, 2297/2304 FOM, 0.4/0.4 EBI, 0.7/0.7 Halo, 109837/110261 gain. 165076852 1 spot zone 3. 165057049 1 spot zone 3., Tubes: 165057047/110021537 – 72/72 Resolution, 33.8/33.8 SNR, 2434/2434 FOM, 0.7/0.6 EBI, 0.7/0.8 Halo, 101587/101736 gain. No spots on data sheets., Tubes: 165064041/165081086 – 72/72 Resolution, 33.0/3.1 SNR, 2376/2383 FOM, 0.4/0.5 EBI, 0.8/0.7 Halo, 113797/109255 gain. 165081086 1 spot zone 3., Tubes: 165082112/165066507 – 72/72 Resolution, 32.4/32.6 SNR, 2333/2347 FOM, 0.4/0.9 EBI, 0.7/0.7 Halo, 100815/101373 gain. No spots on data sheets., Tubes: 165082400/165082378 – 72/72 Resolution, 30.6/30.6 SNR, 2203/2203 FOM, 0.2/0.5 EBI, 0.7/0.7 Halo, 109891/108743 gain. No spots on data sheets., Tubes: 165052274/165082045 – 72/72 Resolution, 33.3/33.4 SNR, 2398/2405 FOM, 0.4/0.4 EBI, 0.8/0.7 Halo, 106805/104810 gain. 165052274 1 spot zone 3., Tubes: 165052951/165053084 – 72/72 Resolution, 30.3/30.6 SNR, 2182/2203 FOM, 0.6/0.9 EBI, 0.7/0.7 Halo, 111209/112056 gain. 165052951 1 spot zone 3. 165053084 1 spot zone 3., Tubes: 165052660/165053247 – 72/72 Resolution, 31.5/31.9 SNR, 2268/2297 FOM, 0.5/0.2 EBI, 0.8/0.7 Halo, 109724/115895 gain. No spots on data sheets., Tubes: 165052494/165056525 – 72/72 Resolution, 31.2/31.2 SNR, 2246/2246 FOM, 0.4/0.3 EBI, 0.7/0.9 Halo, 112294/118350 gain. No spots on data sheets., Tubes: 165052478/165057291 – 72/72 Resolution, 32.1/32.3 SNR, 2311/2326 FOM, 0.3/0.5 EBI, 0.8/0.7 Halo, 117342/111717 gain. No spots on data sheets., Tubes: 165052463/165057279 – 72/72 Resolution, 32.1/32.3 SNR, 2311/2326 FOM, 0.3/0.5 EBI, 0.7/0.8 Halo, 104840/109759 gain. No spots on data sheets., Tubes: 165052249/165050642 – 72/72 Resolution, 31.5/31.4 SNR, 2268/2261 FOM, 0.4/0.6 EBI, 0.7/0.8 Halo, 107735/106654 gain. No spots on data sheets., Tubes: 165051728/165051860 – 72/72 Resolution, 32.1/31.8 SNR, 2311/2290 FOM, 0.7/0.3 EBI, 0.8/0.8 Halo, 108132/108354 gain. No spots on data sheets., Tubes: 165082404/165082618 – 72/72 Resolution, 31.1/31.1 SNR, 2239/2239 FOM, 0.3/0.4 EBI, 0.7/0.7 Halo, 107353/109317 gain. No spots on data sheets., Tubes: 165081704/165076921 – 72/72 Resolution, 31.3/31.3 SNR, 2254/2254 FOM, 0.3/0.4 EBI, 0.8/0.7 Halo, 106844/105477 gain. No spots on data sheets., Tubes: 165082614/165082539 – 72/72 Resolution, 30.8/30.8 SNR, 2218/2218 FOM, 0.3/0.4 EBI, 0.7/0.7 Halo, 106837/105818 gain. No spots on data sheets., Tubes: 165076852/165057049 – 72/72 Resolution, 31.9/32.0 SNR, 2297/2304 FOM, 0.4/0.4 EBI, 0.7/0.7 Halo, 109837/110261 gain. 165076852 1 spot zone 3. 165057049 1 spot zone 3., Tubes: 170321913/170329937 – 64/64 Resolution, 29.3/28.8 SNR, 1875/1843 FOM, 0.2/0.3 EBI, 0.8/0.7 Halo, 111985/111454 gain. No spots on data sheets.

Select a Helmet? Special Package Pricing

Helmet Type

Team Wendy LTP 3.0 Bump, Team Wendy Carbon 3.0 Bump, Team Wendy EPIC Ballistic, Team Wendy EXFIL 3.0 Ballistic, Team Wendy EXFIL 3.0 Ballistic SL Lightweight
Color

Coyote Brown, Black, Ranger Green, Multicam
Size

Size 1 M/L, Size 2 L/XL, Small, Medium, Large, Extra Large

Select a Laser? Special Package Pricing

Laser

3EIR Sentinel IRV P Selectable Mode (3 Mode – Aluminum Housing), 3EIR DesignateIRV Selectable Mode (3 Mode Polymer Housing), 3EIR DIR-ONE V (2 Mode IR+IR Illum- Polymer Housing), 3EIR DIR One (IR Only – Polymer Housing, Wilcox CivilIan RAID XE Red Laser – 6" Wilcox Connector, Wilcox CivilIan RAID XE Red Laser – 12" Wilcox Connector, Wilcox CivilIan RAID XE Red Laser – Legacy Crane Connector, Wilcox CivilIan RAID XE Red Laser – Dual Wilcox / Surefire Connector, Steiner DBAL A3, Steiner DBAL D2, Holosun IRIS GR3, Holosun IRIS GR4, RIX RIP-3C
Color

Black, FDE, Ranger Green

Select a Ear Pro/Comms? Special Package Pricing

Type

Comtac VIII Defender – Ear Pro + Soundscape, ComTac VIII Single Comms – Ear Pro + Soundscape + Comms
Color

Coyote Tan, OD Green, Black/Grey
Helmet Mount

No Helmet Mount, 3M Arc Rail (Ops Core, Galvion) Adapters, Team Wendy Quick Release Adapter
