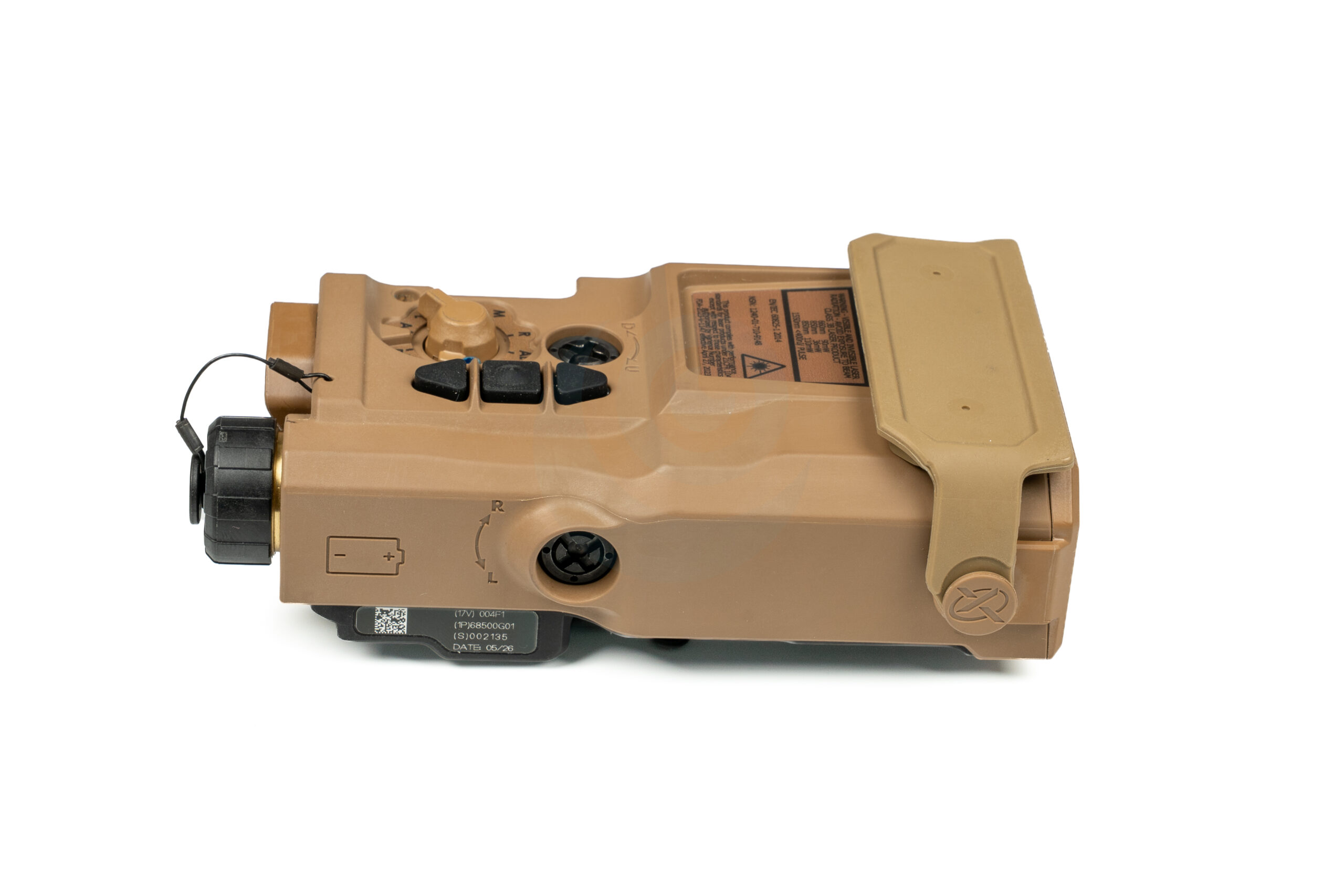

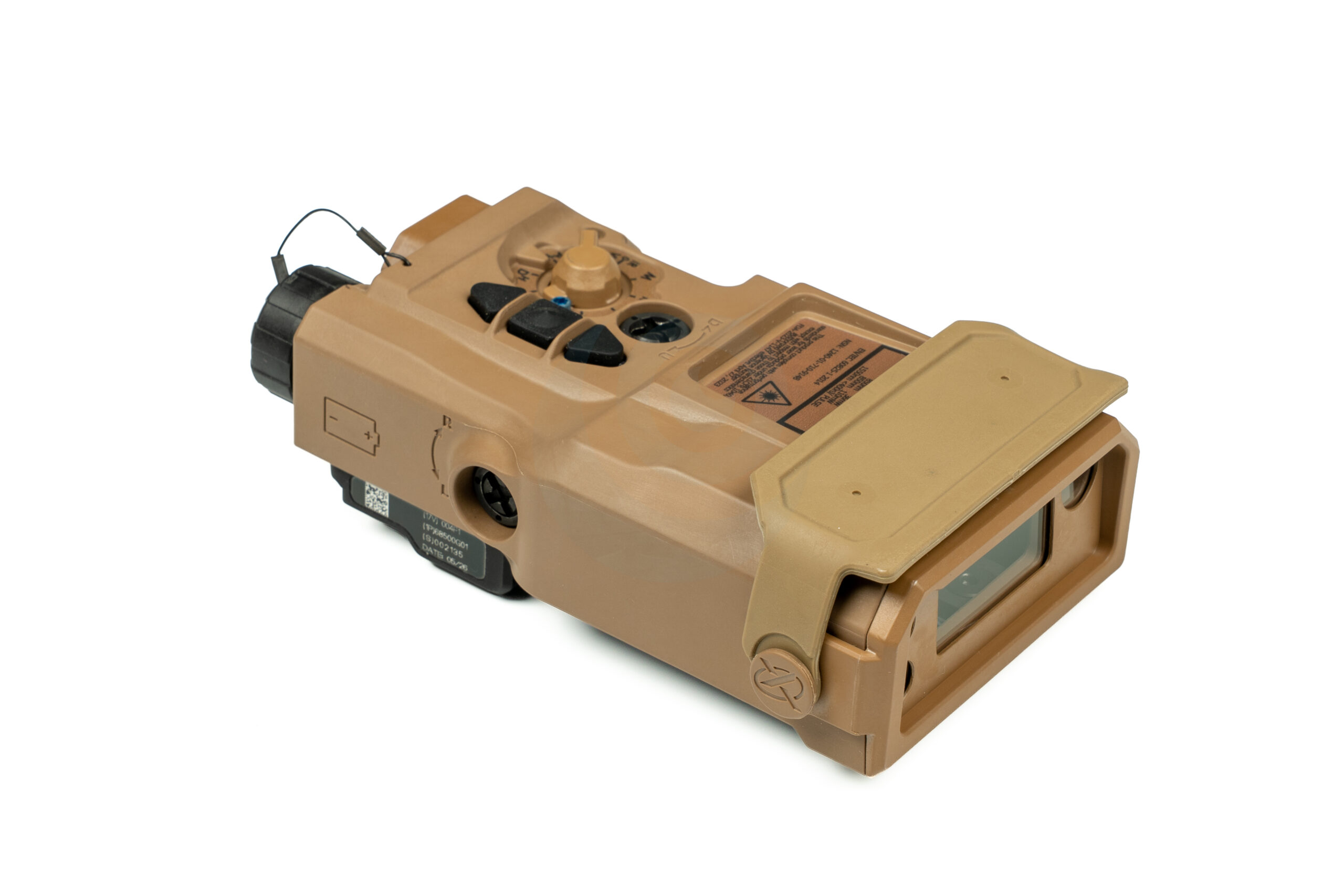

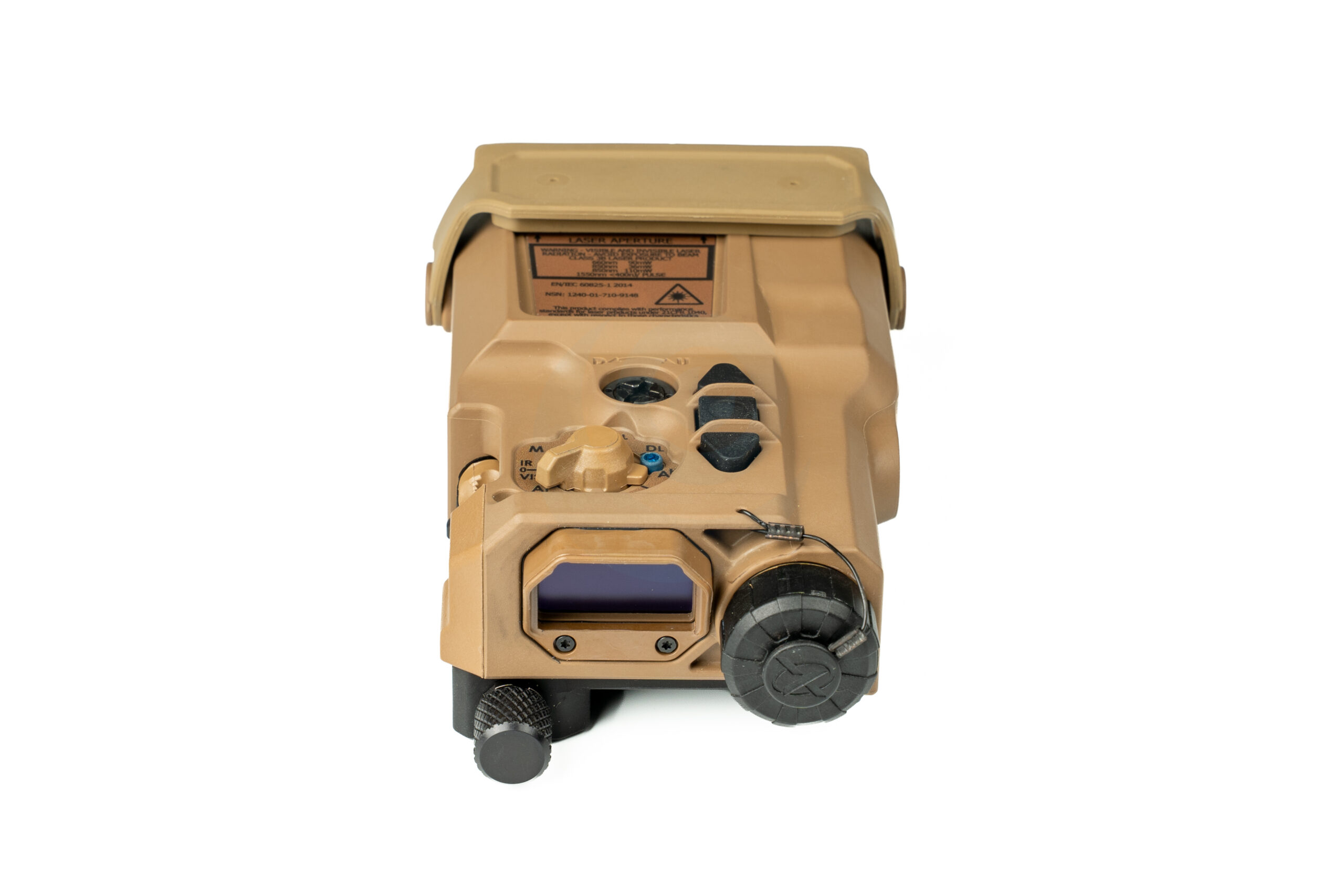

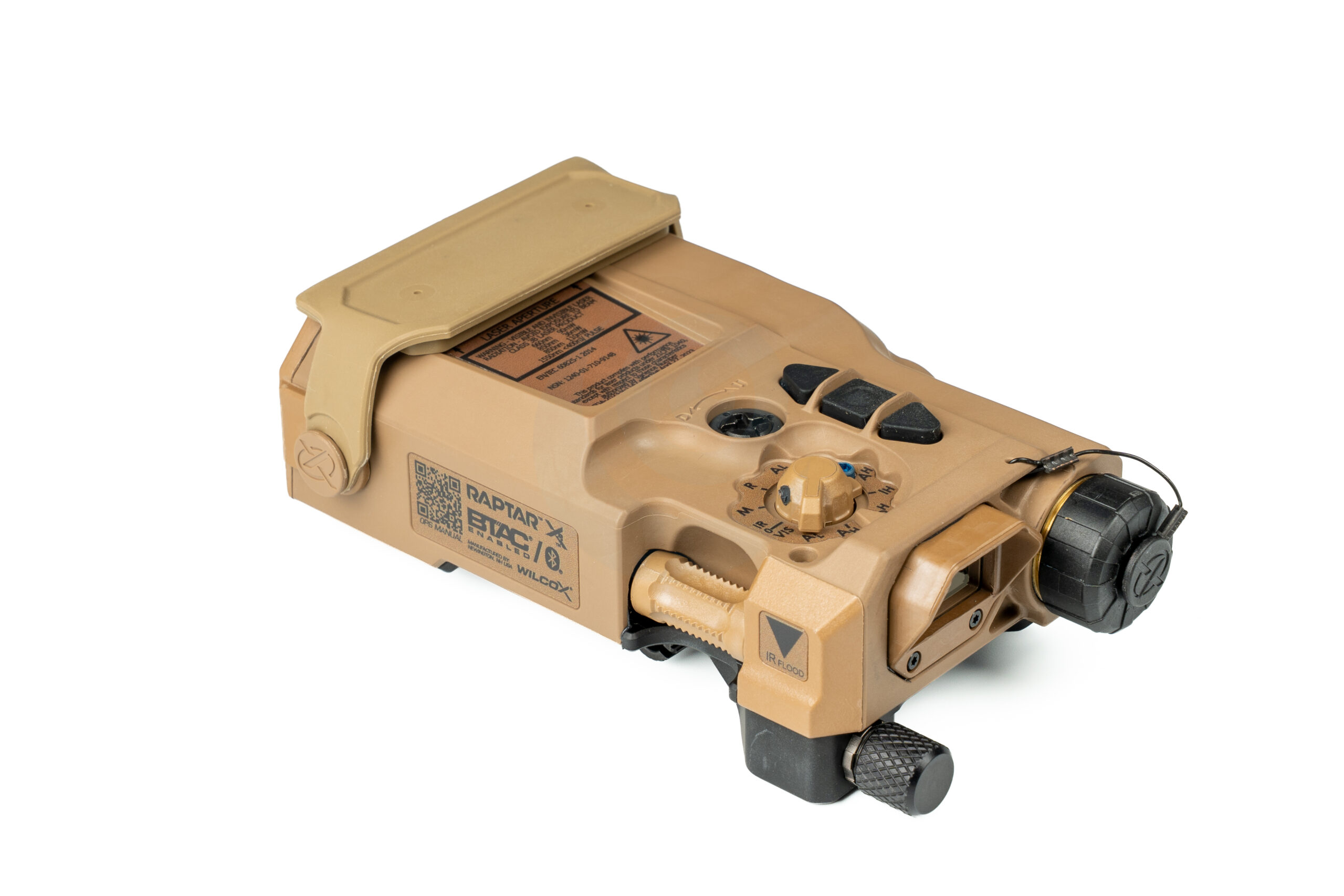

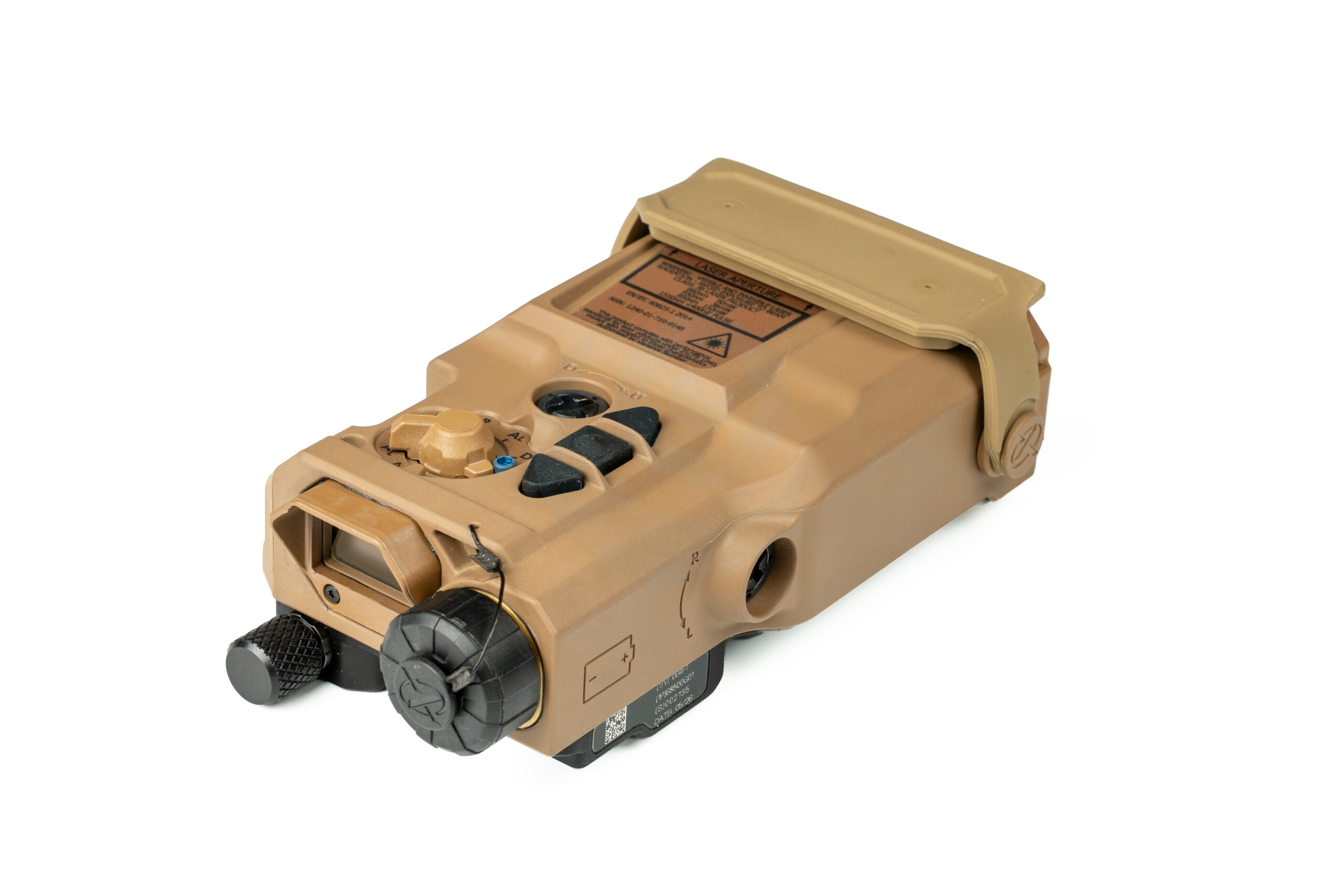

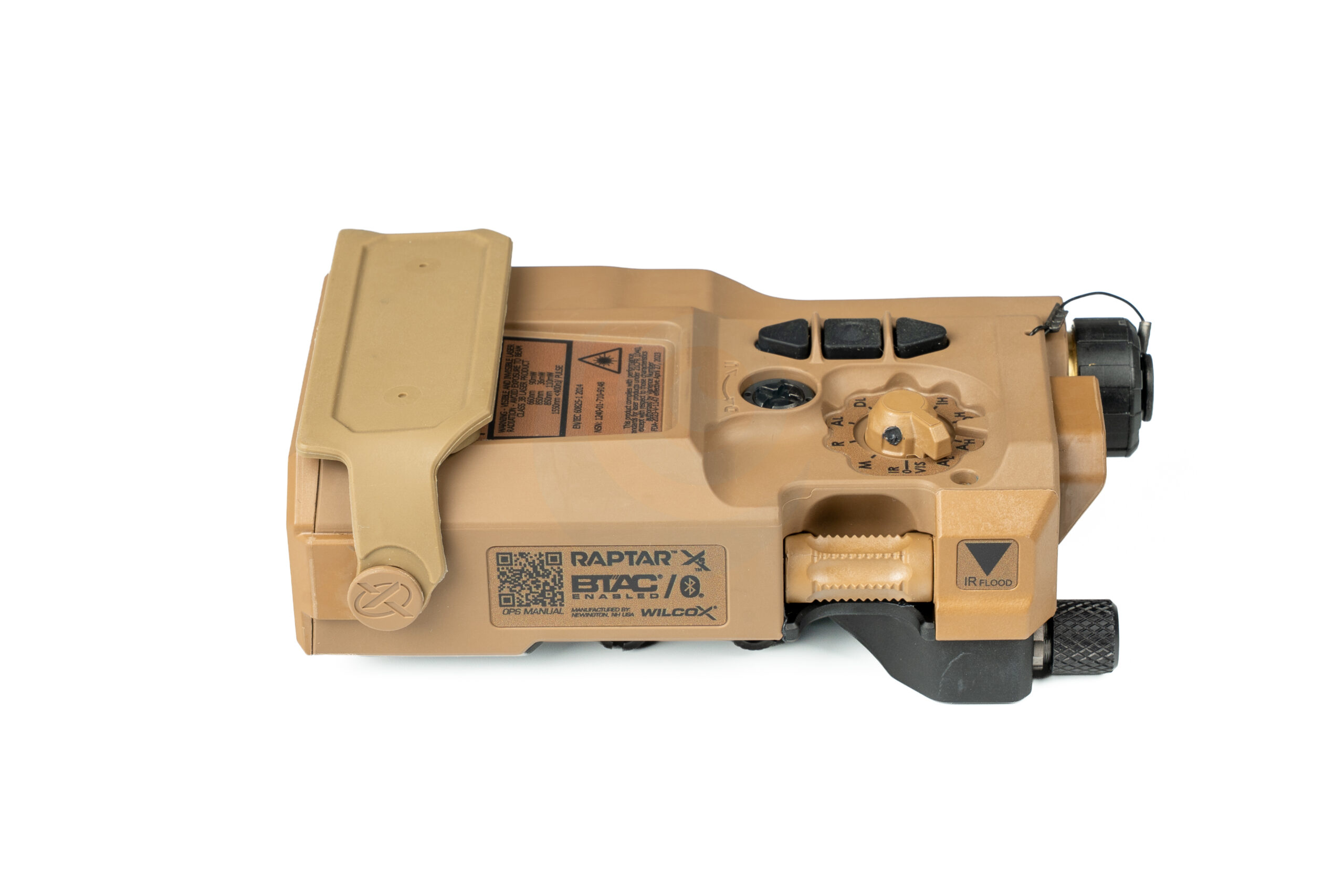

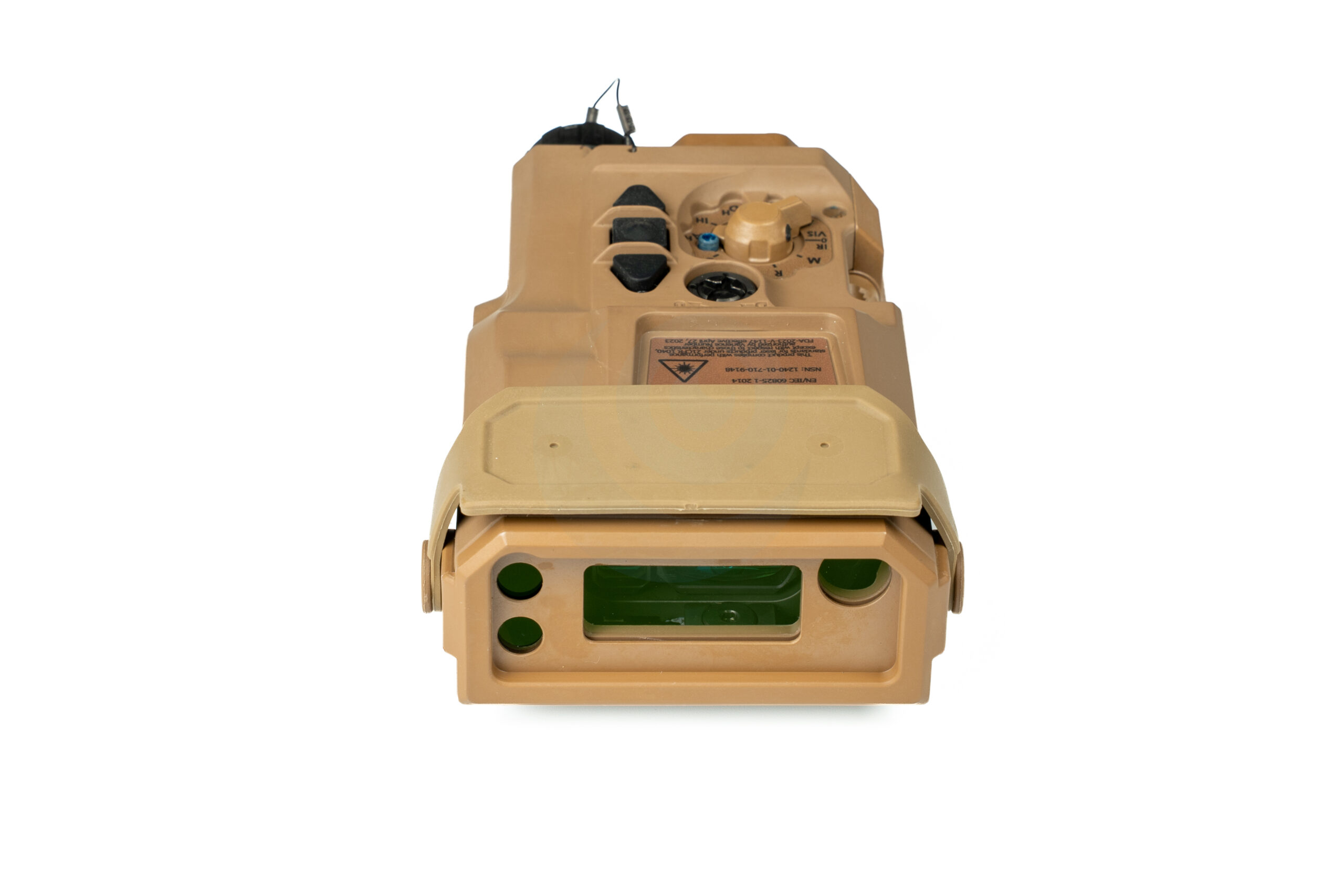

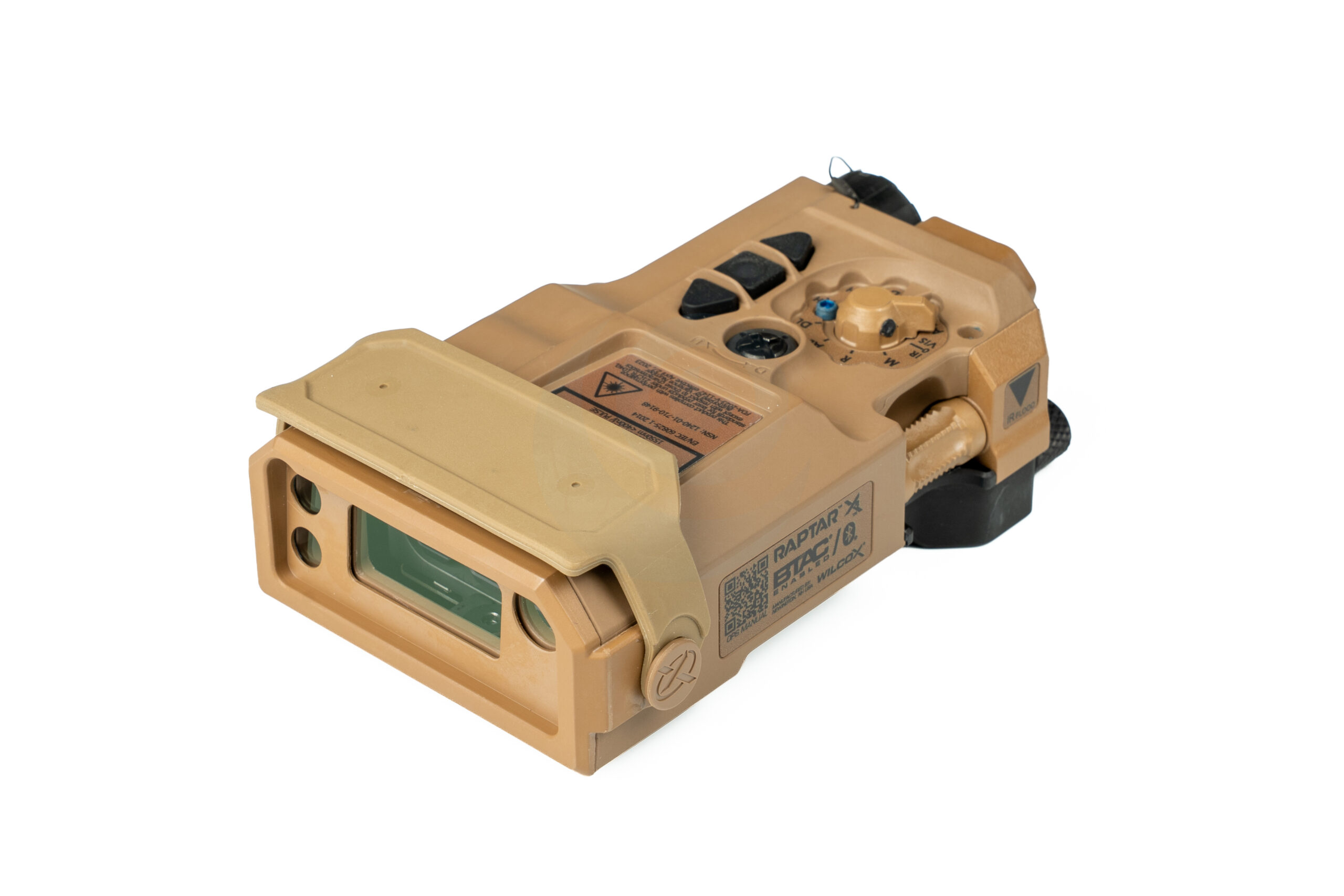

The Wilcox Industries RAPTAR Xeโข is an advanced rapid targeting and ranging system designed for precision shooting applications where accurate ranging, environmental data and ballistic calculations need to be available in a single integrated platform.
The RAPTAR Xe combines a laser rangefinder, onboard ballistic computer, environmental sensors, visible laser, infrared laser and VCSEL infrared illuminator into a single co-aligned optical bench. By integrating these functions into one system, the RAPTAR Xe is designed to provide a streamlined solution for precision shooters operating at extended distances.
One of the defining features of the RAPTAR Xe is its co-aligned optical bench. The visible laser, infrared laser and laser rangefinder are aligned together and controlled through a common windage and elevation adjustment system. This design helps simplify zeroing and maintains alignment between the system’s ranging and aiming components.
Integrated Laser Rangefinder and Ballistic Computer
The RAPTAR Xe goes beyond a traditional laser aiming device by incorporating an onboard ballistic computer and environmental sensors.
The integrated system can account for environmental information including:
- Temperature
- Atmospheric pressure
- Humidity
- Inclination
- Cant
- Heading
Wind speed and direction can also be entered manually or supplied through compatible external devices. The onboard ballistic computer then uses this information to generate a firing solution, which is displayed on the integrated OLED display.
The display can provide ballistic information in MIL, MOA and inches, giving the user flexibility when working with different sighting and ballistic systems.
Variable VCSEL Infrared Illumination
The RAPTAR Xe incorporates a powerful 850 nm VCSEL infrared illuminator with adjustable beam divergence from approximately 0.97ยฐ to 6.01ยฐ.
This variable illumination system allows the beam to be adjusted from a tighter configuration toward a wider flood, providing flexibility for different low-light conditions.
The system also incorporates an infrared aiming laser and visible red laser, giving the RAPTAR Xe multiple aiming and illumination capabilities within the same optical package.
One Co-Aligned Optical Bench
Rather than treating each laser and ranging component as an independent system, Wilcox designed the RAPTAR Xe around a single optical bench.
The result is a system where the major optical components maintain a common alignment. A single windage and elevation adjustment controls the optical bench, simplifying the process of establishing and maintaining the system’s zero.
Wilcox specifies boresight retention of less than 0.5 mrad.
Long-Range Ranging Capability
The RAPTAR Xe is designed for precision applications at extended distances. Wilcox’s published specifications list maximum ranging capability of approximately:
- 2,000 meters on a man-sized target with 30% reflectivity
- 3,000 meters on a NATO-sized target with 30% reflectivity
Actual ranging performance can vary depending on atmospheric conditions, target characteristics, reflectivity and other environmental factors.
Wilcox has also published testing and product information describing illumination and ranging performance at extended distances, including operation against lower-reflectivity targets.
Integrated OLED Display
The integrated OLED display provides a direct interface for the RAPTAR Xe’s ballistic information.
The display can present the calculated solution in MIL, MOA and inches, allowing the system to integrate into different precision shooting workflows without requiring the user to rely exclusively on an external ballistic display.
The RAPTAR Xe can also communicate with compatible external devices through its networking capabilities.
Bluetooth Connectivity and External Devices
The RAPTAR Xe includes Bluetooth connectivity designed to provide integration with compatible external devices.
Wilcox identifies compatibility with devices such as the Kestrel and various thermal optics, while hard-cable solutions are also available for certain external configurations.
This connectivity gives the RAPTAR Xe additional flexibility for users building more advanced precision shooting systems around multiple sensors and devices.
Compact Integrated Design
Despite incorporating multiple systems into one housing, the RAPTAR Xe maintains a relatively compact package.
Wilcox lists the RAPTAR Xe at approximately:
Length: 5.17 inches
Width: 3.10 inches
Height: 1.68 inches
Weight with battery: 12.6 ounces
The system mounts directly to a MIL-STD-1913 Picatinny rail and is powered by a single CR123 battery.
The RAPTAR Xe is also rated for immersion to 1 meter for 60 minutes.
RAPTAR Xe Features
- Integrated laser rangefinder
- Onboard ballistic computer
- Environmental sensors
- Red visible laser
- Infrared aiming laser
- Variable VCSEL infrared illuminator
- Co-aligned optical bench
- Adjustable windage and elevation
- Integrated OLED display
- Bluetooth connectivity
- ERGOCTO remote interface
- MIL-STD-1913 Picatinny rail mounting
- Adjustable IR illumination
- Five selectable pulse modes
- Single CR123 battery
- 1-meter waterproof rating for 60 minutes
- Boresight retention of less than 0.5 mrad
Specifications
Product: Wilcox Industries RAPTAR Xe
System Type: Rapid Targeting & Ranging Module
Part Number: 68500G01 โ High Power Red Laser
Mounting Interface: MIL-STD-1913 Picatinny Rail
Power: One CR123 battery
Weight with Battery: 12.6 oz / 357 g
Dimensions: 5.17″ L x 3.10″ W x 1.68″ H
Boresight Retention: <0.5 mrad
Beam Divergence: 0.97ยฐโ6.01ยฐ
Visible Laser: 660 nm / 75 mW nominal
Infrared Laser: 850 nm / 30 mW nominal
IR Illuminator: 850 nm VCSEL / 90 mW nominal
Immersion: 1 meter for 60 minutes
Range โ 30% Reflectivity Man-Sized Target: Up to 2,000 meters
Range โ 30% Reflectivity NATO-Sized Target: Up to 3,000 meters
Display: OLED
Connectivity: Bluetooth / external device connectivity
Remote Interface: ERGOCTO remote connector
Specifications are based on Wilcox Industries’ published product documentation. Laser output and ranging performance can vary according to configuration and environmental conditions.
Built for Precision Shooting Systems
The Wilcox RAPTAR Xe is designed as a complete fire-control solution rather than simply another laser aiming module. By combining ranging, ballistic computation, environmental sensing and multiple laser/illumination functions into a single platform, it provides a centralized interface for advanced precision shooting systems.
Its combination of a co-aligned optical bench, integrated ballistic computer, variable VCSEL illumination, OLED display and external connectivity makes the RAPTAR Xe particularly suited to applications where maintaining a streamlined equipment setup is important.
For additional information about availability, configuration and applicable restrictions, contact Custom Night Visionbefore ordering.
Frequently Asked Questions
What is the Wilcox RAPTAR Xe?
The Wilcox RAPTAR Xe is a rapid targeting and ranging module that combines a laser rangefinder, ballistic computer, environmental sensors, visible laser, infrared laser and VCSEL infrared illuminator into one integrated system.
Does the RAPTAR Xe have a ballistic computer?
Yes. The RAPTAR Xe incorporates an onboard ballistic computer that uses environmental information and other inputs to generate a ballistic solution.
Does the RAPTAR Xe have a laser rangefinder?
Yes. The laser rangefinder is integrated into the RAPTAR Xe’s co-aligned optical bench.
What type of infrared illuminator does the RAPTAR Xe use?
The RAPTAR Xe uses an 850 nm VCSEL infrared illuminator with adjustable beam divergence.
How does the RAPTAR Xe mount?
The RAPTAR Xe mounts to a standard MIL-STD-1913 Picatinny rail.
What battery does the RAPTAR Xe use?
The RAPTAR Xe is powered by one CR123 battery.
Is the RAPTAR Xe waterproof?
Wilcox rates the RAPTAR Xe for immersion to 1 meter for 60 minutes.
Does the RAPTAR Xe connect to external devices?
Yes. The RAPTAR Xe incorporates Bluetooth connectivity and supports compatible external devices and cable configurations.
Important Product Information
The Wilcox RAPTAR Xe is a high-power laser/fire-control system intended for qualified military and law-enforcement applications. Availability, configuration and sale may be subject to applicable laws, regulations, manufacturer restrictions and credential requirements.
