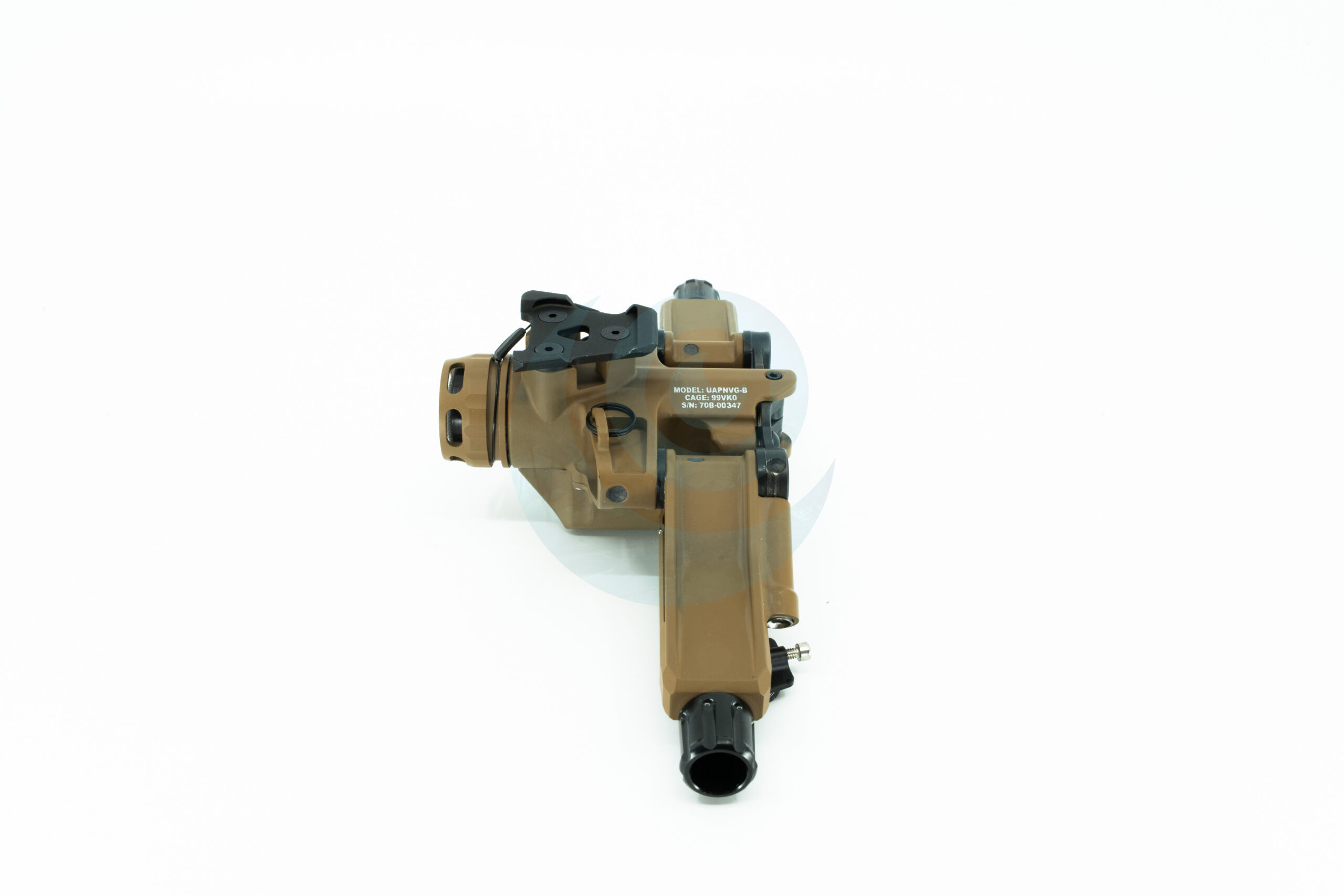

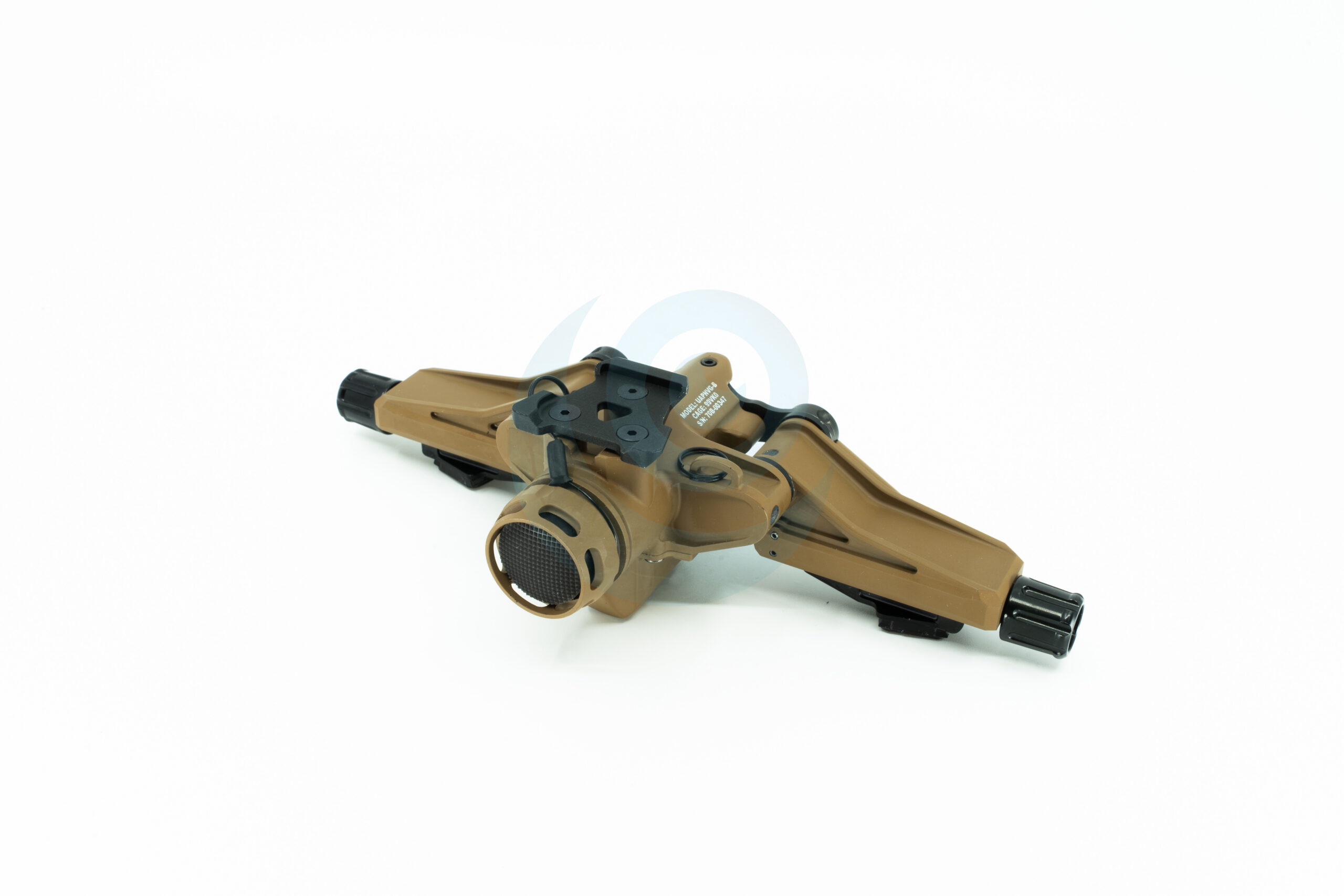

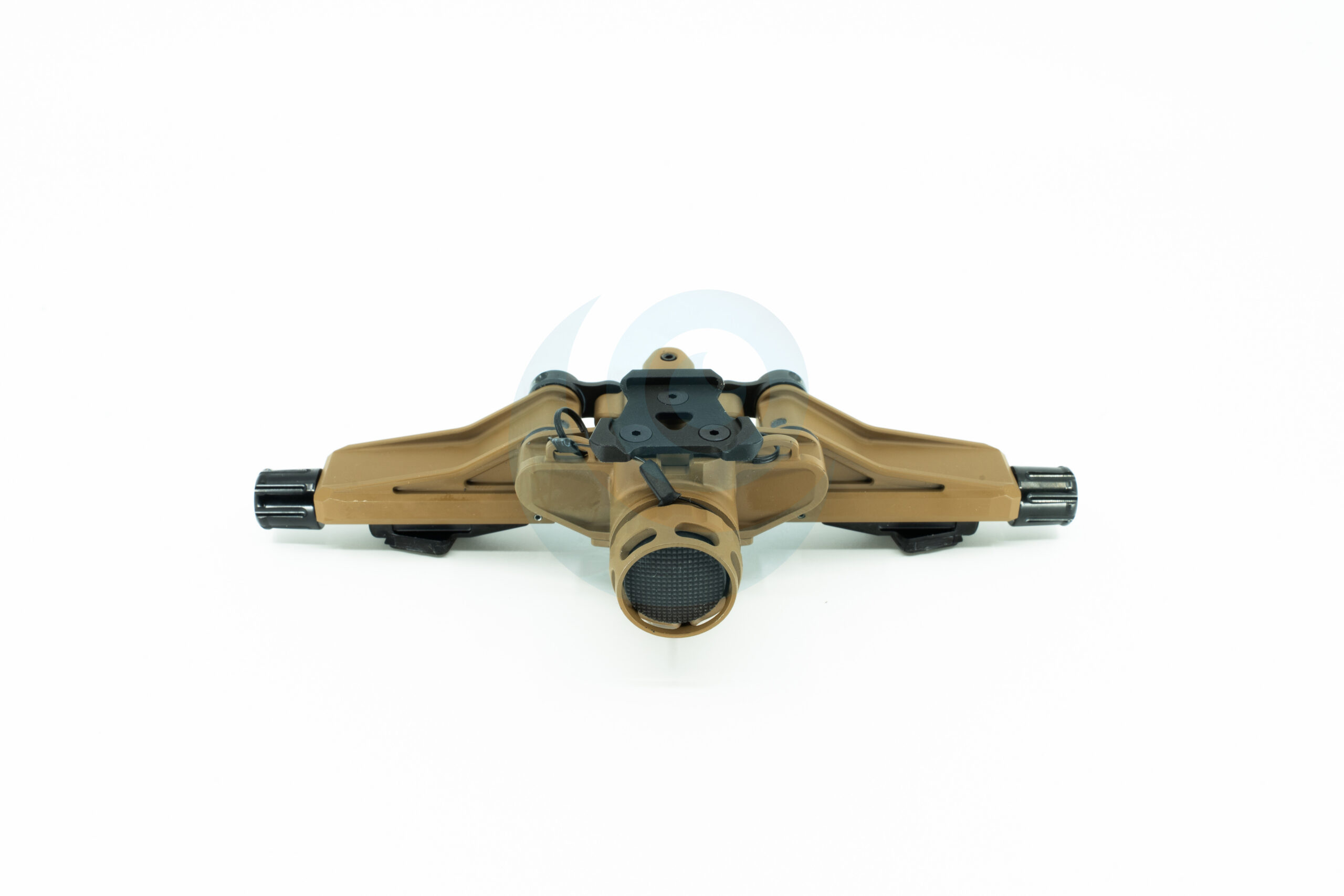

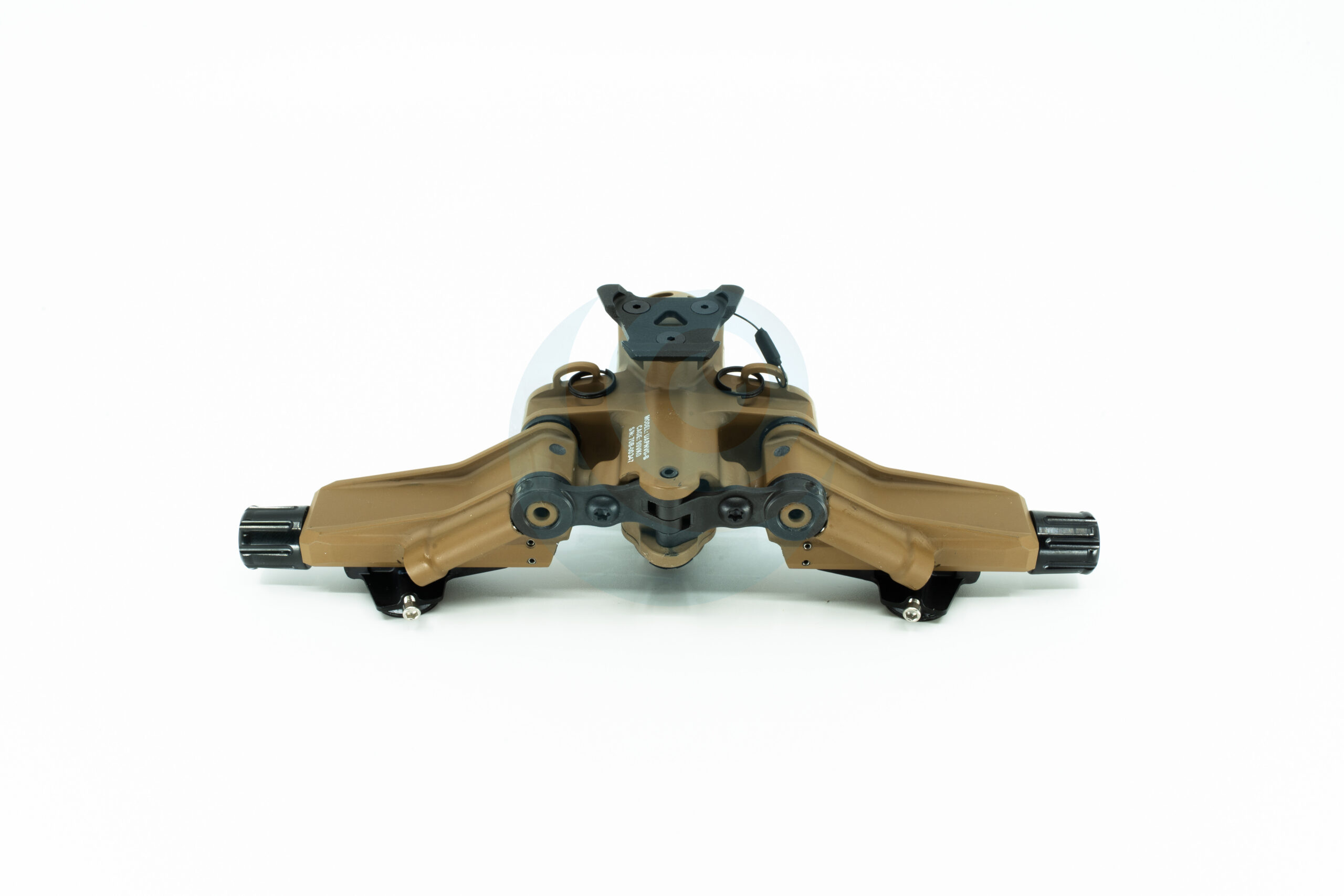

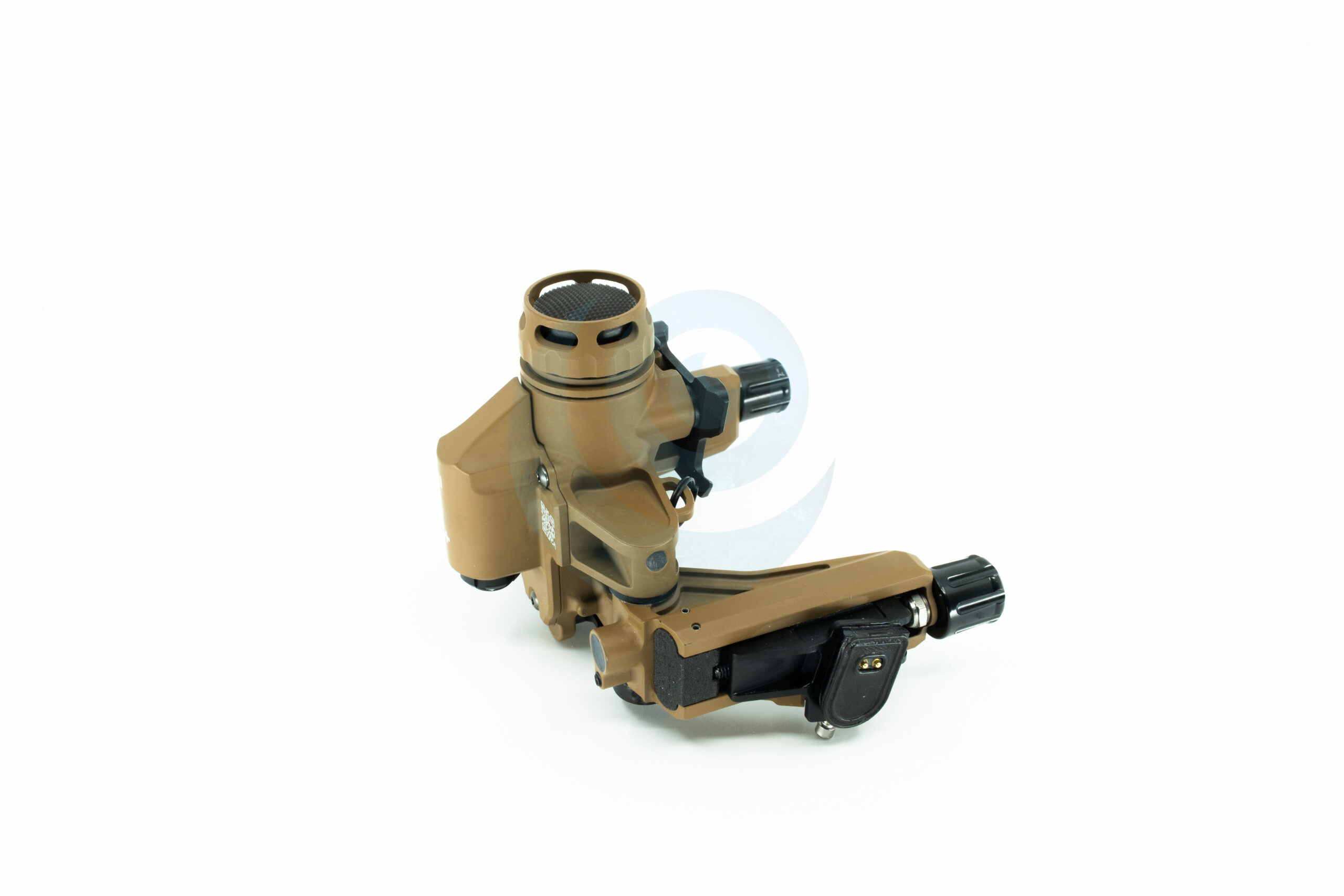

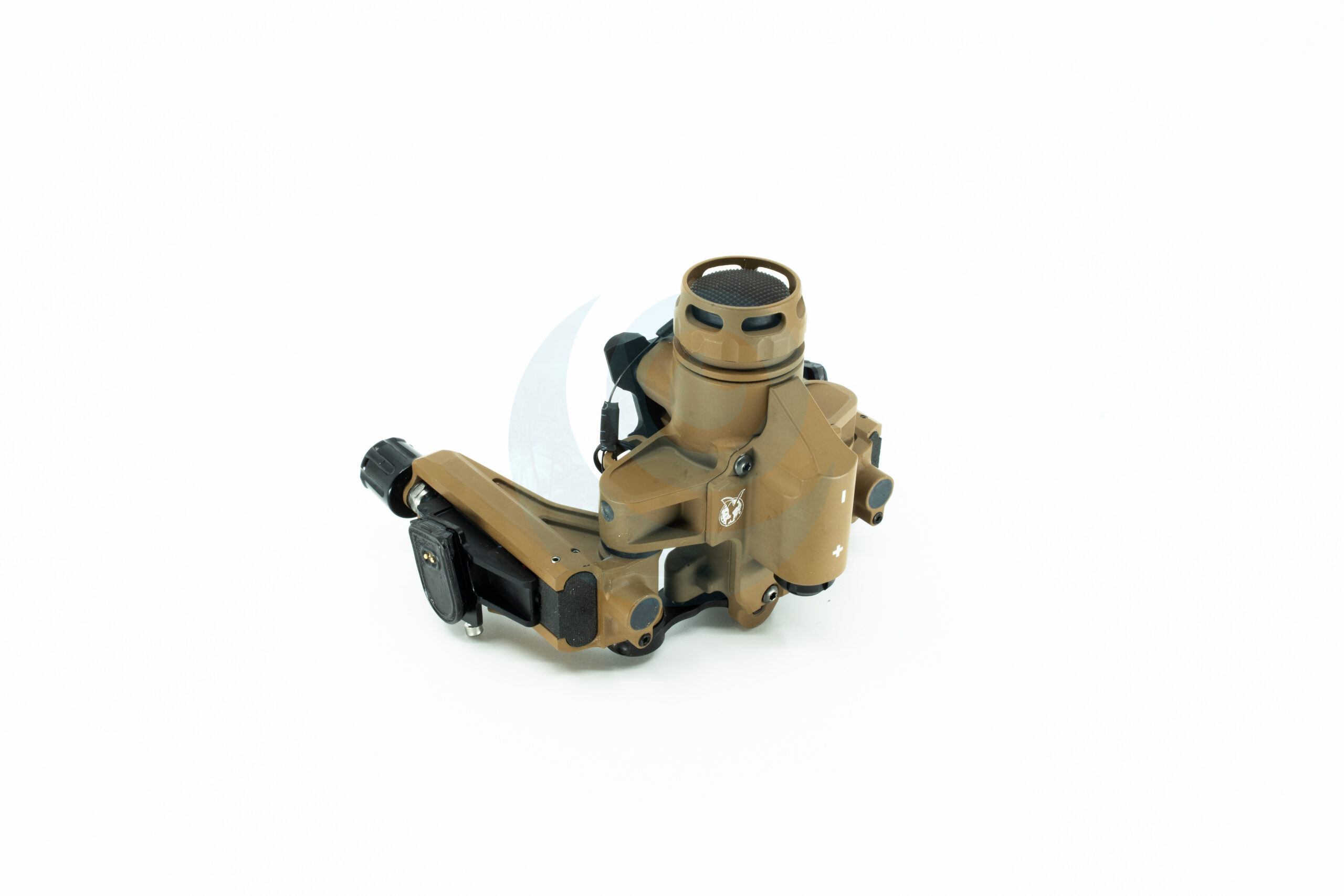

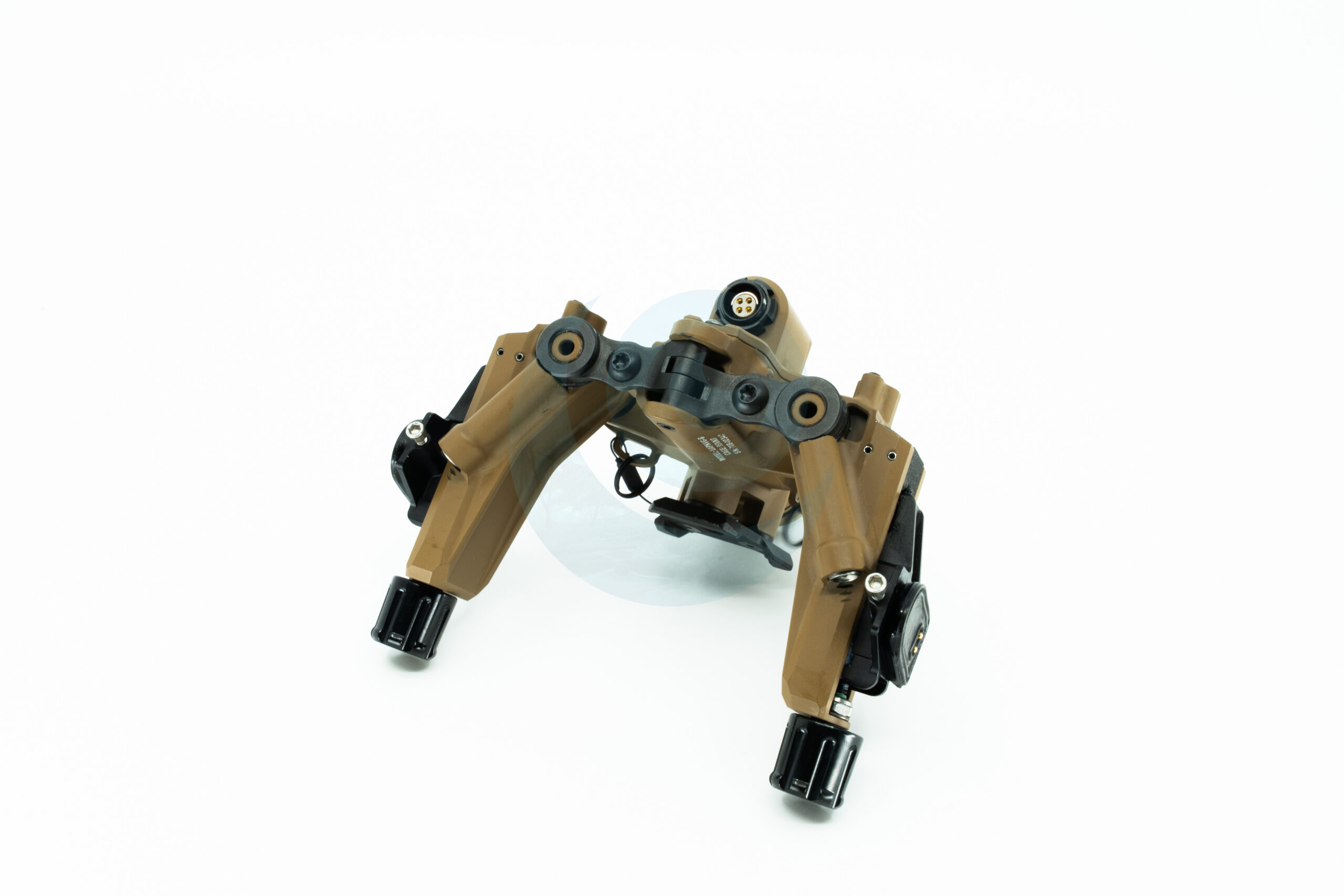

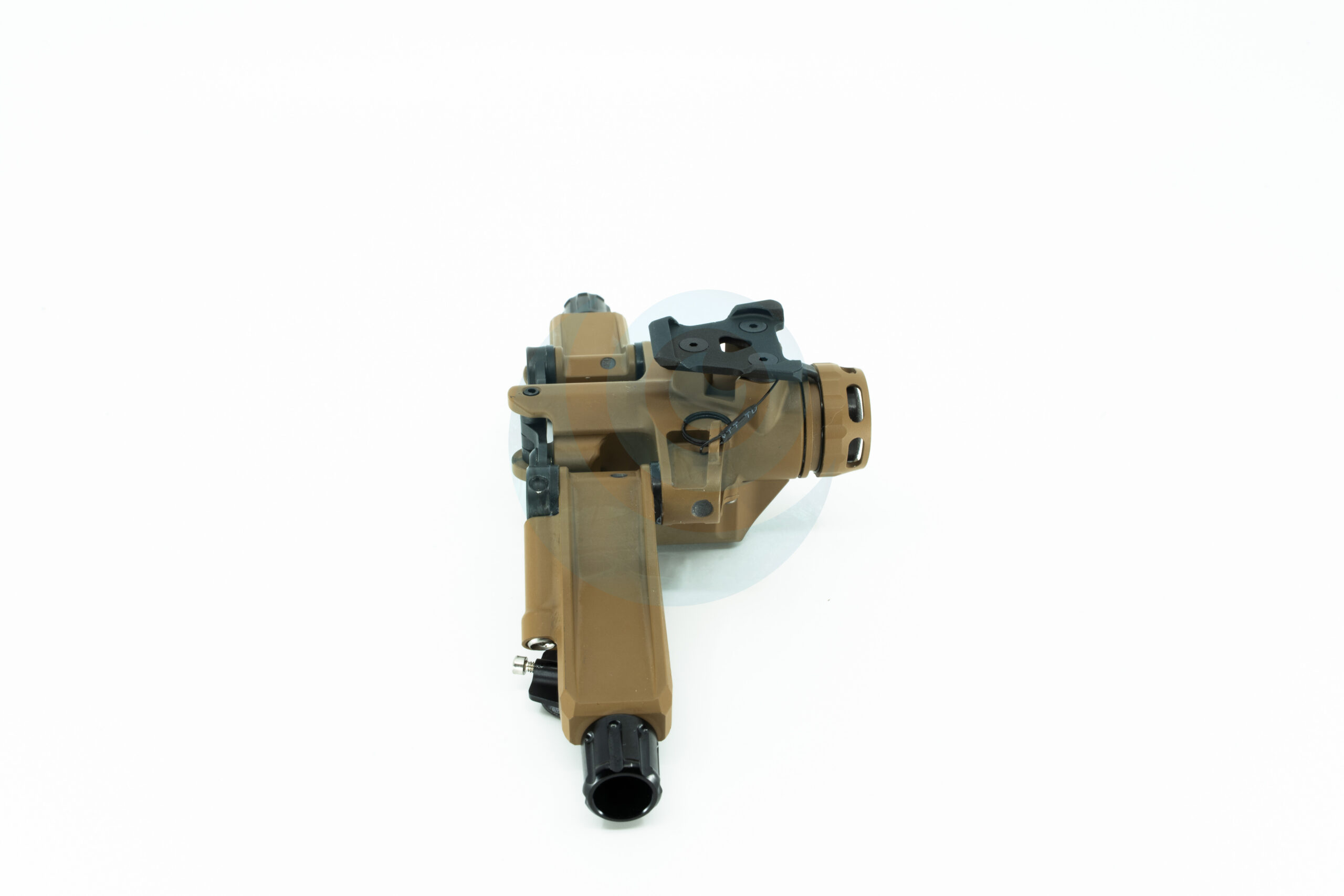

Ultralight Articulating Panoramic Night Vision Goggle Bridge – UAPNVG-B Chimera Bridge


The Ultralight Articulating Panoramic Night Vision Goggle Bridge – UAPNVG-B Chimera Bridge , is the next evolution in panoramic night vision goggle systems being the first articulating bridge upgrade for existing quad tube devices.

This patent pending system enables the lowest possible profile by stowing the pods back to the helmet to a profile typical of articulating binos reducing neck fatigue by pulling the center of gravity significantly closer to the natural pivot point of the neck. Panoramic system pods attached to the UAPNVG Bridge can be stowed individually without fully stowing the device which allows the user to clear door thresholds, increase head clearance in a vehicle, have rapid access to the night vision function, enter and exit vehicles much faster, reduced brush snag hazard, and use weapon mounted optics/thermal devices simultaneously with the goggle.

The bridge system is plug and play at a user level with existing panoramic nvg pods offering compatibility with L3 GPNVG18, Lindu QTNVG, ANVIS10, Photonis PD Pro-Q, and more.



Material: 7075-T6 aluminum

Finish: Mil-Standard Type III class II hard anodize (Black), H series Cerakote (Coyote and OD Green)

IR Illuminator: No

Individual Pod on/off: Yes, individually.

On-Board Power: No

Out-Board Power: Yes, LEMO-00B cable

Estimated ANVIS-10 Weight Reduction: 0.33 oz. / 0.02 Ibs / 9.4 g

Estimated LINDU QTNVG Weight Reduction: 1.02 oz / 0.063 lbs / 29.0 g

Estimated L3 GPNVG-18 Weight Reduction: 1.02 / 0.063 lbs / 29.0 g

Estimated ARGUS PANO and Photonis PD PRO-Q Weight Reduction: TBD

Power: Up to ~48hours with battery pack

Ingress Rating: At production release should exceed IP-68 and MIL-STD-810H

Warranty: Lifetime repair or replacement of all housings components no questions asked. (Does not cover damages to the intensifier tubes or lens assemblies)

Additional information

Pano Type

ANVIS-10, L3 GPNVG-18, Lindu Optics

Optional Battery Pack

Out Board Power Only With Battery Pack, Out Board Power Only Without Battery Pack
