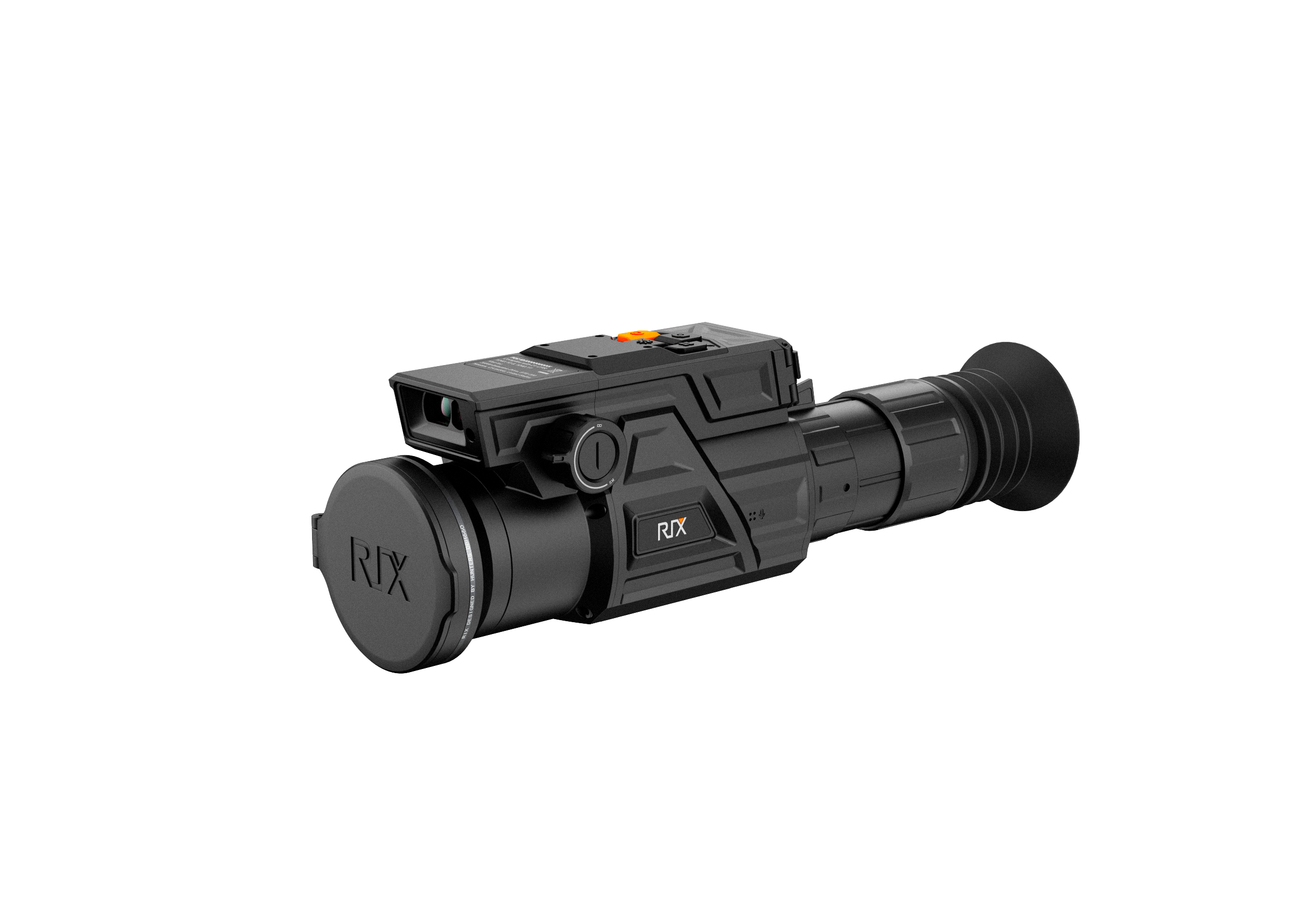

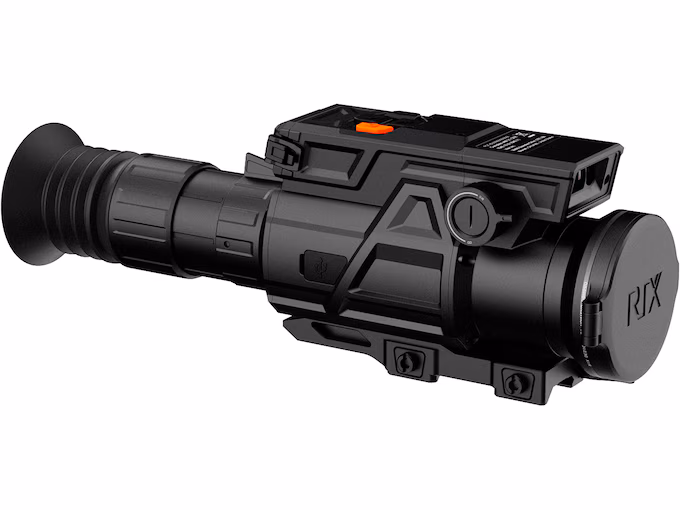

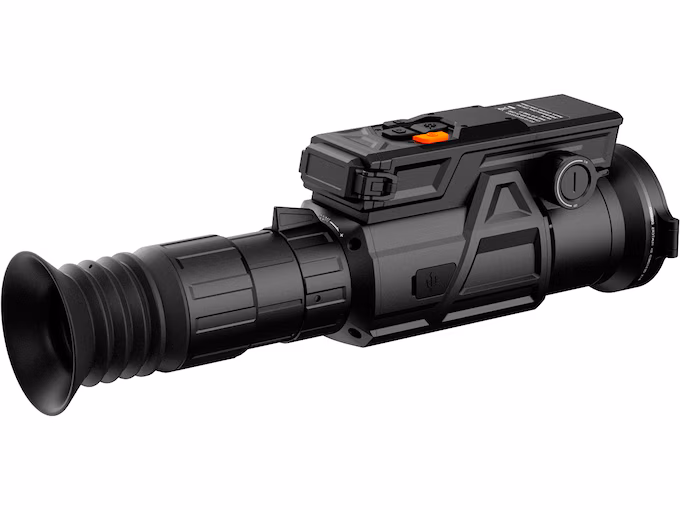

Rix Optics DBH D6 640×512 Thermal Scope

$5,699.99

Add to Cart
Rix Optics DBH D6 640x512 Thermal Scope
$5,699.99

The DBH D6 is equipped with a 640×512 12μm sensor boasting a NETD<20mK and a 60Hz refresh rate, ensuring hunters always get a clear and smooth image.

The DBH D6 feautres a 60mm objective lens with 3x base magnification. The 3-18x magnification range helps users clearly observe targets at longer distances. Digital zoom control that steps in precise 0.1x increments.

It also features a 2560×2560 1.03in OLED screen allows for precise zeroing, maintaining each adjustment at only 3/8″ @ 100 yards while providing a highly detailed image.

The DBH D6 has a ballistic calculator in the device and the app that automatically calculate the aiming position and display it on the device screen based on air temperature, wind speed, ammunition, distance and other information. Using WIFI and RIX+ APP, ballistic parameters can be uploaded or downloaded, so that shots are more precise.

The dual side focusing structure with 250° rotation cycle and the quick throw zoom lever make zooming in and out quick and convenient, helping you acquire targets faster. The dual lever return to zero QD mount makes mounting and unmounting quick and easy.
The DBH D6 provides multiple functions that can effectively improve the hunting experience. Boasting an integrated green laser that is easily activated for marking downed game(an industry first). A Built-in 1200-yard Laser Rangefinder and video & photo playback features in the scope.
IP67 waterproof

Engineered with an impressive IP67 waterproof housing, the DBH D6 is fortified against water intrusion, ensuring robust protection. This exceptional waterproofing capability safeguards the internal components, significantly extending its lifespan.

Built-in MIC
Experience uncompromising audio quality with our carefully selected built-in microphone.
Photo, Video Recording and Display
The DBH D6 features built-in photo & video recording capabilities with 64GB of internal storage. Effortlessly capture remarkable moments, day or night.
1000g Impact Resistance
The DBH D6’s durable design enables it to withstand impacts of up to 1000g, making it an ideal choice for rifles with large calibers such as .375 H&H, 12-gauge, and 9.3×64. It is built to ensure longevity and to remain undamaged even under challenging conditions.
Wi-Fi integration with the RIX+ APP
With the built-in Wi-Fi module, you can establish a seamless connection between the device and your Android or iOS smartphone via the RIX+ app. This powerful combination offers a multitude of advantages, such as wireless software updates and live image streaming directly to your mobile device screen. ​
Picture-in-Picture Function (PIP)
The DBH D6 is also equipped with a PIP (picture-in-picture) function. When enabled, the DBH D6 will display a zeroing frame on the screen. It allows the user to observe the image in the aiming area while maintaining visual control of the entire field of view.
Sensor Specifications
  • Type: VOx Uncooled
  • Resolution, pixels: 640×512
  • Pixel Pitch, µm: 12
  • NETD, mK: ≤20
  • Frame Rate, Hz: 60b
Optical Specifications
  • Objective Lens,mm: 60 F1.0
  • Optical Zoom: 3x
  • Field of View, degrees / yd @ 100 yd: 7.3°×5.8°
  • Digital Zoom: 1x to 6x, stepped
  • Eye Relief: 60mm
  • Diopter Adjustment, D: -5 to +2
  • Detection Range, m/yd: 3280
Display Specifications
  • Type: OLED
  • Resolution, pixels: 2560 x 2560
LRF Specification
  • Type, nm: 905
  • Max Range, yd: 1200
Wi-Fi
  • Wireless Protocol: Wi-Fi
  • Frequency, GHz: 2.4GHz
  • BT Frequency, MHz :2402~2480
Video Recorder
  • Video / Photo Resolution, pixels: 1280×1280
  • Video / Photo Format: .mp4 / .jpg
  • Built-in Memory, GB: 64
Physical Specifications
  • Degree of Protection, IP code: IP67
  • Operating Temperature Range, °F: -4 to +122
  • Weight, lb: 2.9
  • Dimensions, inch: 10.3×3.3×3.8
Connections and Compatibilities
  • Battery Type: 18650×2
  • Capacity, mAh: 3800
  • Operating Time on Battery Pack (at t=72°F), h8
  • External Power Supply, V: 5V (Type C USB)
  • Max Recoil Power on Rifled Weapon (Eo), g/Joules: 1000g/6000Joules
