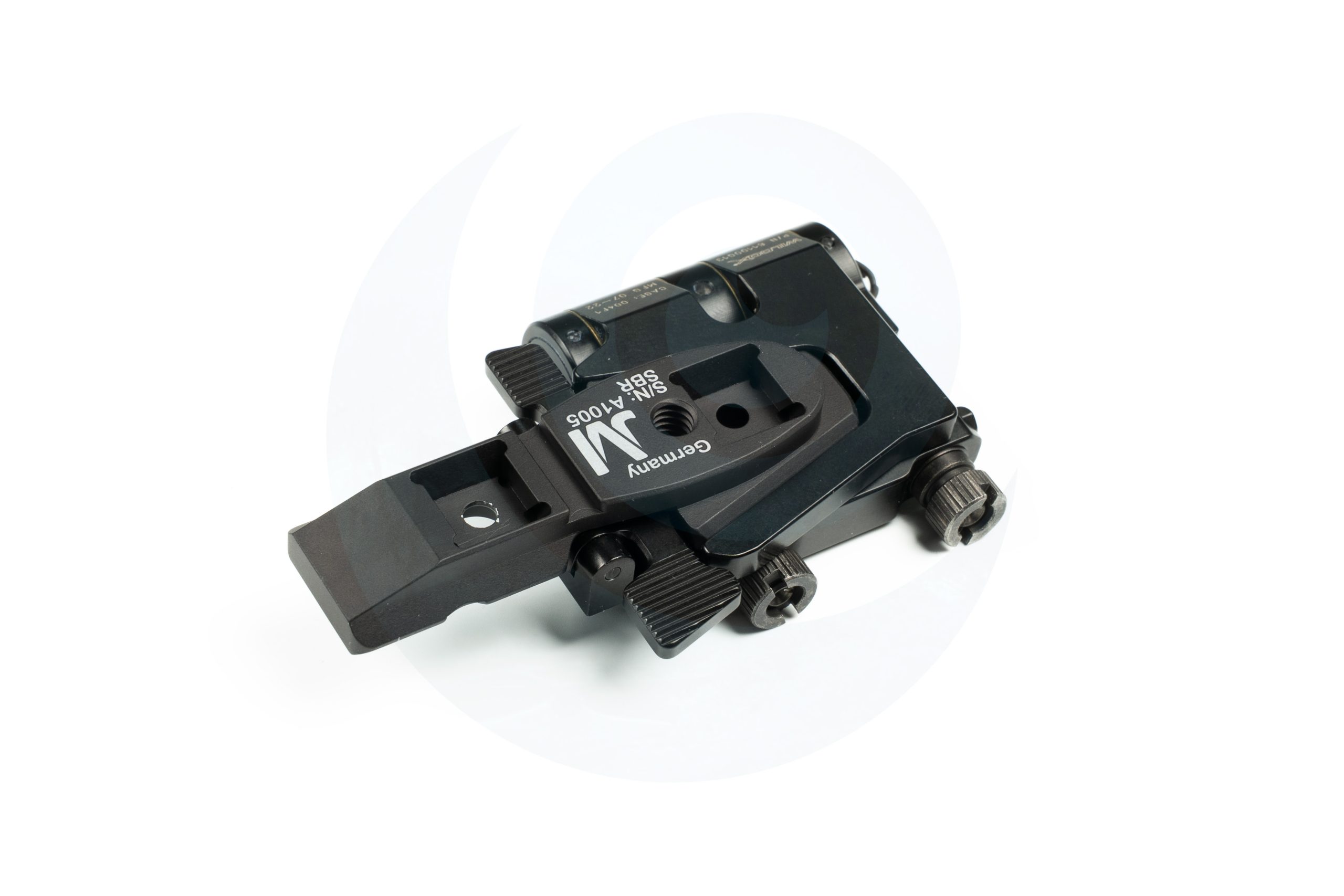

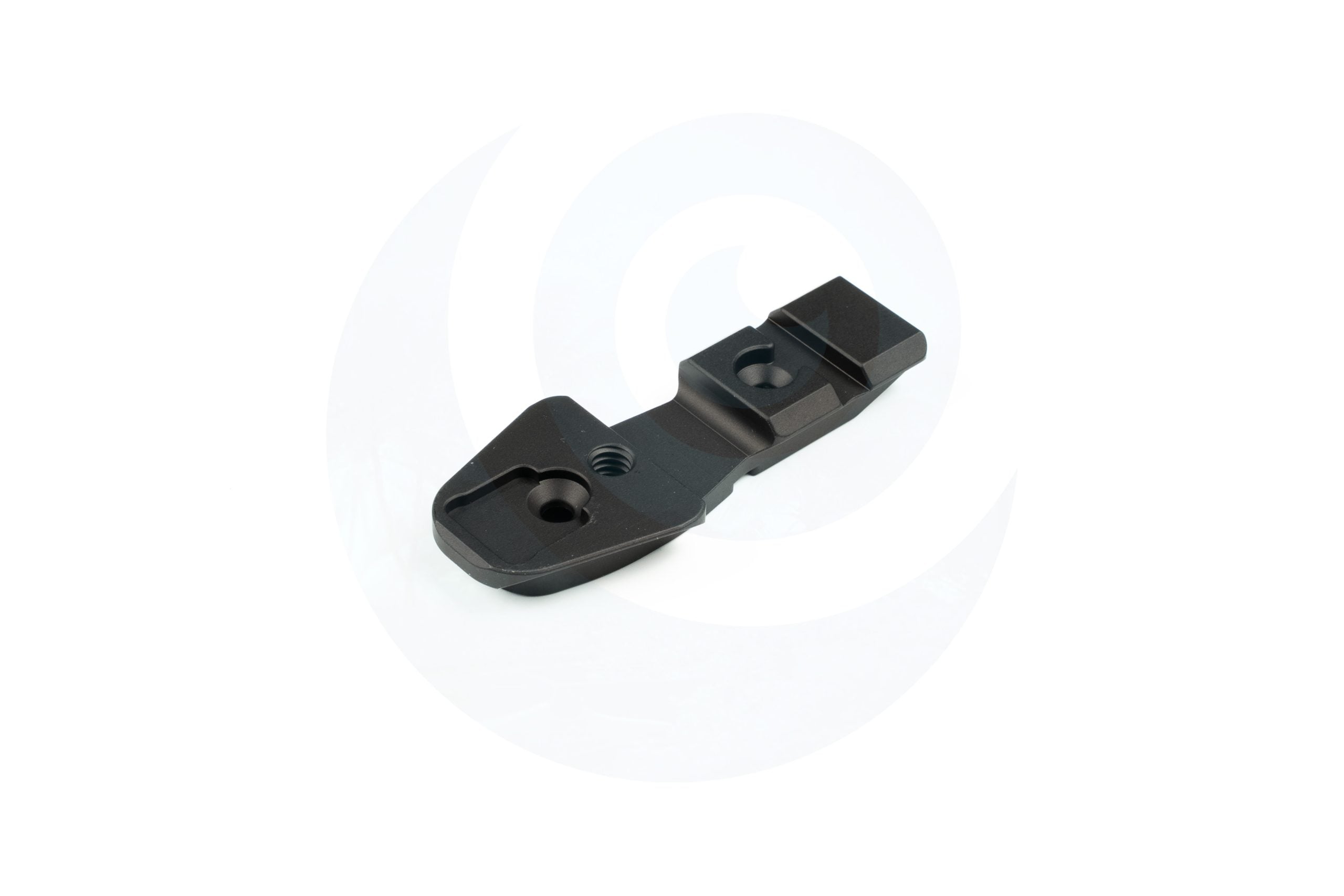

The JV Innovations SBR (Should’ve Been Rail) dovetail adapter for the InfiRay RH25 V1 and V2 /PFN640+ is what all the other rails should’ve been.
This adapter works with everything the IRay PICTAIL does PLUS it works with the Wilcox Flip to Side Mount!
This adapter rail combines the following functionalities in one compact package:
- The dovetail interface allows the RH25/PFN640+ to be used with the Wilcox line of flip to side weapon mounts.
- The dovetail dimensions adhere to the industry-wide Wilcox standard and can therefore also be used with a variety helmet mounted solutionssuch as night vision bridges.
- The Picatinny/STANAG rail portion allows the use of a Picatinny quick release weapon mount (like the iRayUSA ADM MQD mount AC36).
- 1/4-20 UNC threaded mounting point for tripod mounting
- For both dovetail and Picatinny mounting options, the optical axis of the RH25/PFN640+ is located approx 1.61″ above the Picatinny mountingrail, enabling you to use your clip-on with both 1.54″ and 1.70″ opticsmounts.
- The SBR is precision machined from 7075-T6 aluminum and Type 3 hard anodized in black.
- The SBR is 100% designed and manufactured in Germany.
Specs:
- Material: 7075-T6 aluminum, hard anodized black
- Weight: 0.92oz (26g)
- Size: 3.00″ x 1.25″ x 0.40″ LxWxH (75 x 31 x 10 mm)
- Mounting hardware: M4x8 mm flat head bolts (2x)
- Made in Germany
