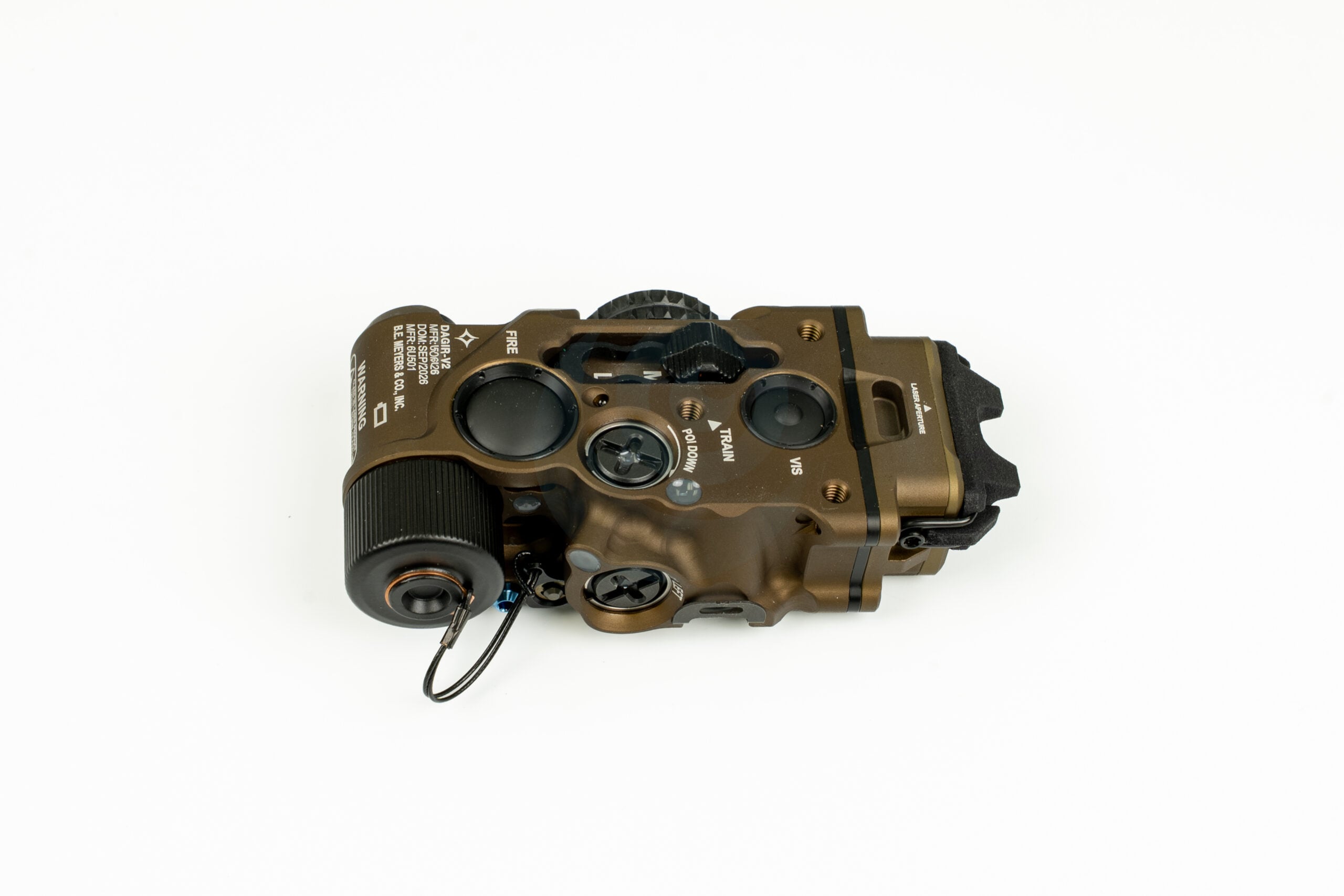

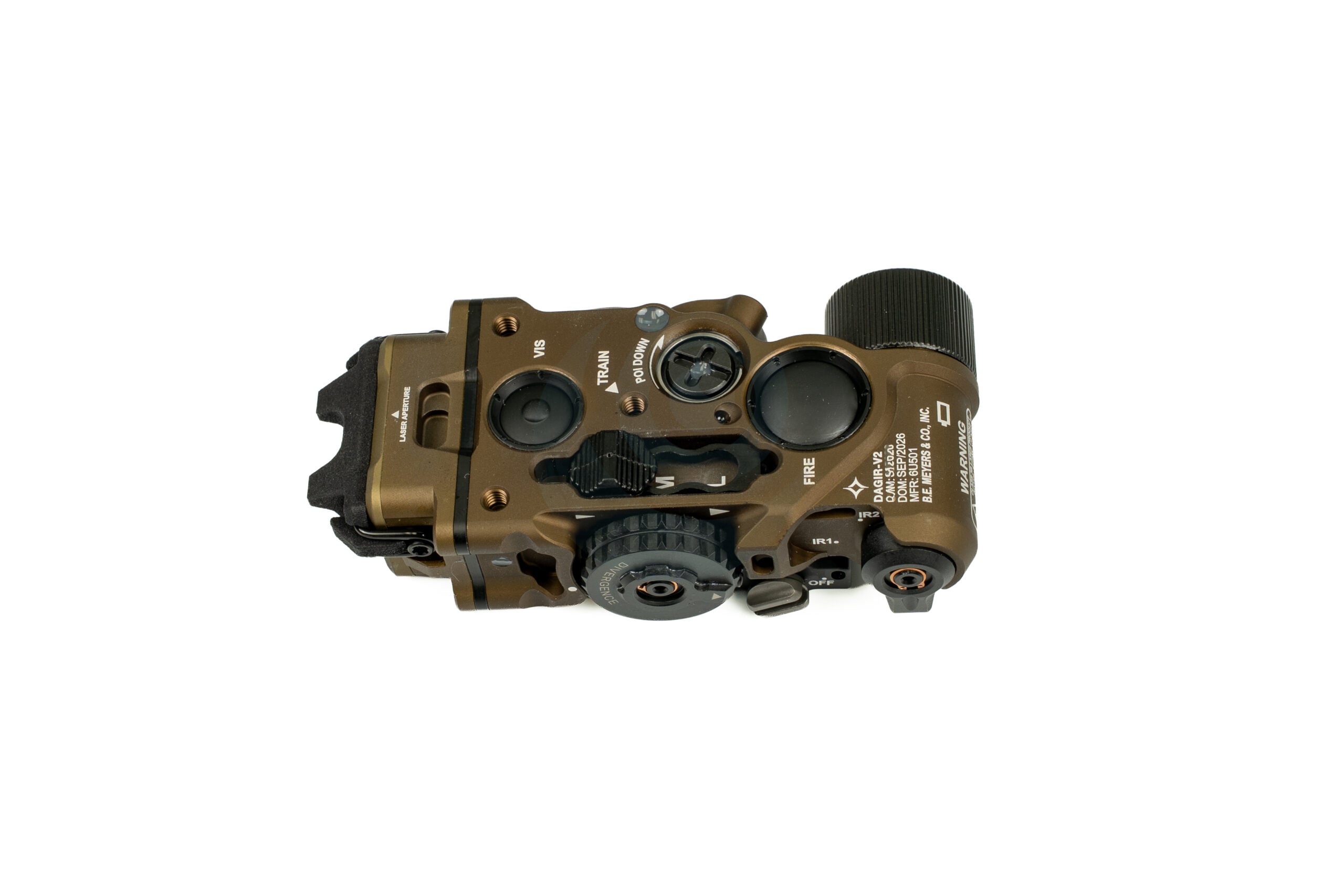

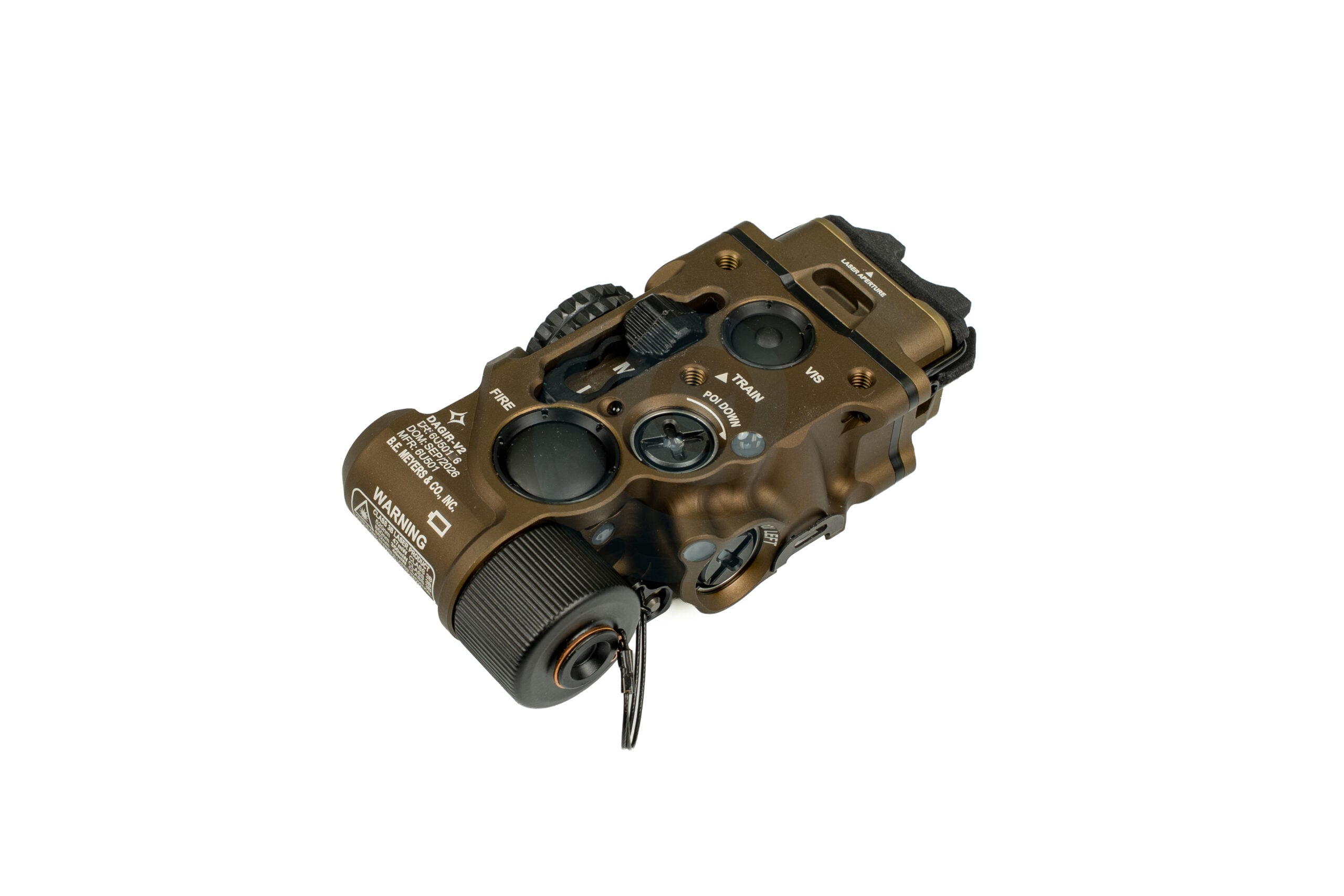

B.E. Meyers DAGIR Multi-Platform Advanced Laser System
FOR QUALIFIED BUYERS ONLY | PLEASE CONTACT US FOR PURCHASING DETAILS

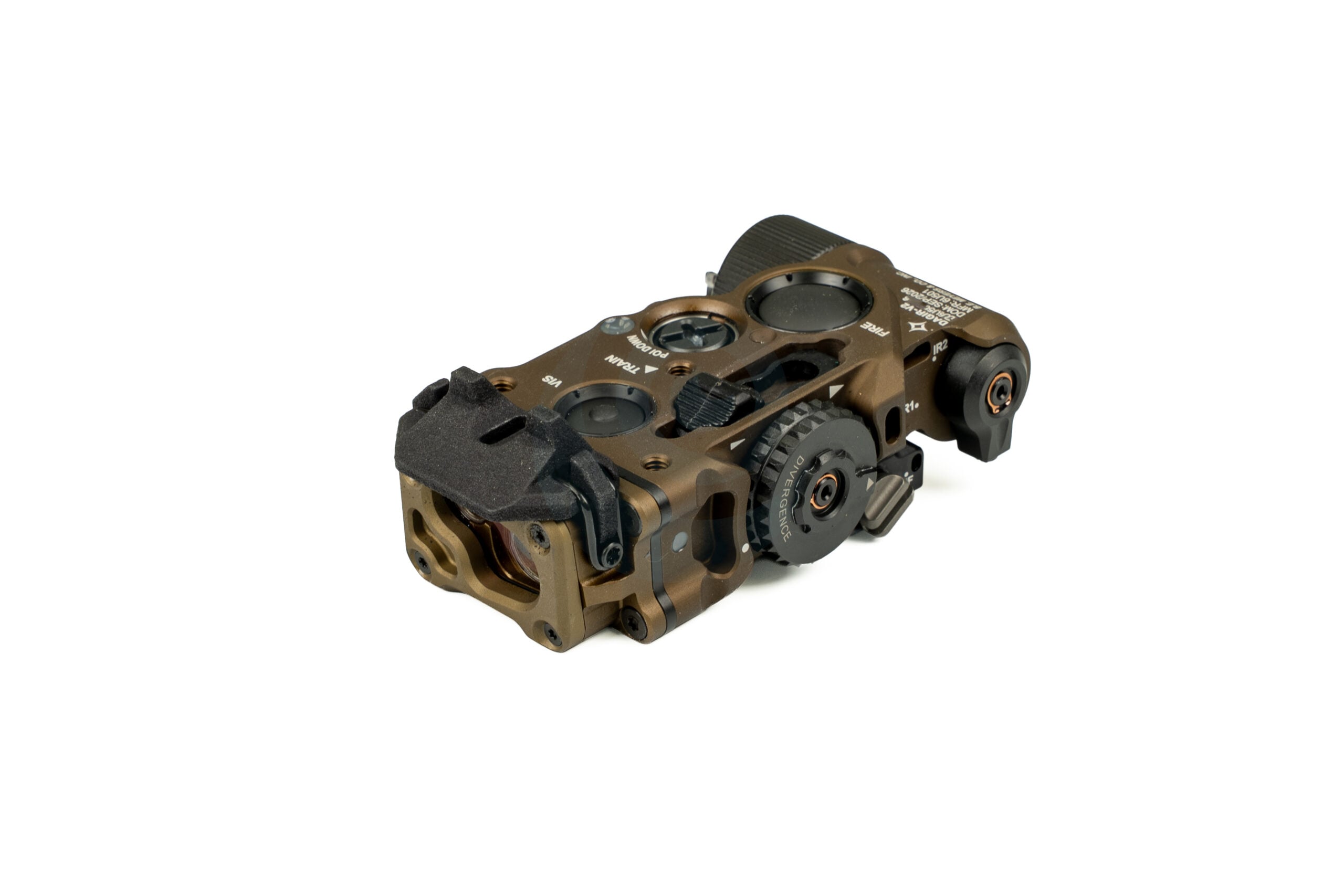

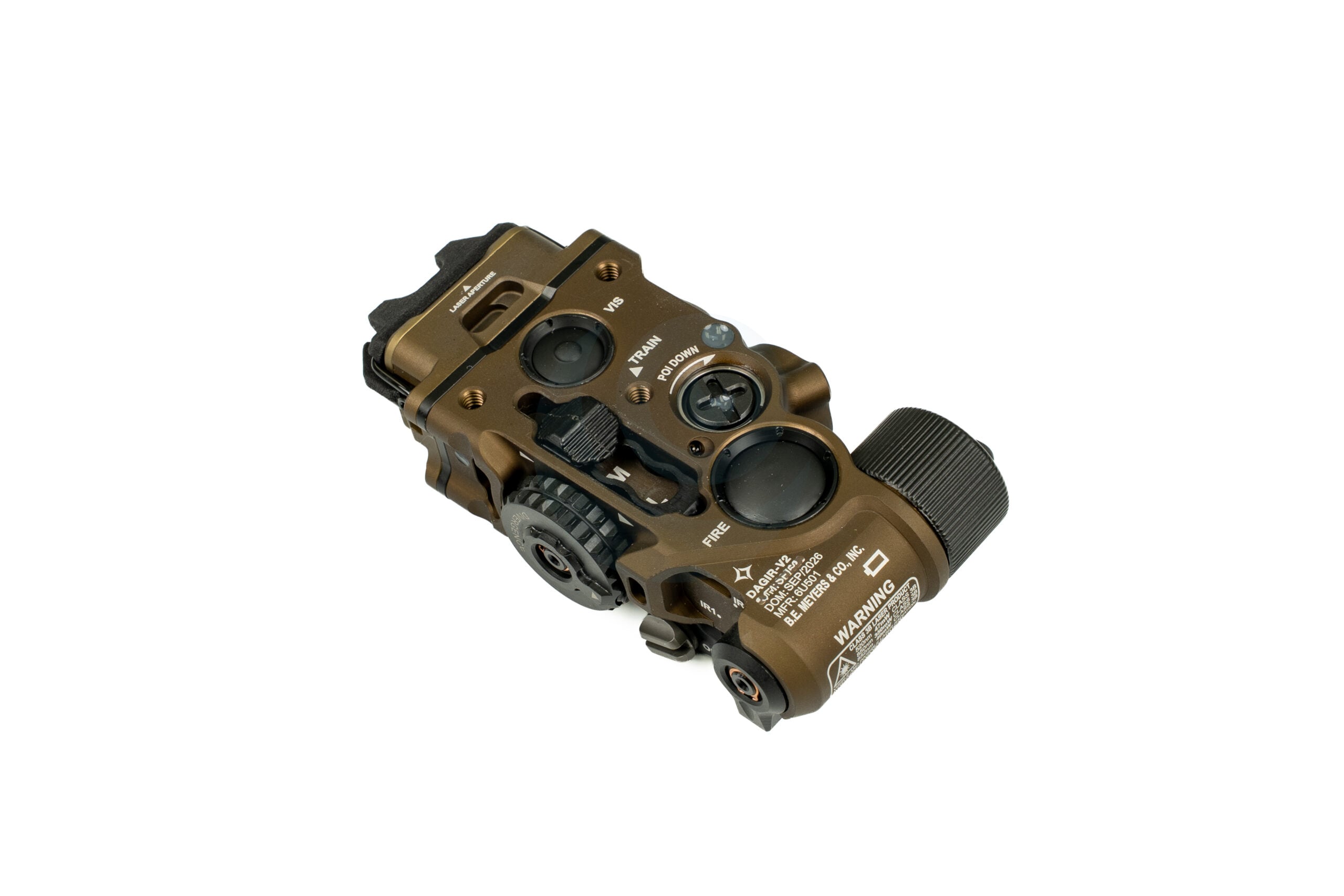

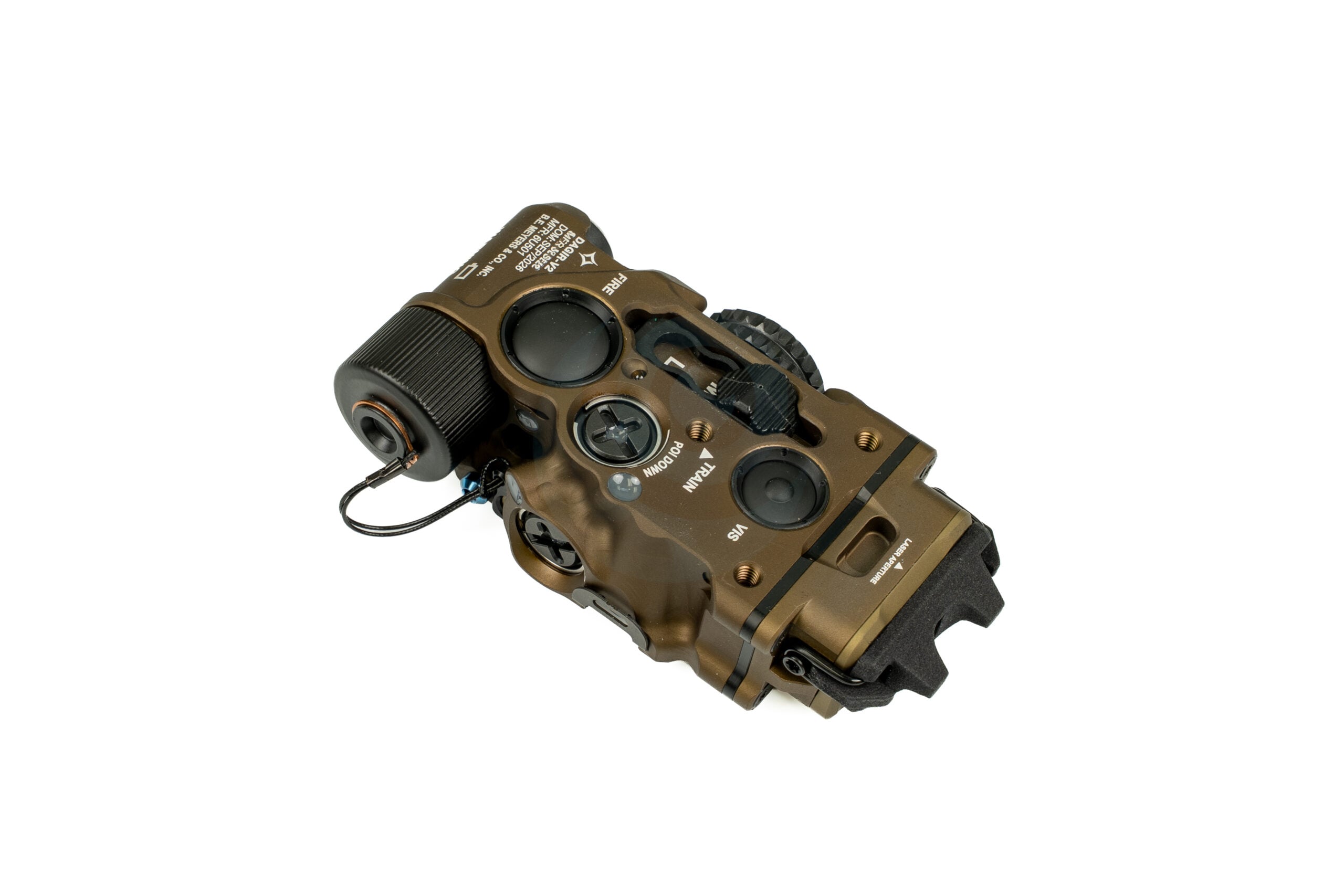

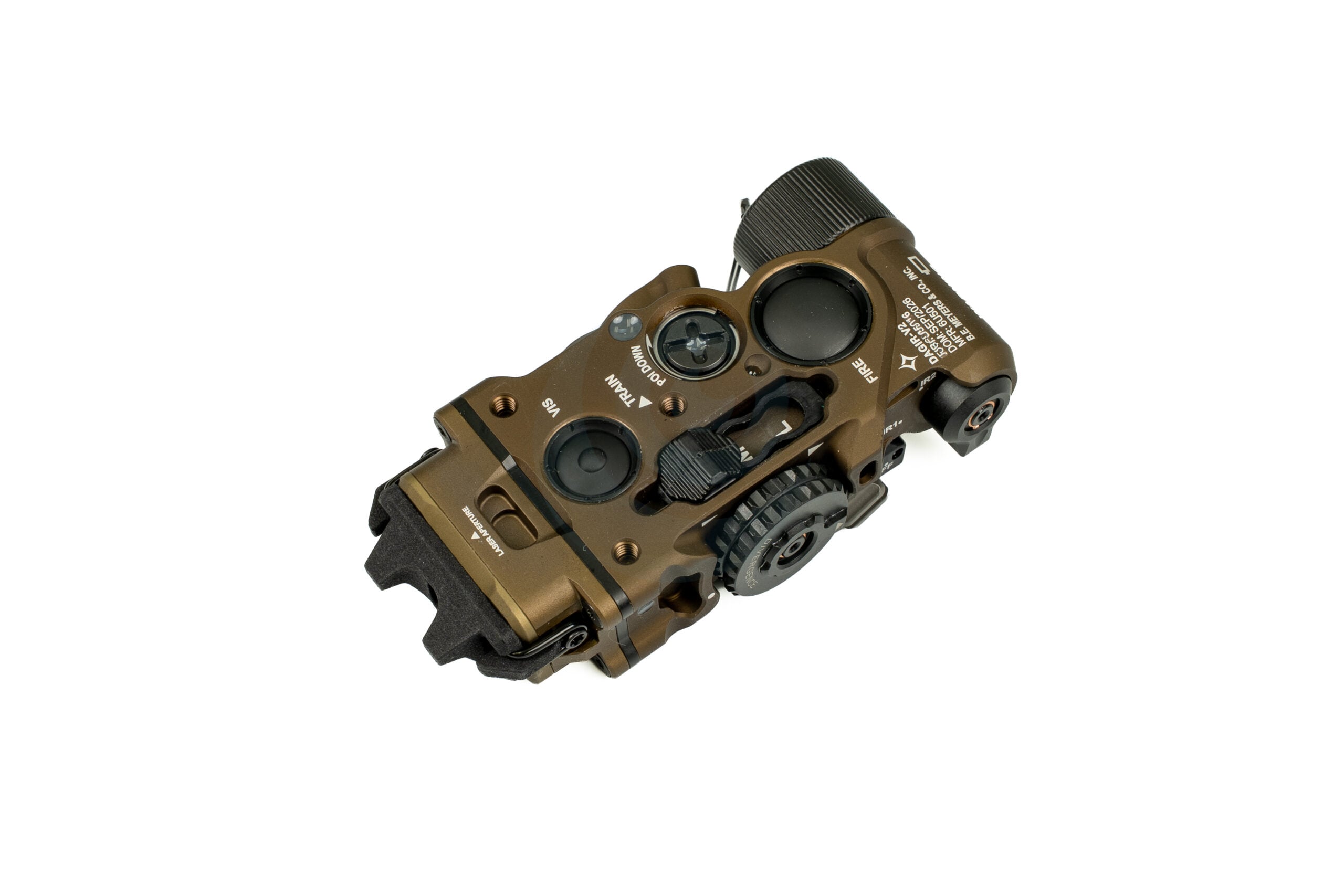

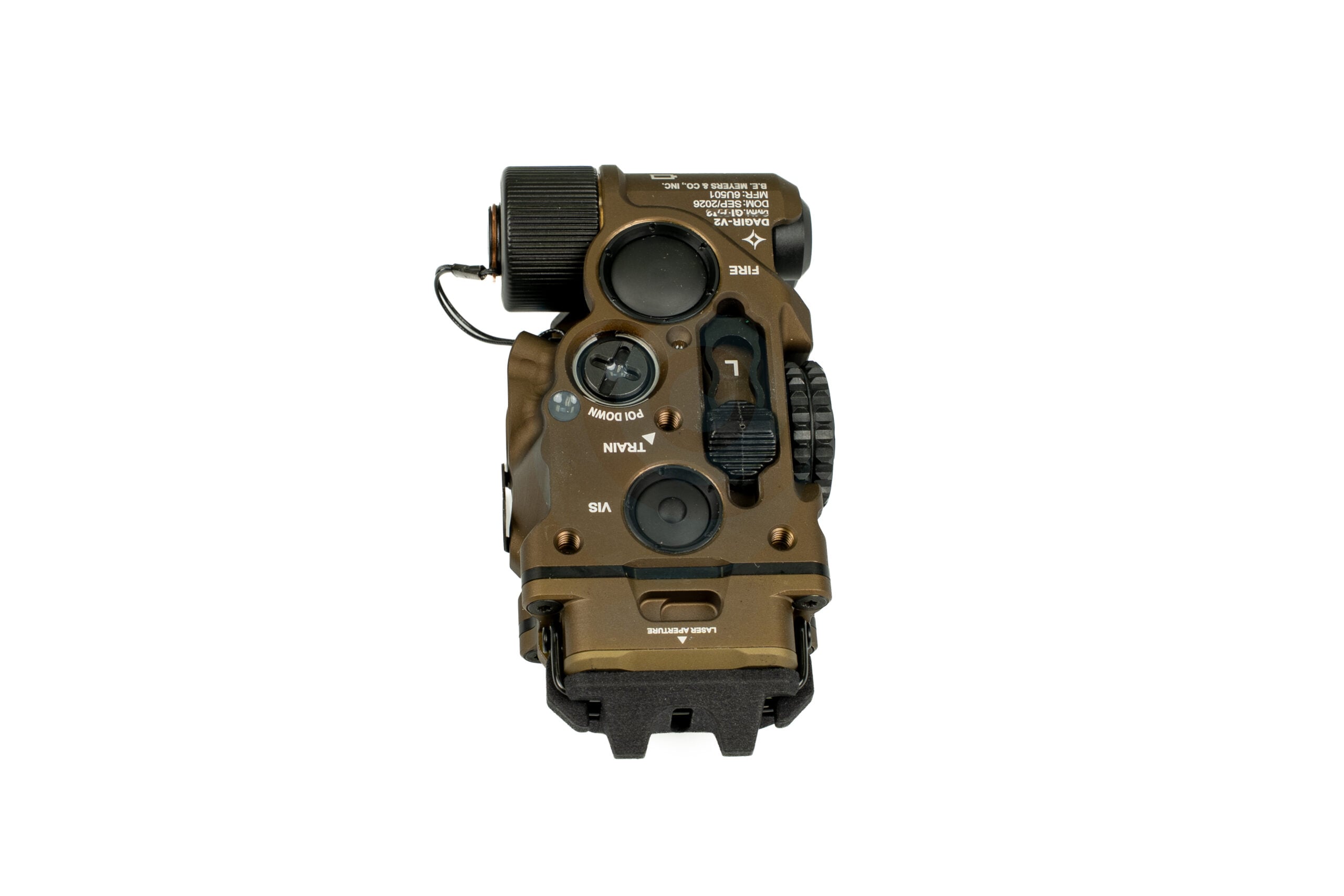

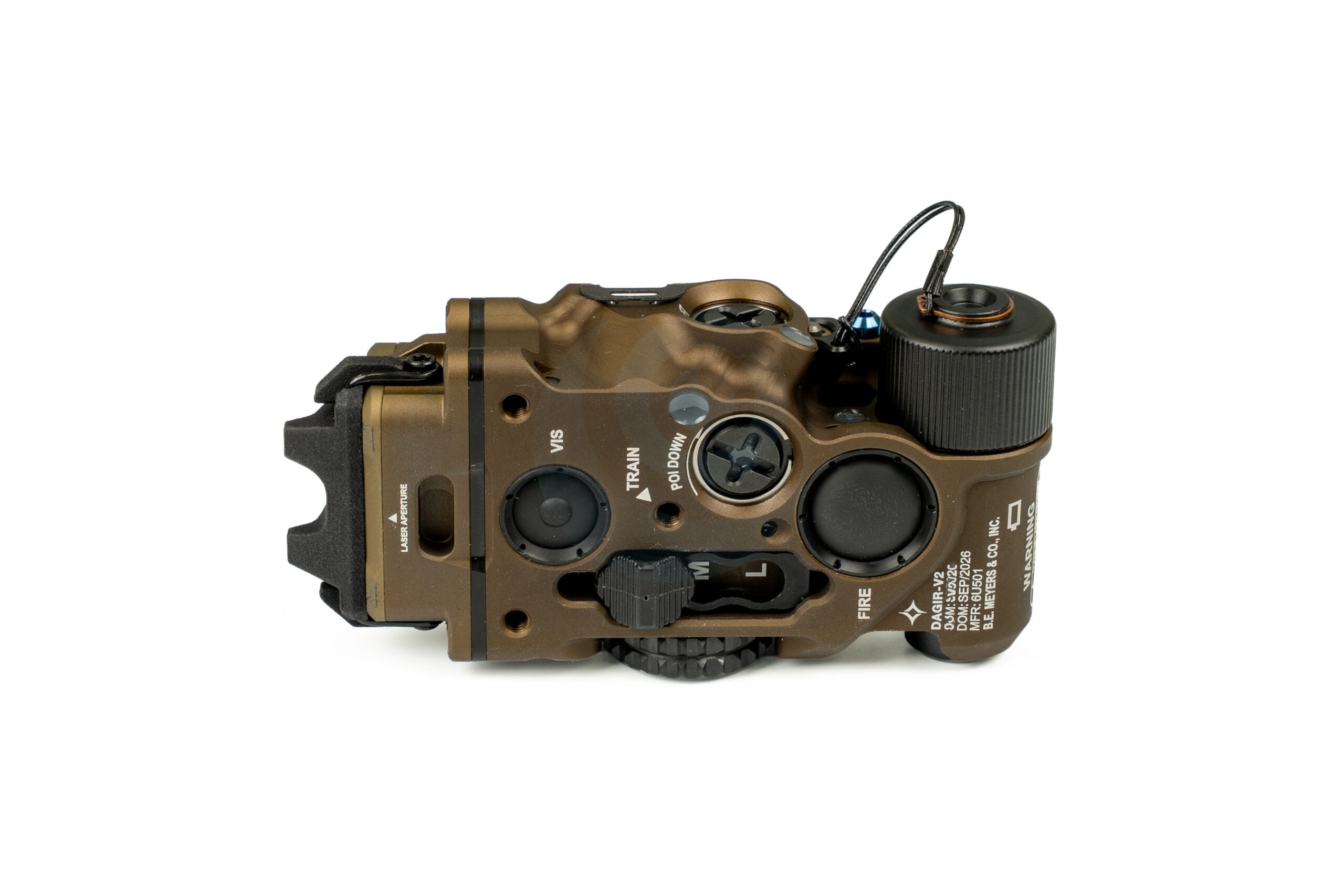

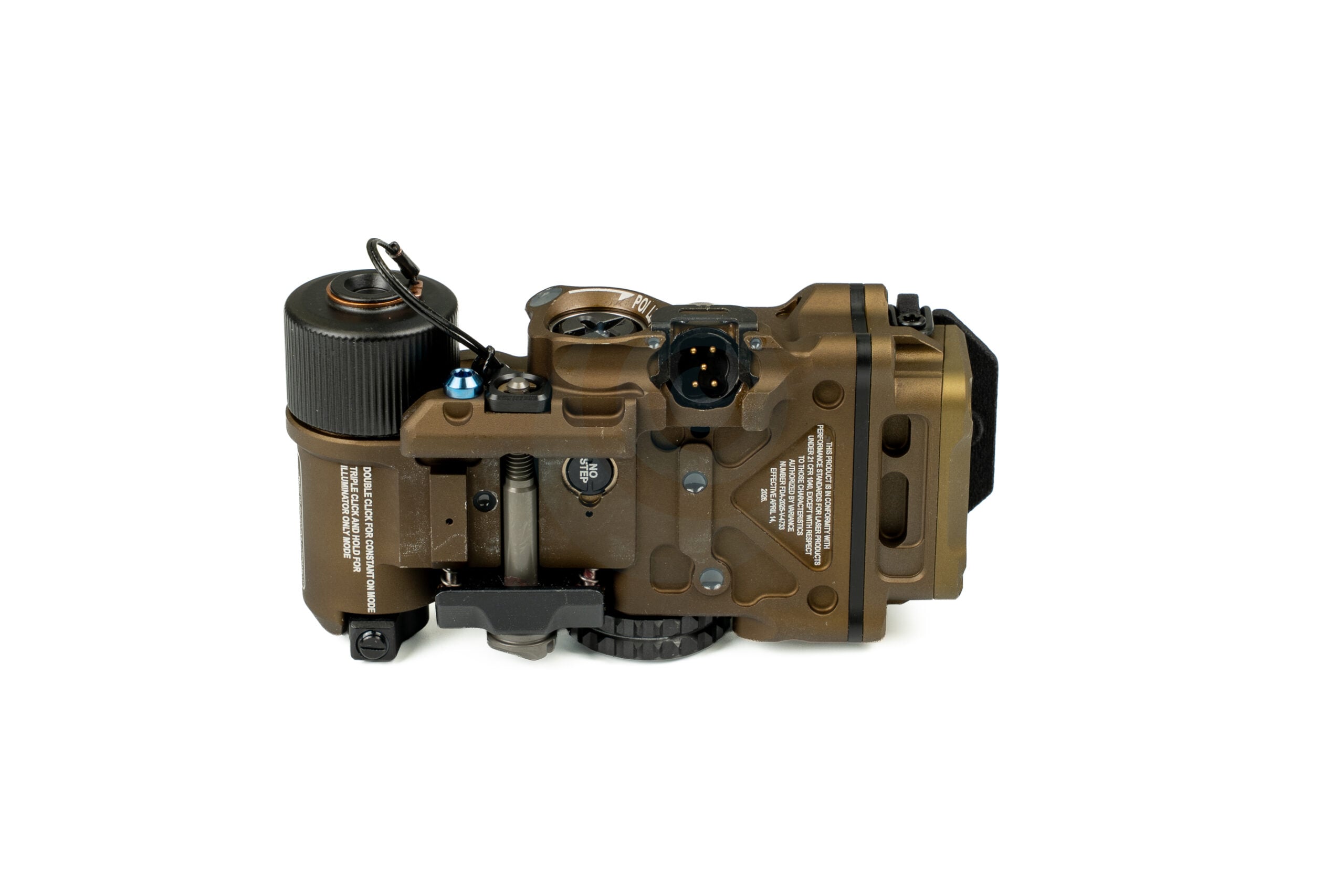

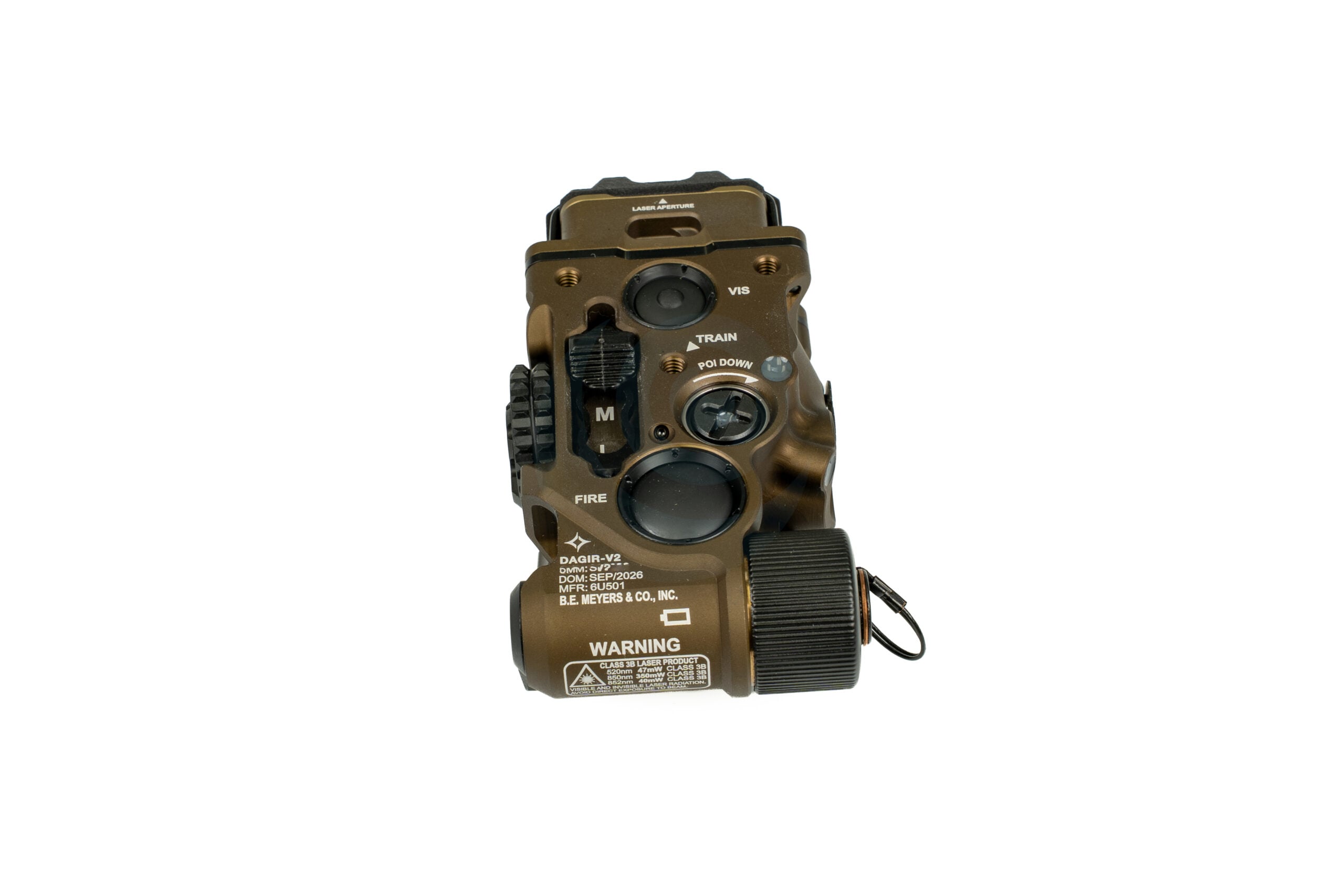

The B.E. Meyers DAGIR is a multi-platform advanced laser system designed to combine visible aiming, infrared aiming, and adjustable infrared illumination in a compact, rugged package. Built around advanced vertical-cavity surface-emitting laser (VCSEL) technology, the DAGIR provides digitally controlled output and illumination divergence in a system engineered for demanding environments.
Designed for integration with MIL-STD-1913 Picatinny rails, the DAGIR series offers a versatile solution for compatible platforms requiring visible and infrared laser capabilities. Its digitally controlled interface allows users to adjust key system functions without relying on traditional mechanical divergence and power controls.
Available in multiple configurations, the DAGIR series combines compact dimensions, a streamlined control layout, and a variable-divergence infrared illuminator. For customers building a night vision setup, the DAGIR is designed to provide integrated aiming and illumination capabilities in one unit.
Key Features
- Visible and Infrared Aiming: Available with green or red visible laser options, alongside a near-infrared aiming laser.
- Advanced VCSEL Technology: Digitally controlled laser output and illumination divergence.
- Adjustable IR Illumination: Variable divergence designed to accommodate different illumination requirements.
- Multiple Operating Modes: Selectable OFF, VIS, IR-1, and IR-2 modes, depending on configuration.
- Digital Output Controls: Adjust output power and beam divergence through the system interface.
- Wakizashi Interface: Supports compatible remote-control and external-power accessories.
- Compact Construction: Approximately 3.9 inches long, 2 inches wide, and 1 inch above the mounting rail.
- Rugged Design: Engineered for demanding environmental conditions and tested to applicable MIL-STD-810H requirements.
- Made in the USA: Manufactured by B.E. Meyers & Co.
Visible and Infrared Laser Capability
The DAGIR integrates visible and near-infrared aiming capabilities with an adjustable infrared illuminator. This combination supports compatible applications requiring both visible aiming and infrared functionality for use with night vision equipment.
The visible laser is offered in green or red configurations, depending on the selected model. The infrared system operates at approximately 860 nm, with adjustable illumination divergence that can be configured for different environments and applications.
Digitally Controlled Variable Illumination
One of the defining characteristics of the DAGIR is its digitally controlled illumination system. Rather than relying on traditional mechanical movement for output and divergence adjustments, the system uses electronic controls to manage these functions.
The variable-divergence illuminator is designed to provide a consistent beam pattern across its available settings. The ability to adjust divergence and output makes the DAGIR a versatile option within the B.E. Meyers lineup.
Compact Design and Accessory Integration
The DAGIR is designed to minimize size and weight while maintaining a full suite of aiming and illumination functions. Its compact housing mounts to compatible MIL-STD-1913 rails, while the Wakizashi interface supports compatible remote controls and external power accessories.
With its streamlined controls and integrated functionality, the DAGIR offers an alternative to assembling separate visible aiming, infrared aiming, and illumination components.
B.E. Meyers DAGIR Specifications
The following specifications are representative of published DAGIR-series configurations. Exact output ratings, controls, and environmental specifications vary by model.
| Specification | Published Series Information |
|---|---|
| Manufacturer | B.E. Meyers & Co. |
| Product Type | Multi-Platform Advanced Laser System |
| Technology | VCSEL-based laser and illumination system |
| Visible Laser | Green (520 nm) or red (640 nm), depending on model |
| Infrared Pointer | Approximately 860 nm |
| IR Illuminator Output | Up to 350 mW on specified configurations |
| IR Pointer Output | Up to 40 mW on specified configurations |
| Illuminator Divergence | Approximately 0.8ยฐโ12ยฐ, depending on model |
| Power Source | One CR123A battery on specified configurations |
| Dimensions | Approximately 3.9 ร 2.0 ร 1.0 inches |
| Weight | Approximately 7 oz maximum without battery on specified configurations |
| Mounting Interface | MIL-STD-1913 Picatinny rail |
| Accessory Interface | Wakizashi port |
| Origin | Made in the USA |
Why Choose the B.E. Meyers DAGIR?
For customers looking for an integrated visible and infrared aiming and illumination system, the DAGIR brings several functions together in a compact package. Its advanced VCSEL technology, variable-divergence infrared illuminator, and digitally controlled interface distinguish it from more traditional laser aiming modules.
Whether you are comparing advanced aiming lasers or configuring compatible equipment for night vision use, the DAGIR series offers a feature-rich solution from an established American manufacturer of photonic systems.
Shop B.E. Meyers at Custom Night Vision
Custom Night Vision offers specialized night vision equipment and accessories for customers who need equipment tailored to their requirements.
Contact our team for assistance confirming DAGIR model availability, visible laser configuration, accessory compatibility, and ordering requirements.
Shop Custom Night Vision: https://www.customnightvision.com/
Important: The DAGIR is a high-powered laser system. Follow all manufacturer safety instructions, applicable laser safety requirements, and relevant laws. The product is subject to U.S. export-control regulations.
