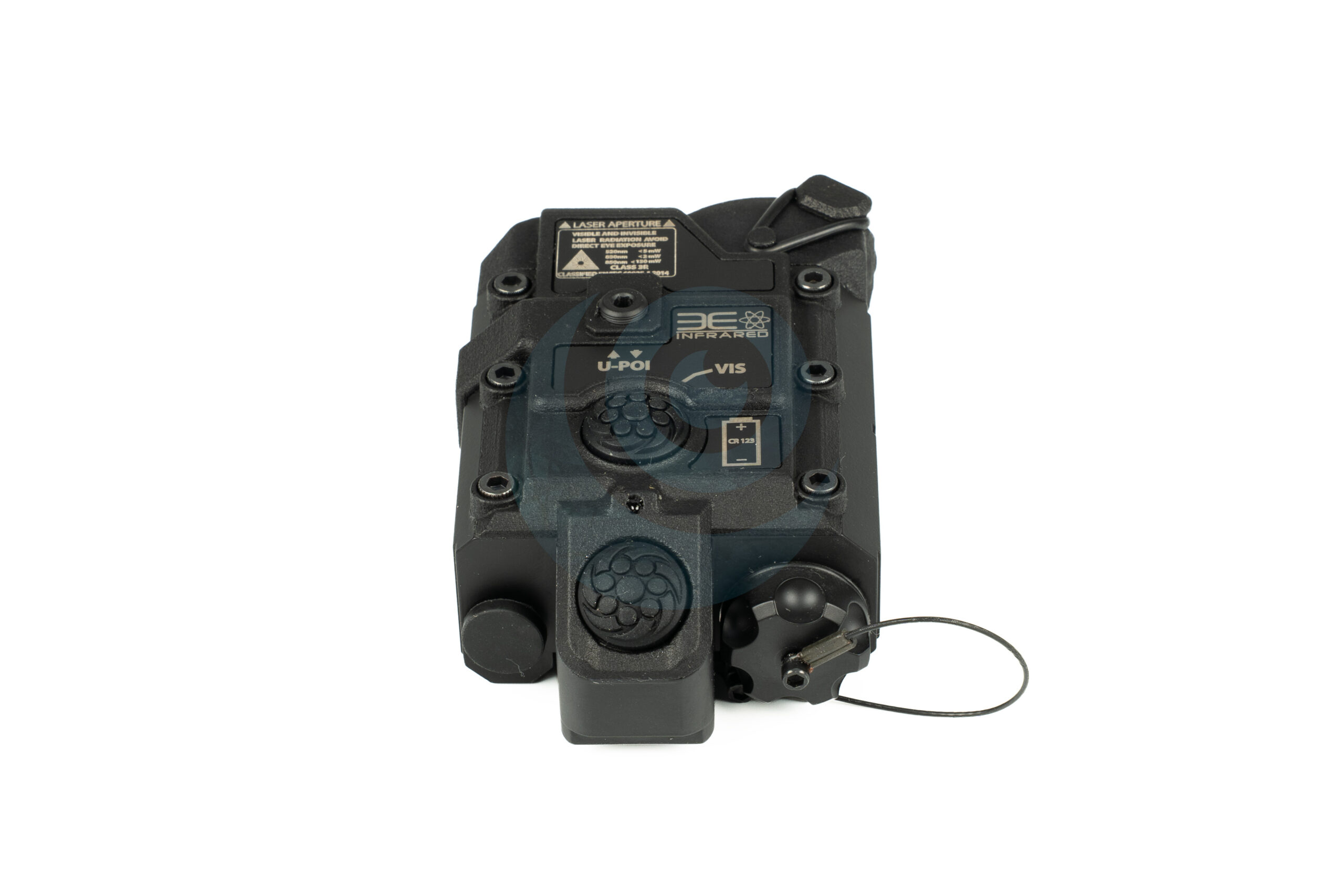

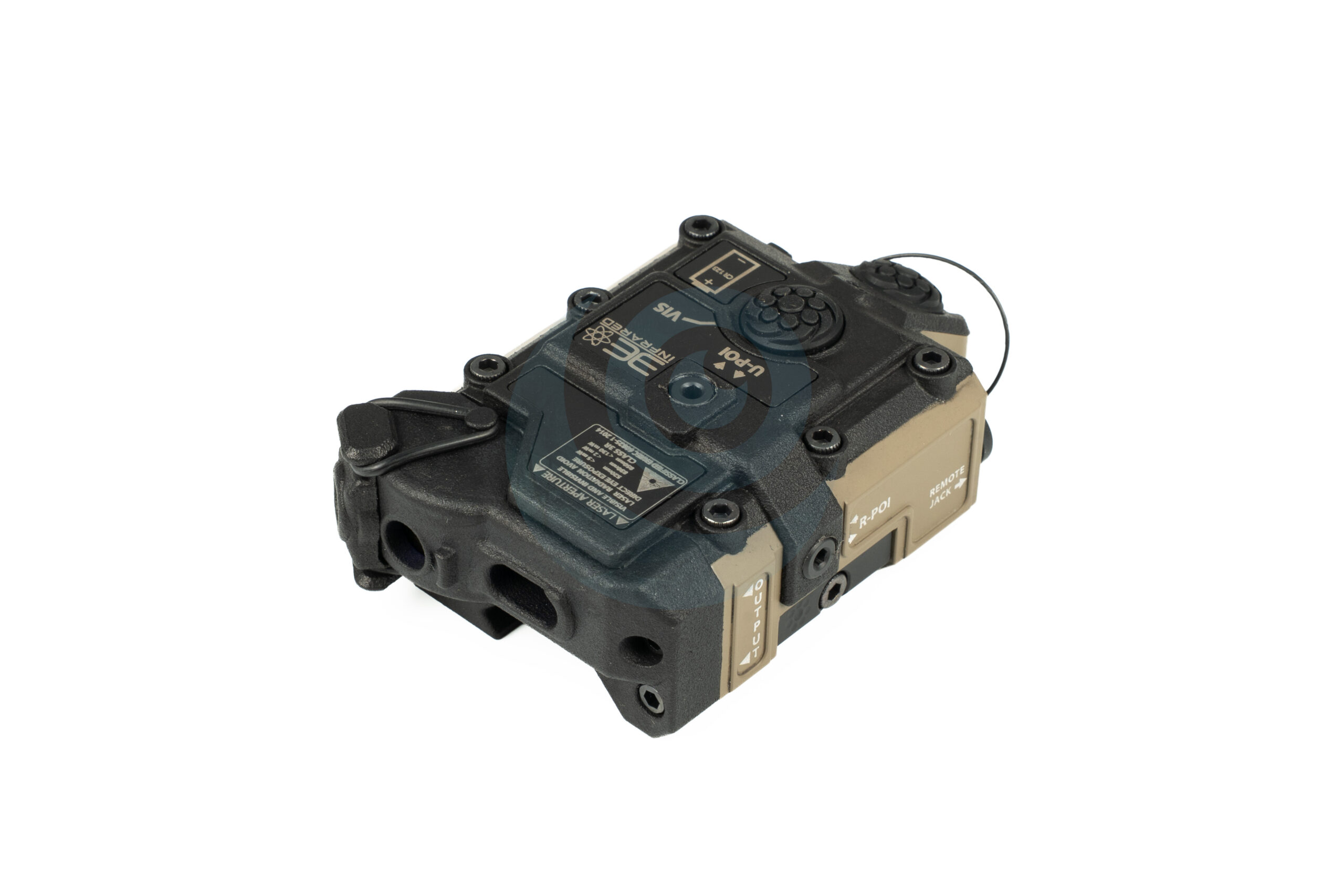

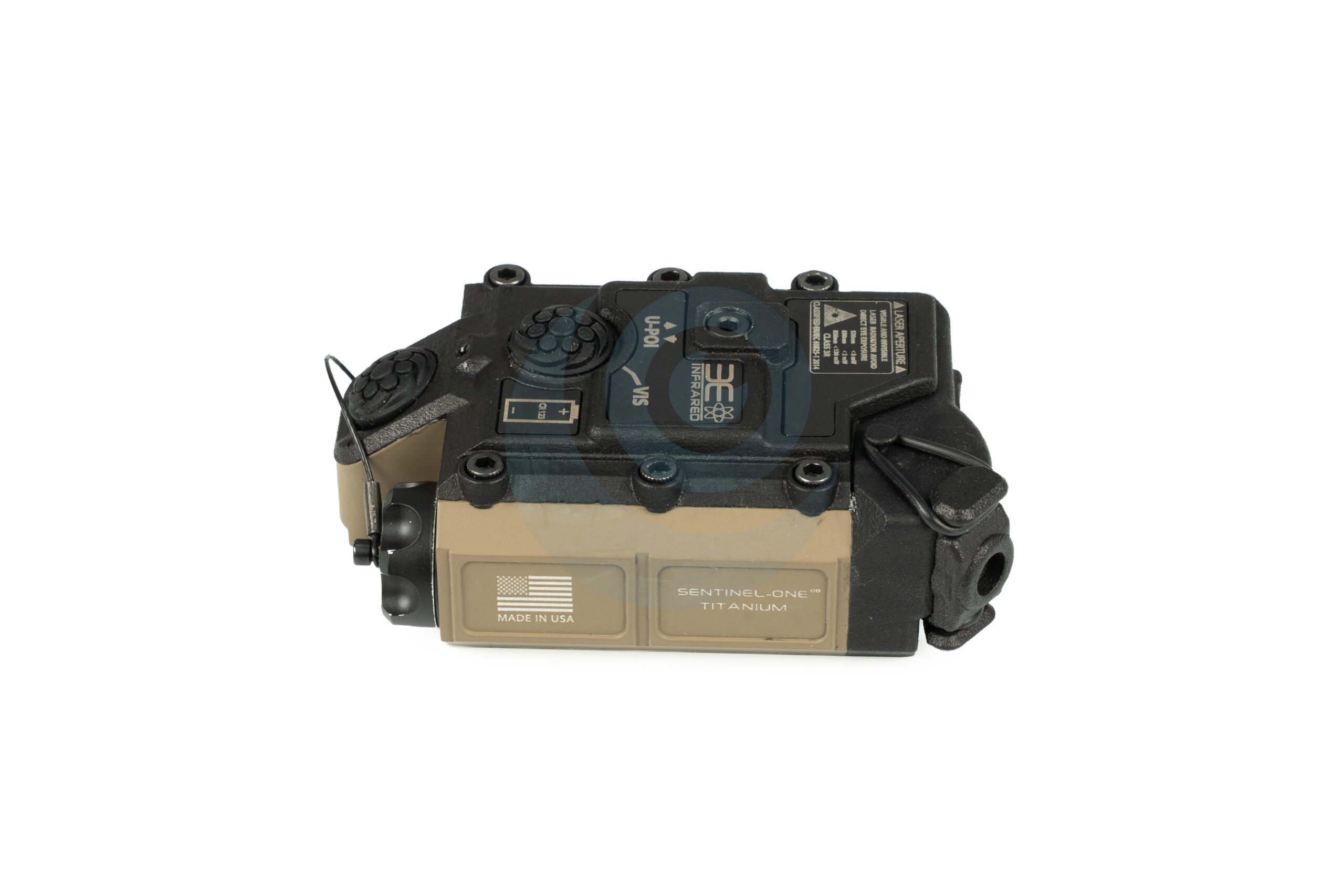

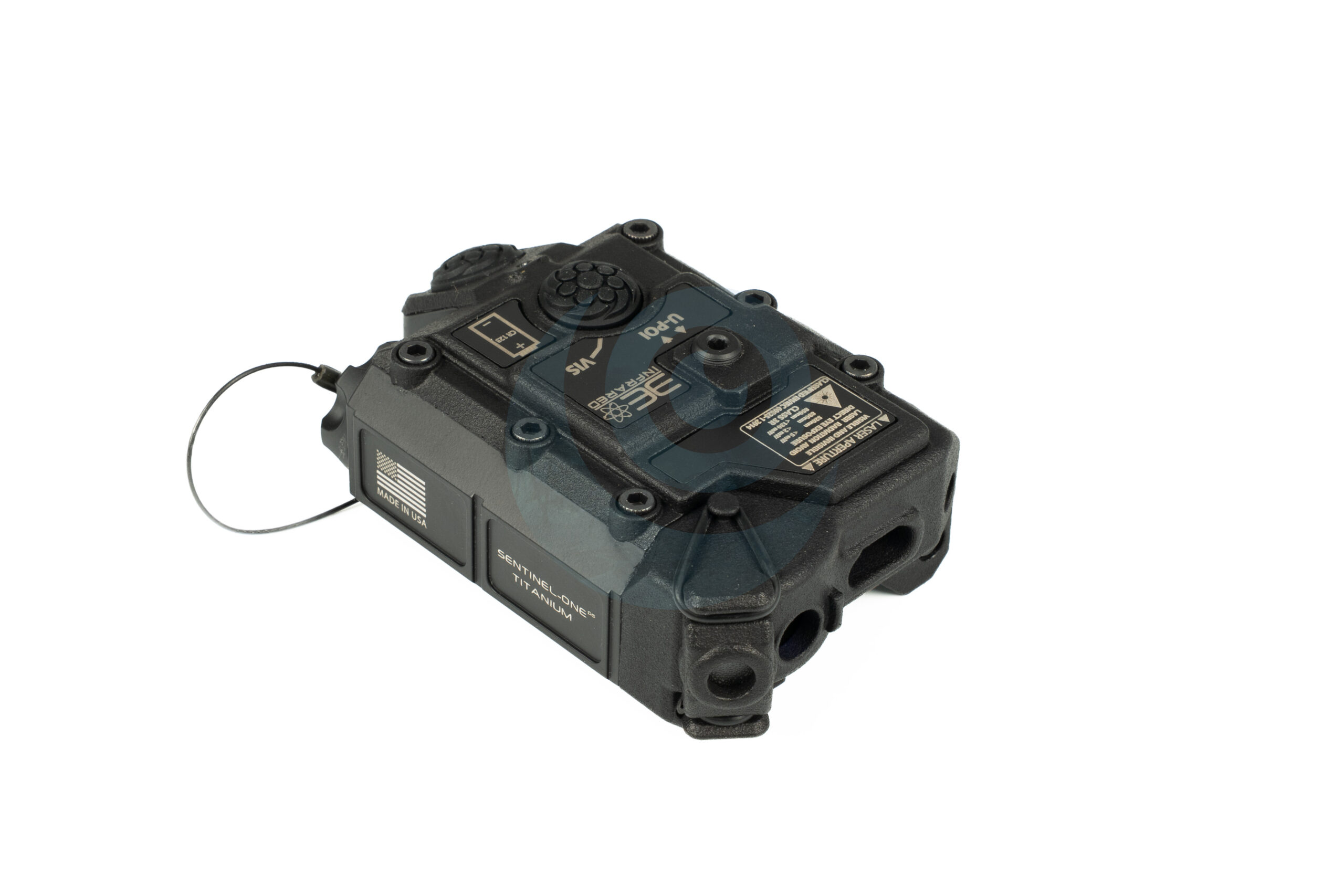

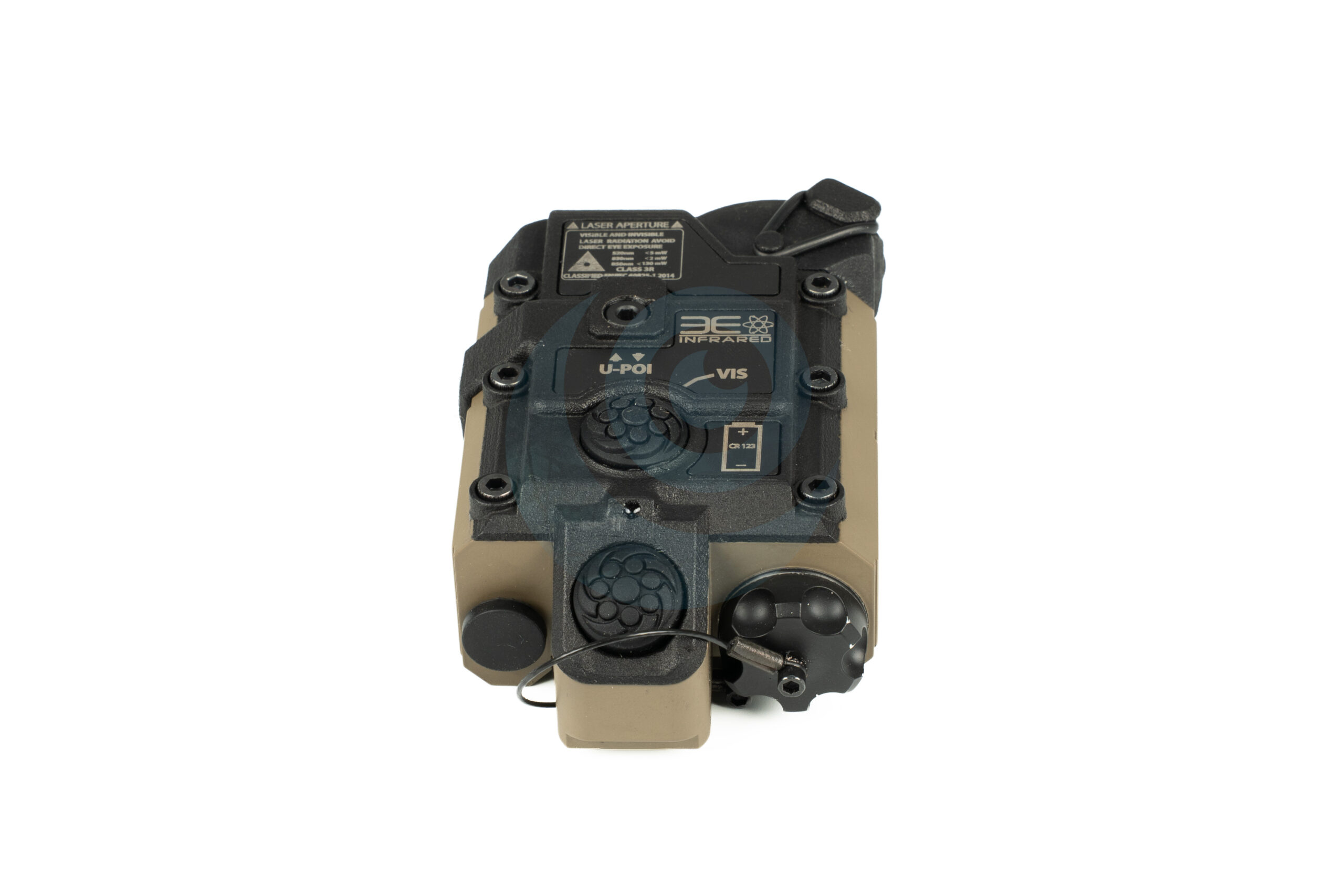

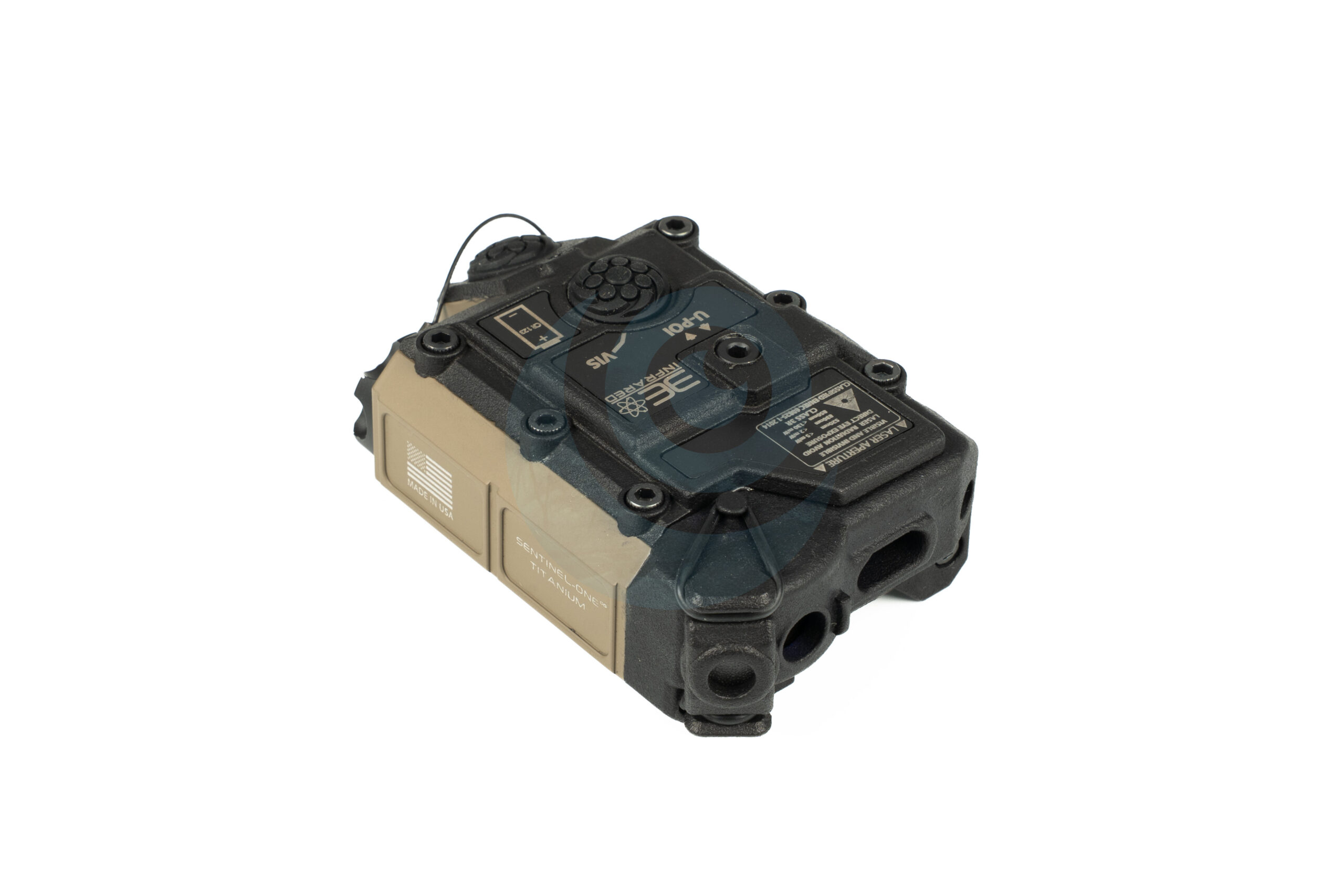

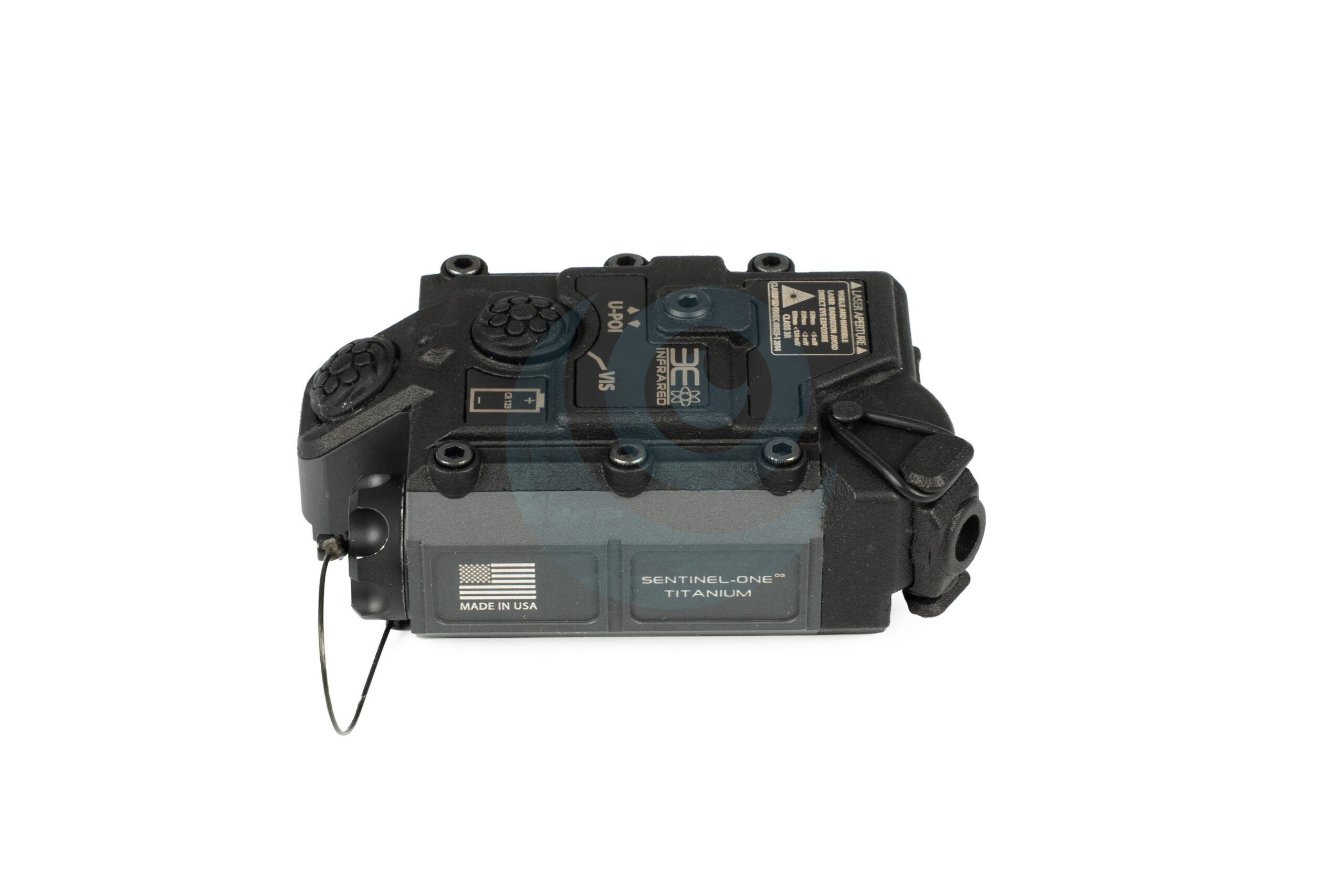

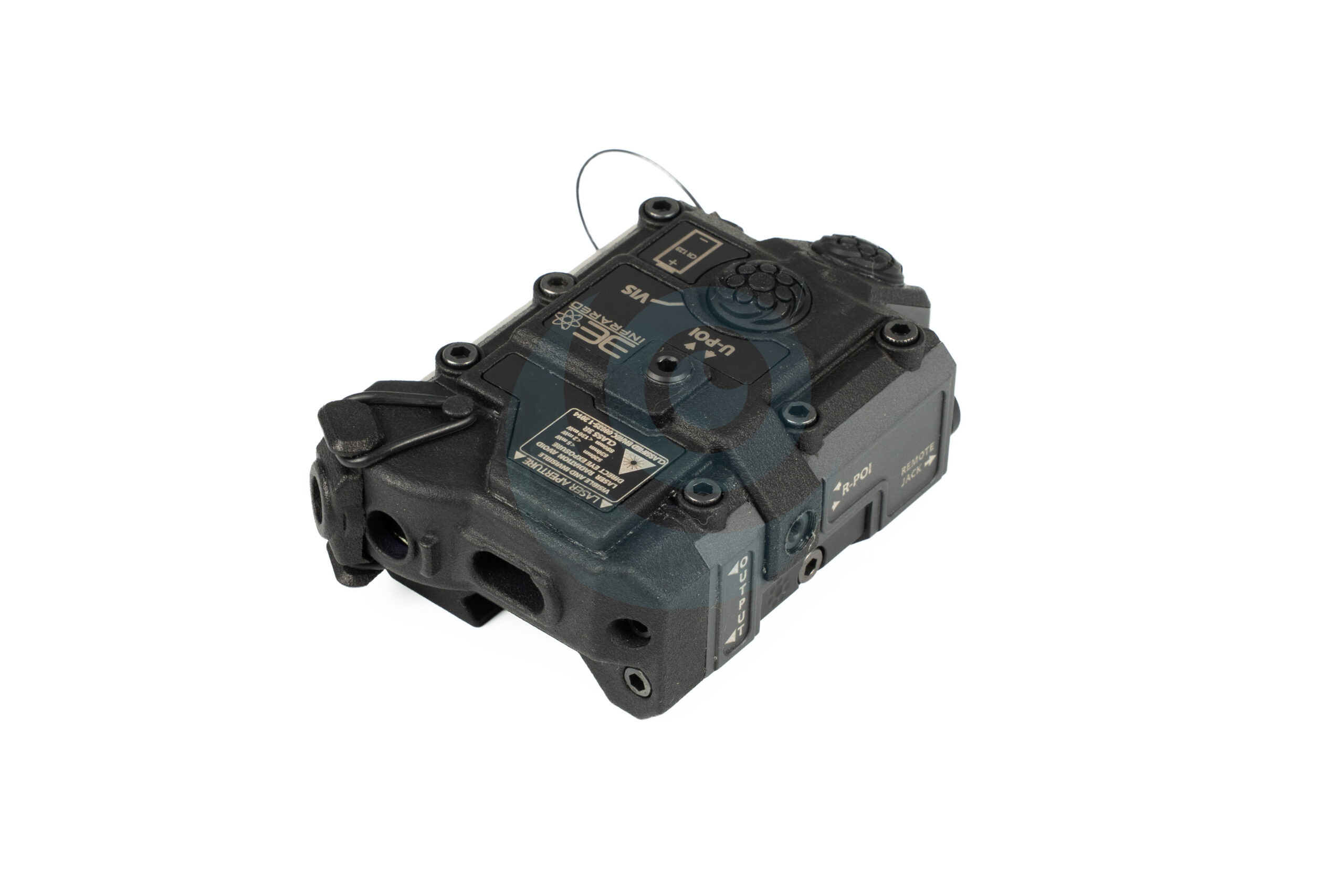

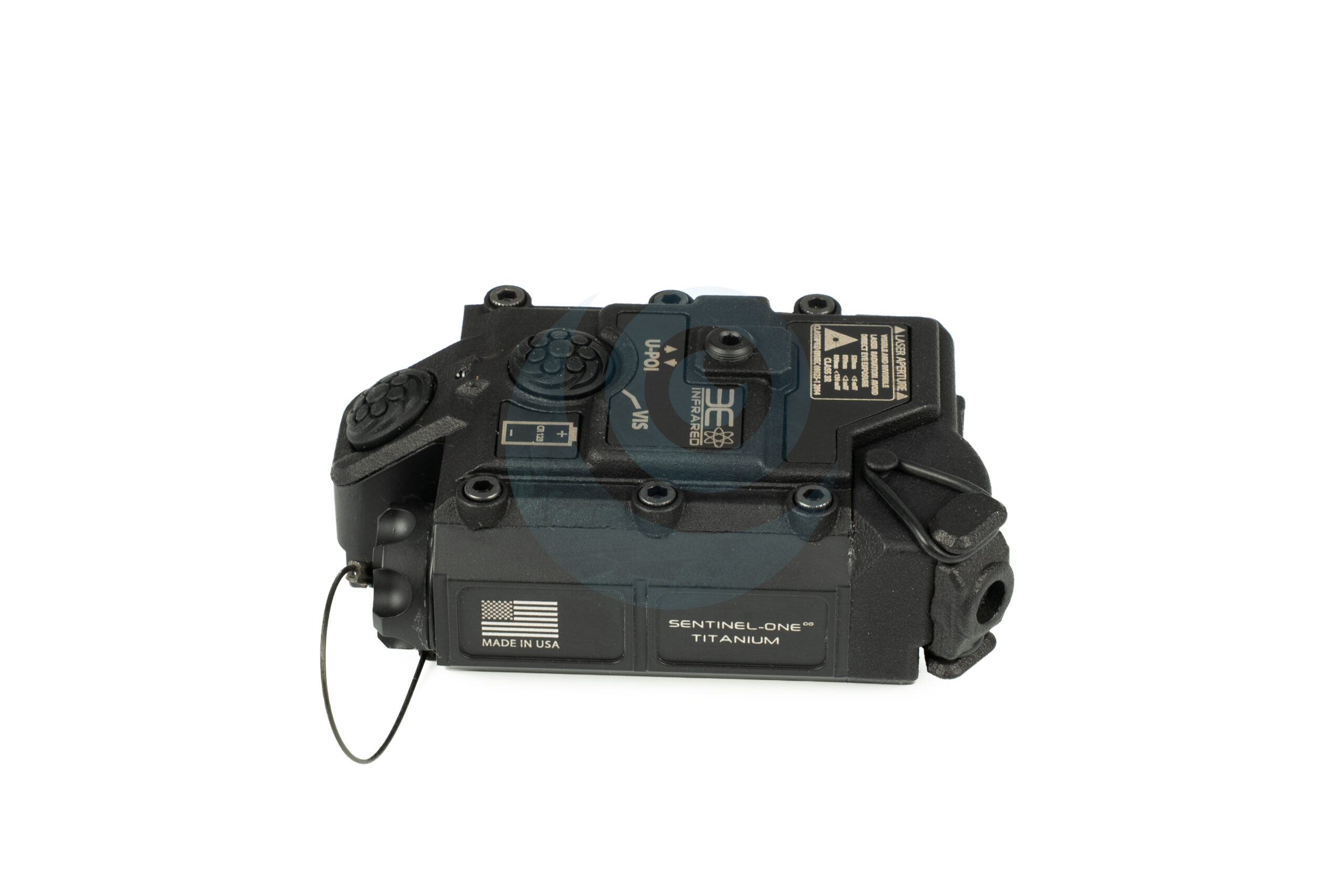

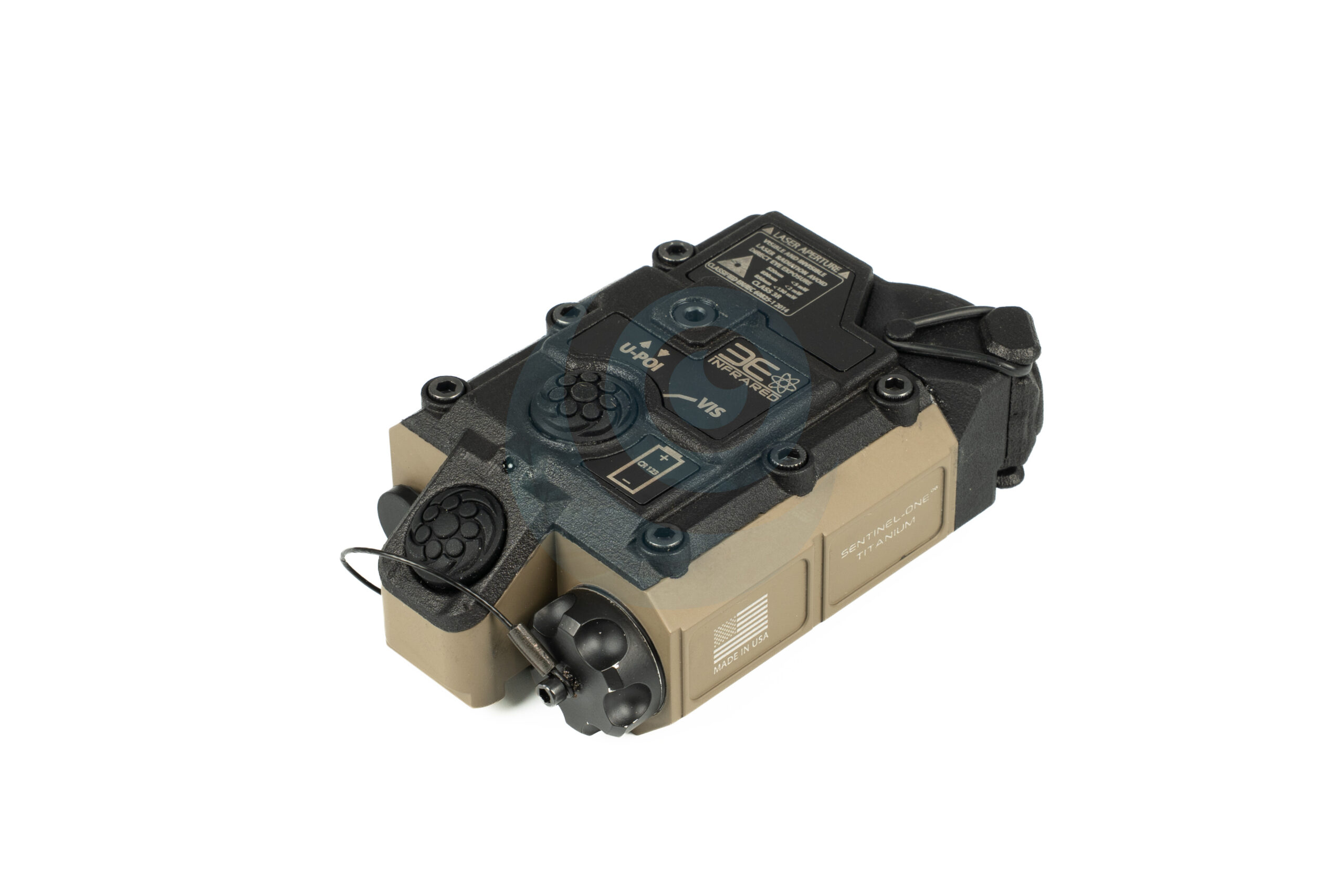

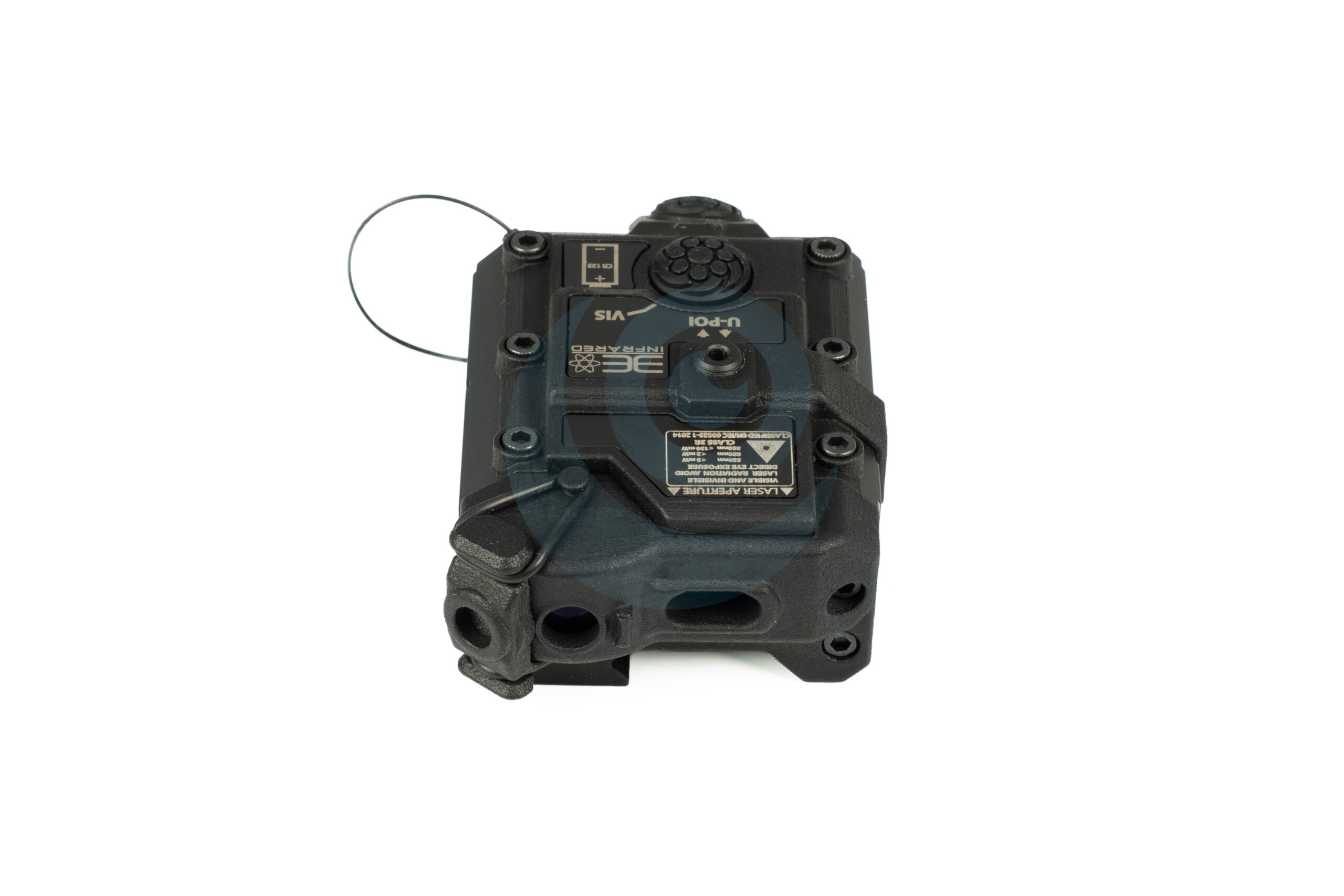

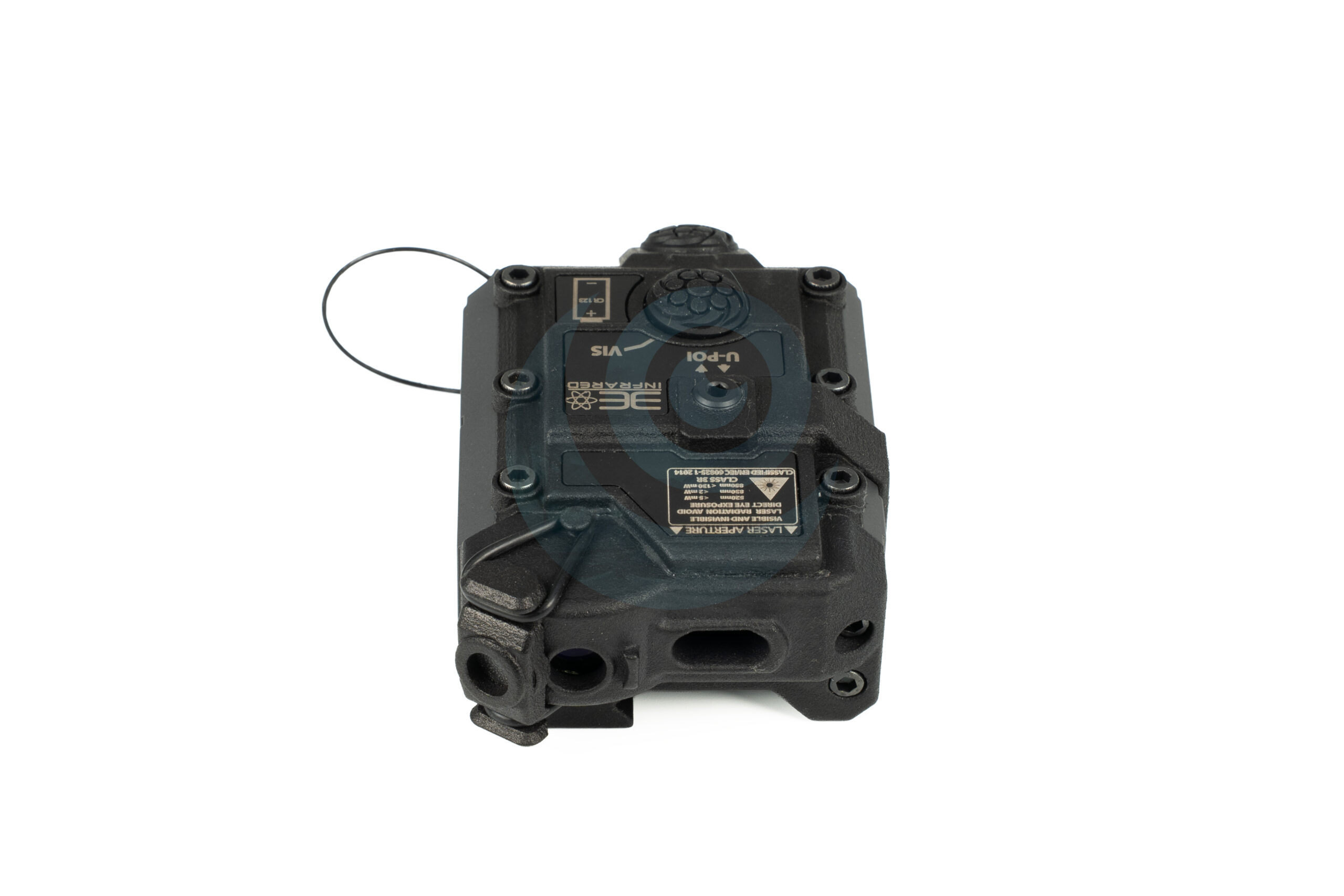

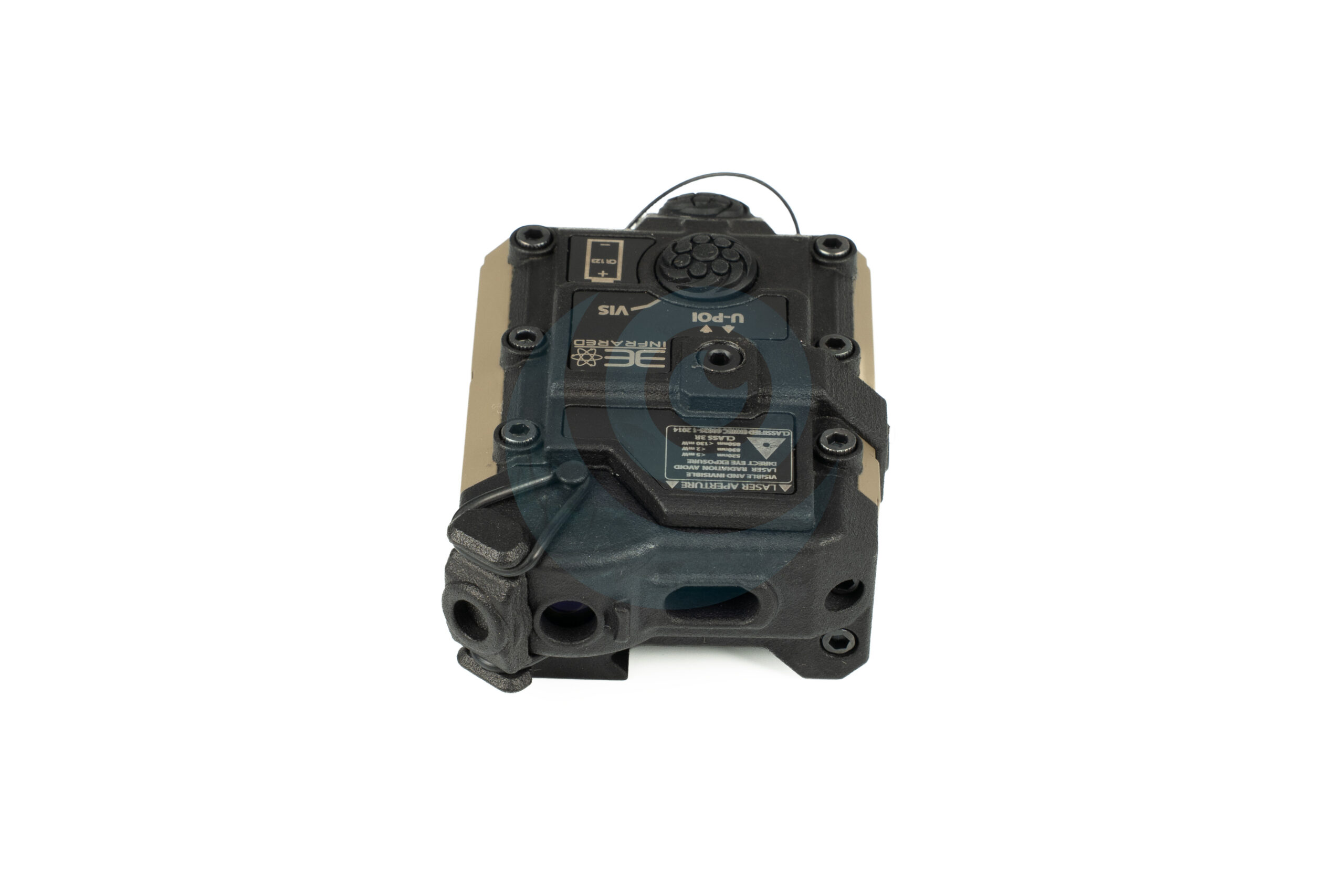

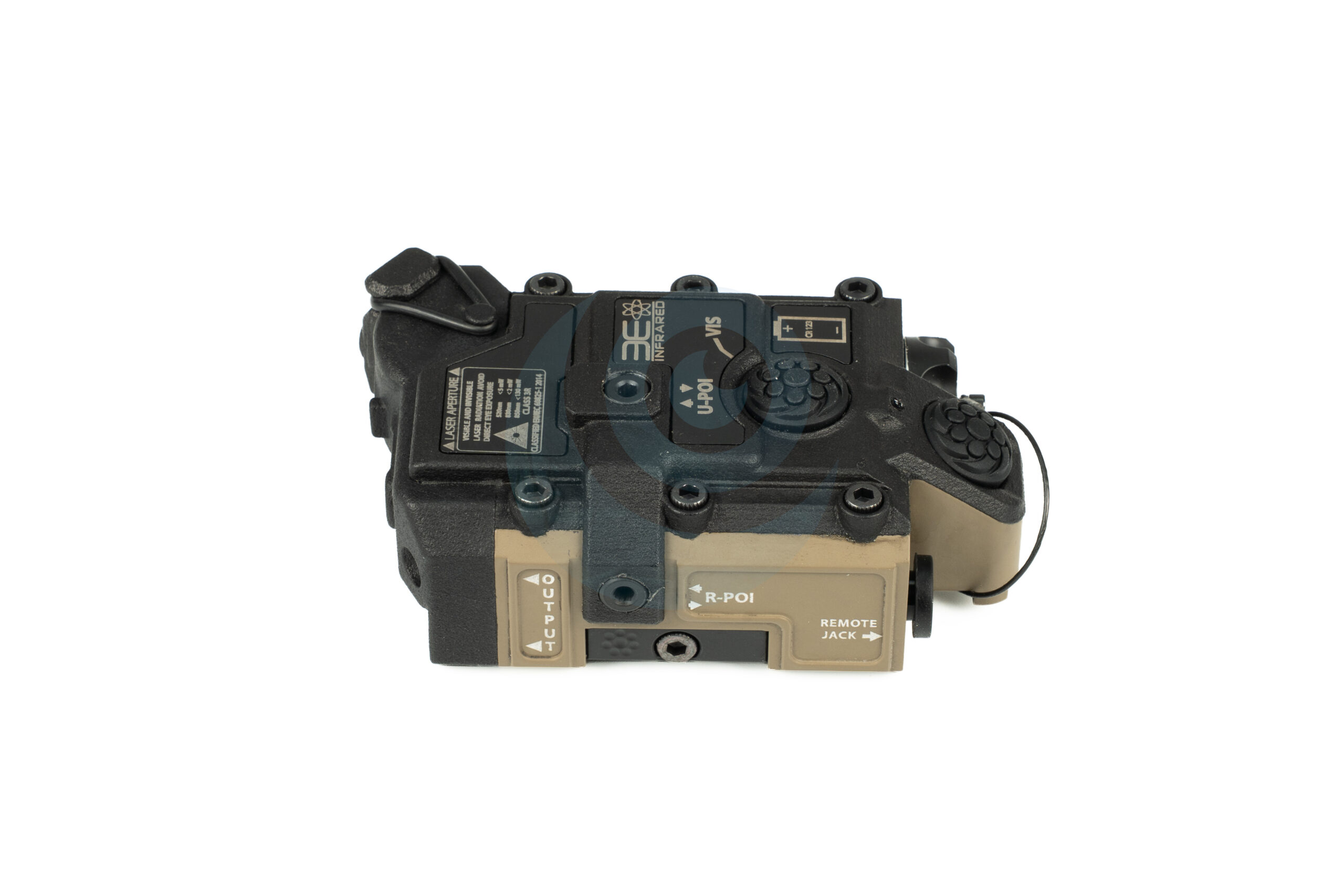

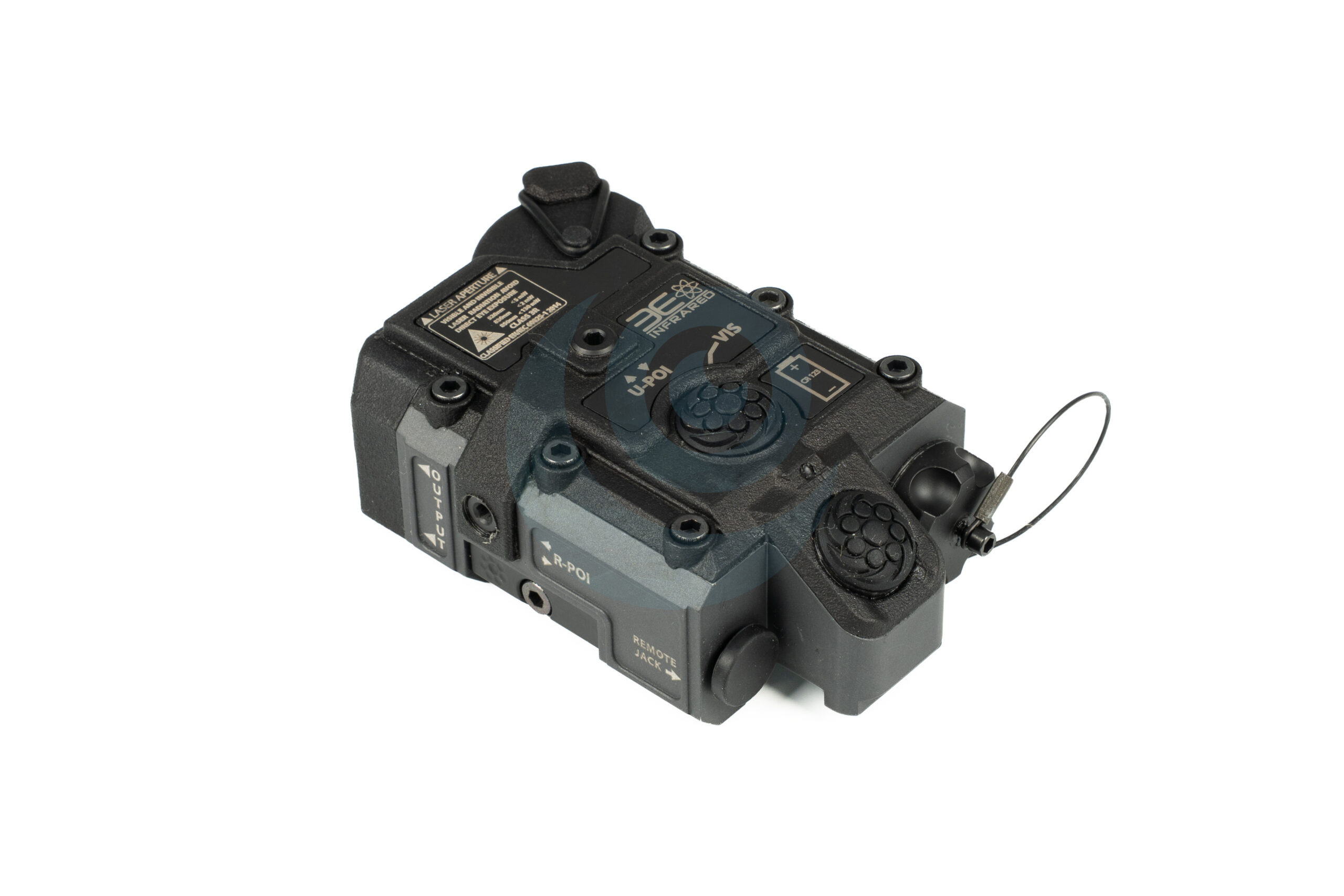

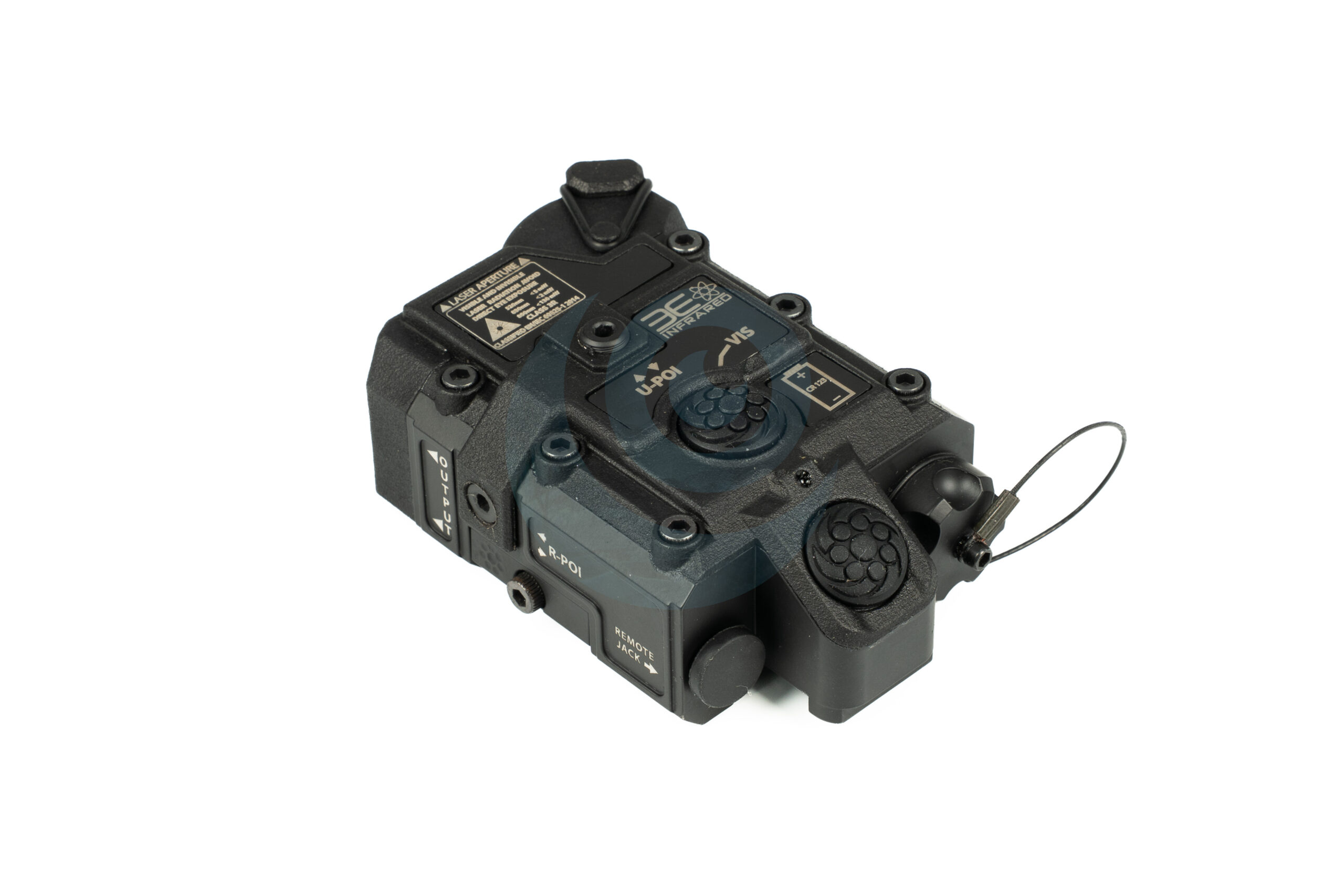

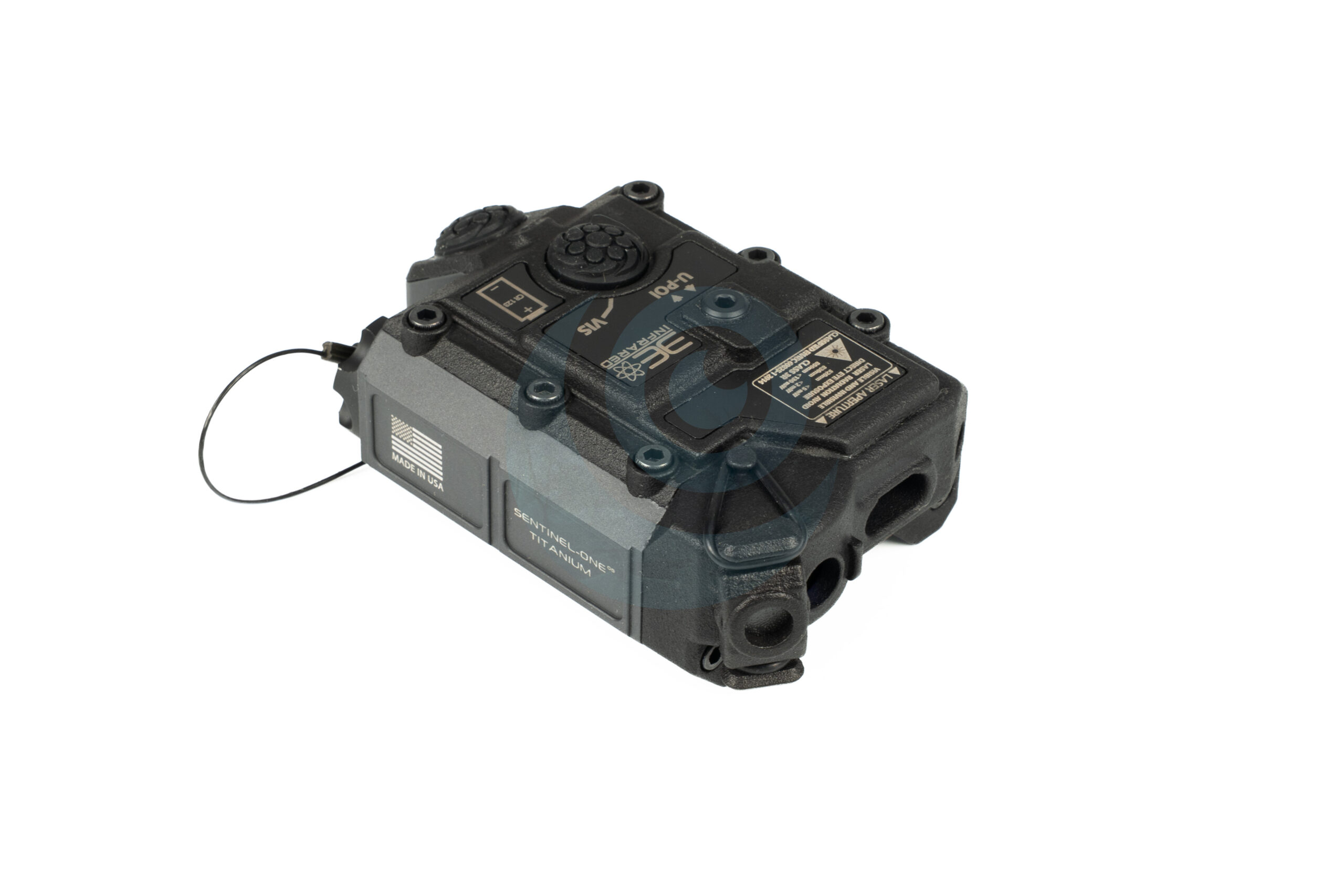

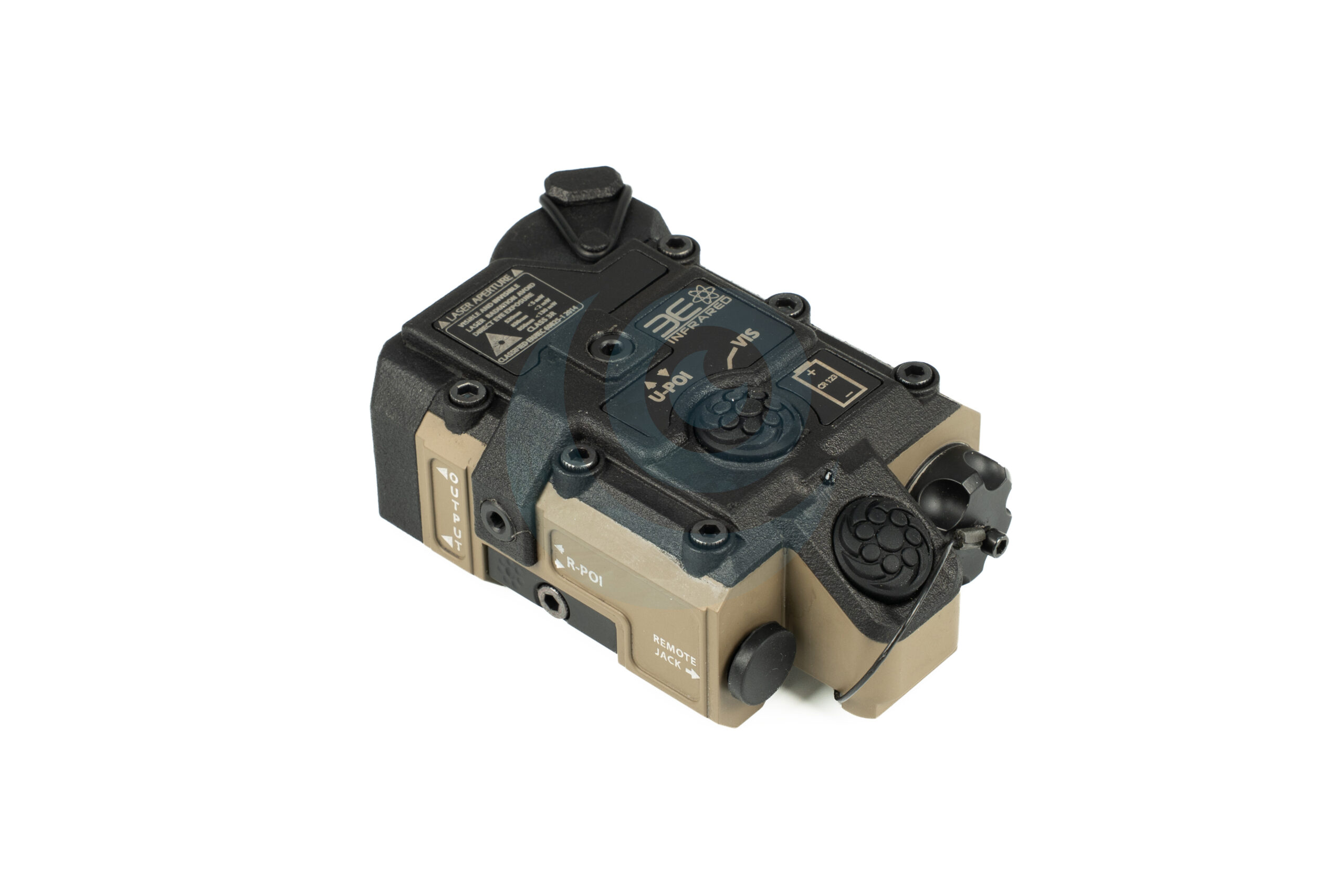

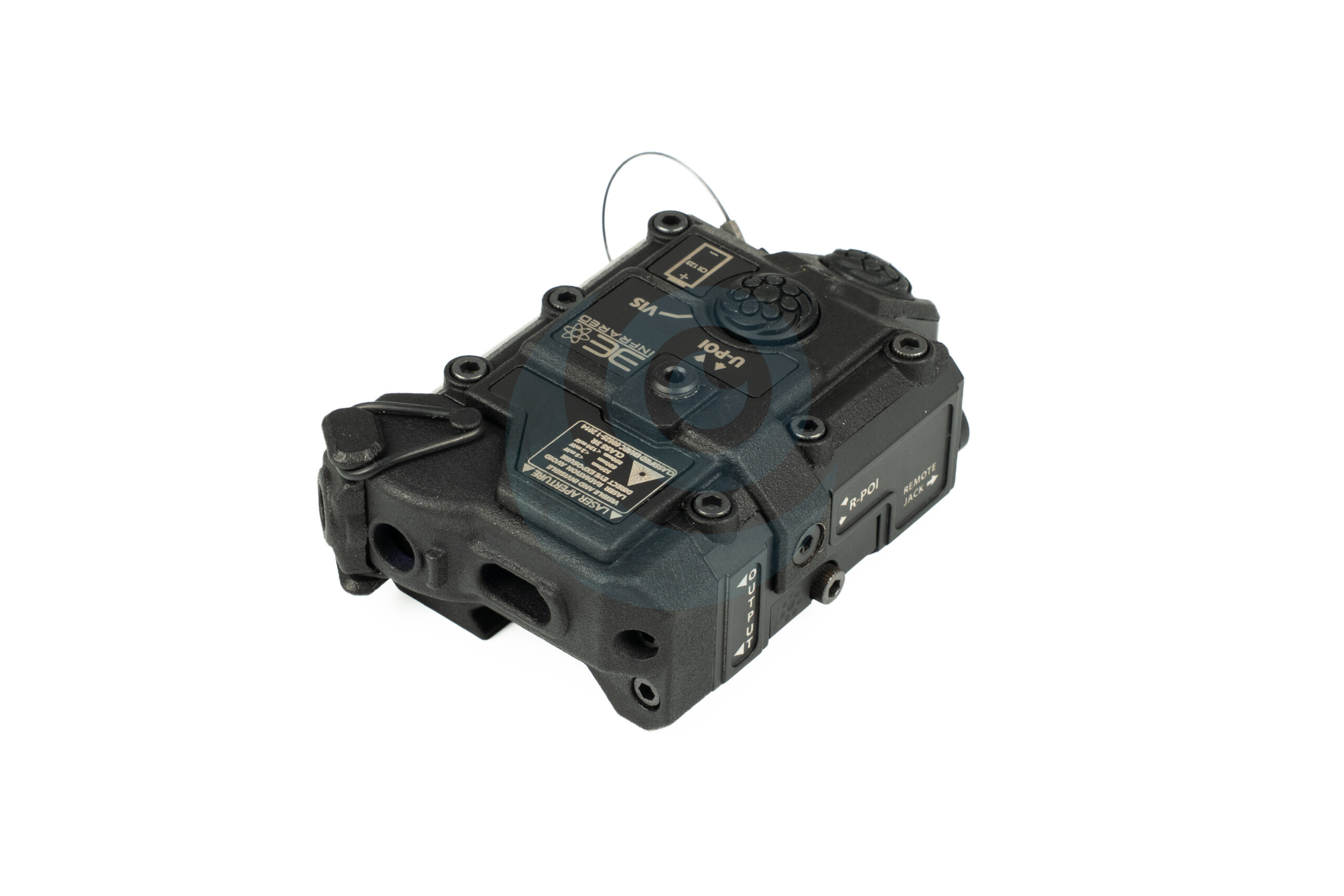

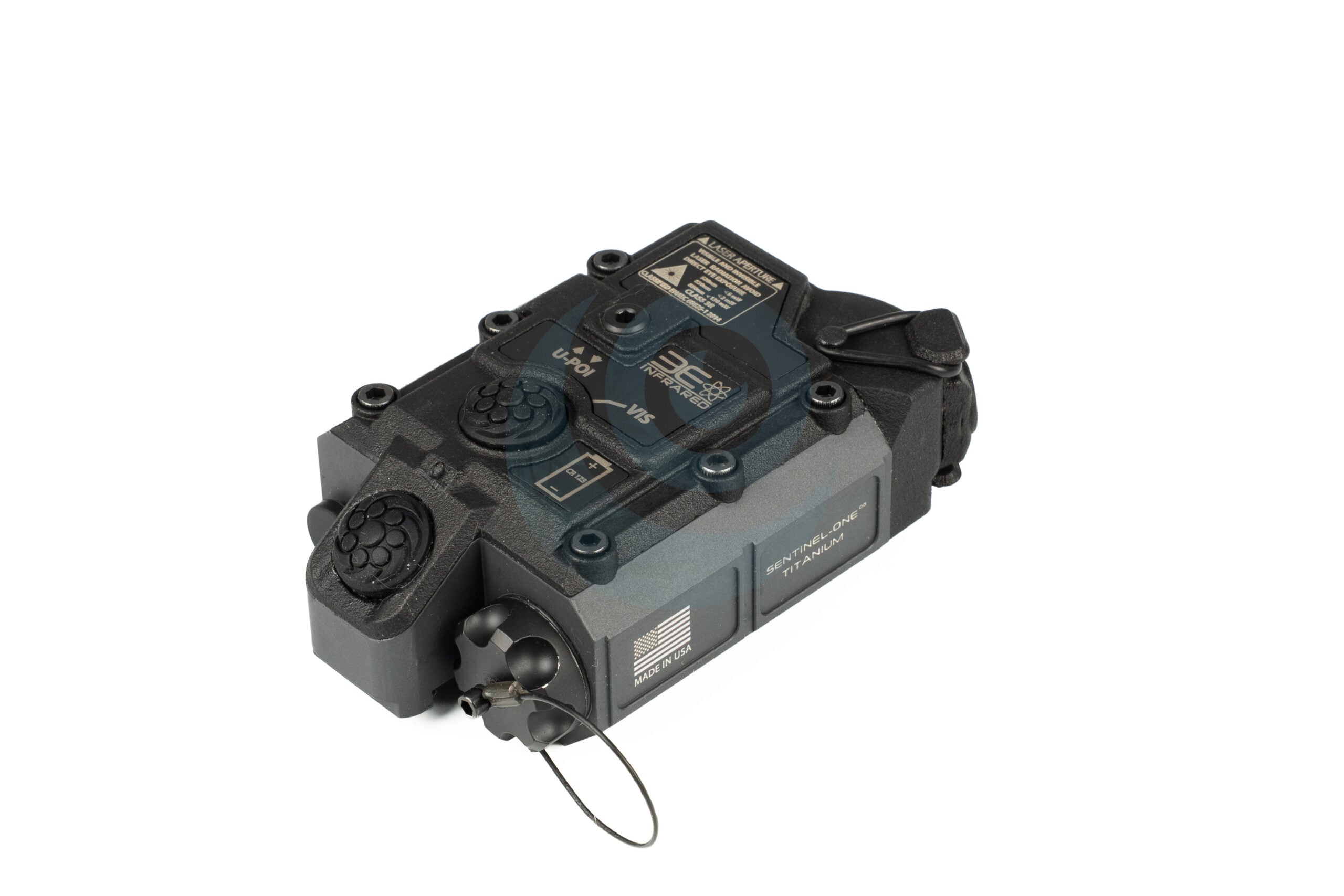

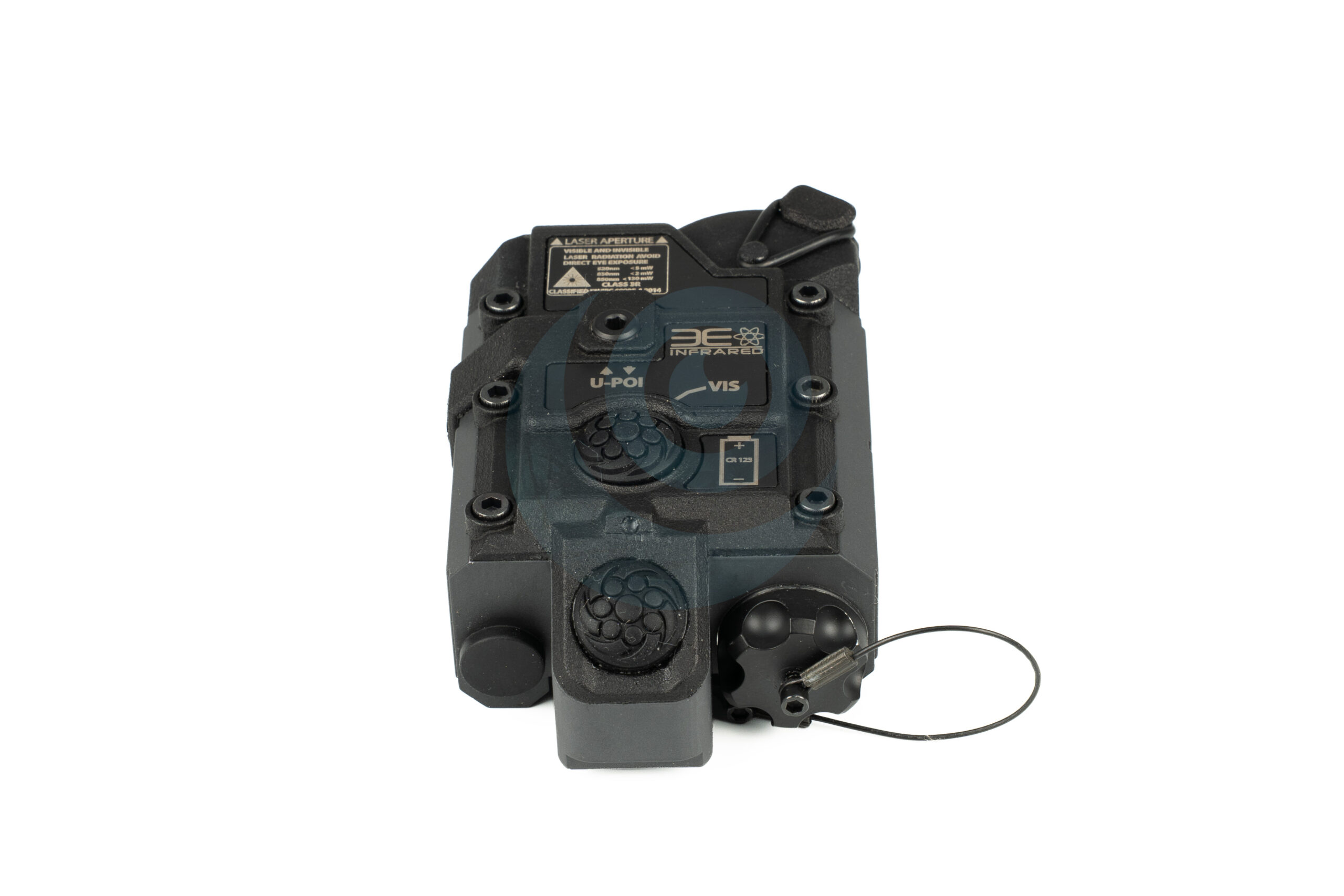

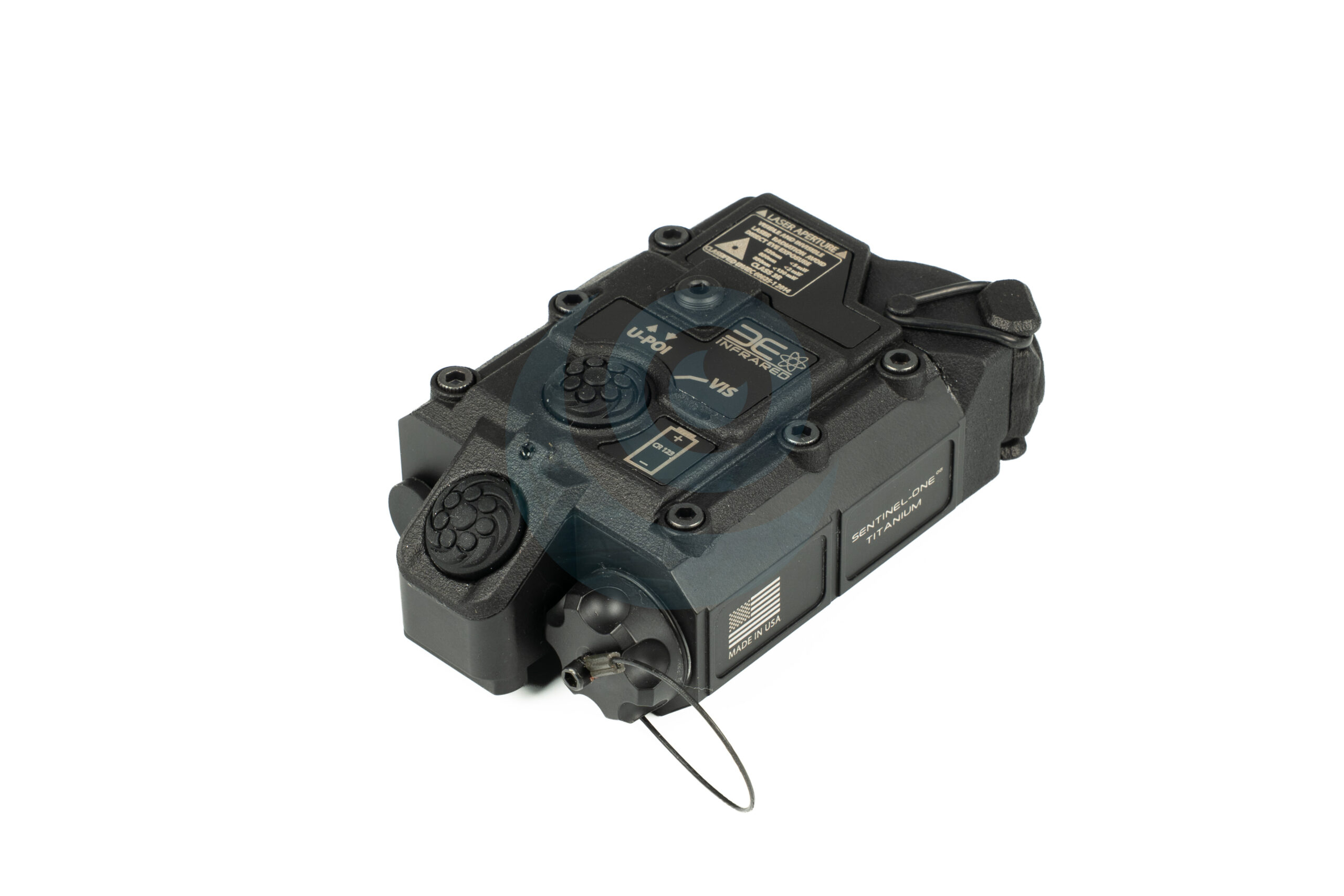

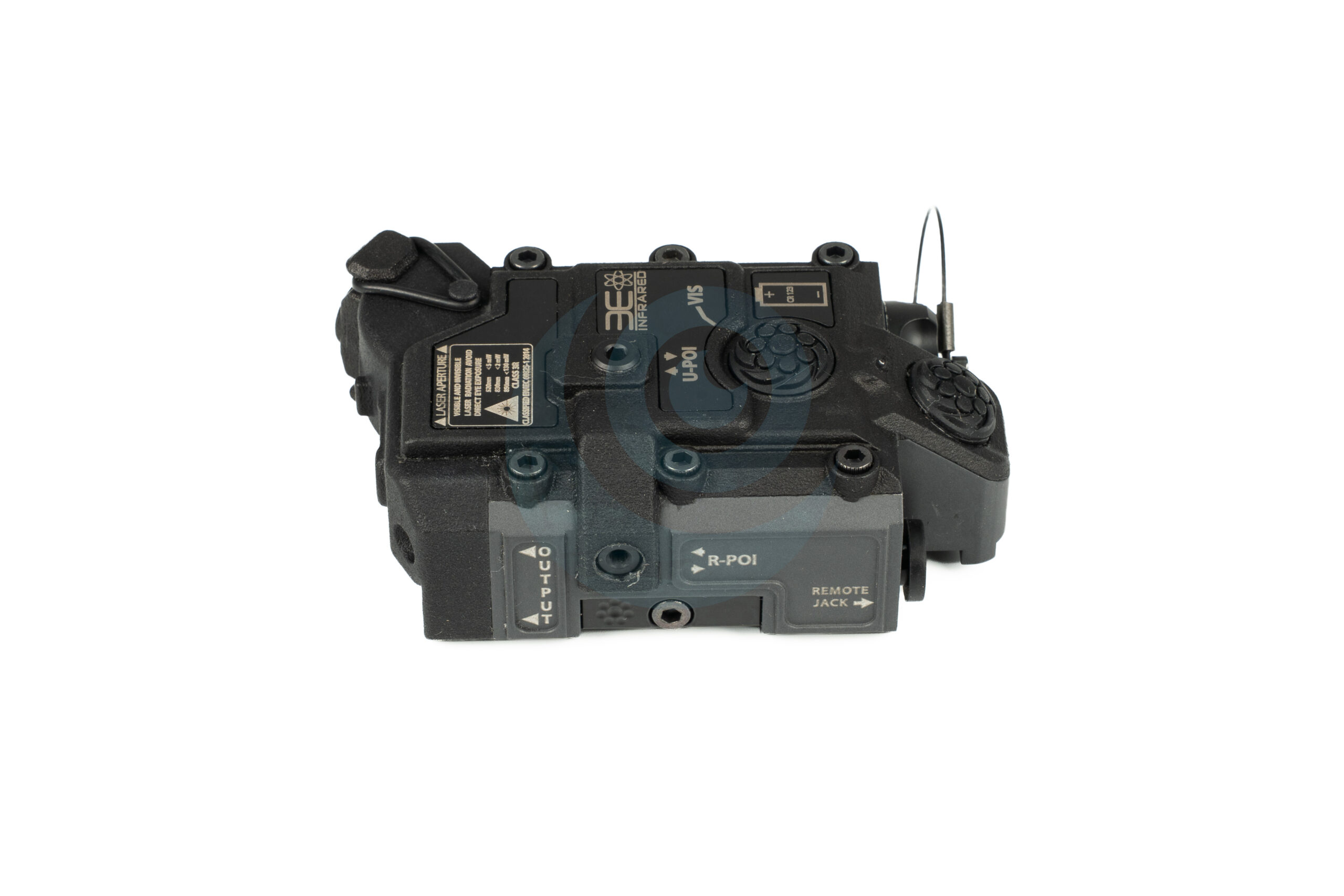

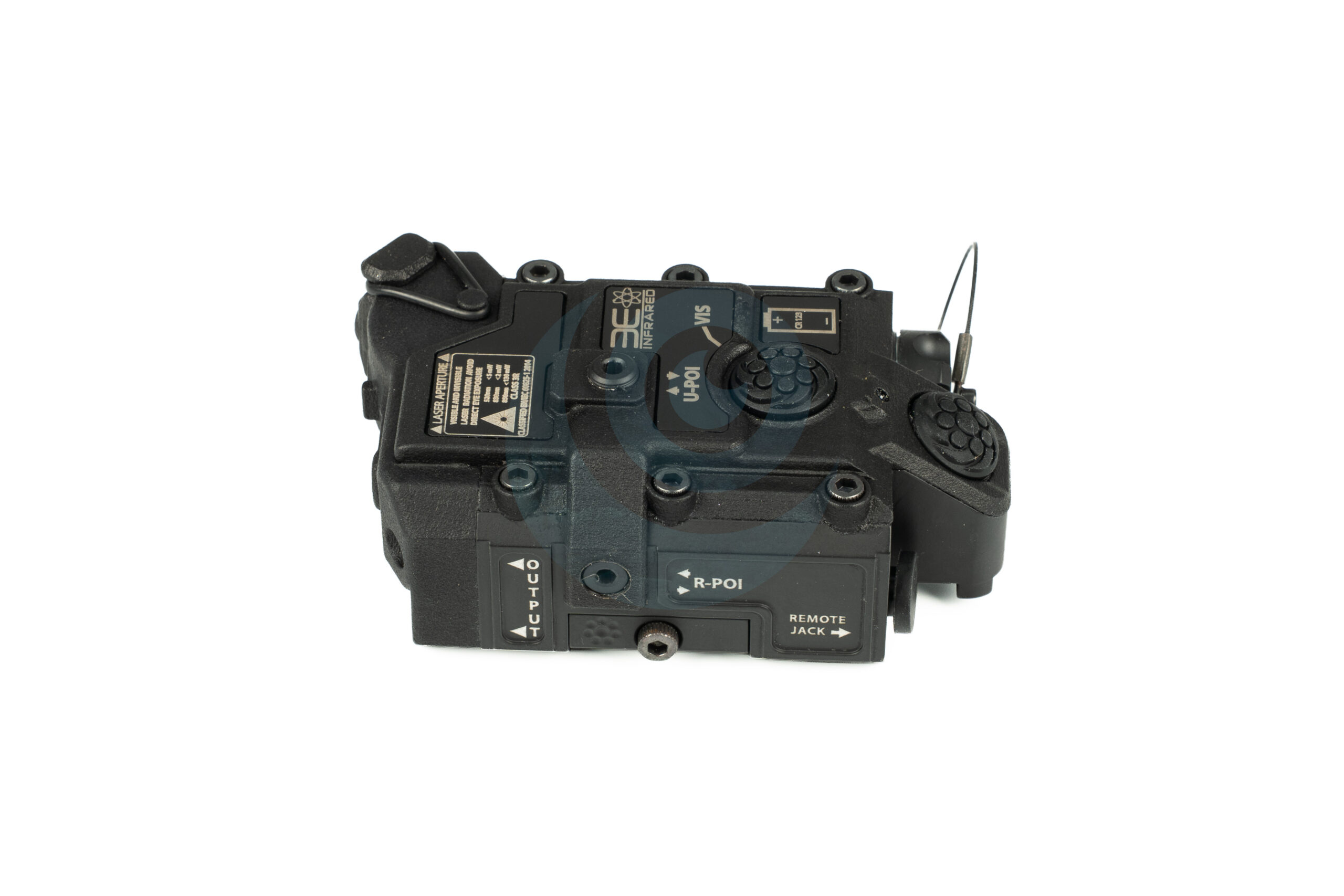

Manufactured by Three Electrons Infrared, the Sentinel-ONE OG is a laser aiming device with VCSEL illuminator packaged in an extremely durable and low profile housing.
This unit features the Three Electrons SLT or Switchless Laser Technology. Instead of a dial switch to select the mode, it has two straightforward buttons; one controls the infrared aiming laser and VCSEL illuminator, while the second controls a visible green aiming laser. A Crane compatible remote switch port actives the override green aiming laser and a CQB filter for the illuminator is built into the housing.
We also sell a larger version of this laser with mode selector switch on the laser called the Sentinel IRV.

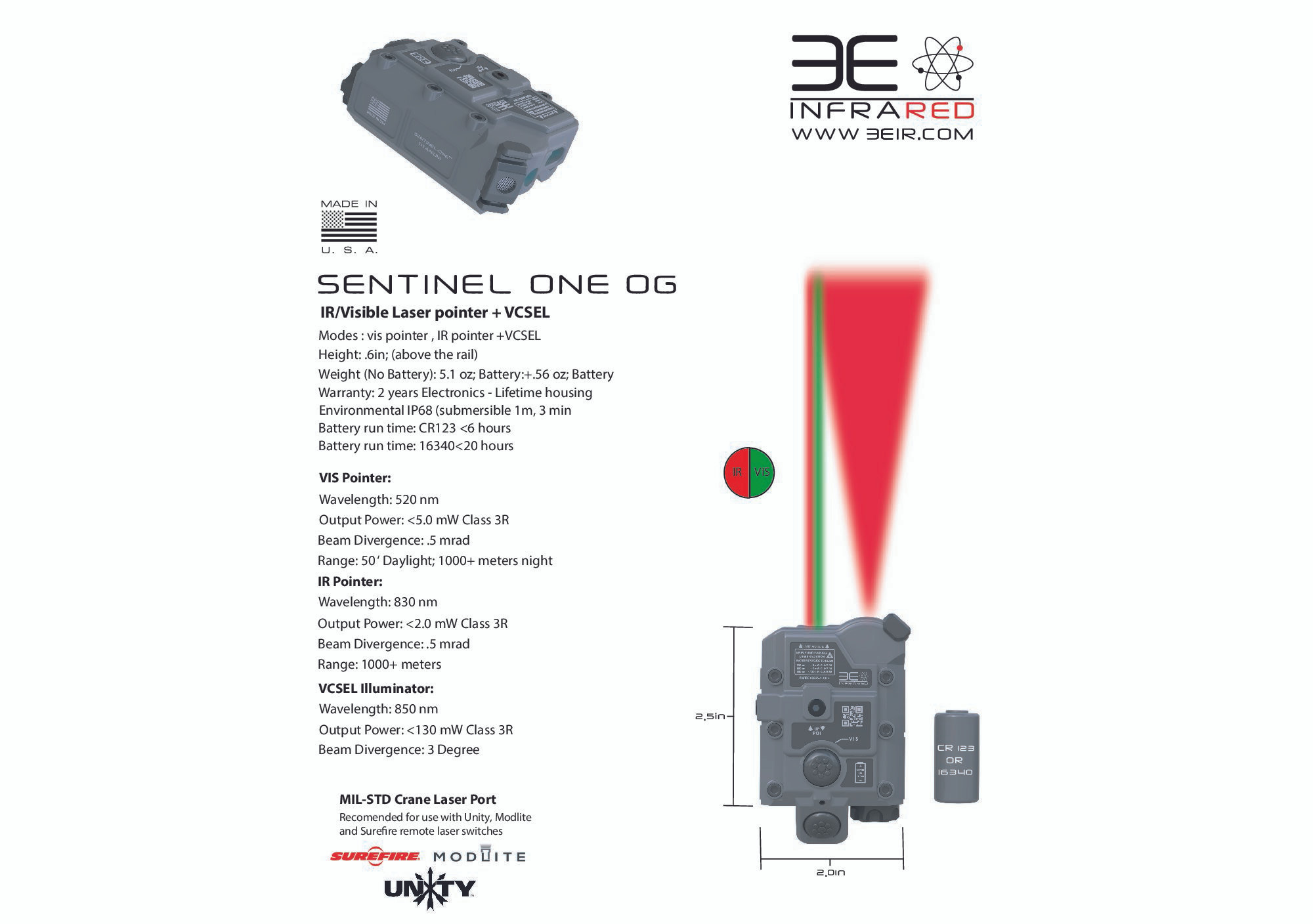

| Product Name | Sentinel-One OG |
| Modes | Off, Visible Green Laser Pointer, IR Laser, IR Pointer and VSCEL Mode, VSCEL Only |
| Size / Dimensions | L 2.43″ x W 2.04″ x H 0.6″ (above the rail) |
| Weight (No Battery) | 5.1 oz |
| Battery | (1) CR123 +0.56 oz |
| Battery Life | > 6 hours |
| Environmental Rating | IP68 (submersible 1m, 3 min.) |
| Housing Tensile Strength | 39,300 psi |
| Operating Temperature | -10ยฐC to 55ยฐC (14ยฐF to 131ยฐF) * |
| Warranty | 2 years Electronics โ Lifetime housing: cracks / water egress โ Made and technically supported in the USA |
| Visible Laser | Green |
| Output Power (Visible Laser) | > 5.0 mW Class 3R |
| Beam Divergence (Visible Laser) | 0.5 mrad |
| Wavelength (Visible Laser) | 520 nm |
| Range (Visible Laser) | > 50 m Daylight |
| IR Laser | Infrared |
| Output Power (IR Laser) | < 2.5 mW Class 3R |
| Beam Divergence (IR Laser) | 0.5 mrad |
| Wavelength (IR Laser) | 830 nm |
| Range (IR Laser) | > 1000 m |
| VCSEL Illuminator | Infrared |
| Output Power (VCSEL) | < 130 mW Class 3R |
| Beam Divergence (VCSEL) | 3 Degree |
| Wavelength (VCSEL) | 850 nm |
| Range (VCSEL) | > 300 m |
| Recommended Battery | Panasonic or Energizer CR123 Lithium |
| Ships With |
|
| Built With | Arisaka Waterproof Button and Arisaka Mount |
